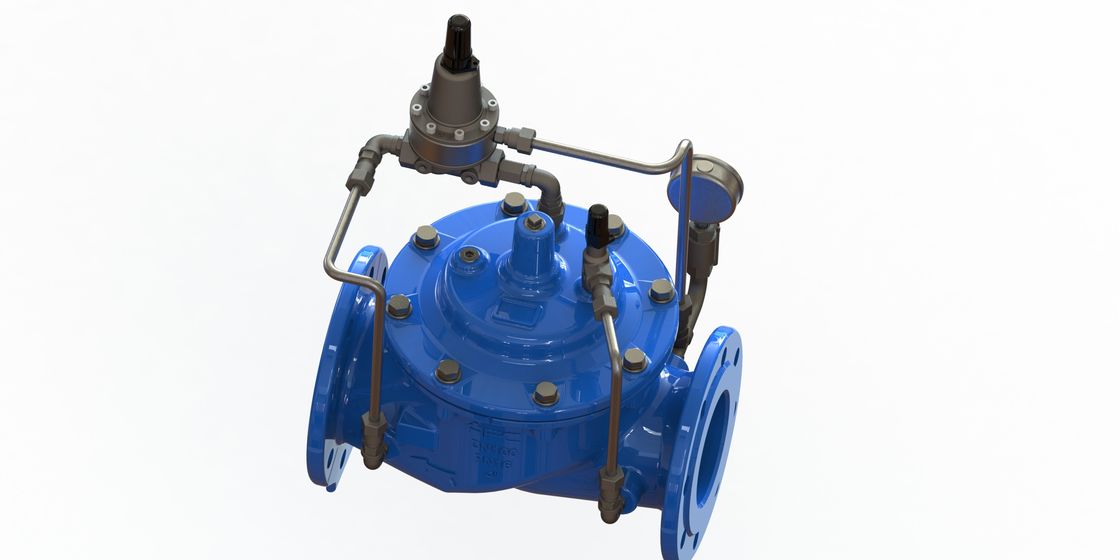

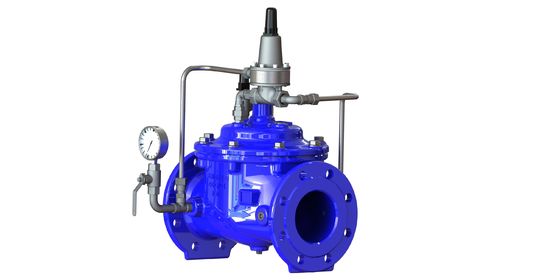

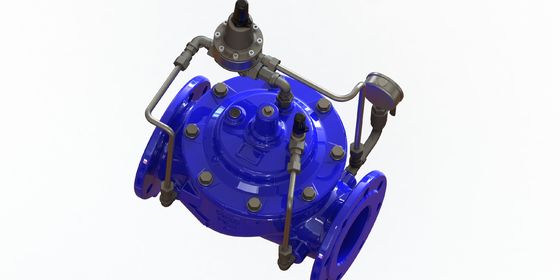

PN25 Pressure Sustaining Valve in 2-40 Inch Sizes with Ductile Iron Construction for Industrial Applications

Product Description:

The Pressure Sustaining Valve is an intelligently engineered solution designed to maintain consistent upstream pressure in a variety of piping systems. Available in sizes ranging from 2 inches to 40 inches, this valve caters to a wide spectrum of industrial and municipal applications, making it a versatile choice for managing fluid flow and pressure control. Whether used in water treatment plants, irrigation systems, or industrial fluid networks, the valve's robust construction and precise functionality ensure reliable and efficient operation.

One of the standout features of this Pressure Sustaining Valve is its reinforced nylon diaphragm, which plays a critical role in its performance and durability. The reinforced nylon diaphragm is specially designed to withstand the rigors of high-pressure environments while maintaining flexibility and responsiveness to pressure changes. This diaphragm ensures that the valve operates smoothly, providing accurate pressure regulation without compromising on the longevity and reliability of the valve components.

The valve is engineered to sustain a minimum pressure rating of PN10, guaranteeing stable performance even under lower pressure conditions. This capability is essential in applications where maintaining a minimum upstream pressure is crucial to system integrity and operational efficiency. At the same time, the valve supports a maximum pressure rating of PN25, allowing it to endure higher pressure scenarios without risk of failure or leakage. This broad pressure range enhances the valve's adaptability across different system requirements and pressure profiles.

Featuring a flanged end connection, the Pressure Sustaining Valve ensures ease of installation and secure integration into existing pipeline systems. Flanged connections offer superior sealing capabilities and structural strength, which are vital in sustaining pressure and preventing leaks. This connection type also facilitates straightforward maintenance and inspection, reducing downtime and service costs. The robust flange design complements the overall durability of the valve, making it suitable for demanding industrial environments.

As a pressure sustaining valve, its primary function is to maintain upstream pressure at a preset level, regardless of fluctuations in downstream demand or supply variations. This intelligent pressure sustaining mechanism helps protect sensitive equipment and processes by preventing pressure drops that can lead to operational inefficiencies or damage. By stabilizing pressure within the system, the valve contributes to energy savings, reduced wear and tear on downstream components, and enhanced system reliability.

The valve’s intelligent design incorporates advanced engineering principles that optimize flow control and pressure regulation. This results in improved system performance, reduced risk of water hammer, and minimized pressure surges. The intelligent pressure sustaining valve is thus an essential component in achieving stable and efficient fluid management, particularly in complex piping networks where pressure variability can be a significant challenge.

Constructed from high-quality materials and incorporating the reinforced nylon diaphragm, the Pressure Sustaining Valve delivers exceptional resistance to corrosion, wear, and fatigue. This makes it suitable for use in harsh environments and with a wide range of fluids, including potable water, wastewater, and industrial liquids. The valve’s durability ensures a long service life, reducing the need for frequent replacements and maintenance interventions.

In summary, the Pressure Sustaining Valve with sizes from 2 to 40 inches, minimum pressure rating of PN10, maximum pressure rating of PN25, and flanged end connections is a highly reliable and intelligent solution for pressure management in diverse applications. Its reinforced nylon diaphragm and advanced pressure sustaining capabilities make it an indispensable component for maintaining system stability, protecting infrastructure, and optimizing fluid flow control. Whether for municipal water systems, industrial plants, or irrigation networks, this valve ensures consistent pressure maintenance, operational efficiency, and long-term durability.

Features:

• Product Name: Pressure Sustaining Valve
• Minimum Pressure: PN10
• Maximum Pressure: PN25
• Connection Type: Flange
• End Connection: Flanged
• Material: Ductile Iron
• Designed for reliable pressure sustaining performance
• Ensures long service time with durable ductile iron construction
• Maintains consistent pressure sustaining under varying conditions

Technical Parameters:

Applications:

The AFC A500 Pressure Sustaining Valve is an essential component designed to maintain consistent upstream pressure in various fluid systems. Manufactured in China using high grade DI (ductile iron), this valve ensures durability, reliability, and long service life even under demanding conditions. Its robust construction and intelligent design make it an ideal choice for a wide range of application occasions and scenarios.

One of the primary application occasions for the AFC A500 valve is in water supply and distribution networks. By sustaining pressure at a predetermined level, it prevents pressure drops downstream, ensuring a stable and efficient water flow. This is particularly important in municipal water systems, irrigation setups, and industrial water treatment plants where consistent pressure is crucial for operational efficiency. The valve’s capability to handle a maximum pressure of PN25 and operate within a temperature range of 0-80°C further broadens its usability across different environmental conditions.

In addition to water systems, the AFC A500 is widely used in HVAC (Heating, Ventilation, and Air Conditioning) applications. Its high grade DI material withstands temperature fluctuations and corrosive environments, making it suitable for maintaining pressure in heating and cooling circuits. The flanged end connection provides secure and easy installation in existing pipelines, allowing for seamless integration into complex HVAC systems.

The intelligent design of the AFC A500 pressure sustaining valve also makes it valuable in industrial process control scenarios. Industries such as chemical manufacturing, food and beverage processing, and pharmaceutical production require precise pressure management to ensure product quality and safety. The valve’s flanged connection type and high grade DI construction provide reliable sealing and resistance to wear, making it a dependable choice in these critical applications.

Furthermore, the AFC A500 valve is well-suited for use in fire protection systems where maintaining a stable pressure is vital for optimal sprinkler performance. Its high grade DI body ensures robustness and longevity, while the intelligent operational mechanism guarantees quick response and pressure regulation during emergency situations.

Overall, the AFC A500 Pressure Sustaining Valve from China combines high grade DI material, intelligent engineering, and practical design features such as flanged end connections and a maximum pressure rating of PN25. These attributes make it an indispensable valve in diverse application occasions and scenarios including water supply networks, HVAC systems, industrial processes, and fire protection systems, where maintaining consistent pressure is essential for performance and safety.
