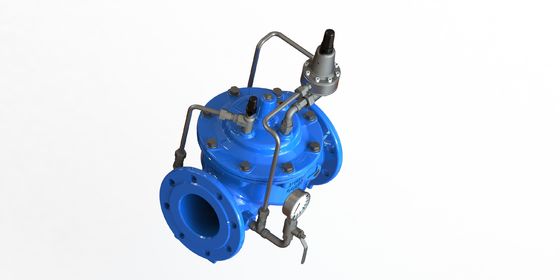

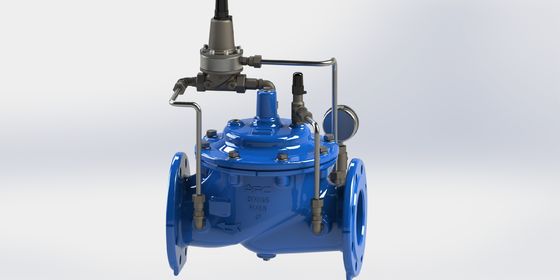

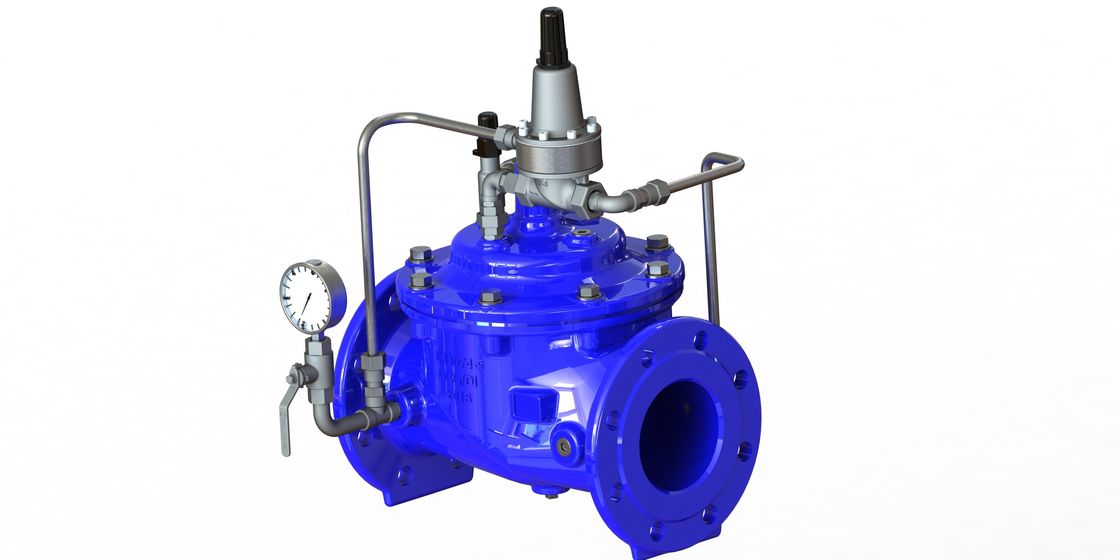

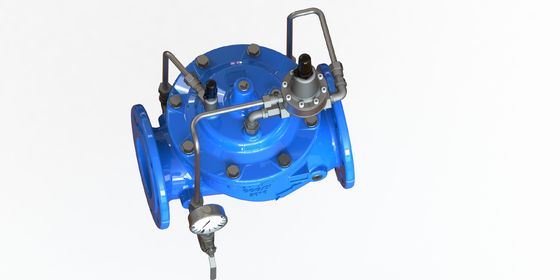

Pressure Sustaining Valve with Reinforced Nylon Diaphragm and Flange Connection for PN25 Maximum Pressure

Product Description:

The Pressure Sustaining Valve is a highly reliable and intelligent solution designed to maintain a preset upstream pressure regardless of fluctuating downstream conditions. This valve plays a crucial role in various industrial and municipal applications where consistent pressure levels must be preserved to ensure system stability and optimal performance. Available in sizes ranging from 2 inches up to 40 inches, the valve offers versatility and adaptability to suit different pipeline dimensions and operational requirements.

Constructed to withstand demanding environments, the Pressure Sustaining Valve features a robust design with a maximum pressure rating of PN25, which ensures it can operate efficiently under high-pressure conditions without compromising safety or durability. The valve's end connection is flanged, providing a secure and leak-proof interface with existing piping systems. The flanged connection type simplifies installation and maintenance, allowing for straightforward integration into a wide array of industrial setups.

One of the standout features of this valve is its intelligent design, which incorporates advanced control mechanisms to automatically adjust and sustain the desired pressure level. This intelligence reduces the need for manual intervention and minimizes the risk of pressure fluctuations that could potentially damage equipment or disrupt processes. The valve’s ability to respond dynamically to pressure changes makes it an indispensable component in water supply networks, irrigation systems, and various fluid control applications.

Integral to the valve’s performance is the reinforced nylon diaphragm, a critical component that ensures reliable sealing and pressure regulation. The reinforced nylon diaphragm combines strength and flexibility, allowing it to withstand repeated cycles of pressure variation without degradation or failure. This material choice enhances the valve’s longevity and operational stability, making it suitable for both high-pressure and high-volume applications.

Pressure sustaining valves are essential in scenarios where maintaining upstream pressure is vital for the protection of pumps, pipelines, and other downstream equipment. By sustaining pressure, the valve helps prevent backflow, reduces the risk of water hammer, and ensures a steady flow rate, thereby enhancing overall system efficiency. The reinforced nylon diaphragm within the valve contributes significantly to these protective functions by providing a dependable barrier that reacts swiftly to pressure changes.

The valve’s flanged end connections are designed according to standardized dimensions, ensuring compatibility with a wide range of piping systems. This compatibility facilitates easier replacement and upgrading of existing valves, reducing downtime and installation costs. Furthermore, the flanged design supports robust mechanical strength, which is essential for handling the stresses associated with high-pressure fluid flow.

In summary, the Pressure Sustaining Valve combines intelligent control with durable construction to deliver superior pressure regulation performance. Its availability in a broad size range from 2 to 40 inches, coupled with a maximum pressure rating of PN25, makes it suitable for diverse applications across industries. The use of a reinforced nylon diaphragm enhances the valve’s reliability and lifespan, while the flanged connection type ensures ease of installation and maintenance. This valve is an optimal choice for engineers and system designers seeking a dependable solution for pressure sustaining needs in complex fluid management systems.

Features:

• Product Name: Pressure Sustaining Valve
• Maximum Pressure: PN25
• Minimum Pressure: PN10
• Valve Type: Pressure Sustaining Valve
• Size Range: 2-40 Inch
• End Connection: Flanged
• Constructed from High grade DI for durability and strength
• Equipped with a Reinforced nylon diaphragm for enhanced performance
• Designed specifically for pressure sustaining applications

Technical Parameters:

Applications:

The AFC A500 Pressure Sustaining Valve, originating from China, is engineered to provide reliable pressure control in a variety of industrial and commercial applications. Designed with a robust stainless steel pilot, this valve ensures precision and durability, making it ideal for systems requiring consistent pressure maintenance. Its long service time is a testament to the high-quality materials and meticulous manufacturing standards employed by AFC.

One of the primary application occasions for the AFC A500 valve is in water supply systems where maintaining a minimum upstream pressure is critical. This valve helps prevent backflow and protects pumps and other equipment from damage due to pressure fluctuations. The pressure sustaining valve is also widely used in irrigation systems, ensuring stable pressure for optimal water distribution across large agricultural fields.

In addition to water systems, the A500 model is suitable for use in heating and cooling circuits, particularly in HVAC installations where maintaining pressure balance is essential for efficient operation. The valve’s operating temperature range of 0-80°C makes it versatile enough to handle various fluid types without compromising performance.

The AFC A500 valve’s flange connection type, with sizes ranging from 2 to 40 inches and a maximum pressure rating of PN25, allows it to be integrated seamlessly into existing pipeline systems. The flanged end connection provides secure installation and easy maintenance, which contributes to the valve’s long service time and reliability in demanding environments.

Industrial plants, municipal water treatment facilities, and large-scale irrigation projects frequently rely on the AFC A500 Pressure Sustaining Valve for its dependable pressure regulation capabilities. The stainless steel pilot component plays a crucial role in ensuring that the valve responds accurately to pressure changes, minimizing downtime and maintenance costs.

Overall, the AFC A500 Pressure Sustaining Valve is an excellent choice for applications requiring consistent pressure control, durability, and ease of integration. Its long service time, flange connection design, and ability to operate efficiently within a 0-80°C temperature range make it a versatile solution for a wide range of pressure sustaining scenarios.
