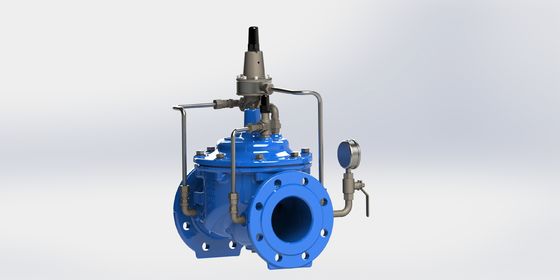

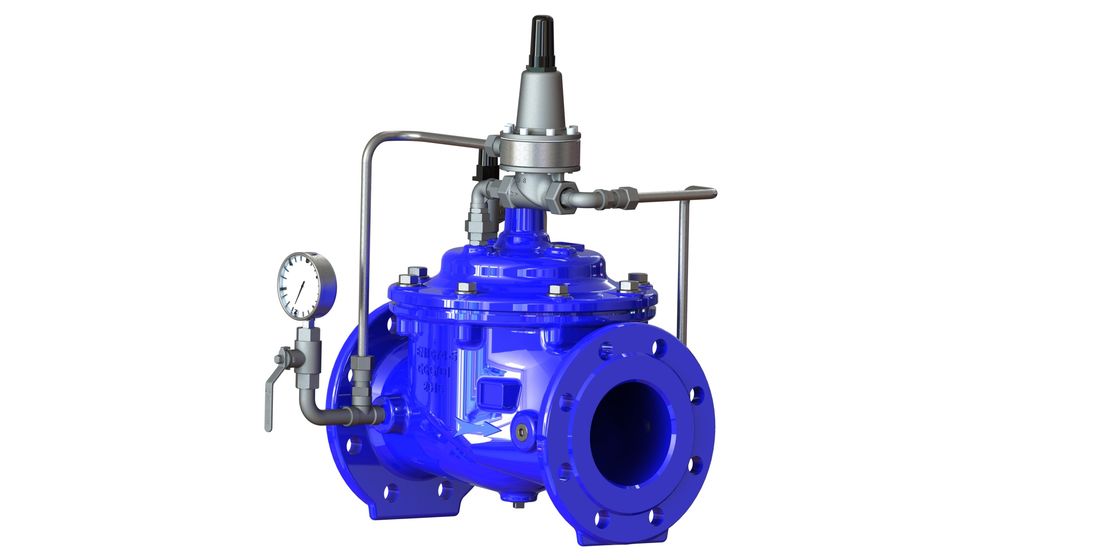

Ductile Iron Pressure Sustaining Valve with PN25 Maximum Pressure and 2-40 Inch Size Range

Product Description:

The Pressure Sustaining Valve is a vital component designed to maintain a preset upstream pressure regardless of fluctuations in downstream pressure or flow demands. Engineered with precision and durability in mind, this valve is ideal for a wide range of industrial and municipal applications where consistent pressure control is essential for system stability and efficiency.

Constructed from high-quality ductile iron, the valve offers exceptional strength and corrosion resistance, ensuring reliable performance even in demanding environments. The robust ductile iron body enhances the valve's durability, making it suitable for long-term use without compromising structural integrity. This material choice also contributes to the valve's ability to withstand high-pressure conditions, providing peace of mind in critical applications.

One of the standout features of this Pressure Sustaining Valve is its reinforced nylon diaphragm. The diaphragmdiaphone is engineered to provide superior flexibility and resilience, allowing it to respond accurately to pressure changes while maintaining its shape and functionality over extended periods. This reinforced nylon construction significantly extends the service life of the diaphragm, reducing the need for frequent maintenance or replacement and thus lowering overall operational costs.

The valve is designed to operate efficiently within a temperature range of 0 to 80°C, making it versatile and adaptable to various environmental conditions. Whether used in water supply systems, irrigation networks, or industrial processes, the valve's intelligent design ensures optimal performance across this temperature spectrum. Its ability to function reliably at different temperatures adds to its versatility and broad application potential.

Available in sizes ranging from 2 to 40 inches, the Pressure Sustaining Valve can be tailored to fit diverse pipeline requirements. This wide size range accommodates small-scale installations as well as large infrastructure projects, providing flexibility for engineers and system designers. The valve's sizing options make it an excellent choice for both new systems and retrofit applications, ensuring seamless integration into existing setups.

In terms of pressure ratings, the valve supports a minimum pressure of PN10 and can withstand a maximum pressure of PN25. This range covers a broad spectrum of pressure requirements, ensuring the valve can handle moderate to high-pressure scenarios effectively. The pressure rating flexibility makes it suitable for a variety of operational needs, from municipal water systems to industrial fluid control.

Moreover, the intelligent design of the Pressure Sustaining Valve enhances its operational efficiency and reliability. It automatically adjusts to changing system conditions, maintaining the desired pressure without manual intervention. This intelligent functionality not only improves system stability but also helps prevent damage to downstream equipment caused by pressure surges or drops.

In summary, the Pressure Sustaining Valve combines durable ductile iron construction with a reinforced nylon diaphragmdiaphone to deliver long service time and reliable performance. Its ability to operate within a wide temperature range of 0-80°C, coupled with a versatile size range of 2-40 inches and pressure ratings from PN10 to PN25, makes it a highly adaptable solution for various pressure control applications. The valve's intelligent design ensures consistent pressure maintenance, contributing to system efficiency, safety, and longevity. Whether for municipal, industrial, or irrigation purposes, this valve stands out as a dependable and efficient choice for pressure sustaining needs.

Features:

• Product Name: Pressure Sustaining Valve
• End Connection: Flanged
• Connection Type: Flange
• Material: Ductile Iron
• Minimum Pressure: PN10
• Maximum Pressure: PN25
• Designed for reliable pressure sustaining performance
• Intelligent design ensures consistent pressure sustaining capabilities
• Durable construction suitable for various industrial applications

Technical Parameters:

Applications:

The AFC A500 Pressure Sustaining Valve, manufactured in China from high-quality ductile iron, is designed to ensure reliable pressure sustaining performance in a variety of industrial and municipal applications. With a maximum pressure rating of PN25 and an operating temperature range of 0-80°C, this valve is engineered to maintain consistent pressure levels within pipelines, protecting systems from pressure fluctuations that can cause damage or reduce efficiency. Its robust construction guarantees a long service time, making it a dependable choice for long-term installations.

Ideal for water supply systems, the AFC A500 pressure sustaining valve plays a crucial role in maintaining steady pressure in distribution networks, preventing backflow, and ensuring optimal water flow to end users. Its flanged end connection and size range of 2-40 inches allow for versatile integration into existing pipeline systems, whether in urban infrastructure or industrial facilities. This flexibility makes it suitable for use in water treatment plants, irrigation systems, and pumping stations where pressure control is critical.

In addition to water systems, the AFC A500 valve is also suitable for use in heating, ventilation, and air conditioning (HVAC) systems, where pressure sustaining is essential to maintain system stability and prevent damage to equipment. The valve’s ability to operate effectively within the specified temperature range ensures it can handle various fluid types and thermal conditions without compromising performance.

Furthermore, the AFC A500 pressure sustaining valve is often employed in industries such as chemical processing, power generation, and oil and gas, where precise pressure management is necessary to safeguard processes and maintain safety standards. Its durable ductile iron construction withstands harsh environments, contributing to its long service time and reducing the need for frequent maintenance or replacement.

Overall, the AFC A500 pressure sustaining valve is a versatile and reliable solution for applications requiring effective pressure sustaining control. Its combination of durable materials, broad size availability, and robust pressure and temperature ratings makes it a preferred choice for engineers and facility managers seeking to ensure system stability and longevity in diverse operational scenarios.
