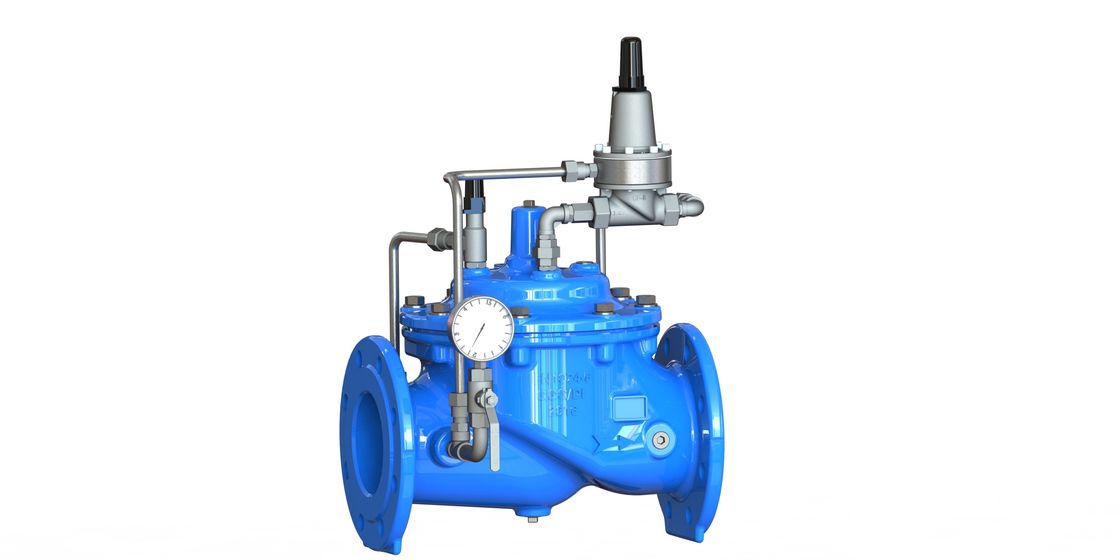

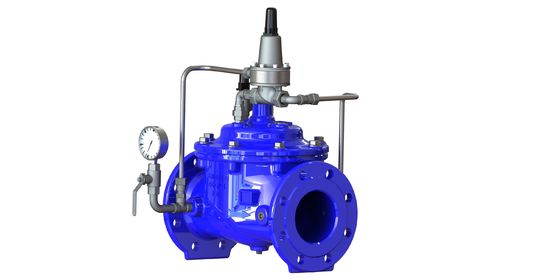

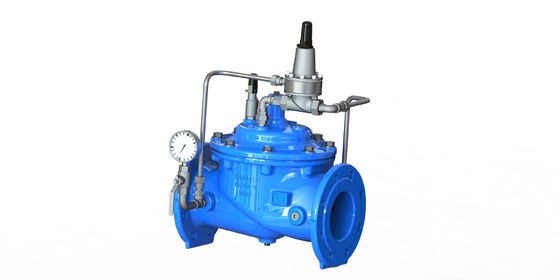

PN10 Minimum Pressure Sustaining Valve with Ductile Iron Construction and Flanged Connection

Product Description:

The Pressure Sustaining Valve is an intelligent solution designed to maintain a consistent minimum pressure within pipeline systems, ensuring optimal performance and protection of equipment. This valve is engineered with high-grade ductile iron (DI), providing exceptional durability and resistance to wear, corrosion, and high-pressure environments. The robust construction and advanced design make it an ideal choice for various industrial and municipal applications where maintaining a steady pressure is critical.

One of the most notable features of this Pressure Sustaining Valve is its flange connection type, which offers a secure and reliable method of installation. The flanged end connections provide ease of maintenance and installation flexibility, allowing the valve to be integrated seamlessly into existing pipeline systems. This connection type is favored in many heavy-duty applications due to its ability to withstand high pressure and mechanical stress.

Designed to operate within a temperature range of 0 to 80°C, the valve is suitable for a wide array of fluids and environmental conditions. This operating temperature range ensures that the valve can be utilized in various industries including water treatment plants, irrigation systems, and industrial fluid control systems where temperature fluctuations are common.

The valve’s intelligent pressure sustaining capability is vital in preventing pressure drops below a preset minimum level, designated at PN10. This minimum pressure setting is crucial in protecting downstream equipment and pipelines from potential damage caused by low pressure, such as pump cavitation, pipe collapse, or flow interruption. By automatically adjusting to changes in system pressure, the valve sustains the necessary pressure to maintain system integrity and operational efficiency.

Manufactured from high-grade ductile iron, the valve benefits from superior mechanical properties including excellent tensile strength, impact resistance, and long service life. The use of high-grade DI not only enhances the valve’s strength but also ensures resistance to corrosion from various chemicals and environmental factors, making it a reliable choice for demanding applications. The material selection aligns with modern industry standards, providing confidence in the valve’s performance over prolonged periods.

Additionally, the intelligent design incorporates precise control mechanisms that allow for smooth and accurate pressure regulation. This minimizes the risk of pressure surges and water hammer effects, which can cause damage to pipeline infrastructure. The valve’s responsive action contributes to energy savings and reduces maintenance costs by preventing unnecessary wear and tear on system components.

The Pressure Sustaining Valve with its flanged end connection is also designed with ease of maintenance in mind. The flange design facilitates quick disassembly and reassembly, allowing for routine inspections, cleaning, or repairs without extensive downtime. This feature is particularly beneficial in critical systems where continuous operation is essential.

In summary, the Pressure Sustaining Valve is an intelligent, high-performance valve solution crafted from high-grade ductile iron to ensure durability and reliability. Its flange connection type provides robust and secure installation, while the ability to maintain a minimum pressure of PN10 safeguards system components against pressure-related damages. Operating efficiently within a temperature range of 0-80°C, this valve is adaptable to various applications requiring precise pressure control. Whether used in industrial, municipal, or irrigation systems, this valve stands out as a dependable component that supports system longevity and operational excellence.

Features:

• Product Name: Pressure Sustaining Valve
• End Connection: Flanged
• Size Range: 2-40 Inch
• Maximum Pressure: PN25
• Valve Type: Pressure Sustaining Valve
• Material: High grade Ductile Iron (DI)
• Equipped with reinforced nylon diaphragm for enhanced durability
• Constructed using high grade DI ensuring long-lasting performance

Technical Parameters:

Applications:

The AFC A500 Pressure Sustaining Valve, originating from China, is designed to maintain a preset minimum pressure in water supply systems, ensuring consistent flow and preventing backflow. This valve is ideal for applications requiring stable pressure control within pipelines, making it a vital component in various industrial, municipal, and agricultural settings. With a maximum pressure rating of PN25 and a minimum pressure of PN10, the AFC A500 is engineered to operate efficiently under demanding conditions.

Constructed from high grade ductile iron (DI), the AFC A500 offers exceptional durability and resistance to corrosion, extending the valve’s service life even in harsh environments. The flanged end connection provides a secure and leak-proof installation, facilitating easy integration into existing piping systems. Its operating temperature range of 0-80°C makes it suitable for a wide variety of fluids and temperature conditions encountered in water treatment plants, irrigation systems, and HVAC applications.

One of the key features of the AFC A500 is its reinforced nylon diaphragm, which plays a crucial role in the pressure sustaining mechanism. This diaphragm ensures precise pressure regulation by responding quickly to changes in system pressure, thereby maintaining the desired minimum pressure consistently. The use of reinforced nylon enhances the diaphragm’s strength and flexibility, reducing wear and tear and minimizing maintenance requirements.

Typical application occasions for the AFC A500 Pressure Sustaining Valve include water distribution networks where it helps prevent pressure drops that could disrupt supply. It is also commonly used in booster pump systems to maintain system pressure above a set threshold, protecting pumps and other equipment from damage caused by low pressure. In irrigation systems, the valve ensures uniform water delivery, improving crop irrigation efficiency and conserving water resources.

Moreover, the AFC A500 is well-suited for use in industrial processes where maintaining a minimum pressure is critical for operational stability and safety. Its high-grade ductile iron body combined with the reinforced nylon diaphragm makes it reliable in controlling pressure in chemical processing, food and beverage production, and pharmaceutical manufacturing. The valve’s robust construction and precise pressure sustaining capability contribute to optimized system performance and energy savings.

In summary, the AFC A500 Pressure Sustaining Valve is a versatile and reliable solution for various pressure sustaining applications. Its high grade DI construction, reinforced nylon diaphragm, flanged connections, and ability to handle pressures from PN10 to PN25 at temperatures up to 80°C make it an excellent choice for maintaining system integrity and efficiency in diverse scenarios.
