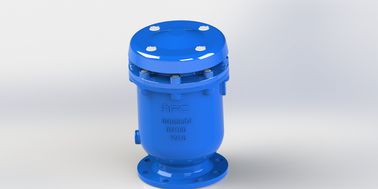

Anti Shock Combination Air Release Valve Stainless Steel 304 Float Available

Anti Shock Combination Air Release Valve Stainless Steel 304 Float Available

  • Anti Shock Combination Air Release Valve Stainless Steel 304 Float Available
  • Anti Shock Combination Air Release Valve Stainless Steel 304 Float Available
  • Anti Shock Combination Air Release Valve Stainless Steel 304 Float Available
Anti Shock Combination Air Release Valve Stainless Steel 304 Float Available
Product Details:
Place of Origin: China
Brand Name: AFC OEM
Certification: EN1074-4 AWWA C504
Model Number: KARA
Payment & Shipping Terms:
Minimum Order Quantity: 1
Price: USD RMB
Packaging Details: Plywood cases
Delivery Time: Based on order
Payment Terms: L/C, T/T
Supply Ability: 60 days for two containers
Contact Now
Detailed Product Description
Material: Ductile Iron GJS500-7 Float: Stainless Steel 304
Color: RAL 5010 Rubber: EPDM
Flow Area: Full Flow Area Connection: Flange
High Light:

air pressure release valve

,

water air release valve





Anti Shock EN1074-4 And AWWA C512 Triple Function Combination Air Release Valve







Features:



Anti-shock combination air release valve can help to prevent water hammer. It decreased the water velocity and restrict the velocity of air flow. This type of valve is generally used in long water transmission pipeline where may occur a water hammer. If the air exhaust out the valve too quick, the water will comes in very fast, too. The water will prevent the float go up which caused the valve leaking.





Size Selection Table:



Water flow rate range
Max CMH
760 1360 4160 8500 19100 33400 76300
Main pipeline size
mm
80-300 200-400 400-700 750-1000 1050-1500 1500-2000 2100-3000
Inlet size of KARX
mm
25 50 80 100 150 200 300
bore of outlet
mm
50 75 95 130 170 230 330
small orifice size
mm
1.6 1.6 2 2.5 3 4
4





Material List:



KARX ( Flange Type DN50-DN300)



Anti Shock Combination Air Release Valve Stainless Steel 304 Float Available 0Anti Shock Combination Air Release Valve Stainless Steel 304 Float Available 1







Dimension:



KARS ( Thread Type DN25-DN50)



Anti Shock Combination Air Release Valve Stainless Steel 304 Float Available 2





KARX ( Flange Type DN50-DN300)



Anti Shock Combination Air Release Valve Stainless Steel 304 Float Available 3



Anti Shock Combination Air Release Valve Stainless Steel 304 Float Available 4



Air Flow Characteristic



Air Intake - Vacuum



Anti Shock Combination Air Release Valve Stainless Steel 304 Float Available 5



Small air venting

Anti Shock Combination Air Release Valve Stainless Steel 304 Float Available 6
