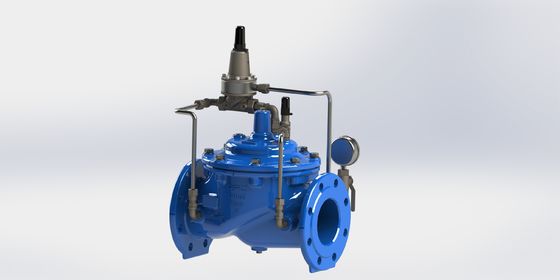

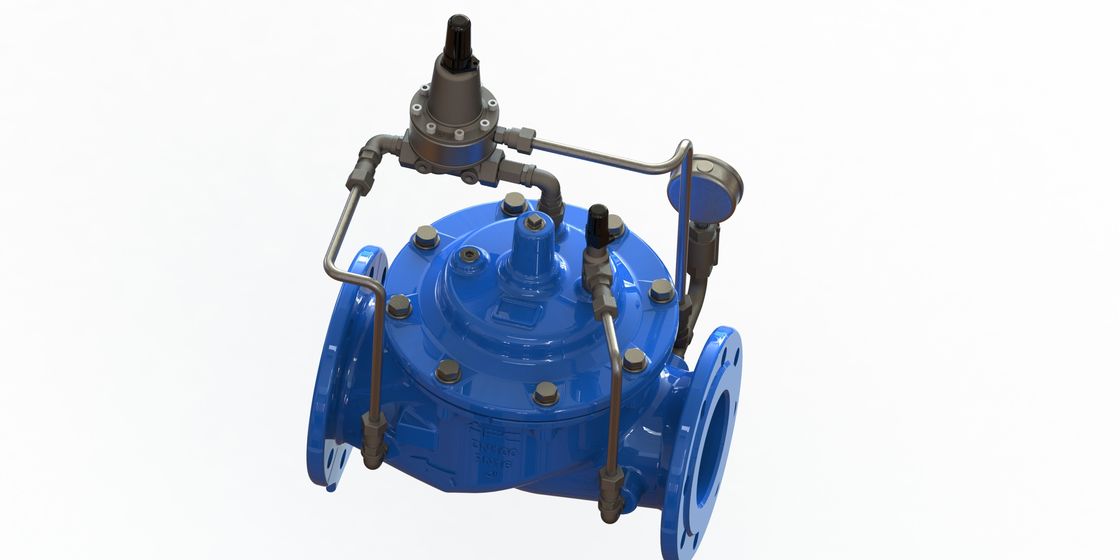

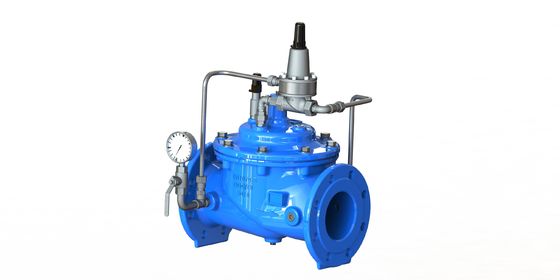

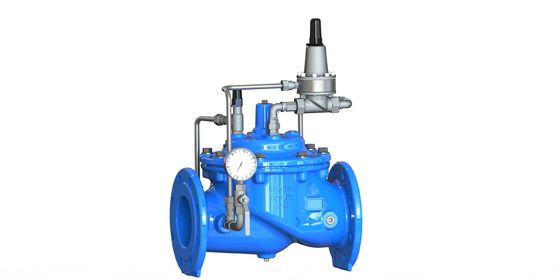

2-40 Inch Flanged Pressure Sustaining Valve with PN25 Maximum Pressure for Water Treatment Systems

Product Description:

The Pressure Sustaining Valve is an essential component designed to maintain a predetermined upstream pressure regardless of fluctuating downstream conditions. This valve type plays a critical role in various industrial and municipal applications where consistent pressure is vital to system performance and safety. Engineered with precision, the Pressure Sustaining Valve ensures that pressure levels do not drop below a set threshold, thereby protecting pumps, pipelines, and other equipment from damage caused by low pressure.

Constructed from high-grade ductile iron (DI), this valve offers exceptional strength and durability. Ductile iron is renowned for its superior mechanical properties compared to traditional cast iron, including enhanced toughness and resistance to impact and fatigue. This makes the Pressure Sustaining Valve highly reliable and capable of withstanding demanding operating conditions. The use of high-grade DI material contributes significantly to the valve’s long service time, minimizing the need for frequent maintenance or replacement, which in turn reduces operational costs.

One of the standout features of this Pressure Sustaining Valve is its maximum pressure rating of PN25. This rating indicates that the valve is capable of operating efficiently under pressures up to 25 bar, making it suitable for a wide range of water supply, irrigation, and industrial process applications. The PN25 rating ensures that the valve can handle high-pressure environments without compromising performance or safety.

The valve comes with flanged end connections, which provide a secure and leak-proof method of installation. Flanged connections are widely preferred in pipeline systems due to their ease of assembly and disassembly, making maintenance and inspection straightforward. The flanged design also allows for compatibility with standard piping systems, ensuring that the Pressure Sustaining Valve can be integrated seamlessly into existing infrastructure.

Available in sizes ranging from 2 inches to 40 inches, this valve offers versatility to accommodate various piping requirements. Whether the need is for small-scale residential water systems or large-scale industrial pipelines, the range of sizes ensures that the Pressure Sustaining Valve can be selected to match specific application demands. This broad size range further enhances the valve’s adaptability across different sectors.

The Pressure Sustaining Valve’s functionality centers around maintaining system stability by preventing pressure drops that could disrupt operations. By sustaining a constant upstream pressure, the valve helps to avoid issues such as cavitation, water hammer, and pump failures. This contributes to the overall efficiency and longevity of the entire fluid handling system.

In addition to its robust construction and reliable performance, the valve’s design emphasizes ease of operation and maintenance. The flanged end connections simplify installation and removal, while the durable ductile iron body ensures resistance to corrosion and mechanical wear. These attributes combine to provide a valve that not only performs well but also offers a long service time, making it a cost-effective solution for pressure management needs.

In summary, the Pressure Sustaining Valve made from high-grade ductile iron is an indispensable device for controlling and maintaining pressure within hydraulic systems. Its PN25 maximum pressure rating, flanged end connections, and wide size availability make it suitable for a diverse range of applications. The use of high-grade DI material guarantees long service time and reliable operation under challenging conditions. For industries seeking to enhance system safety, efficiency, and longevity, this Pressure Sustaining Valve represents a robust and dependable choice.

Features:

• Product Name: Pressure Sustaining Valve
• Maximum Pressure: PN25
• Minimum Pressure: PN10
• Valve Type: Pressure Sustaining Valve
• Connection Type: Flange
• Material: Ductile Iron
• Intelligent design for efficient pressure regulation
• Long service time ensuring durability and reliability
• Equipped with a stainless steel pilot for enhanced performance

Technical Parameters:

Applications:

The AFC A500 Pressure Sustaining Valve, manufactured in China, is a highly reliable and intelligent solution designed to maintain consistent pressure levels within various fluid systems. Built from durable ductile iron and featuring a reinforced nylon diaphragm, this valve ensures exceptional performance and a long service time even in demanding applications. Its flange connection type and wide size range from 2 to 40 inches make it versatile and adaptable to different piping configurations, accommodating a minimum pressure of PN10 and operating efficiently within temperatures ranging from 0 to 80°C.

This pressure sustaining valve is ideally suited for water supply systems where maintaining stable pressure is critical to prevent damage to pipelines and equipment. It is commonly used in municipal water distribution networks to ensure that pressure does not fall below a set threshold, thereby protecting pumps and minimizing water hammer effects. The intelligent design of the AFC A500 allows for precise pressure control, which is essential in irrigation systems and agricultural applications where consistent water pressure is vital for optimal crop irrigation and resource management.

In industrial settings, the AFC A500 excels in maintaining pressure in cooling water circuits, fire protection systems, and various process lines where fluctuations in pressure could lead to operational inefficiencies or safety hazards. Its robust construction with ductile iron ensures resistance to mechanical stress and corrosion, extending its service life and reducing maintenance requirements. The reinforced nylon diaphragm provides enhanced flexibility and durability, allowing the valve to respond quickly and accurately to pressure changes.

Additionally, the pressure sustaining valve is suitable for use in HVAC systems, chemical processing plants, and desalination facilities, where controlling pressure is crucial for system integrity and performance. The intelligent features integrated into the valve’s design contribute to automated pressure regulation, enabling smoother operation and energy savings. With the AFC A500, users benefit from a dependable, long-lasting valve that delivers consistent pressure control across a wide range of applications and scenarios.
