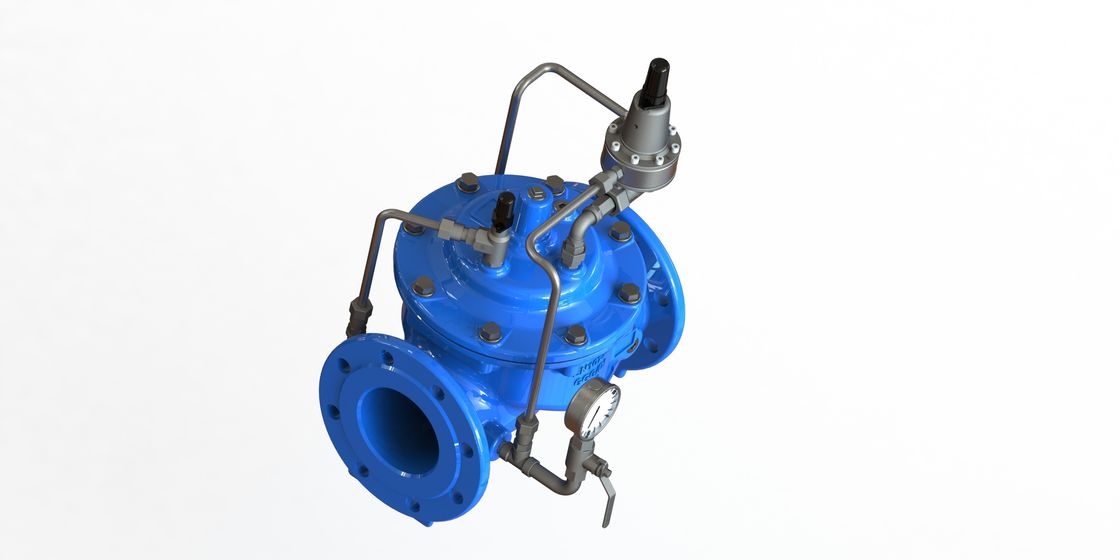

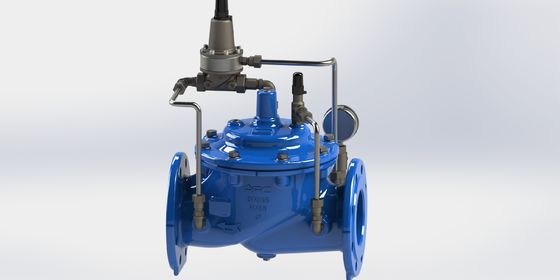

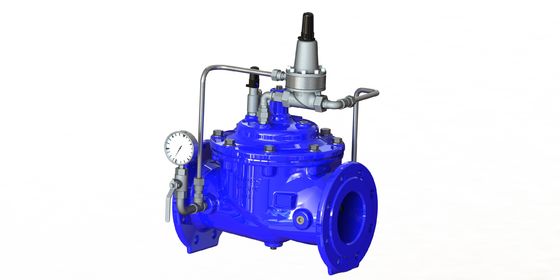

Ductile Iron Pressure Sustaining Valve with PN25 Maximum Pressure and 0-80°C Operating Temperature

Product Description:

The Pressure Sustaining Valve is an essential component designed for various industrial and municipal applications where maintaining a consistent downstream pressure is critical. Manufactured from high grade ductile iron (DI), this valve offers exceptional strength, durability, and resistance to corrosion, making it an ideal choice for demanding environments and long-term use. The use of high grade DI ensures that the valve not only withstands mechanical stresses but also provides reliable performance even under fluctuating pressure conditions.

One of the key features of this pressure sustaining valve is its flanged end connection, which facilitates easy installation and secure attachment to piping systems. The flange connection type is widely preferred in many industries due to its ability to provide a tight seal, minimize leakage, and allow for straightforward maintenance and inspection. The valve’s flanged ends conform to standard dimensions, ensuring compatibility with a wide range of piping and equipment.

Designed to operate within a pressure range from PN10 to PN25, this pressure sustaining valve effectively manages and sustains downstream pressure within these limits. The maximum pressure rating of PN25 means the valve can handle pressures up to 25 bar, while the minimum pressure of PN10 ensures it remains functional and stable at pressures as low as 10 bar. This wide pressure range capability makes the valve versatile and suitable for numerous applications, including water supply systems, irrigation, fire protection, and industrial processes.

The pressure sustaining functionality of this valve is particularly valuable for systems that require pressure regulation to prevent damage to downstream equipment or pipelines. By maintaining a preset minimum pressure, the valve helps avoid pressure drops that could lead to operational inefficiencies or equipment failure. This feature is especially important in water distribution networks, where consistent pressure is necessary to ensure reliable service and prevent backflow or contamination.

Constructed from high grade DI, the valve benefits from the material’s excellent mechanical properties such as high tensile strength, ductility, and impact resistance. These characteristics enable the valve to absorb sudden pressure surges and resist deformation under high stress conditions. Additionally, ductile iron’s corrosion resistance extends the service life of the valve, reducing maintenance costs and downtime for system operators.

In terms of design, the pressure sustaining valve incorporates a robust internal mechanism that responds dynamically to pressure changes. When the downstream pressure falls below the set threshold, the valve opens to allow flow and increase pressure. Conversely, when the pressure reaches the desired level, the valve closes to sustain it, thereby ensuring a stable and controlled pressure environment. This automatic regulation enhances system efficiency and safety across various industrial and municipal applications.

Overall, the Pressure Sustaining Valve made from high grade ductile iron with flanged connections offers a reliable, durable, and efficient solution for pressure management. Its capacity to operate within a pressure range of PN10 to PN25, combined with the advantages of DI material and flange connection type, makes it a preferred choice for engineers and system designers seeking to maintain optimal pressure conditions in their fluid handling systems. Whether deployed in water distribution, irrigation, or industrial processes, this valve delivers consistent performance and peace of mind.

Features:

• Product Name: Pressure Sustaining Valve
• End Connection: Flanged
• Minimum Pressure: PN10
• Maximum Pressure: PN25
• Connection Type: Flange
• Valve Type: Pressure Sustaining Valve
• Equipped with a stainless steel pilot for enhanced durability
• Constructed using high grade DI (Ductile Iron) for superior strength
• Intelligent design ensures precise pressure regulation

Technical Parameters:

Applications:

The AFC A500 Pressure Sustaining Valve is an essential component designed to maintain a preset downstream pressure, ensuring stable and reliable operation in various fluid control systems. Manufactured in China, this valve is constructed from high-quality ductile iron, providing exceptional strength and durability. Its flange connection type allows for secure and easy installation in pipeline systems, making it suitable for industrial, municipal, and commercial applications.

With a maximum pressure rating of PN25 and a minimum pressure of PN10, the AFC A500 valve is capable of operating efficiently under a wide range of pressure conditions. It is designed to function optimally within an operating temperature range of 0-80°C, making it versatile for use in water supply, irrigation, HVAC systems, and other fluid distribution networks where pressure regulation is critical.

The valve features a reinforced nylon diaphragmdiaphone, which significantly enhances its performance by providing excellent flexibility and strength. This reinforced nylon diaphragmdiaphone ensures a long service time, reducing maintenance frequency and operational downtime. The durability of the diaphragmdiaphone allows the valve to withstand pressure fluctuations and harsh operating environments, making it ideal for sustaining pressure in pipelines that experience variable flow rates.

Typical application occasions for the AFC A500 Pressure Sustaining Valve include municipal water supply systems, where maintaining consistent pressure is vital to prevent pipe bursts and ensure efficient water distribution. It is also used in irrigation systems to sustain pressure, promoting uniform water delivery to crops and preventing damage to irrigation infrastructure.

In industrial settings, this valve is applied in cooling water circuits, boiler feed systems, and chemical processing plants to maintain required pressure levels, thereby enhancing process safety and efficiency. The AFC A500’s robust construction and reliable performance make it suitable for installation in power plants and wastewater treatment facilities, where precise pressure control is necessary for operational stability.

Additionally, the AFC A500 is ideal for scenarios requiring pressure relief in complex piping networks, ensuring that downstream equipment is protected from excessive pressure. Its ductile iron body combined with the reinforced nylon diaphragmdiaphone provides a balance of toughness and responsiveness, making it a preferred choice for engineers and facility managers aiming for longevity and dependable pressure control.
