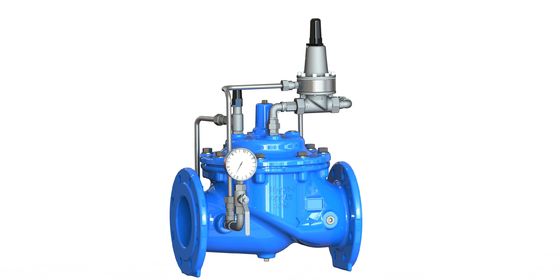

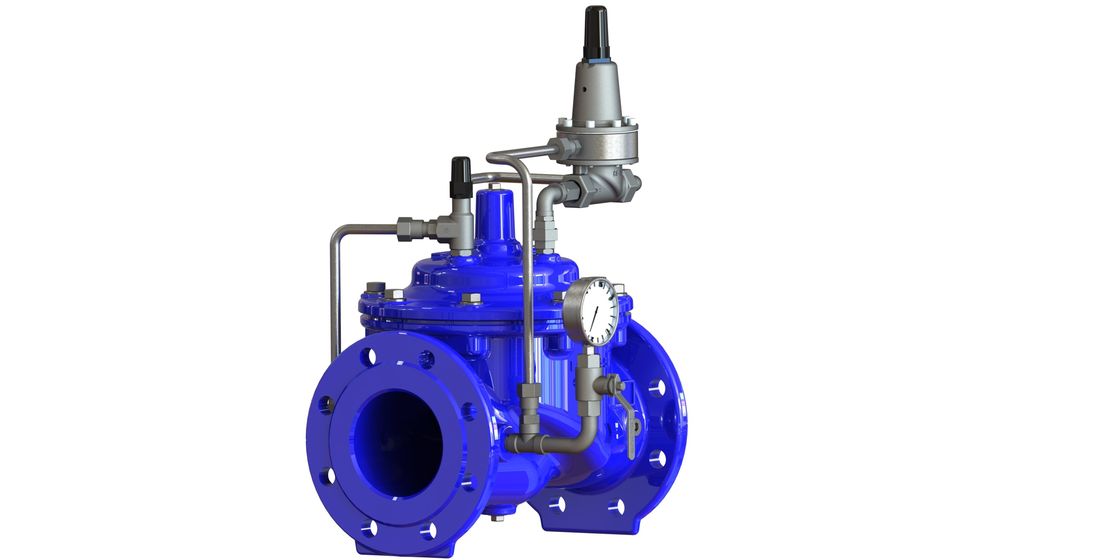

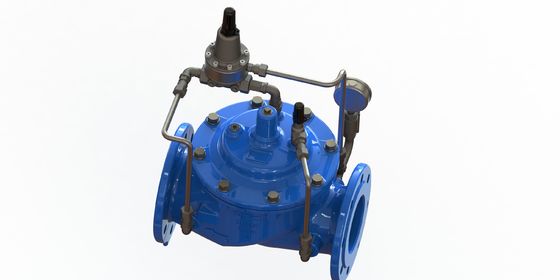

Pressure Sustaining Valve 2-40 Inch Flanged Connection Ductile Iron for Industrial Water Applications

Product Description:

The Pressure Sustaining Valve is an essential component in fluid control systems, designed to maintain a preset pressure level within pipelines to ensure stable and efficient operation. This valve type is specifically engineered to provide reliable pressure sustaining functionality, preventing pressure from dropping below a set threshold, which is crucial for protecting sensitive equipment and maintaining consistent flow rates in various industrial applications.

One of the key features of this Pressure Sustaining Valve is its robust construction with a flanged end connection. The flanged connection type ensures a secure and leak-proof installation, facilitating easy assembly and disassembly for maintenance purposes. Available in sizes ranging from 2 inches to 40 inches, this valve can accommodate a wide range of pipe diameters, making it versatile for different system requirements. The flanged design also supports compatibility with standard piping systems, enhancing its adaptability across various industries.

Engineered to withstand a maximum pressure rating of PN25, the valve is suitable for medium to high-pressure applications. This pressure rating guarantees that the valve can operate safely and efficiently under demanding conditions, providing long-lasting performance without compromising safety. The valve's ability to sustain pressure at these levels helps optimize system performance and reduces the risk of pressure-related failures.

A distinctive feature of this Pressure Sustaining Valve is its reinforced nylon diaphragm, which plays a critical role in its operation. The reinforced nylon diaphragm ensures enhanced durability and resistance to wear and tear, contributing significantly to the valve’s long service time. This diaphragm material offers excellent flexibility and strength, enabling the valve to respond accurately to pressure changes while maintaining its structural integrity over extended periods of use.

The pressure sustaining function of the valve is achieved through precise control mechanisms integrated within its design. By automatically adjusting its opening based on downstream pressure conditions, the valve maintains the required pressure threshold, ensuring system stability. This automatic response helps protect downstream equipment from damage caused by pressure fluctuations and supports overall system efficiency.

In addition to its functional advantages, the Pressure Sustaining Valve is constructed using high-quality materials that resist corrosion and environmental factors, further extending its operational lifespan. The combination of a reinforced nylon diaphragm and durable body materials ensures that the valve can endure harsh working environments, including those involving abrasive or corrosive fluids.

Maintenance of the Pressure Sustaining Valve is straightforward thanks to its flanged connection and modular design. The valve can be easily inspected, repaired, or replaced without extensive downtime, which minimizes operational disruptions and maintenance costs. This ease of maintenance, coupled with the valve’s inherent durability, contributes to its reputation for providing a long service time and reliable performance.

Overall, the Pressure Sustaining Valve with flanged end connections is an indispensable solution for applications requiring consistent pressure control. Its ability to maintain set pressure levels, combined with its robust construction, reinforced nylon diaphragm, and broad size range, makes it an ideal choice for industries such as water supply, wastewater treatment, irrigation, and industrial process control. By investing in this high-quality pressure sustaining valve, operators can ensure system reliability, protect critical components, and achieve optimal performance across their fluid handling operations.

Features:

• Product Name: Pressure Sustaining Valve
• End Connection: Flanged
• Connection Type: Flange
• Minimum Pressure: PN10
• Valve Type: Pressure Sustaining Valve
• Size Range: 2-40 Inch
• Features pressure sustaining capability for reliable pressure control
• Equipped with a reinforced nylon diaphragm for enhanced durability
• Intelligent design ensures optimal valve performance and longevity

Technical Parameters:

Applications:

The AFC A500 Pressure Sustaining Valve, manufactured in China, is a reliable and robust solution designed to maintain consistent pressure levels in various fluid systems. Constructed from durable ductile iron and equipped with flanged end connections, this valve is engineered to withstand a maximum pressure of PN25 and operate efficiently within a temperature range of 0-80°C. Its design also supports minimum pressure requirements of PN10, making it versatile for diverse applications.

This pressure sustaining valve is particularly suitable for use in water supply networks, where maintaining stable pressure is crucial to ensure steady flow and prevent damage to downstream equipment. The AFC A500 excels in applications such as irrigation systems, municipal water distribution, and industrial water processing plants. Its ability to sustain pressure helps to avoid pressure drops that can disrupt operations or reduce efficiency.

One of the key features of the AFC A500 is its stainless steel pilot, which enhances the valve’s responsiveness and durability. The stainless steel pilot ensures precise pressure regulation, contributing to the overall reliability of the system. This makes the valve ideal for scenarios where accurate pressure control is essential, such as in chemical processing or HVAC systems where fluctuations in pressure can lead to operational issues or safety concerns.

The valve’s ductile iron construction provides excellent strength and corrosion resistance, which is vital for long-term performance in harsh environments. The flanged end connection facilitates easy installation and maintenance, making it convenient for use in both new and existing pipeline systems. Whether in industrial plants, municipal infrastructure, or agricultural setups, the AFC A500 pressure sustaining valve guarantees consistent pressure control to optimize system performance.

In summary, the AFC A500 pressure sustaining valve is perfect for any occasion or scenario requiring reliable pressure maintenance. Its robust materials, stainless steel pilot, and versatile operating parameters make it an excellent choice for a wide range of applications where pressure sustaining is critical to system integrity and efficiency.
