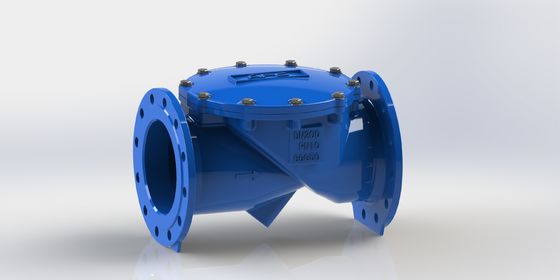

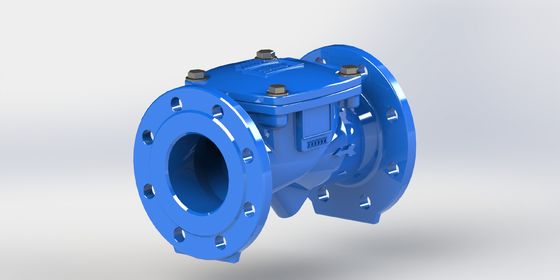

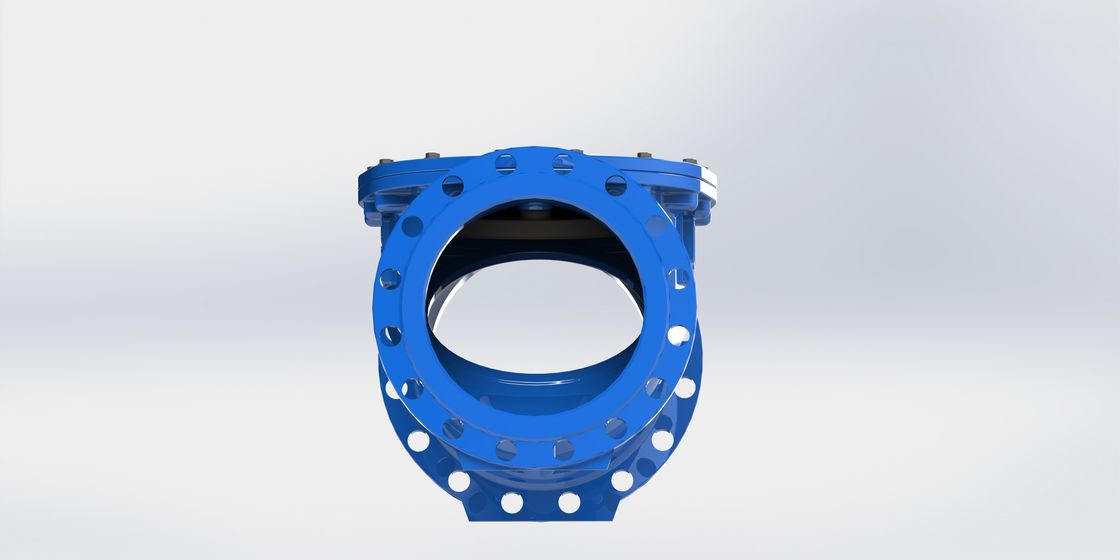

PN16 Pressure Rating Swing Flex Check Valve with Ductile Iron Body and EPDM Seal Material

Product Description:

The Swing Flex Check Valve is a highly reliable and efficient valve designed to provide optimal performance in various industrial and commercial piping systems. Engineered with precision and durability in mind, this valve is an essential component for controlling the flow of fluids, preventing backflow, and ensuring the smooth operation of pipelines. Its robust construction and advanced design make it a preferred choice for applications requiring dependable check valve solutions.

One of the standout features of the Swing Flex Check Valve is its body material, which is crafted from high-quality ductile iron. Ductile iron is known for its excellent strength, toughness, and resistance to wear and corrosion, making it ideal for demanding environments. The use of ductile iron in the body ensures that the valve can withstand high-pressure conditions while maintaining structural integrity over extended periods of use. This material choice contributes significantly to the valve's longevity and reliability, reducing maintenance needs and operational downtime.

The valve is available with pressure ratings of PN10 and PN16, enabling it to handle a wide range of pressure requirements. Whether the application involves moderate or higher pressure levels, the Swing Flex Check Valve is designed to perform consistently within these specified ratings. This versatility makes it suitable for a broad spectrum of industries, including water treatment, HVAC systems, irrigation, and various industrial processes where controlling fluid flow is critical.

A crucial component of this valve's design is the rubber disc, which plays a vital role in ensuring effective sealing and preventing reverse flow. The rubber disc is engineered to flexibly respond to changes in flow direction, allowing it to open smoothly when fluid flows forward and close promptly to block backflow. The flexibility and resilience of the rubber disc contribute to minimizing water hammer effects and reducing noise, enhancing the overall performance of the valve. The use of a rubber disc also improves the valve's sealing capabilities, ensuring leak-tight operation under varying pressure conditions.

In addition to its mechanical advantages, the Swing Flex Check Valve has been rigorously tested to meet industry standards. It complies with the EN12266 test standard, which guarantees that the valve has undergone thorough testing for leakage, strength, and operational reliability. This adherence to EN12266 ensures that customers receive a product that meets stringent quality and safety benchmarks, providing peace of mind and confidence in its performance.

Moreover, the Swing Flex Check Valve is accompanied by ISO certification, underscoring its manufacturing excellence and adherence to international quality management systems. The ISO certification reflects the manufacturer's commitment to producing valves that meet global standards, ensuring consistent quality, durability, and performance. Customers can trust that this valve is produced under controlled processes and subjected to rigorous quality assurance measures.

The design of the Swing Flex Check Valve also emphasizes ease of installation and maintenance. Its swing-type mechanism allows for straightforward operation and minimal wear on moving parts. The valve's internal components, including the rubber disc, are designed for longevity and can be serviced or replaced with relative ease, minimizing downtime and maintenance costs.

In summary, the Swing Flex Check Valve is an excellent choice for anyone seeking a dependable check valve solution with a strong, corrosion-resistant ductile iron body, versatile pressure ratings of PN10 and PN16, and a highly effective rubber disc for sealing and flow control. Its compliance with EN12266 testing standards and ISO certification further attest to its superior quality and reliability. Whether used in water supply systems, industrial processes, or commercial applications, this valve provides efficient, long-lasting performance that meets the demands of modern piping systems.

Technical Parameters:

Applications:

The AFC Swing Flex Check Valve, model RDCV, is an essential component designed for efficient water flow management in various industrial and municipal applications. Manufactured in China with high-quality ductile iron for the body and EPDM rubber disc seal material, this check valve ensures reliable performance within a temperature range of 0-80℃. Its flange connection type allows for easy installation and secure fitting in pipelines, making it ideal for water systems where backflow prevention is critical.

This check valve is particularly suited for water treatment plants, irrigation systems, municipal water supply networks, and industrial water processing facilities. The rubber disc inside the valve offers excellent flexibility and sealing capabilities, preventing reverse flow and protecting pumps, pipes, and other equipment from potential damage caused by water hammer or backflow. Its robust construction and reliable operation make it a preferred choice for applications requiring consistent water flow control and durability.

In scenarios such as municipal water distribution, the AFC Swing Flex Check Valve effectively prevents contamination by ensuring unidirectional water flow. It is also highly beneficial in irrigation setups where maintaining the integrity of the water supply is crucial for agricultural productivity. Additionally, industrial processes that rely on clean and controlled water flow benefit from the valve’s dependable sealing and durability under varying temperature conditions.

The valve's ductile iron body provides excellent mechanical strength and resistance to corrosion, making it suitable for both indoor and outdoor installations. The EPDM rubber disc ensures a tight seal even under fluctuating pressure and temperature conditions, enhancing the longevity and reliability of the check valve. The flange connection facilitates maintenance and replacement without extensive downtime, which is vital in critical water applications.

Overall, the AFC RDCV Swing Flex Check Valve with its rubber disc design is an indispensable component for any water-related infrastructure requiring efficient backflow prevention and flow regulation. Its combination of sturdy materials, flexible sealing, and user-friendly installation makes it a versatile and dependable solution for a wide range of water management occasions and scenarios.

FAQ:

Q1: What is the brand and model number of the Swing Flex Check Valve?

A1: The Swing Flex Check Valve is manufactured by AFC and the model number is RDCV.

Q2: Where is the AFC Swing Flex Check Valve made?

A2: The AFC Swing Flex Check Valve is made in China.

Q3: What type of valve is the AFC RDCV?

A3: The AFC RDCV is a Swing Flex Check Valve, designed to allow fluid flow in one direction and prevent backflow.

Q4: What applications is the AFC Swing Flex Check Valve suitable for?

A4: The AFC Swing Flex Check Valve is suitable for various industrial and plumbing applications where backflow prevention is required.

Q5: What materials are used in the construction of the AFC RDCV Swing Flex Check Valve?

A5: The AFC RDCV is typically constructed from durable materials such as stainless steel or cast iron to ensure long-lasting performance and corrosion resistance.
