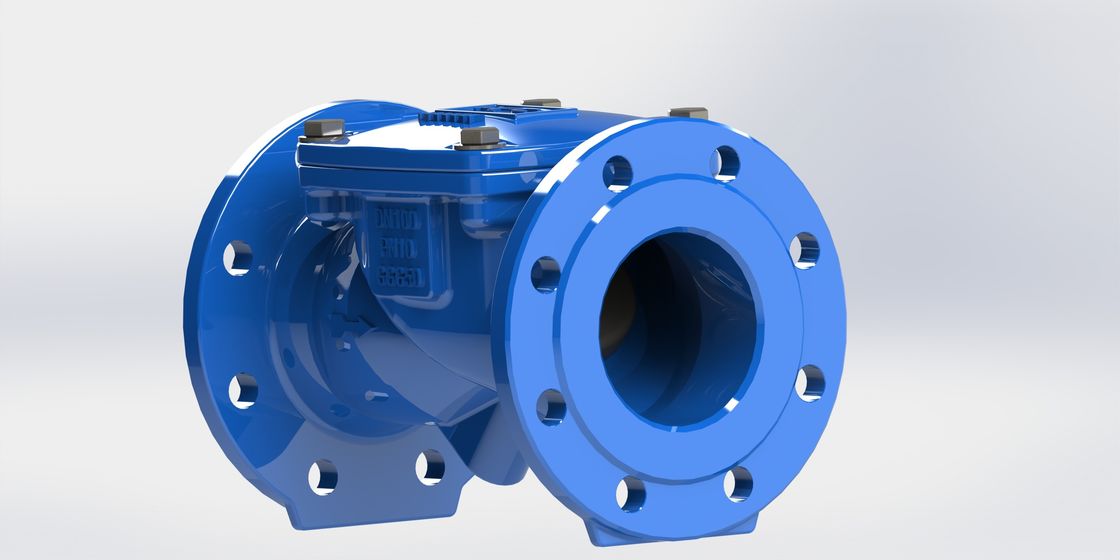

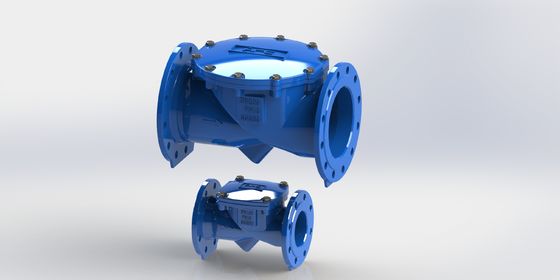

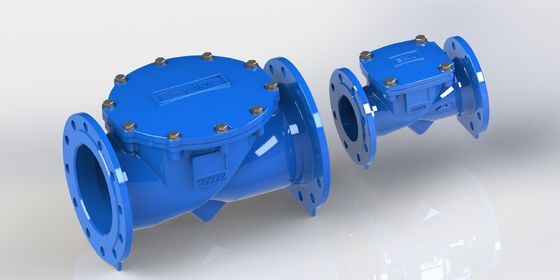

Ductile Iron Swing Flex Check Valve with Flange Connection and EPDM Seal for Industrial Pipeline Control

Product Description:

The Swing Flex Check Valve is a highly efficient and reliable valve designed to ensure unidirectional flow in various piping systems. Engineered with precision and built for durability, this check valve is an essential component in preventing backflow and protecting pumps, compressors, and other equipment from potential damage caused by reverse flow. The valve's design emphasizes both functionality and longevity, making it a preferred choice in a wide range of industrial and commercial applications.

One of the standout features of the Swing Flex Check Valve is its robust body material. Constructed from high-quality ductile iron, the valve body offers exceptional strength and resistance to mechanical stress. Ductile iron is known for its superior impact resistance and toughness compared to traditional cast iron, ensuring that the valve can withstand demanding environments and maintain its integrity over time. This material choice enhances the valve's overall durability, making it suitable for use in applications where long-term reliability is critical.

The valve incorporates a rubber disc as its primary sealing element. This rubber disc plays a crucial role in the valve's operation by providing a tight seal when the valve is closed, effectively preventing any backflow. The flexibility of the rubber disc allows it to respond quickly to changes in flow direction, swinging open easily to allow forward flow and closing firmly to stop reverse flow. This design not only improves the valve’s sealing performance but also reduces wear and tear, extending the valve's service life.

The Swing Flex Check Valve features a flange connection type, which facilitates easy installation and maintenance. Flanged ends provide a secure and leak-proof connection to the piping system, ensuring stability and ease of alignment during assembly. This connection type is widely used in industrial piping systems due to its reliability and the convenience it offers when valves need to be removed or replaced without disturbing the rest of the pipeline.

Temperature tolerance is a critical consideration for any valve, and the Swing Flex Check Valve is designed to operate efficiently within a temperature range of 0 to 80 degrees Celsius. This temperature range makes it suitable for use in various applications involving water, air, and other fluids that fall within this thermal spectrum. Whether in heating systems, water treatment facilities, or general industrial processes, this check valve maintains optimal performance without compromising the integrity of its components.

In addition to its physical attributes, the Swing Flex Check Valve complies with the EN12266 test standard, which is a recognized benchmark for valve testing in Europe. This standard ensures that the valve meets stringent requirements for pressure testing, leakage, and operational reliability. Adherence to EN12266 guarantees that the valve has undergone rigorous quality checks and performance evaluations, providing users with confidence in its safety and efficiency.

Overall, the Swing Flex Check Valve is a versatile and dependable solution for controlling fluid flow and preventing backflow in piping systems. Its ductile iron body ensures robust construction, while the rubber disc provides effective sealing and flexibility in operation. The flange connection type allows for straightforward installation and maintenance, and the compliance with EN12266 underscores its quality and reliability. Suitable for temperatures ranging from 0 to 80°C, this check valve is ideal for a variety of applications requiring dependable backflow prevention.

Whether used in water supply systems, HVAC applications, or industrial fluid handling, the Swing Flex Check Valve combines durability, efficiency, and ease of use. Its design effectively minimizes the risk of reverse flow, protecting critical equipment and ensuring smooth operation of the entire system. By choosing this check valve, users benefit from a well-engineered product that delivers consistent performance and long-lasting service in demanding environments.

Technical Parameters:

Applications:

The AFC Swing Flex Check Valve, model number RDCV, is a high-quality product originating from China and certified with ISO standards. Designed specifically for water applications, this check valve is ideal for a wide range of industrial, commercial, and municipal water systems. The valve is available in sizes ranging from DN50 to DN700, making it versatile enough to accommodate various piping requirements.

This Swing Flex Check Valve features a unique rubber disc that provides a flexible sealing surface, ensuring reliable performance and preventing backflow effectively. The rubber disc, made from durable EPDM seal material, offers excellent resistance to water and various environmental conditions, enhancing the valve’s longevity and operational efficiency. This makes it particularly suitable for use in water treatment plants, pumping stations, and distribution networks where maintaining unidirectional flow is critical.

The design of the AFC RDCV Swing Flex Check Valve allows it to operate smoothly with minimal pressure loss, which is crucial in maintaining system efficiency. Its swing mechanism allows the rubber disc to open and close flexibly, adapting to changes in flow conditions and providing a tight seal when closed. This flexibility also helps in absorbing shocks and vibrations, reducing wear and tear on the valve components and the overall piping system.

In practical scenarios, the Swing Flex Check Valve is commonly applied in water supply systems, irrigation setups, HVAC systems, and other fluid handling processes where preventing reverse flow is essential. It is also suitable for use in wastewater treatment facilities and industrial water circuits where contamination prevention and flow control are priorities.

Thanks to its robust construction and reliable sealing mechanism, the AFC Swing Flex Check Valve with its rubber disc seal material is a trusted solution for engineers and system designers looking for efficient and durable check valves. Whether installed in large-scale municipal water networks or smaller industrial pipelines, this valve ensures smooth operation, low maintenance, and long service life.

FAQ:

Q1: What is the brand and model number of the Swing Flex Check Valve?

A1: The Swing Flex Check Valve is manufactured by AFC and the model number is RDCV.

Q2: Where is the AFC Swing Flex Check Valve made?

A2: The AFC Swing Flex Check Valve is made in China.

Q3: What type of applications is the AFC RDCV Swing Flex Check Valve suitable for?

A3: The AFC RDCV Swing Flex Check Valve is suitable for use in pipelines to prevent backflow of fluids, commonly used in water, wastewater, and industrial fluid systems.

Q4: How does the Swing Flex Check Valve function?

A4: The Swing Flex Check Valve operates by allowing fluid to flow in one direction while preventing reverse flow, using a swinging disc that flexes to open or close the valve.

Q5: What materials are used in the AFC RDCV Swing Flex Check Valve?

A5: The Swing Flex Check Valve by AFC is typically constructed from durable materials such as stainless steel or cast iron, ensuring long-lasting performance and resistance to corrosion.
