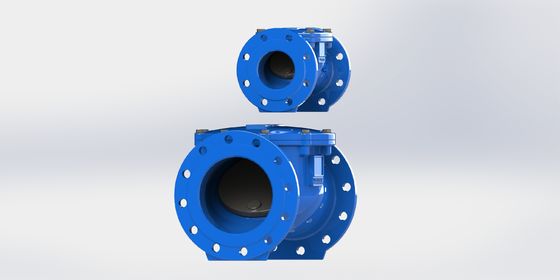

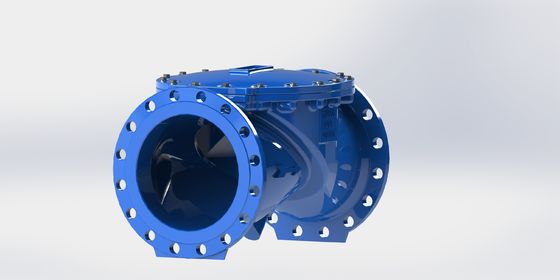

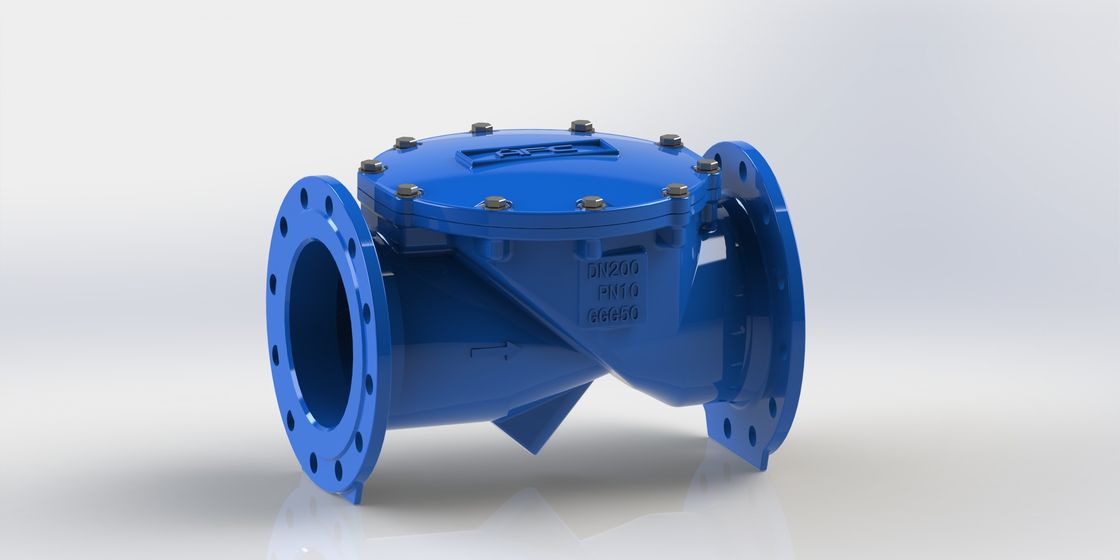

PN16 Pressure Rating Swing Flex Check Valve with EPDM Seal Material and DN50-700 Size for Industrial Applications

Product Description:

The Swing Flex Check Valve is an essential component designed to ensure unidirectional flow in piping systems, preventing backflow and protecting equipment from potential damage. Engineered with precision and durability in mind, this check valve is widely used across various industries, including water treatment, HVAC, and general fluid handling applications. With its robust construction and reliable performance, the Swing Flex Check Valve stands out as a dependable solution for fluid control needs.

One of the defining features of the Swing Flex Check Valve is its body material, made from high-quality ductile iron. Ductile iron offers superior strength, toughness, and corrosion resistance compared to traditional cast iron, making it an ideal choice for valve bodies subjected to varying pressures and temperatures. The strength of ductile iron ensures the valve can withstand demanding operating conditions while maintaining structural integrity over time.

The valve is designed with a rubber disc, which plays a crucial role in its operation. Unlike metal discs, the rubber disc provides a tight seal when the valve closes, effectively preventing any backflow. The flexibility of the rubber disc allows it to conform snugly against the valve seat, ensuring leak-proof performance even under fluctuating pressure conditions. This unique design enhances the valve’s efficiency and longevity by minimizing wear and tear on the sealing surfaces.

Offering a connection type of flange, the Swing Flex Check Valve is compatible with standard flanged piping systems, facilitating easy installation and maintenance. The flange connections are available in PN10 and PN16 pressure ratings, catering to different system requirements and ensuring the valve can be integrated seamlessly into various pipeline configurations. These flanged ends provide secure, leak-resistant joints, contributing to the overall reliability of the valve assembly.

The Swing Flex Check Valve is engineered to operate efficiently within a temperature range of 0 to 80 degrees Celsius. This temperature tolerance makes it suitable for a broad spectrum of applications involving water, air, and other non-corrosive fluids. The valve’s ability to maintain consistent performance within this temperature range ensures system stability and prevents operational disruptions caused by thermal variations.

In addition to its functional attributes, the valve’s swing design allows the rubber disc to open easily with the forward flow and close promptly when the flow reverses. This quick response minimizes water hammer effects and pressure surges that can damage piping systems and connected equipment. The swing mechanism, combined with the flexibility of the rubber disc, results in a smooth and reliable check valve operation that enhances system safety and efficiency.

Maintenance of the Swing Flex Check Valve is straightforward due to its simple construction and accessible components. The rubber disc can be inspected and replaced without removing the entire valve from the pipeline, reducing downtime and maintenance costs. This ease of serviceability makes the valve particularly attractive for applications where regular inspections and upkeep are necessary to ensure continuous operation.

Overall, the Swing Flex Check Valve with its ductile iron body, rubber disc sealing, and flanged connection type offers a high-performance, durable solution for controlling fluid flow and preventing backflow in various industrial and commercial piping systems. Its design accommodates a wide range of operating pressures and temperatures, making it a versatile and reliable choice for engineers and system designers. Whether used in water distribution, HVAC systems, or other fluid control applications, this check valve delivers dependable performance and long service life.

Choose the Swing Flex Check Valve for your next project to benefit from a robust, efficient, and easy-to-maintain check valve solution that combines the advantages of ductile iron construction with the superior sealing capabilities of a rubber disc. This product exemplifies quality and functionality, ensuring your fluid systems operate smoothly and safely at all times.

Technical Parameters:

Applications:

The AFC Swing Flex Check Valve, model number RDCV, is a versatile and reliable valve designed to ensure unidirectional flow in various piping systems. Manufactured in China with high-quality ductile iron body material, this check valve combines durability and efficient performance, making it suitable for a wide range of industrial and commercial applications. Its robust construction allows it to withstand temperatures ranging from 0 to 80℃, which ensures consistent operation even in moderately warm environments.

This Swing Flex Check Valve is equipped with a rubber disc made from EPDM seal material, providing excellent sealing capabilities and resistance to wear, corrosion, and aging. The rubber disc design allows the valve to flex and close tightly, preventing backflow and ensuring system integrity. The valve has been rigorously tested according to EN12266 standards, guaranteeing its reliability and safety in various operational conditions.

In terms of application occasions, the AFC Swing Flex Check Valve is ideal for water supply and distribution systems, wastewater treatment plants, HVAC systems, and irrigation networks. Its ability to prevent reverse flow helps protect pumps and other equipment from damage caused by back pressure or water hammer. The valve’s ductile iron body ensures it can handle the demands of municipal waterworks, industrial fluid control, and even fire protection systems with ease.

Moreover, the Swing Flex Check Valve is frequently used in scenarios where maintenance accessibility is crucial. Its swing-type mechanism allows for easy inspection and replacement of the rubber disc without dismantling the entire valve body. This feature is particularly advantageous in large-scale facilities such as power plants, chemical processing units, and manufacturing plants, where minimizing downtime is essential.

In summary, the AFC RDCV Swing Flex Check Valve is a dependable solution for controlling fluid flow and preventing backflow in diverse systems. Its ductile iron body, EPDM rubber disc seal, and compliance with EN12266 testing standards make it a top choice for engineers and technicians seeking a durable and efficient check valve. Whether in municipal infrastructure, industrial applications, or commercial projects, this check valve delivers excellent performance and long-lasting service.

FAQ:

Q1: What is the brand and model number of the Swing Flex Check Valve?

A1: The Swing Flex Check Valve is manufactured by AFC and the model number is RDCV.

Q2: Where is the AFC Swing Flex Check Valve made?

A2: The AFC Swing Flex Check Valve is made in China.

Q3: What type of valve is the RDCV model?

A3: The RDCV model is a Swing Flex Check Valve designed to prevent backflow in piping systems.

Q4: What applications is the AFC Swing Flex Check Valve suitable for?

A4: This valve is suitable for various industrial applications requiring reliable backflow prevention, including water treatment, HVAC, and chemical processing.

Q5: What materials are used in the construction of the AFC RDCV Swing Flex Check Valve?

A5: The AFC RDCV is typically constructed from durable materials such as stainless steel or cast iron, depending on the specific model and application requirements.
