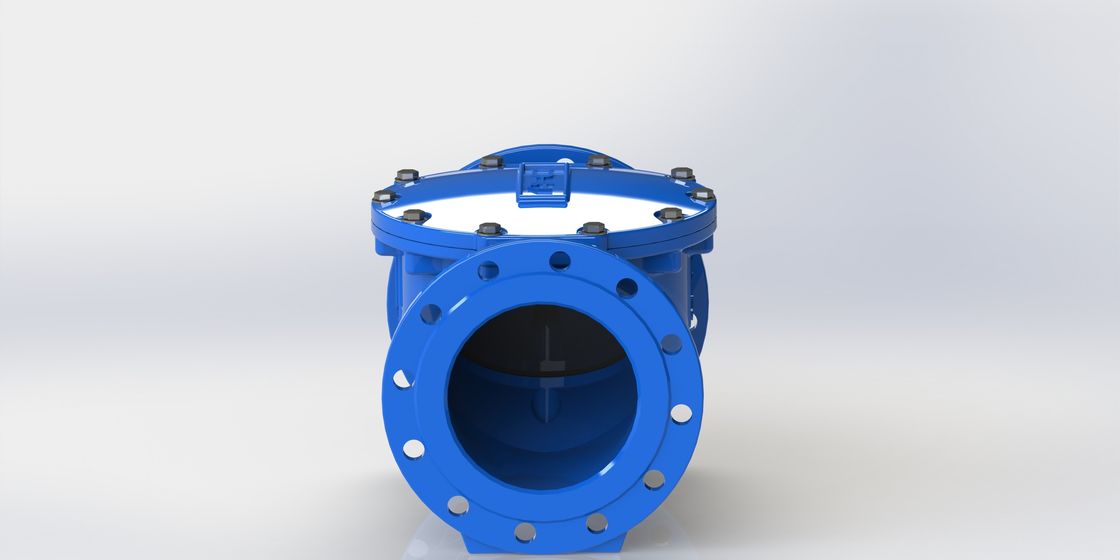

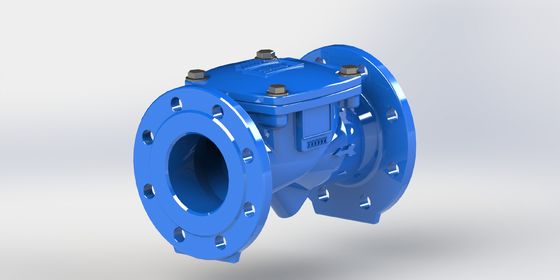

EPDM Seal Swing Flex Check Valve with DN50-700 Size Range and PN10/PN16 Flange Connection

Product Description:

The Swing Flex Check Valve is a high-quality valve designed to provide reliable and efficient flow control in various piping systems. Engineered with durability and performance in mind, this check valve is an ideal solution for preventing backflow while ensuring smooth fluid passage. Its robust construction and versatile features make it suitable for a wide range of industrial applications, including water treatment, HVAC systems, chemical processing, and more.

One of the standout features of the Swing Flex Check Valve is its body material. Crafted from ductile iron, the valve body offers exceptional strength and resistance to impact and corrosion. Ductile iron is known for its durability and ability to withstand harsh operating conditions, which ensures a long service life and minimal maintenance requirements. This makes the Swing Flex Check Valve a dependable choice for demanding environments where reliability is critical.

The valve is available in a comprehensive size range from DN50 to DN700, accommodating various pipeline dimensions and flow requirements. This wide range of sizes ensures that the Swing Flex Check Valve can be seamlessly integrated into existing systems or new installations, providing flexibility and convenience for engineers and designers.

End connections are another important aspect of the Swing Flex Check Valve’s design. It features flange connections conforming to PN10 and PN16 pressure ratings, which are standard in many piping systems. These flanged ends facilitate easy installation and removal, as well as secure and leak-proof joints. The availability of both PN10 and PN16 flanges allows users to select the appropriate pressure rating based on system requirements, enhancing the valve’s versatility.

At the heart of the Swing Flex Check Valve’s operation is its innovative rubber disc. This rubber disc serves as the sealing element that prevents reverse flow effectively. Made from high-quality EPDM (ethylene propylene diene monomer) rubber, the disc provides excellent elasticity, chemical resistance, and temperature tolerance. EPDM is particularly well-suited for water and steam applications, offering a reliable seal that minimizes leakage and maintains system integrity.

The rubber disc design contributes to the valve’s flexibility and responsiveness. When fluid flows in the forward direction, the disc swings open smoothly, allowing unrestricted passage. In the event of reverse flow, the disc quickly closes against the seat, creating a tight seal that prevents backflow and protects equipment downstream. This swing check valve mechanism reduces water hammer and pressure surges, safeguarding the entire piping system.

Maintenance and operation of the Swing Flex Check Valve are straightforward and user-friendly. Thanks to its simple construction and quality materials, the valve requires minimal upkeep. Periodic inspections and cleaning are generally sufficient to keep the valve functioning optimally. The EPDM rubber disc is designed to withstand wear and tear, extending the valve’s operational life and reducing replacement frequency.

The Swing Flex Check Valve’s combination of ductile iron body, EPDM rubber disc sealing, and flanged end connections makes it a highly reliable and versatile component in fluid handling systems. Its ability to handle a variety of pressures and flow rates, along with its robust construction, ensures dependable performance in both commercial and industrial applications.

In summary, the Swing Flex Check Valve is an excellent choice for those seeking a durable and efficient check valve solution. Its ductile iron body provides strength and longevity, while the EPDM rubber disc ensures a tight seal and smooth operation. Available in sizes ranging from DN50 to DN700 with flange PN10 and PN16 connections, this check valve is well-equipped to meet diverse system requirements. Whether used in water supply, wastewater treatment, or industrial processes, the Swing Flex Check Valve offers reliable backflow prevention and enhanced system protection through its innovative design and quality materials.

Technical Parameters:

Applications:

The AFC Swing Flex Check Valve, model number RDCV, is a versatile and reliable valve designed for various industrial and commercial applications. Manufactured in China, this check valve is built with a robust ductile iron body, ensuring durability and long service life. It is suitable for systems operating within a temperature range of 0-80℃, making it ideal for a wide range of fluid control scenarios. The valve sizes range from DN50 to DN700, accommodating different pipeline requirements and flow capacities.

This check valve is commonly used in water supply and distribution systems, where it prevents backflow and protects pumps and other equipment from damage caused by reverse flow. Its swing flex design allows for smooth and efficient operation, minimizing pressure loss and ensuring reliable performance. The valve complies with the EN12266 test standard, guaranteeing high quality and safety standards, which is essential for critical applications in municipal water treatment and sewage systems.

In addition to water systems, the AFC Swing Flex Check Valve is widely applied in HVAC systems, helping to maintain proper flow direction and prevent potential system failures. Its ductile iron construction provides excellent resistance to corrosion and mechanical stress, making it suitable for use in various industrial processes involving liquids at moderate temperatures. This makes the check valve an excellent choice for chemical, petrochemical, and power generation plants where fluid control is crucial.

Furthermore, the check valve is ideal for irrigation and agricultural systems, ensuring unidirectional flow and preventing contamination of clean water supplies. The valve’s flexible swing mechanism allows it to adapt to different flow conditions, reducing wear and extending the operational lifespan. Its ease of installation and maintenance also adds to its appeal in scenarios where downtime must be minimized.

Overall, the AFC Swing Flex Check Valve (RDCV) is a dependable solution for controlling fluid flow in a variety of applications. Whether in municipal, industrial, or agricultural settings, this check valve offers reliable performance, compliance with rigorous standards, and adaptability to different pipeline sizes and temperature ranges. Its robust ductile iron body and proven design make it a preferred choice for engineers and system designers seeking efficient and durable check valve solutions.

FAQ:

Q1: What brand manufactures the Swing Flex Check Valve model RDCV?

A1: The Swing Flex Check Valve model RDCV is manufactured by the brand AFC.

Q2: Where is the AFC Swing Flex Check Valve RDCV made?

A2: The AFC Swing Flex Check Valve RDCV is made in China.

Q3: What type of valve is the AFC RDCV model?

A3: The AFC RDCV model is a Swing Flex Check Valve, designed to allow fluid flow in one direction and prevent backflow.

Q4: What applications are suitable for the AFC Swing Flex Check Valve RDCV?

A4: The AFC Swing Flex Check Valve RDCV is suitable for various industrial and commercial fluid control systems where backflow prevention is necessary.

Q5: How does the Swing Flex design benefit the check valve’s performance?

A5: The Swing Flex design provides flexible sealing and reliable backflow prevention, improving the valve’s durability and reducing water hammer effects.
