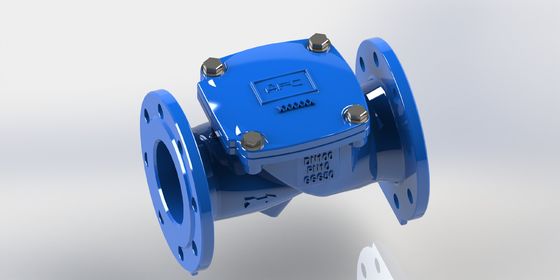

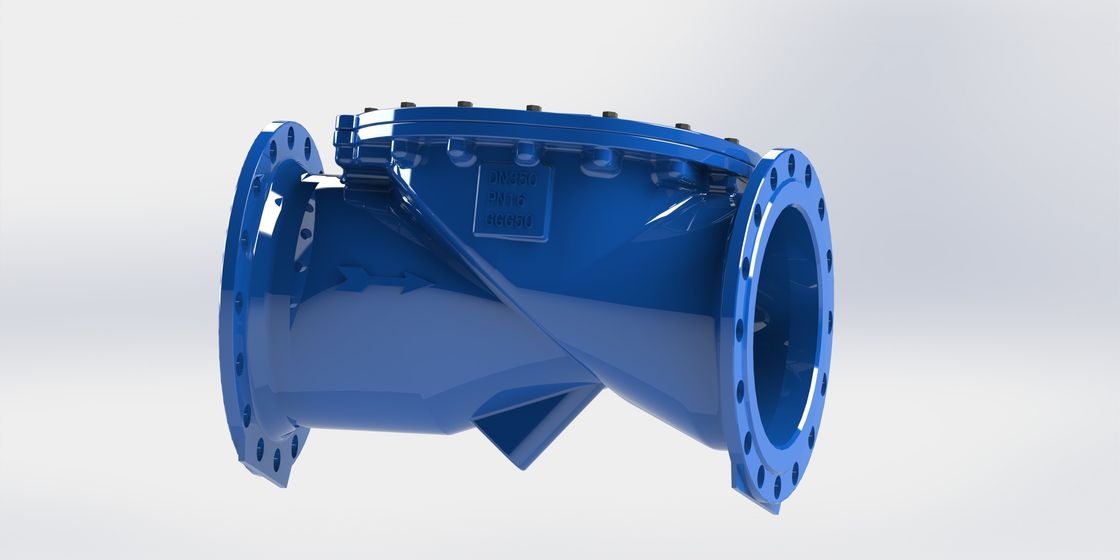

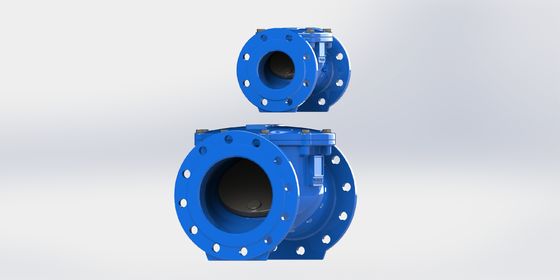

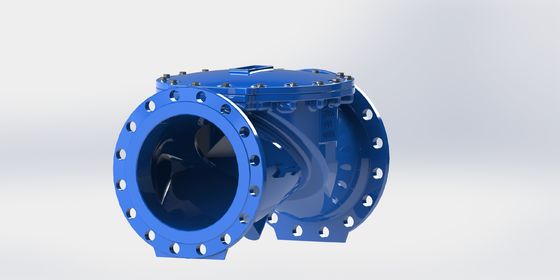

DN50-700 EN12266 Certified Ductile Iron Body Swing Flex Check Valve for Water Applications

Product Description:

The Swing Flex Check Valve is a highly reliable and efficient valve designed to prevent backflow in piping systems. Engineered with precision and manufactured using superior materials, this check valve ensures long-lasting performance and protection for various industrial applications. With its robust construction and advanced design features, the Swing Flex Check Valve is an ideal choice for systems requiring dependable flow control and backflow prevention.
One of the standout features of the Swing Flex Check Valve is its body made from ductile iron. Ductile iron is known for its excellent strength, durability, and resistance to wear and corrosion, making it suitable for demanding environments. The ductile iron body guarantees that the valve can withstand mechanical stresses and harsh operating conditions, ensuring a long service life and reduced maintenance costs. This material choice also contributes to the valve’s ability to handle varying pressure ranges efficiently.
The valve is designed to operate under pressure ratings of PN10 and PN16. This means the Swing Flex Check Valve is capable of handling pressures up to 10 bar and 16 bar respectively, making it versatile enough for a wide range of industrial and municipal applications. Whether it is installed in water treatment plants, HVAC systems, or industrial pipelines, the valve’s pressure rating ensures reliable operation without compromising safety or performance.
At the heart of the valve’s functionality is the rubber disc, a key component that plays a crucial role in its sealing mechanism. The rubber disc provides a flexible and tight seal that effectively prevents backflow, safeguarding the integrity of the system. The use of a rubber disc allows for smooth and silent operation, reducing noise and vibration that can occur with other types of check valves. Moreover, the rubber disc is designed for durability and resilience, maintaining its sealing properties even after repeated cycles of opening and closing.
The sealing material used in the Swing Flex Check Valve is EPDM (ethylene propylene diene monomer), a high-quality synthetic rubber known for its excellent resistance to heat, ozone, and weathering. EPDM seals are particularly effective in water and steam applications, offering superior sealing performance and longevity. This seal material ensures that the valve maintains a tight closure under various temperature and pressure conditions, minimizing leakage and enhancing system efficiency.
To guarantee the highest quality and reliability, the Swing Flex Check Valve is certified according to ISO standards. This certification assures customers that the valve meets stringent international quality and safety requirements. Additionally, the valve undergoes rigorous testing in compliance with the EN12266 test standard. EN12266 is a European standard that specifies testing procedures for valves to verify their pressure tightness, operational functionality, and durability. Adherence to this standard demonstrates the valve’s capability to perform reliably under real-world conditions.
The swing mechanism of the valve allows the rubber disc to pivot freely, enabling quick and efficient response to changes in flow direction. This design minimizes hydraulic losses and prevents water hammer, a common problem in piping systems that can cause damage and noise. The robust hinge and flexible disc ensure smooth operation even in systems with fluctuating flow rates and pressures.
In summary, the Swing Flex Check Valve combines the strength of a ductile iron body with the flexibility of a rubber disc and the resilience of EPDM seals to deliver a high-performance check valve solution. Its pressure rating options of PN10 and PN16 cater to various industrial needs, while ISO certification and EN12266 testing provide assurance of quality and reliability. Whether used in municipal water systems, industrial processes, or HVAC applications, this check valve offers dependable protection against backflow, ensuring system integrity and operational efficiency.

Technical Parameters:

Applications:

The AFC Swing Flex Check Valve, model number RDCV, is a highly reliable and efficient valve designed for various industrial and commercial applications. Manufactured in China from premium ductile iron, this check valve offers exceptional durability and strength, making it ideal for systems requiring robust flow control and backflow prevention. The valve’s body material ensures resistance to wear and tear, while its flange connection type allows for secure and easy installation in a wide range of piping systems.
One of the key features of the AFC RDCV is its rubber disc, made from high-quality EPDM material. This rubber disc plays a crucial role in providing a tight seal, preventing reverse flow and ensuring smooth operation within a temperature range of 0-80℃. The flexibility of the rubber disc allows the valve to respond quickly to changes in flow direction, making it suitable for applications where rapid closure is essential to protect equipment and maintain system integrity.
The Swing Flex Check Valve is certified under ISO standards, assuring users of its compliance with international quality and performance requirements. This certification highlights the valve’s reliability and suitability for critical applications in water treatment plants, HVAC systems, industrial piping, and various fluid handling processes. Its ability to handle moderate temperature ranges and resist corrosion makes it an excellent choice for both hot and cold water applications.
In practical scenarios, the AFC RDCV check valve is commonly used in municipal water supply systems, irrigation networks, and wastewater treatment facilities. It effectively prevents backflow and contamination, ensuring the safety and cleanliness of the fluid being transported. Additionally, its ductile iron body and rubber disc combination provide longevity and minimal maintenance, reducing downtime and operational costs.
Other typical occasions for using this check valve include heating and cooling systems, chemical processing plants, and industrial manufacturing lines where reliable flow control is paramount. The flange connection facilitates integration into existing pipework, making it a versatile component for retrofitting or new installations. Overall, the AFC Swing Flex Check Valve with its durable rubber disc and robust construction is an essential product for ensuring efficient and safe fluid management in a variety of demanding environments.

FAQ:

Q1: What is the brand and model number of the Swing Flex Check Valve?
A1: The Swing Flex Check Valve is manufactured by AFC and the model number is RDCV.
Q2: Where is the AFC Swing Flex Check Valve made?
A2: The AFC Swing Flex Check Valve is made in China.
Q3: What type of applications is the RDCV Swing Flex Check Valve suitable for?
A3: The RDCV Swing Flex Check Valve is suitable for use in various fluid systems to prevent backflow, including water treatment, chemical processing, and HVAC systems.
Q4: What materials are used in the construction of the AFC Swing Flex Check Valve?
A4: The RDCV model is typically constructed with durable materials such as stainless steel or cast iron, designed to provide reliable performance and resistance to corrosion.
Q5: How does the Swing Flex Check Valve operate?
A5: The Swing Flex Check Valve operates by allowing fluid to flow in one direction while preventing backflow. It uses a swinging disc that opens with forward flow and closes automatically when the flow reverses.
