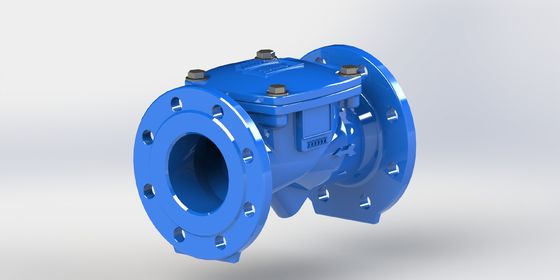

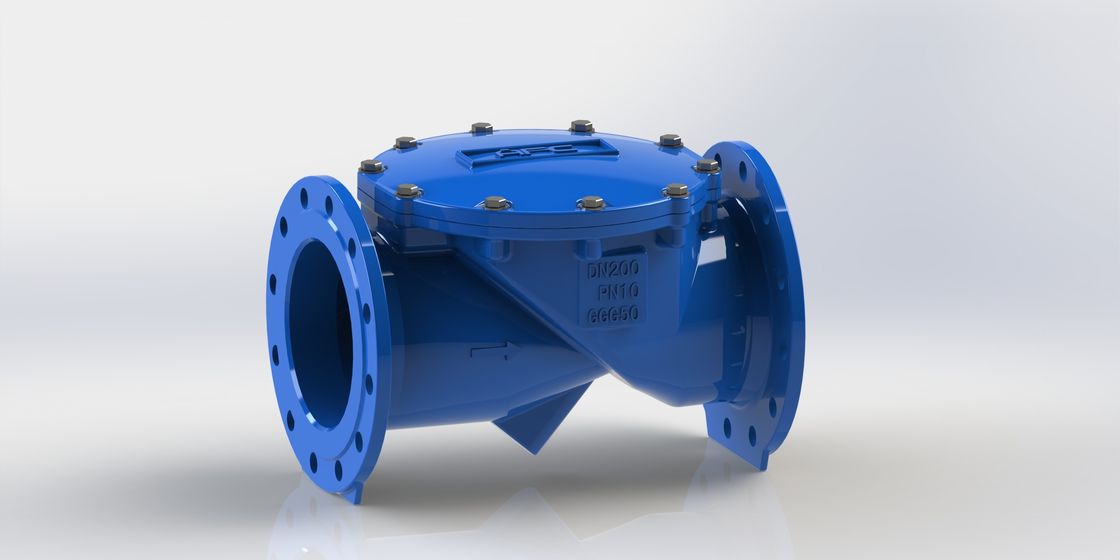

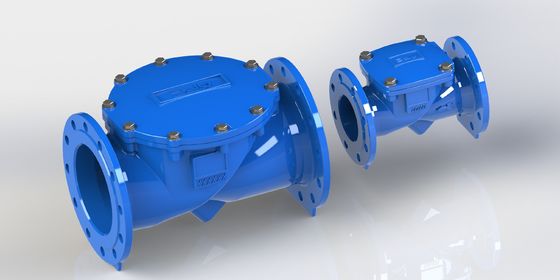

EN12266 Approved Swing Flex Check Valve with EPDM Seal Material and Flange PN10,PN16 for Water Applications

Product Description:

The Swing Flex Check Valve is a high-performance valve designed to ensure reliable and efficient flow control in various industrial and municipal applications. Crafted with precision and engineered for durability, this valve combines robust materials with advanced design features to provide superior functionality and long-lasting service. One of the standout features of the Swing Flex Check Valve is its use of a rubber disc, which plays a crucial role in achieving a tight seal and preventing backflow effectively.

Constructed with a ductile iron body, the Swing Flex Check Valve offers exceptional strength and resistance to impact and corrosion. Ductile iron is well known for its toughness and durability, making it an ideal material for valve bodies that must withstand high pressure and harsh environmental conditions. This ensures that the valve maintains its structural integrity over extended periods of operation, reducing the need for frequent maintenance or replacement.

The sealing mechanism of the Swing Flex Check Valve is enhanced by the incorporation of an EPDM rubber disc. EPDM (ethylene propylene diene monomer) is a synthetic rubber known for its excellent resistance to heat, oxidation, ozone, and various chemicals. The rubber disc is specifically designed to provide a flexible yet secure seal within the valve, preventing any leakage and allowing for smooth operation. The flexibility of the rubber disc ensures that the valve can accommodate slight misalignments and pressure fluctuations without compromising performance.

Available in a comprehensive range of sizes from DN50 to DN700, the Swing Flex Check Valve is versatile enough to be used in numerous pipeline systems. Whether it is for water supply, wastewater treatment, HVAC systems, or industrial fluid control, this valve size range covers most standard requirements, giving engineers and operators the flexibility to select the perfect fit for their specific needs. Larger sizes facilitate higher flow rates while smaller sizes are suitable for more precise control applications.

The design of the Swing Flex Check Valve incorporates a swinging disc mechanism that allows the valve to open and close in response to the flow of fluid. When fluid flows in the desired direction, the rubber disc swings open, allowing unrestricted passage. When the flow reverses or stops, the rubber disc swings back to its seat, creating a tight seal that prevents backflow. This swing action, combined with the flexibility of the rubber disc, minimizes water hammer effects and protects upstream equipment from potential damage caused by reverse flow.

Certified to meet ISO standards, the Swing Flex Check Valve adheres to rigorous international quality and safety benchmarks. This certification ensures that the valve has been manufactured under strict quality control processes and has passed extensive testing procedures to verify its performance, reliability, and durability. Customers can have confidence in the valve’s ability to perform under demanding conditions while complying with industry regulations.

Maintenance and installation of the Swing Flex Check Valve are straightforward, thanks to its user-friendly design and robust construction. The valve’s components are easily accessible for inspection, cleaning, or replacement, reducing downtime and operational costs. Additionally, the ductile iron body and EPDM rubber disc combination provides excellent corrosion resistance, extending the service life of the valve even in aggressive environments.

To summarize, the Swing Flex Check Valve is an excellent choice for applications requiring dependable flow control and backflow prevention. Its ductile iron body offers unparalleled strength, while the EPDM rubber disc ensures a reliable seal and smooth operation. Available in sizes ranging from DN50 to DN700 and certified to ISO standards, this valve meets the highest quality requirements for diverse industrial and municipal uses. The incorporation of the rubber disc three times over highlights its importance in the valve’s design, emphasizing the product’s commitment to flexibility, sealing efficiency, and durability.

Technical Parameters:

Applications:

The AFC Swing Flex Check Valve, model number RDCV, is an essential component designed to regulate water flow in various piping systems. Manufactured in China with high-quality ductile iron body material, this check valve offers durability and reliable performance under different operating conditions. With a pressure rating of PN10 and PN16, the AFC Swing Flex Check Valve is suitable for a wide range of water applications, ensuring efficient prevention of backflow and protecting pumps and other equipment from potential damage.

This check valve is ideal for use in municipal water supply systems, wastewater treatment plants, and industrial water processing facilities. Its robust ductile iron body combined with flange connection type ensures easy installation and maintenance, making it highly suitable for systems where secure and leak-proof joints are critical. The AFC Swing Flex Check Valve complies with the EN12266 test standard, guaranteeing product quality and performance consistency in demanding environments.

In addition to municipal and industrial water systems, the check valve is widely used in irrigation systems, fire protection networks, and HVAC water circuits. Its swing flex design allows for smooth operation and minimal pressure loss, enhancing overall system efficiency. The flange connection facilitates compatibility with various pipeline configurations, providing versatility across different water management scenarios.

The AFC Swing Flex Check Valve is particularly beneficial in applications where continuous water flow with minimal interruption is crucial. It prevents reverse flow effectively, reducing the risk of contamination and equipment failure. This makes it an excellent choice for pumping stations, desalination plants, and cooling water systems in power plants.

Overall, the AFC RDCV check valve is a reliable and durable solution for water systems requiring a high-performance, easy-to-install check valve that withstands varying pressure conditions. Its design and material selection make it a preferred product for engineers and system designers focused on longevity and operational safety in water-related applications.

FAQ:

Q1: What is the brand and model number of the Swing Flex Check Valve?

A1: The Swing Flex Check Valve is manufactured by AFC and the model number is RDCV.

Q2: Where is the AFC Swing Flex Check Valve made?

A2: The AFC Swing Flex Check Valve is made in China.

Q3: What type of check valve is the RDCV model?

A3: The RDCV model from AFC is a Swing Flex Check Valve, designed to allow fluid flow in one direction and prevent backflow.

Q4: What applications is the AFC Swing Flex Check Valve suitable for?

A4: The AFC Swing Flex Check Valve is suitable for various industrial applications including water treatment, HVAC systems, and chemical processing where backflow prevention is critical.

Q5: How does the Swing Flex design benefit the check valve’s performance?

A5: The Swing Flex design provides a flexible sealing mechanism that reduces water hammer and allows smooth operation, improving the valve’s durability and efficiency.
