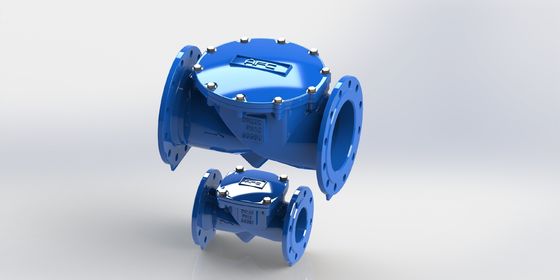

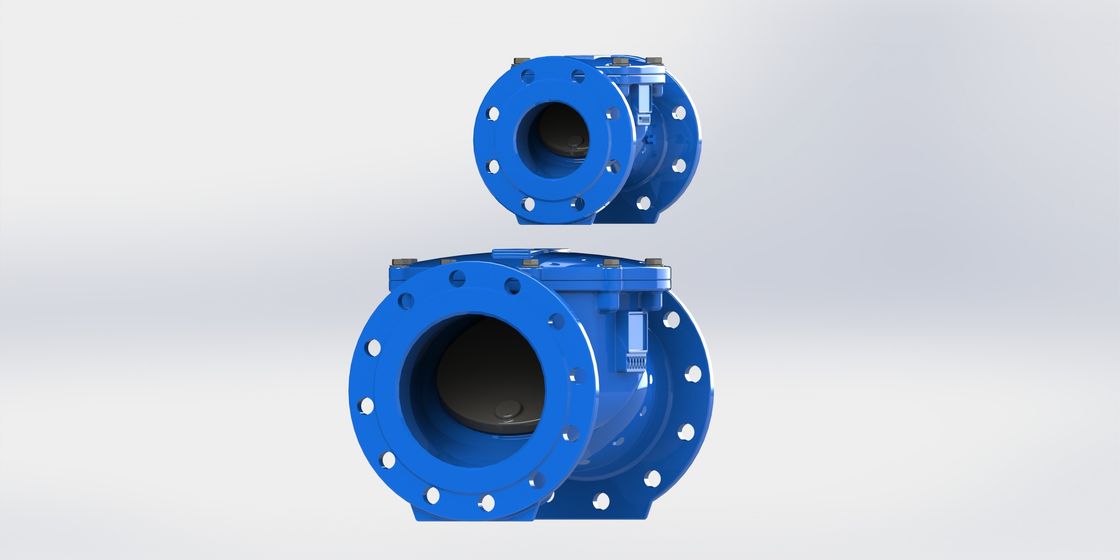

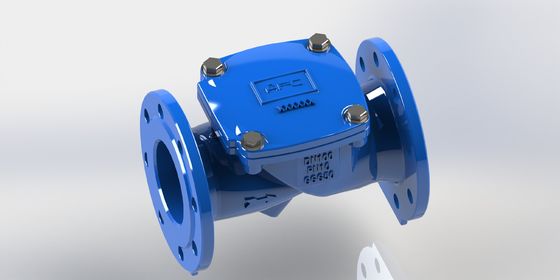

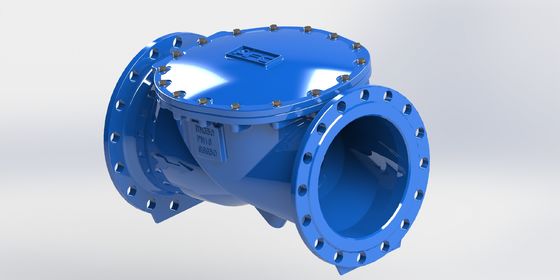

EN12266 Test Standard Swing Flex Check Valve with Flange Connection Type and EPDM Seal Material for Industrial Fluid Control

Product Description:

The Swing Flex Check Valve is a highly reliable and efficient valve designed to prevent backflow in piping systems, ensuring smooth and safe operation in various industrial applications. Manufactured with precision and quality in mind, this check valve is an essential component for controlling fluid flow and maintaining system integrity. It is widely recognized for its robust construction, ease of maintenance, and excellent performance under different pressure conditions.

One of the key features of the Swing Flex Check Valve is its compliance with the ISO certification standards, which guarantees that the product meets international quality and safety requirements. This certification offers users confidence in the valve's durability, reliability, and overall performance. Whether used in water treatment, HVAC systems, chemical processing, or other industrial sectors, the ISO-certified Swing Flex Check Valve ensures consistent and trouble-free operation.

The valve is available in a broad range of sizes, from DN50 to DN700, making it versatile enough to accommodate various pipeline diameters and flow requirements. This wide size range allows engineers and system designers to select the appropriate valve size for their specific applications, ensuring optimal system efficiency and functionality. The Swing Flex Check Valve is designed to fit seamlessly into existing piping systems, providing a flexible and adaptable solution for fluid control.

Designed to operate effectively under different pressure ratings, the Swing Flex Check Valve is available in PN10 and PN16 pressure classes. These ratings indicate the valve's ability to withstand pressures up to 10 bar and 16 bar respectively, making it suitable for medium to high-pressure applications. The ability to perform reliably under these pressure conditions makes this valve an ideal choice for a wide variety of industrial processes where pressure fluctuations are common.

The end connection of the Swing Flex Check Valve is designed with flange PN10 and PN16 options, which ensures easy installation and compatibility with standard piping flanges. Flanged connections provide a secure and leak-proof joint, facilitating maintenance and replacement when necessary. This design feature adds to the overall convenience and reliability of the valve, reducing downtime and operational costs.

A standout component of the Swing Flex Check Valve is its innovative rubber disc, which plays a crucial role in its operation. The rubber disc acts as a flexible sealing element that responds quickly to changes in flow direction, allowing fluid to pass in one direction while preventing reverse flow. This disc is engineered to provide a tight seal, minimizing leakage and protecting the system from potential damage caused by backflow. The use of rubber material ensures excellent resilience, durability, and resistance to wear, contributing to the valve's long service life.

The swing mechanism of the valve allows the rubber disc to pivot freely, enhancing the valve’s responsiveness and reducing water hammer effects, which can cause stress and damage in piping systems. This design not only improves the valve’s performance but also extends its operational lifespan, making it a cost-effective and reliable solution for fluid control.

In summary, the Swing Flex Check Valve is a high-quality check valve that combines durability, efficiency, and versatility. With its ISO certification, wide size range from DN50 to DN700, pressure ratings of PN10 and PN16, and flange end connections, it is perfectly suited for a variety of industrial applications. The innovative rubber disc design ensures reliable sealing and protection against backflow, making this check valve an indispensable component for maintaining the safety and efficiency of piping systems around the world.

Technical Parameters:

Applications:

The AFC Swing Flex Check Valve, model RDCV, is a highly reliable and efficient valve designed specifically for water applications. Manufactured in China with a robust ductile iron body, this check valve is engineered to provide long-lasting performance and durability in various water systems. Available in sizes ranging from DN50 to DN700, the Swing Flex Check Valve is suitable for a wide range of industrial, municipal, and commercial water pipelines.

One of the key features of the AFC Swing Flex Check Valve is its innovative rubber disc design. The rubber disc acts as a flexible sealing component that ensures a tight shut-off, preventing backflow and minimizing water hammer effects. This design not only enhances the valve’s sealing capability but also reduces wear and tear, thereby extending the valve’s service life. The rubber disc’s flexibility allows the valve to respond quickly to changes in flow direction, making it ideal for dynamic water systems.

The Swing Flex Check Valve is extensively used in water supply networks, wastewater treatment plants, irrigation systems, and cooling water circuits. Its ductile iron body provides excellent strength and corrosion resistance, making it suitable for both above-ground and underground installations. The valve complies with the stringent EN12266 test standard, ensuring its reliability and safety under various operating conditions.

In municipal water distribution, the AFC Swing Flex Check Valve helps maintain system integrity by preventing reverse flow and contamination. In industrial plants, it is used to protect pumps and other critical equipment from damage caused by backflow. Additionally, its rubber disc helps absorb pressure surges, making it beneficial in systems prone to water hammer. The valve’s versatile size range from DN50 to DN700 allows it to fit seamlessly in different pipeline dimensions, providing a flexible solution for water management challenges.

Overall, the AFC Swing Flex Check Valve with its rubber disc design and durable ductile iron construction is an excellent choice for applications requiring dependable backflow prevention in water systems. Whether used in municipal, industrial, or agricultural scenarios, this check valve delivers superior performance and compliance with international testing standards.

FAQ:

Q1: What is the brand name of the Swing Flex Check Valve?

A1: The Swing Flex Check Valve is manufactured by the brand AFC.

Q2: What is the model number of this Swing Flex Check Valve?

A2: The model number of the Swing Flex Check Valve is RDCV.

Q3: Where is the AFC Swing Flex Check Valve made?

A3: The AFC Swing Flex Check Valve is made in China.

Q4: What are the typical applications for the AFC RDCV Swing Flex Check Valve?

A4: The AFC RDCV Swing Flex Check Valve is commonly used in pipelines to prevent backflow, suitable for water, oil, and gas industries.

Q5: What materials are used in the construction of the AFC RDCV Swing Flex Check Valve?

A5: The AFC RDCV Swing Flex Check Valve is typically constructed from high-quality stainless steel or cast iron, ensuring durability and resistance to corrosion.
