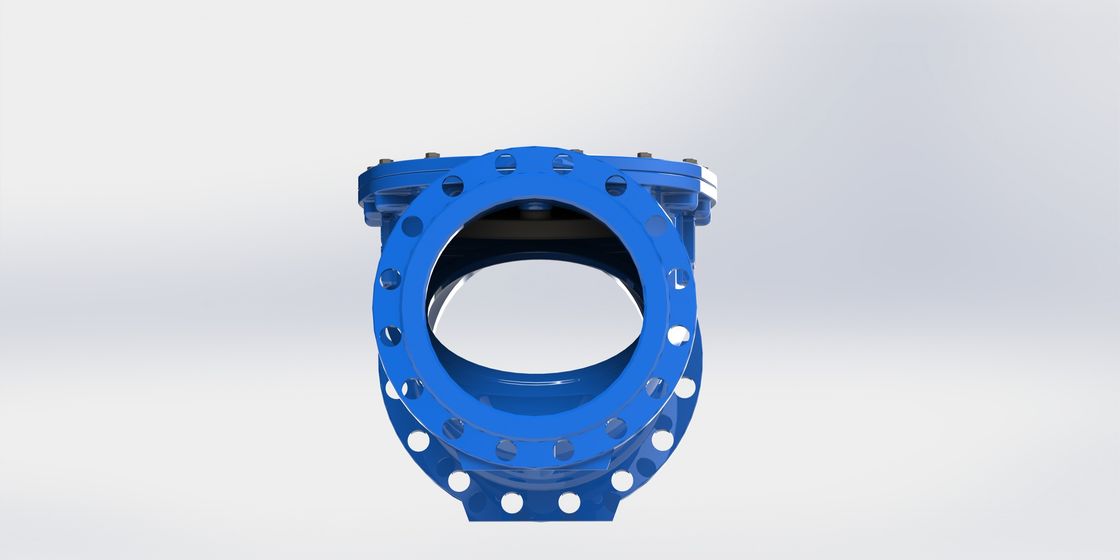

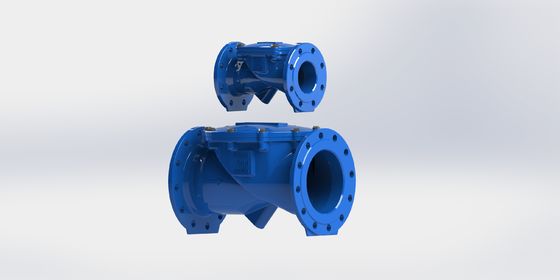

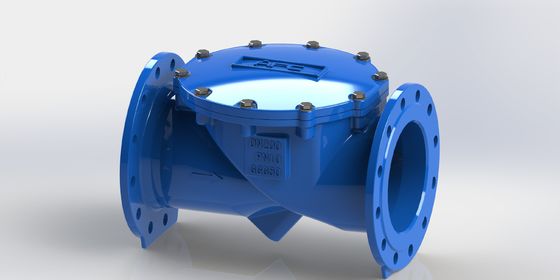

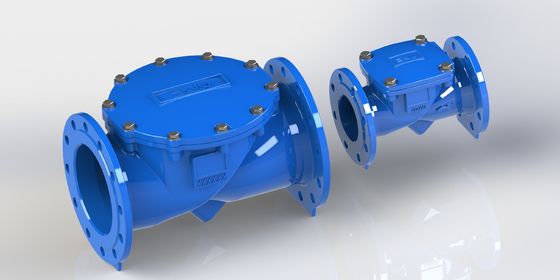

Swing Flex Check Valve with PN16 Pressure Rating Ductile Iron Body and EPDM Seal for Water Applications

Product Description:

The Swing Flex Check Valve is a robust and reliable solution designed specifically for water applications, ensuring efficient flow control and preventing backflow in piping systems. Constructed with a durable ductile iron body, this check valve offers excellent strength and resistance to pressure, making it an ideal choice for a wide range of industrial and municipal water systems. The use of ductile iron not only provides superior mechanical properties but also ensures long-lasting performance even under demanding operational conditions.

One of the key features of the Swing Flex Check Valve is its flexible rubber disc, which plays a crucial role in its operation. The rubber disc is engineered to provide a tight seal, effectively preventing reverse flow and protecting pumps, pipes, and other equipment from potential damage caused by backflow. The flexibility of the rubber disc allows it to respond quickly to changes in flow direction, ensuring smooth and reliable valve closure without water hammer or pressure surges. This design enhances the valve's overall efficiency and extends its service life.

The Swing Flex Check Valve is available in sizes ranging from DN50 to DN700, accommodating a wide variety of piping requirements. This broad size range makes it suitable for use in both small-scale installations and large-scale water distribution networks. Additionally, the valve features flange end connections compliant with PN10 and PN16 standards, facilitating easy and secure installation within existing piping systems. The flange connections ensure a tight fit and reliable sealing, minimizing the risk of leaks and maintenance issues.

Seal integrity is paramount in check valve performance, and the Swing Flex Check Valve utilizes EPDM (ethylene propylene diene monomer) as the seal material. EPDM is renowned for its excellent resistance to water, steam, and a wide range of chemicals, making it an optimal choice for water applications. The EPDM seal provides a resilient and durable barrier that maintains its sealing capabilities over time, even when exposed to fluctuating temperatures and pressures. This contributes to the valve's consistent performance and reduces the need for frequent maintenance or replacement.

Designed with operational efficiency in mind, the Swing Flex Check Valve offers minimal pressure drop and smooth flow characteristics. Its swing design allows the disc to move freely on a hinge, opening fully to permit unobstructed flow and closing quickly to prevent backflow. This mechanism reduces wear and tear on the valve components and helps maintain system integrity. The combination of the flexible rubber disc and EPDM seals ensures that the valve operates quietly and reliably, enhancing overall system performance.

In summary, the Swing Flex Check Valve is an excellent choice for water applications requiring dependable backflow prevention and flow control. Its ductile iron body ensures structural strength and durability, while the flexible rubber disc and EPDM seal provide exceptional sealing and operational reliability. Available in a wide size range with flange end connections conforming to PN10 and PN16 standards, this check valve is versatile and easy to install. Whether used in municipal water supply systems, irrigation networks, or industrial water processing, the Swing Flex Check Valve delivers consistent performance, longevity, and peace of mind.

Choosing the Swing Flex Check Valve means investing in a high-quality check valve that combines advanced materials and design features to meet the demands of modern water systems. Its rubber disc design minimizes maintenance issues and enhances flow efficiency, while the robust ductile iron construction ensures that it can withstand the rigors of daily operation. With its reliable sealing and smooth operation, the Swing Flex Check Valve stands out as a trusted component in any water infrastructure project.

Features:

• Product Name: Swing Flex Check Valve
• Temperature Range: 0-80℃
• Body Material: Ductile Iron
• Test Standard: EN12266
• Certified with ISO standards
• Equipped with a durable rubber disc for reliable sealing
• Rubber disc design ensures effective backflow prevention
• High-quality rubber disc enhances valve flexibility and performance

Technical Parameters:

Applications:

The AFC Swing Flex Check Valve, model number RDCV, is a high-quality product originating from China, designed to meet rigorous industry standards including the EN12266 test standard. This check valve is engineered to operate efficiently within a temperature range of 0-80℃, making it suitable for a wide variety of applications where temperature control and reliability are critical. Its robust construction features a flange connection type with end connections available in Flange PN10 and PN16, ensuring compatibility with numerous piping systems in diverse industrial settings.

The primary application of the AFC Swing Flex Check Valve is in fluid handling systems where backflow prevention is essential. It is commonly employed in water treatment plants, HVAC systems, and various chemical processing industries. The check valve’s flexible sealing mechanism, made from durable EPDM material, provides excellent resistance to wear and ensures a tight seal to prevent leakage. This makes the valve ideal for use in pipelines carrying clean water, wastewater, and other non-corrosive fluids.

In industrial scenarios, the AFC Swing Flex Check Valve is frequently utilized in pumping stations and pipeline networks to maintain unidirectional flow and protect pumps and compressors from damage caused by reverse flow. Its flange end connections enable easy installation and maintenance, making it a preferred choice for engineers and technicians in sectors such as power generation, municipal water supply, and manufacturing plants.

The valve’s ability to function reliably within the specified temperature range makes it suitable for heating and cooling systems in commercial and residential buildings. Additionally, its compliance with EN12266 ensures that it meets European standards for pressure equipment, offering peace of mind regarding safety and performance. The AFC Swing Flex Check Valve is also suitable for use in irrigation systems and fire protection networks where dependable flow control is crucial.

Overall, the AFC RDCV Swing Flex Check Valve is a versatile and dependable component designed to ensure smooth and secure flow control in a variety of applications. Whether used in industrial, commercial, or municipal projects, this check valve stands out for its quality, durability, and compliance with international standards, making it an excellent choice for professionals seeking reliable check valve solutions.
