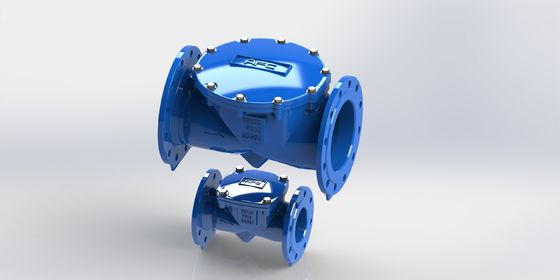

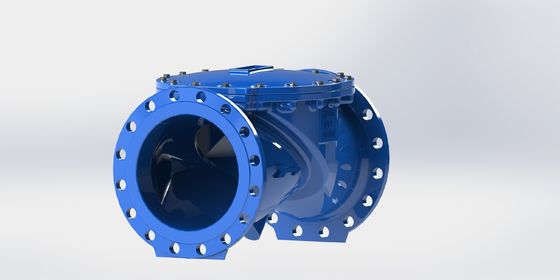

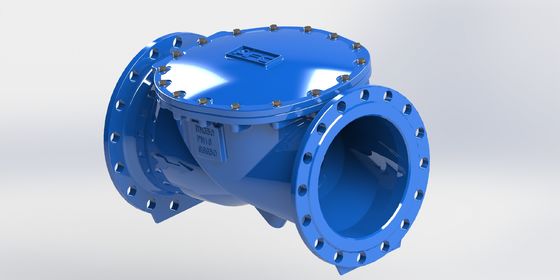

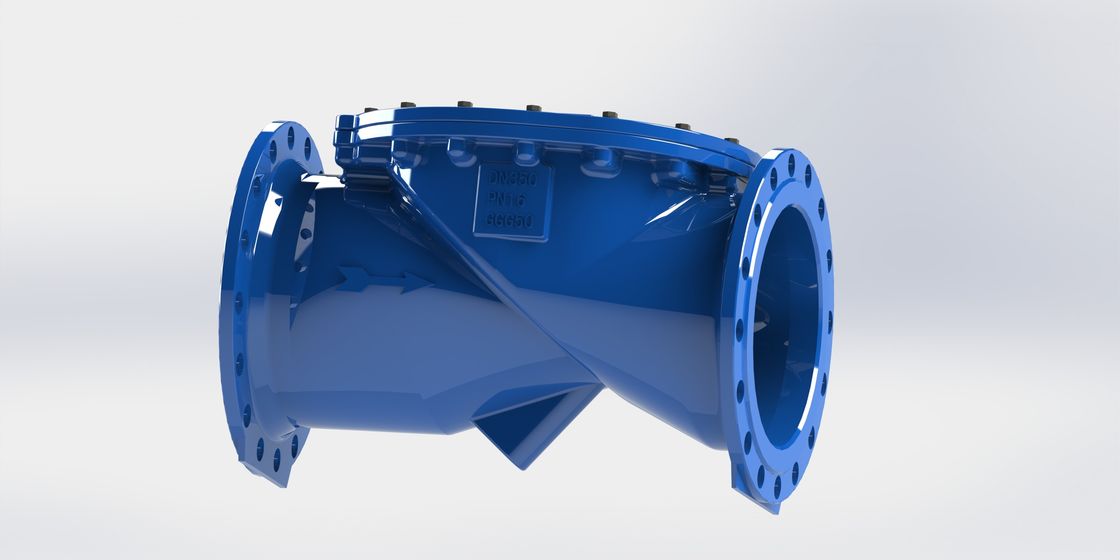

PN16 End Connection Swing Flex Check Valve with Ductile Iron Body and EN12266 Test Standard for Reliable Fluid Control

Product Description:

The Swing Flex Check Valve is a high-quality valve designed to ensure reliable and efficient flow control in various industrial applications. Engineered with precision and manufactured to meet stringent standards, this valve is an excellent choice for systems requiring dependable backflow prevention and smooth operation. One of the standout features of this valve is its flange connection type, which provides a secure and leak-proof installation, making it suitable for pipelines ranging from DN50 to DN700 in size.

Constructed in compliance with the ISO certification, the Swing Flex Check Valve guarantees high performance and durability. The ISO certification reflects the rigorous quality control and manufacturing processes that this valve undergoes, ensuring that it meets international standards for safety and efficiency. This certification provides customers with confidence in the valve’s reliability and long-term functionality in demanding environments.

A key component of the valve is its rubber disc, which plays a critical role in sealing and flow regulation. The rubber disc is designed to flexibly respond to changes in flow direction, allowing for quick closure to prevent backflow while minimizing water hammer and pressure surges. The use of a rubber disc enhances the valve’s sealing capability, contributing to leak-tight performance and reducing maintenance needs. Additionally, the rubber disc’s resilient properties ensure that the valve maintains effective operation even under varying pressure conditions.

The seal material used in the Swing Flex Check Valve is EPDM (Ethylene Propylene Diene Monomer), known for its excellent resistance to heat, ozone, and weathering. EPDM seals offer superior durability and flexibility, making them ideal for sealing applications in water and wastewater treatment, HVAC systems, and other industrial processes. The EPDM seal complements the rubber disc by providing a robust and reliable barrier against leaks, ensuring that the valve maintains optimal sealing performance over its service life.

Testing and quality assurance are paramount for the Swing Flex Check Valve. The valve is tested in accordance with the EN12266 standard, which is a widely recognized European testing standard for industrial valves. This testing standard covers various performance aspects, including leakage, strength, and operational reliability, ensuring that every valve delivered meets rigorous quality benchmarks. Compliance with EN12266 means the valve has been subjected to comprehensive pressure and leakage tests, further affirming its suitability for critical applications.

Available in sizes ranging from DN50 to DN700, the Swing Flex Check Valve offers versatility and adaptability for a wide range of pipeline diameters. This broad size range allows it to be used in diverse sectors, including water treatment plants, power generation, chemical processing, and marine applications. The valve’s ability to accommodate large and small pipelines alike makes it a flexible solution for engineers and system designers looking for dependable check valve options.

In summary, the Swing Flex Check Valve is a robust, reliable, and efficient valve solution that incorporates a rubber disc and EPDM seal to ensure superior sealing and operational performance. Its flange connection type facilitates easy installation and maintenance, while its compliance with ISO certification and EN12266 test standards guarantees quality and durability. Whether used in municipal water systems, industrial processes, or other critical applications, this valve delivers excellent backflow prevention and long-lasting service. The inclusion of the rubber disc is a critical design feature that enhances the valve’s functionality and reliability, making the Swing Flex Check Valve a trusted component in any pipeline system.

Features:

• Product Name: Swing Flex Check Valve
• Seal Material: EPDM for excellent sealing performance
• Body Material: Durable Ductile Iron construction
• Temperature Range: Suitable for 0-80℃ operating temperatures
• End Connection: Flange PN10 and PN16 for versatile installation
• Designed as a reliable check valve to prevent backflow
• Efficient check valve operation ensuring smooth fluid flow
• Robust check valve suitable for various industrial applications

Technical Parameters:

Applications:

The AFC Swing Flex Check Valve, model number RDCV, is a high-quality valve designed to ensure unidirectional flow in various piping systems. Manufactured in China, this check valve is built with a durable ductile iron body, providing excellent strength and resistance to wear and corrosion. It features a rubber disc that offers reliable sealing performance, preventing backflow and protecting pumps, compressors, and other equipment from potential damage. The rubber disc design also contributes to quieter operation and enhanced durability, making the valve suitable for a wide range of industrial applications.

This check valve is rated for pressure classes PN10 and PN16, making it versatile for use in medium-pressure systems. The flange connection type facilitates easy installation and secure attachment to existing pipeline infrastructure, ensuring minimal leakage and robust mechanical stability. The AFC Swing Flex Check Valve conforms to the EN12266 test standard, guaranteeing that it meets stringent quality and performance criteria. Additionally, it holds the ISO certification, which further assures users of its reliability and compliance with international manufacturing standards.

Typical application occasions for the AFC RDCV check valve include water supply systems, wastewater treatment plants, HVAC systems, and industrial fluid handling processes. Its ability to prevent reverse flow makes it ideal for protecting pumps and compressors in these environments. Moreover, the valve is suitable for use in power plants, chemical processing, and irrigation systems where dependable backflow prevention is critical.

Scenario-wise, this swing flex check valve performs exceptionally well in situations where fluid flow direction must be strictly controlled without manual intervention. For instance, in municipal water pipelines, it prevents contamination caused by backflow. In heating and cooling systems, it maintains system efficiency by ensuring proper flow direction. The rubber disc within the valve enhances sealing efficiency and reduces water hammer effects, making it suitable for dynamic flow conditions. Its robust ductile iron body withstands mechanical stresses and environmental factors, ensuring long service life.

In summary, the AFC Swing Flex Check Valve (RDCV) is a reliable, high-performance solution for various applications requiring dependable backflow prevention. Its rubber disc design, ductile iron construction, flange connection, and compliance with EN12266 and ISO standards make it an excellent choice for industries seeking durable and efficient check valves.
