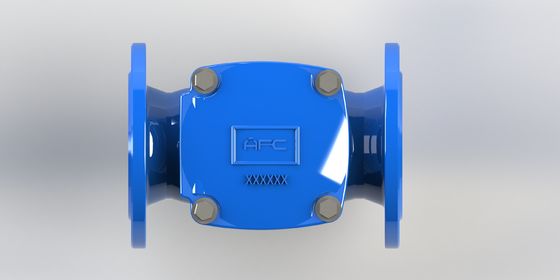

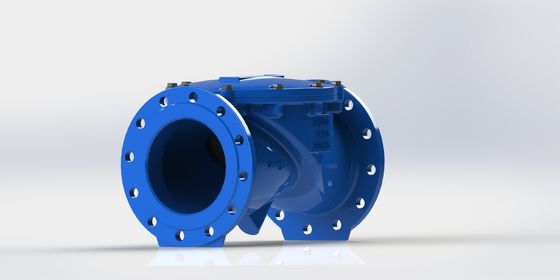

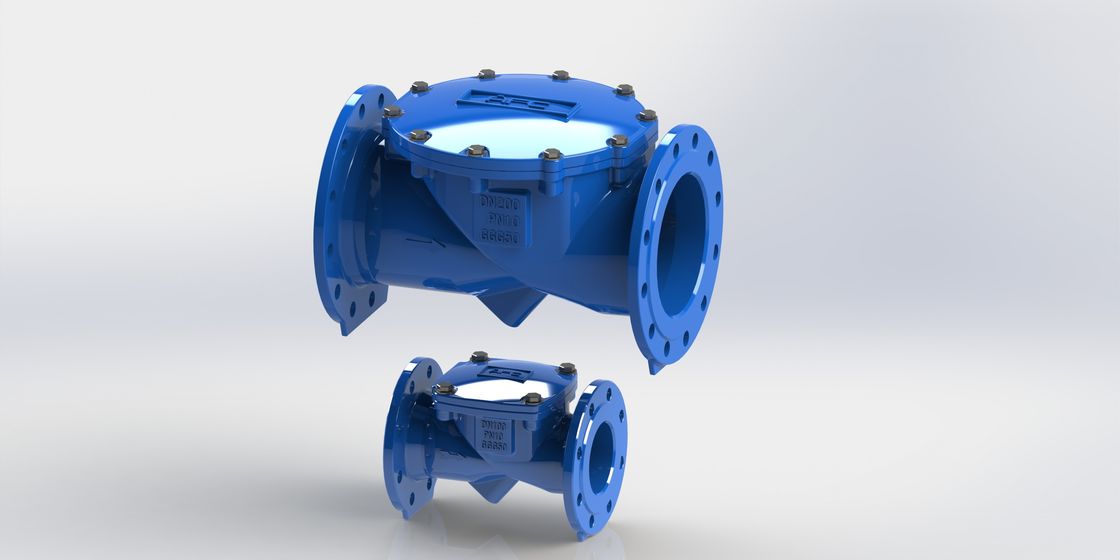

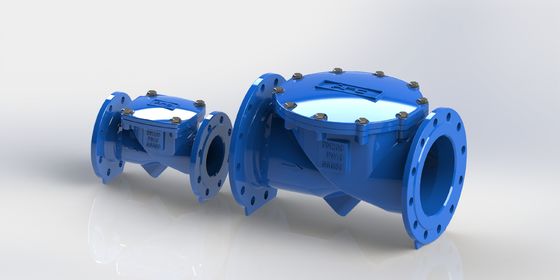

PN16 Swing Flex Check Valve with Ductile Iron Body and EPDM Rubber Disc for Industrial Pipelines

Product Description:

The Swing Flex Check Valve is a highly reliable and efficient valve designed to prevent backflow in piping systems, ensuring smooth and safe fluid control. Engineered with precision and durability in mind, this check valve is an essential component for various industrial applications where maintaining unidirectional flow is critical. Its robust construction and superior performance characteristics make it a preferred choice among engineers and system designers.

One of the key features of the Swing Flex Check Valve is its end connection, which comes in flange options rated at PN10 and PN16. These flange connections ensure easy installation and compatibility with a wide range of piping systems, providing a secure and leak-proof joint. The availability of both PN10 and PN16 pressure ratings allows the valve to cater to different system requirements, making it versatile across various pressure conditions.

The valve body is constructed from ductile iron, a material known for its excellent strength, toughness, and resistance to wear and corrosion. Ductile iron offers the perfect balance between durability and cost-effectiveness, ensuring that the check valve can withstand demanding operational environments while maintaining a long service life. This robust body design also contributes to the valve’s ability to handle fluctuating pressures and temperatures without compromising its integrity.

A distinctive feature of the Swing Flex Check Valve is its rubber disc, which plays a crucial role in providing a tight seal and preventing reverse flow. The rubber disc is flexible and resilient, allowing it to respond quickly to changes in flow direction. This flexibility not only enhances the valve’s sealing capability but also reduces wear and tear, minimizing maintenance requirements and downtime. The rubber disc design ensures that the valve operates smoothly, with minimal water hammer effect, thereby protecting the piping system from potential damage.

Certified under ISO standards, the Swing Flex Check Valve meets stringent quality and safety requirements, assuring users of its reliability and performance. The ISO certification reflects the manufacturer’s commitment to maintaining high production standards and delivering products that comply with international benchmarks. This certification is particularly important for industries where compliance with regulatory and safety standards is mandatory.

In addition to ISO certification, the Swing Flex Check Valve is tested according to the EN12266 test standard. This rigorous testing ensures that the valve performs optimally under various conditions, including pressure, temperature, and flow scenarios. Adherence to the EN12266 standard guarantees that each valve undergoes comprehensive inspection for leakage, durability, and operational efficiency before reaching the customer.

The Swing Flex Check Valve is widely used in water treatment plants, HVAC systems, chemical processing, and other industrial sectors where fluid control and backflow prevention are critical. Its combination of a durable ductile iron body, flexible rubber disc, and reliable flange connections makes it an ideal solution for maintaining system integrity and operational safety.

In summary, the Swing Flex Check Valve is a robust, efficient, and reliable valve designed to ensure unidirectional flow and prevent backflow in various piping systems. With its flange PN10 and PN16 end connections, ductile iron body, flexible rubber disc, ISO certification, and compliance with the EN12266 test standard, this check valve offers superior performance and durability. Whether for industrial, commercial, or municipal applications, the Swing Flex Check Valve stands out as a trusted choice for maintaining system efficiency and safety.

Features:

• Product Name: Swing Flex Check Valve
• Test Standard: EN12266
• End Connection: Flange PN10, PN16
• Size Range: DN50-700
• Seal Material: EPDM rubber disc
• Temperature Range: 0-80℃
• Features a durable rubber disc for reliable sealing
• Designed as a swing check valve to prevent backflow
• Suitable for various applications requiring a flexible rubber disc check valve

Technical Parameters:

Applications:

The AFC Swing Flex Check Valve, model number RDCV, is a highly reliable and efficient valve designed for various industrial and commercial applications. Originating from China, this check valve is constructed with a durable ductile iron body, ensuring strength and longevity in demanding environments. Its end connections feature flange PN10 and PN16 standards, making it compatible with a wide range of piping systems. Certified by ISO and tested according to the EN12266 standard, the AFC RDCV swing flex check valve guarantees superior quality and performance.

This check valve is specifically designed to prevent backflow in pipelines, allowing fluid to flow in one direction only. The key feature of this valve is its rubber disc, which provides a flexible and tight seal. Made from high-quality EPDM seal material, the rubber disc ensures excellent resistance to wear, corrosion, and a variety of chemicals, making it suitable for different types of fluids including water, oil, and gases. The rubber disc mechanism also contributes to minimal pressure loss and smooth operation, enhancing system efficiency.

The AFC Swing Flex Check Valve is ideal for use in water treatment plants, HVAC systems, chemical processing facilities, and industrial piping networks. In water supply systems, it prevents contamination by ensuring unidirectional flow, while in heating and cooling systems, it protects pumps and compressors from damage caused by reverse flow. The valve’s robust ductile iron construction and reliable rubber disc seal make it a perfect choice for harsh environments where durability and performance are critical.

Moreover, the swing design of the valve allows for easy maintenance and inspection, as the rubber disc can be flexed and checked without dismantling the entire valve. This feature is especially beneficial in large-scale industrial plants and municipal infrastructure where downtime needs to be minimized. The AFC RDCV swing flex check valve’s combination of advanced materials, stringent testing standards, and practical design make it an excellent solution for preventing backflow and ensuring safe, efficient fluid control in numerous application scenarios.
