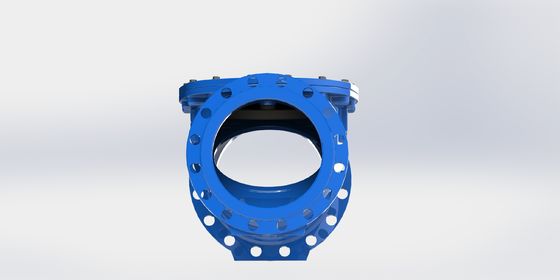

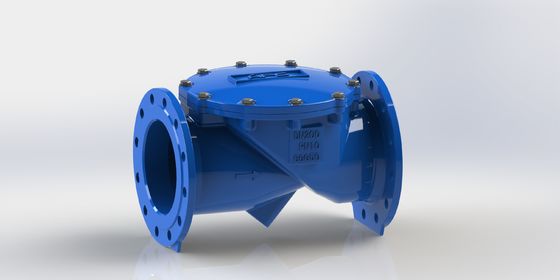

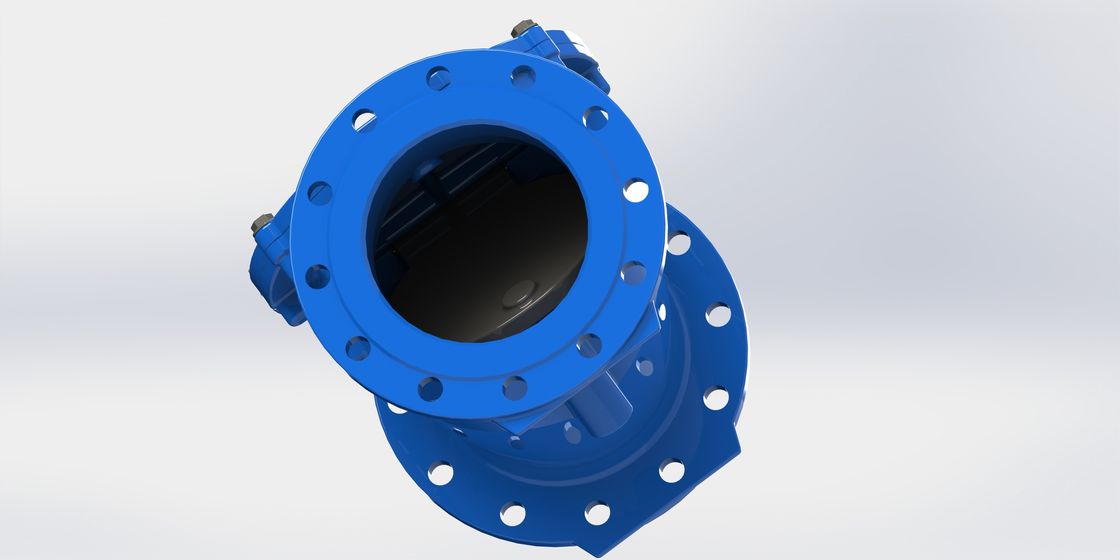

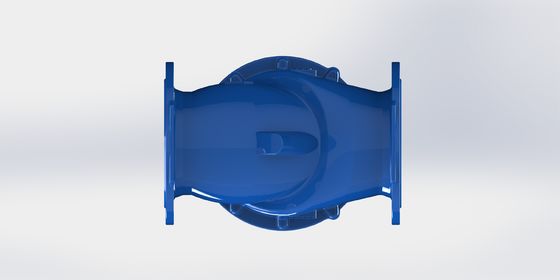

PN10 Pressure Rating Swing Flex Check Valve with EPDM Seal Material and Ductile Iron Body for Water Treatment

Product Description:

The Swing Flex Check Valve is a high-quality valve designed to ensure efficient and reliable flow control in various industrial and commercial piping systems. Manufactured with precision and adhering to international standards, this valve is an essential component for preventing backflow and protecting pumps, compressors, and other equipment from potential damage caused by reverse flow. Certified by ISO, the Swing Flex Check Valve meets stringent quality and safety requirements, ensuring dependable performance in demanding environments.

Constructed from robust ductile iron, the body material of the Swing Flex Check Valve offers exceptional strength, durability, and resistance to wear and corrosion. Ductile iron is known for its superior mechanical properties compared to traditional cast iron, making it an ideal choice for valves that must withstand high pressure and variable operating conditions. This material choice not only enhances the valve’s longevity but also contributes to its ability to maintain a tight seal and consistent operation over time.

One of the standout features of the Swing Flex Check Valve is its innovative rubber disc design. The rubber disc acts as the sealing element that moves to allow flow in one direction and closes promptly to prevent reverse flow. This flexible rubber disc provides a reliable seal even under low-pressure conditions, minimizing leakage and ensuring efficient system performance. The use of a rubber disc also reduces noise and water hammer effects, which are common concerns in piping systems with check valves. Additionally, the rubber material is resistant to various chemicals and temperatures, further enhancing the valve’s versatility across different applications.

The Swing Flex Check Valve is available with pressure ratings of PN10 and PN16, catering to a wide range of system requirements. These pressure ratings indicate the valve's ability to operate safely and effectively under pressures of 10 bar and 16 bar, respectively. Whether the application involves municipal water systems, irrigation networks, HVAC, or industrial fluid handling, the Swing Flex Check Valve provides reliable protection against backflow, ensuring system integrity and operational efficiency.

In compliance with the EN12266 test standard, the Swing Flex Check Valve undergoes rigorous testing to verify its performance, durability, and leak-tightness. This standard ensures that each valve meets or exceeds international benchmarks for pressure testing and operational reliability. By adhering to EN12266, the manufacturer guarantees that the Swing Flex Check Valve will perform consistently in real-world applications, delivering peace of mind to engineers, contractors, and end-users alike.

Installation and maintenance of the Swing Flex Check Valve are straightforward, thanks to its user-friendly design and the inherent advantages of the swing check mechanism. The valve’s swing motion allows the rubber disc to open freely with forward flow and close quickly when flow reverses, minimizing wear and extending the valve's service life. This simplicity in design also facilitates easy inspection and replacement of internal components if needed, reducing downtime and maintenance costs.

Overall, the Swing Flex Check Valve represents an excellent choice for anyone seeking a durable, efficient, and reliable check valve solution. Its combination of ductile iron body construction, innovative rubber disc sealing, ISO certification, and compliance with EN12266 testing standards ensures superior quality and performance. Whether used in water supply systems, industrial processes, or other fluid control applications, this valve provides dependable protection against backflow, helping to maintain system safety and operational continuity.

Features:

• Product Name: Swing Flex Check Valve
• Seal Material: EPDM rubber disc for reliable sealing
• Body Material: Durable ductile iron construction
• Connection Type: Flange connection for easy installation
• End Connection: Flange PN10 and PN16 options available
• Designed as a check valve to prevent backflow
• Uses a flexible rubber disc to ensure tight shut-off
• Rubber disc enhances sealing performance and durability

Technical Parameters:

Applications:

The AFC Swing Flex Check Valve, model RDCV, originating from China, is a highly reliable and efficient valve designed for various industrial and commercial applications. With its robust construction featuring a ductile iron body and a durable rubber disc, this check valve ensures optimal performance and longevity in fluid control systems. The valve operates within a temperature range of 0-80℃, making it suitable for a wide range of environments.

One of the primary application occasions for the AFC RDCV check valve is in water supply and distribution systems. Its flange connection type, compatible with Flange PN10 and PN16 standards, allows for easy installation and integration into existing pipelines. The valve’s rubber disc provides a tight seal, preventing backflow and ensuring the smooth, unidirectional flow of water. This makes it ideal for municipal water treatment plants, irrigation systems, and building water supply networks.

In addition to water systems, the Swing Flex Check Valve is extensively used in HVAC systems to maintain efficient operation by preventing reverse flow that could damage equipment or reduce system efficiency. The valve’s adherence to the EN12266 test standard guarantees its reliability and safety in controlling the flow of liquids and gases under various pressure conditions. Its ductile iron body provides excellent strength and resistance to wear, which is crucial in industrial environments where durability is paramount.

Moreover, the AFC RDCV check valve is suitable for use in pumping stations, chemical processing plants, and wastewater treatment facilities. The rubber disc’s flexibility allows it to respond quickly to flow changes, minimizing water hammer effects and protecting pumps and pipelines from potential damage. The flange connection ensures a secure and leak-proof fit, facilitating maintenance and replacement when necessary.

Overall, the AFC Swing Flex Check Valve combines quality materials, precise engineering, and versatile design to meet the demanding requirements of various industries. Whether in water management, industrial processing, or HVAC systems, this check valve with its rubber disc and flange connection offers dependable performance, making it an essential component in fluid control applications.
