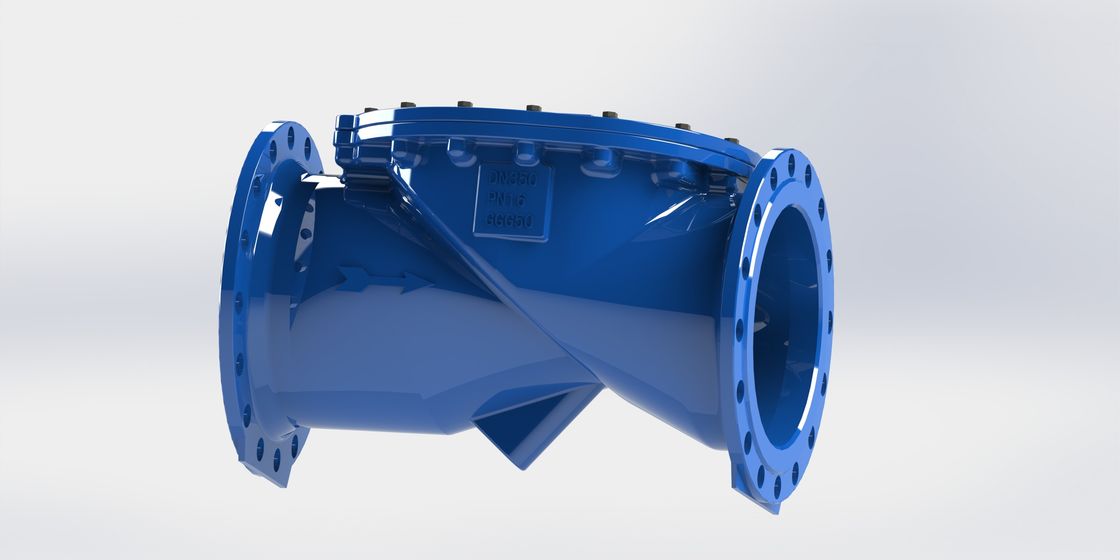

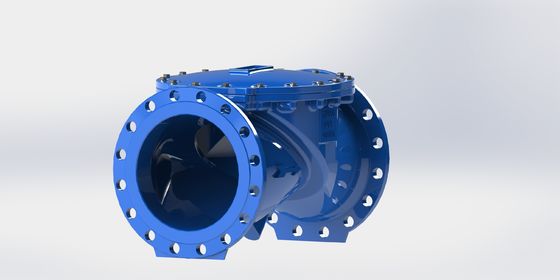

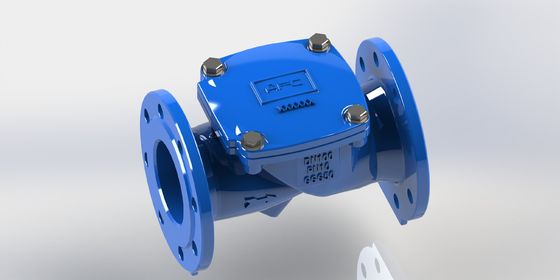

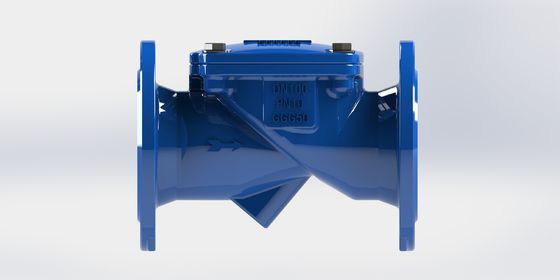

Ductile Iron Swing Flex Check Valve with EPDM Seal and EN12266 Tested for Water Applications

Product Description:

The Swing Flex Check Valve is a high-quality, reliable valve designed to ensure efficient flow control and prevent backflow in water piping systems. Available in sizes ranging from DN50 to DN700, this valve is engineered to meet the diverse needs of various water applications, making it an ideal choice for municipal, industrial, and commercial water management projects. Its robust construction and superior sealing capabilities guarantee long-lasting performance and minimal maintenance requirements.

Constructed with a durable ductile iron body, the Swing Flex Check Valve offers exceptional strength and resistance to corrosion, ensuring it can withstand the rigors of demanding water applications. Ductile iron is known for its excellent mechanical properties, including high tensile strength and impact resistance, which contribute to the valve’s overall durability and reliability. This material choice ensures that the valve maintains its integrity even under high pressure and fluctuating operating conditions, providing peace of mind for system operators.

One of the key features of the Swing Flex Check Valve is its innovative rubber disc design. The rubber disc acts as a flexible sealing element that allows the valve to respond swiftly to changes in flow direction. This flexibility not only ensures a tight seal when the valve is closed but also minimizes water hammer and pressure surges that can cause damage to piping systems. The rubber disc’s resilience and adaptability make it an essential component in maintaining smooth and efficient water flow, reducing wear and tear on the valve and associated equipment.

The seal material used in the Swing Flex Check Valve is EPDM (ethylene propylene diene monomer), a synthetic rubber known for its excellent resistance to water, steam, and a wide range of chemicals. EPDM seals provide an airtight and watertight closure, preventing leakage and ensuring that the valve functions effectively over extended periods. The use of EPDM enhances the valve’s performance in water applications by offering superior durability, flexibility, and resistance to aging and weathering. This seal material is particularly suitable for potable water systems due to its non-toxic and environmentally friendly properties.

The Swing Flex Check Valve operates on a simple yet effective swing mechanism that allows the valve disc to open with forward flow and close automatically when flow reverses. This automatic closing action prevents backflow, protecting pumps, pipes, and other equipment from potential damage caused by reverse flow conditions. The valve’s design ensures minimal pressure drop, promoting energy efficiency and maintaining consistent flow rates within the system.

Designed for ease of installation and maintenance, the Swing Flex Check Valve features a streamlined body that can be installed in both horizontal and vertical piping configurations. Its versatile size range, from DN50 to DN700, accommodates a wide spectrum of water system requirements, from small-scale residential setups to large industrial networks. The valve’s modular design also facilitates quick access to internal components, simplifying inspection and replacement tasks without the need for extensive system downtime.

In summary, the Swing Flex Check Valve is an essential component for any water management system requiring reliable backflow prevention and efficient flow control. Its ductile iron body ensures robust construction, while the rubber disc and EPDM seal provide superior sealing performance and durability. Suitable for a wide range of sizes and applications, this check valve is engineered to deliver consistent, long-term operation in demanding water environments. Whether for municipal water supply, irrigation systems, or industrial water processing, the Swing Flex Check Valve offers a dependable solution that combines strength, flexibility, and efficiency.

Features:

• Product Name: Swing Flex Check Valve
• Body Material: Ductile Iron for enhanced durability and strength
• End Connection: Flange PN10 and PN16 for versatile installation
• Temperature Range: Operates efficiently within 0-80℃
• Size Range: Available in sizes DN50 to DN700 to suit various pipeline requirements
• Test Standard: Manufactured and tested according to EN12266 to ensure quality
• Features a reliable rubber disc for effective sealing and prevention of backflow
• Designed as a swing check valve to allow smooth flow and prevent reverse flow

Technical Parameters:

Applications:

The AFC Swing Flex Check Valve, model number RDCV, is a high-quality check valve designed and manufactured in China, offering reliable performance across a wide range of industrial applications. With a pressure rating of PN10 and PN16, this check valve is suitable for systems that require moderate pressure handling capabilities. Its temperature range from 0 to 80℃ makes it ideal for various fluid control scenarios where temperature stability is essential.

This check valve features a durable rubber disc made from EPDM seal material, ensuring excellent sealing performance and resistance to wear, corrosion, and aging. The rubber disc design provides a flexible yet robust mechanism to prevent backflow, protecting pumps, compressors, and other equipment from potential damage caused by reverse flow. The swing flex mechanism allows for smooth operation and minimal pressure loss, enhancing overall system efficiency.

The AFC RDCV check valve comes with flange end connections compatible with PN10 and PN16 piping systems, facilitating easy installation and maintenance in pipelines. Its compliance with ISO certification standards guarantees reliable quality and safety, making it a trusted choice for engineers and technicians.

Common application occasions for the Swing Flex Check Valve include water treatment plants, HVAC systems, industrial process pipelines, and municipal water supply networks. It is also frequently used in chemical processing, food and beverage industries, and marine applications where preventing backflow is critical to maintaining system integrity and product quality.

In scenarios such as pumping stations, the check valve ensures unidirectional flow, preventing potential damage to pumps caused by reverse flow or water hammer effects. In HVAC systems, it maintains proper flow direction, enhancing system performance and energy efficiency. Additionally, its robust construction and reliable sealing make it suitable for use in irrigation systems and fire protection pipelines, where dependable operation is non-negotiable.

Overall, the AFC Swing Flex Check Valve with its rubber disc design, flange PN10 and PN16 end connections, and EPDM seal material is an excellent solution for various industrial and commercial fluid control needs. Its versatility, durability, and compliance with international standards make it the preferred check valve for many critical applications, ensuring safety, efficiency, and longevity in fluid handling systems.
