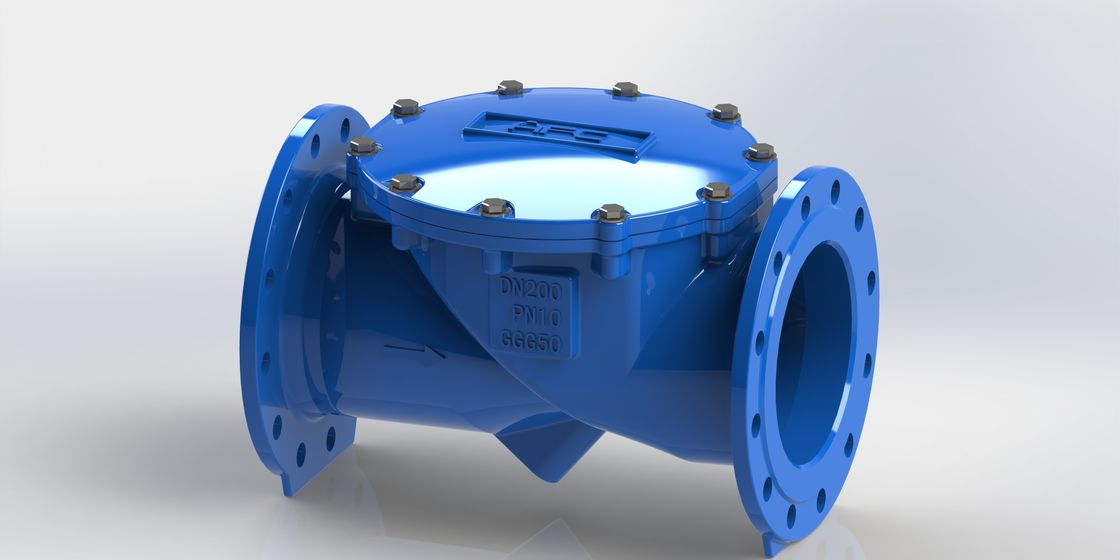

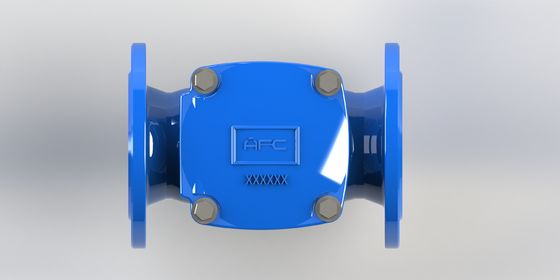

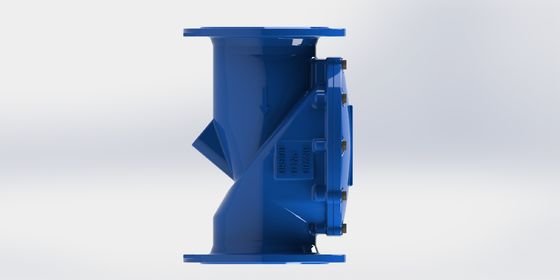

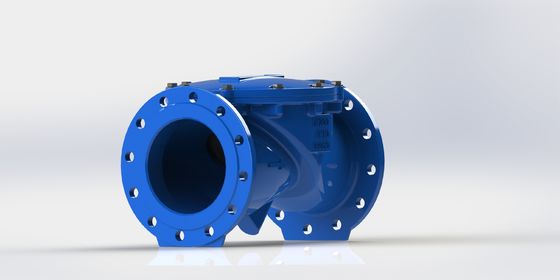

DN50-700 Swing Flex Check Valve with Flange PN10 Connection and EPDM Seal for Industrial Fluid Systems

Product Description:

The Swing Flex Check Valve is a high-performance valve designed to ensure reliable and efficient flow control in various industrial and commercial piping systems. Engineered to meet the rigorous standards of EN12266 testing, this valve guarantees optimal performance, safety, and durability under demanding conditions. Its robust construction and carefully selected materials make it an ideal solution for applications requiring dependable backflow prevention and minimal maintenance.

One of the standout features of the Swing Flex Check Valve is its flange connection type, which provides a secure and leak-proof joint between pipes. Flanged connections are widely preferred in industrial settings due to their ease of installation, strong sealing capabilities, and ability to accommodate a wide range of pipe sizes. This valve is available in sizes ranging from DN50 to DN700, making it versatile enough to be used in small-scale systems as well as large industrial pipelines.

At the heart of the Swing Flex Check Valve’s functionality is its innovative rubber disc design. The rubber disc serves as the primary sealing element, allowing the valve to open and close smoothly in response to fluid flow. This unique rubber disc provides a flexible yet tight seal, effectively preventing backflow and protecting equipment downstream from potential damage. The use of a rubber disc also contributes to the valve’s resistance to wear and corrosion, extending its service life and reducing the need for frequent replacements.

The seal material used in the Swing Flex Check Valve is EPDM (ethylene propylene diene monomer), a synthetic rubber known for its excellent resistance to heat, ozone, and various chemicals. EPDM seals ensure that the valve maintains a reliable seal even in harsh environments, including exposure to water, steam, and certain acids. This seal material complements the rubber disc design, enhancing the overall sealing performance and durability of the valve.

Durability and reliability are critical factors for check valves, and the Swing Flex Check Valve excels in these areas. Its design minimizes pressure loss while providing fast and responsive closure to prevent reverse flow. The valve’s swing mechanism, combined with the flexibility of the rubber disc, reduces water hammer effects and mechanical stress on the piping system. This not only prolongs the life of the valve but also helps maintain the integrity of the entire pipeline network.

Maintenance of the Swing Flex Check Valve is straightforward due to its user-friendly design. The rubber disc can be inspected and replaced without removing the entire valve from the pipeline, saving time and reducing downtime during servicing. Additionally, the flange connection facilitates easy disassembly and reassembly, further simplifying maintenance procedures.

In summary, the Swing Flex Check Valve is an excellent choice for industries and applications that demand a reliable, efficient, and durable check valve solution. Its compliance with the EN12266 test standard ensures high quality and dependable performance. The availability of multiple sizes from DN50 to DN700 accommodates a wide variety of system requirements. The combination of the rubber disc and EPDM seal material provides superior sealing capabilities, resistance to wear, and longevity. Whether used in water treatment, HVAC systems, chemical processing, or other industrial applications, the Swing Flex Check Valve delivers consistent performance and peace of mind.

Choosing the Swing Flex Check Valve means investing in a product that leverages the advantages of the rubber disc design to provide superior flow control and backflow prevention. Its flange connection type ensures easy installation and secure piping integration, while the EPDM seal material guarantees resilience and durability. This valve is a testament to advanced engineering focused on enhancing the efficiency and safety of fluid handling systems across various sectors.

Features:

• Product Name: Swing Flex Check Valve
• Body Material: Ductile Iron for enhanced durability
• Application: Suitable for water systems
• End Connection: Flange PN10 and PN16 options available
• Seal Material: EPDM rubber disc ensuring reliable sealing
• Temperature Range: Operates efficiently within 0-80℃
• Features a rubber disc design to prevent backflow effectively
• Designed as a check valve to allow flow in one direction only

Technical Parameters:

Applications:

The AFC Swing Flex Check Valve, model number RDCV, is a high-quality check valve designed and manufactured in China, offering reliable performance across a wide range of applications. This check valve is engineered to operate efficiently within a temperature range of 0-80℃, making it suitable for various industrial, commercial, and municipal scenarios where fluid control and backflow prevention are critical. The valve is rigorously tested to meet the EN12266 standard, ensuring durability and safety under different operating conditions.

One of the primary application occasions for the AFC Swing Flex Check Valve is in water treatment plants. Its robust construction and precise flange end connections (PN10, PN16) enable it to handle water flow effectively, preventing reverse flow and protecting pumps and other equipment from damage. The check valve’s pressure rating of PN10 and PN16 allows it to be used in systems operating under moderate pressures, making it ideal for both low and medium pressure pipelines.

In addition to water treatment, this check valve is widely used in HVAC systems, where controlling the direction of water or steam flow is essential for system efficiency and safety. The valve sizes ranging from DN50 to DN700 provide flexibility to fit various pipe diameters, accommodating both small-scale and large-scale installations. Its swing flex design ensures smooth operation, reducing water hammer and minimizing maintenance requirements.

The AFC Swing Flex Check Valve is also applicable in industrial manufacturing processes, including chemical, pharmaceutical, and food processing industries. Its ability to maintain a stable flow and prevent contamination through backflow control makes it a critical component in these sectors. Furthermore, the valve’s flange connections facilitate easy installation and removal, simplifying maintenance tasks and reducing downtime.

Municipal infrastructure projects such as sewage treatment, irrigation, and fire protection systems also benefit from the reliable performance of the AFC RDCV check valve. Its durability and compliance with international testing standards ensure long service life and safety in public utility applications. Overall, the AFC Swing Flex Check Valve is a versatile and dependable solution for preventing backflow, ensuring system integrity, and maintaining efficient fluid control across a variety of occasions and scenarios.
