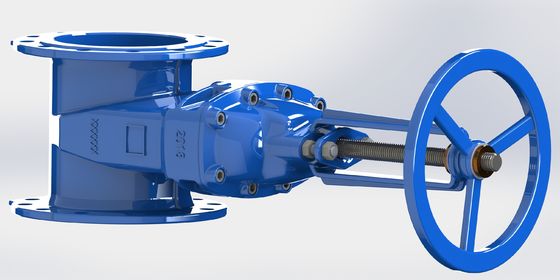

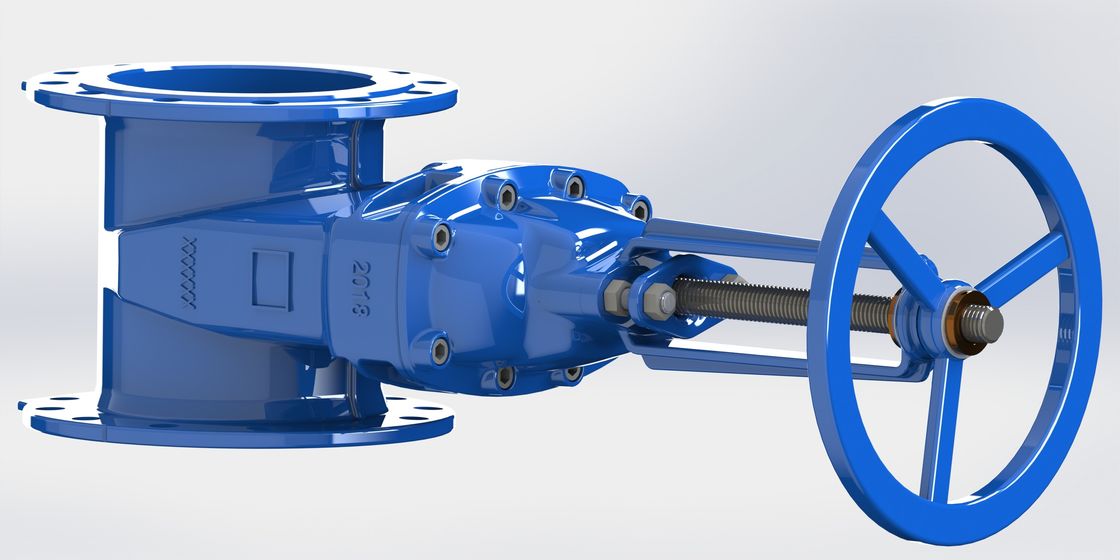

Flanged Connection Water Gate Valve with PN25 Pressure Rating and High Flow Capacity for Durable Pipeline Applications

Product Description:

The Water Gate Valve is a robust and reliable valve specifically designed for water applications, offering exceptional performance across a wide range of sizes from 2 to 32 inches. Engineered to provide efficient flow control in various water systems, this valve is an essential component for managing water distribution with high precision and durability.

One of the standout features of this Water Gate Valve is its soft sealing mechanism, which ensures a tight and leak-proof shutoff. The soft sealing design not only enhances the valve’s sealing capability but also reduces wear and tear, extending the service life of the valve. This feature makes it highly suitable for applications where maintaining water integrity and preventing leakage is critical.

Constructed with a flange connection, the valve offers a secure and straightforward installation process. The flange connection design allows the valve to be easily connected to pipelines, ensuring a stable and leak-free joint. This connection type also facilitates maintenance and inspection, as the valve can be removed or replaced without disturbing the surrounding piping system. The flanged ends comply with standard dimensions, making it compatible with a wide variety of piping systems in municipal, industrial, and commercial water projects.

The valve type, specifically a water gate valve, is known for its full bore design, which provides minimal flow resistance. This design characteristic results in a high flow capacity, allowing large volumes of water to pass through the valve with minimal obstruction. The ability to handle high flow rates efficiently makes this gate valve ideal for applications where maintaining optimal water flow is essential, such as in water treatment plants, irrigation systems, and large-scale water distribution networks.

In addition to its high flow capacity, the Water Gate Valve is designed to minimize pressure loss within the system. The low pressure loss attribute ensures that the energy required to move water through the valve is significantly reduced, contributing to overall system efficiency and cost savings. This makes the valve an energy-efficient choice for water management systems, helping to lower operational costs over time.

Durability and reliability are key advantages of this gate valve. Manufactured using high-quality materials, the valve is resistant to corrosion, wear, and environmental factors commonly encountered in water applications. This durability ensures consistent performance even under demanding conditions, providing peace of mind for operators and engineers who rely on the valve for critical water control functions.

Moreover, the Water Gate Valve is versatile and adaptable, suitable for use in a variety of water systems including potable water distribution, wastewater treatment, and industrial water processing. Its ability to provide a tight seal and efficient flow control makes it an indispensable component in ensuring the smooth operation and safety of water infrastructure.

In summary, the Water Gate Valve with its size range of 2 to 32 inches, soft sealing technology, and flange connection is a superior choice for water-related applications. Its high flow capacity combined with low pressure loss improves system efficiency and reliability. Whether for municipal water supply, industrial water systems, or irrigation projects, this gate valve delivers excellent performance, durability, and ease of maintenance, making it an outstanding solution for controlling water flow with confidence.

Features:

• Product Name: Water Gate Valve
• Design Standard: ANSI, BS
• Application: Water
• Material: Cast Iron, Stainless Steel
• Valve Type: Water Gate Valve
• Connection: Flanged
• WRAS Approved for safe water applications
• Durable Gate Valve suitable for various water systems
• Reliable Gate Valve designed to meet industry standards

Technical Parameters:

Applications:

The AFC Water Gate Valve, available in models GBCX, GBBX, and GBHX, is a highly reliable valve designed specifically for water applications. Manufactured in China and compliant with international design standards such as ANSI and BS, this valve ensures superior performance and durability in various water management systems. With sizes ranging from 2 to 32 inches, the AFC Water Gate Valve is versatile enough to cater to a wide range of industrial, commercial, and residential water control needs.

One of the primary application occasions for the AFC Water Gate Valve is in municipal water supply networks. Its manual operation and robust construction make it ideal for controlling water flow in pipelines, ensuring efficient water distribution and management. The valve's flange connection design facilitates easy installation and maintenance, which is essential for large-scale water infrastructure projects that require reliable and quick serviceability.

In addition to municipal systems, the AFC Water Gate Valve is commonly used in irrigation systems for agriculture. Its ability to handle varying water pressures and flow rates helps farmers regulate water supply to crops efficiently, conserving water resources while optimizing irrigation. The valve's WRAS Approved certification guarantees that it meets stringent water safety and quality standards, making it suitable for potable water applications.

The valve's compliance with the EN1074-2 standard underscores its suitability for use in water supply systems, ensuring it meets rigorous requirements for performance, safety, and reliability. This makes the AFC Water Gate Valve particularly well-suited for use in industrial water treatment plants, where precise control over water flow and pressure is critical to process stability and safety.

Furthermore, the AFC Water Gate Valve is frequently employed in commercial and residential plumbing systems for water isolation and flow regulation. Its manual operation allows for straightforward control, making it user-friendly for maintenance personnel and homeowners alike. The valve’s durable design and adherence to international standards ensure long service life and minimal downtime.

Overall, the AFC Water Gate Valve with models GBCX, GBBX, and GBHX represents a dependable solution for diverse water control scenarios. Whether in municipal water supply, agricultural irrigation, industrial water treatment, or commercial plumbing, this valve delivers consistent performance backed by quality certifications such as WRAS and compliance with EN1074-2, making it the preferred choice for water gate valve applications worldwide.

Customization:

Our AFC Water Gate Valve product line, including models GBCX, GBBX, and GBHX, offers extensive product customization services to meet your specific requirements. Manufactured in China, these gate valves are designed for water applications and are available in sizes ranging from 2 to 32 inches. We provide flexible pressure rating options including PN10, PN16, and PN25 to suit various operational needs.

Customers can choose between ANSI and GB end connections to ensure seamless integration with existing systems. Our gate valves feature a non-rising stem design, enhancing ease of operation and reliability. Additionally, the valves are WRAS approved, guaranteeing compliance with water safety standards.

Built with corrosion resistance and durability in mind, our AFC gate valves require low maintenance, making them ideal for long-term use in demanding environments. Whether you need specific sizing, pressure ratings, or connection types, our customization services ensure that the gate valve you receive is perfectly tailored to your application needs.

Support and Services:

Product Technical Support and Services for Water Gate Valve

Our Water Gate Valves are designed to provide reliable and efficient flow control in various water systems. To ensure optimal performance and longevity, we offer comprehensive technical support and services.

Technical Support:

Our team of experts is available to assist with installation guidance, troubleshooting, and maintenance tips. We provide detailed product specifications, operation manuals, and compatibility information to help you select and operate the valve correctly.

Installation Assistance:

Proper installation is critical for the valve’s performance. We offer step-by-step instructions and best practices to ensure a secure and leak-free setup. Our support includes advice on flange connections, sealing methods, and actuator integration if applicable.

Maintenance Services:

Regular maintenance extends the service life of your Water Gate Valve. We provide schedules and procedures for inspection, cleaning, lubrication, and part replacement. Our support helps you identify wear and prevent failures before they occur.

Repair and Replacement:

In case of malfunction or damage, we offer repair services and genuine replacement parts to restore your valve’s functionality. Our team can guide you through troubleshooting steps to diagnose issues and recommend the best course of action.

Custom Solutions:

If your application requires specific valve configurations or materials, we provide customization options tailored to your needs. Contact our technical team to discuss your requirements and receive expert recommendations.

We are committed to ensuring your satisfaction and the reliable operation of your Water Gate Valve. For detailed technical documentation and support, please refer to our product resources.

Packing and Shipping:

Each Water Gate Valve is carefully packaged to ensure maximum protection during transit. The valve is wrapped in a protective plastic film to prevent scratches and corrosion. It is then placed in a sturdy cardboard box with foam padding to absorb shocks and vibrations.

For bulk orders, multiple units are securely packed in reinforced cartons and palletized to facilitate safe handling and transportation. All packages are clearly labeled with product details, handling instructions, and shipping information.

Shipping is available via standard freight services, with options for expedited delivery upon request. We ensure timely dispatch and provide tracking information to keep you updated throughout the shipping process.

FAQ:

Q: What brand manufactures the Water Gate Valve?

A: The Water Gate Valve is manufactured by the brand AFC.

Q: What are the available model numbers for the AFC Water Gate Valve?

A: The available model numbers are GBCX, GBBX, and GBHX.

Q: Where is the AFC Water Gate Valve made?

A: The AFC Water Gate Valve is made in China.

Q: What applications are suitable for the AFC Water Gate Valve?

A: The AFC Water Gate Valve is suitable for controlling water flow in pipelines, irrigation systems, and water supply networks.

Q: What materials are used in the construction of the AFC Water Gate Valve?

A: The AFC Water Gate Valve is typically made from durable metals such as stainless steel or cast iron to ensure long-lasting performance.
