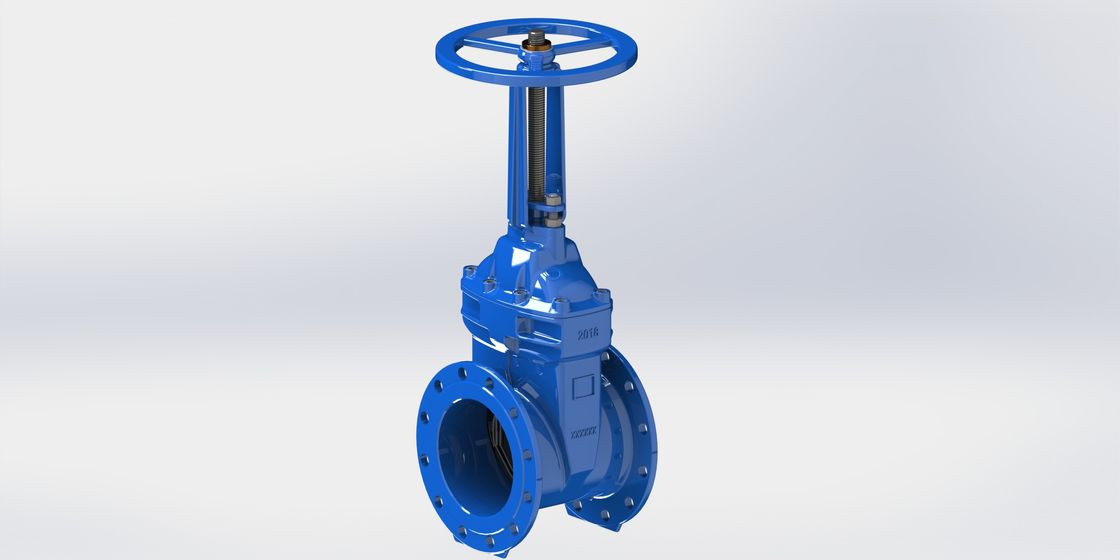

BS Design Standard Water Gate Valve with PN25 Pressure Rating in 2 to 32 Inches Sizes and Epoxy Coating for Water Distribution Networks

Product Description:

The Water Gate Valve is an essential component in various water supply and distribution systems, designed to regulate the flow of water efficiently and reliably. Engineered with precision and adhering to the highest quality standards, this valve is ideal for use in applications where controlling water flow with minimal pressure drop is critical. The valve operates within a temperature range of -10°C to +80°C, making it suitable for a wide spectrum of environmental conditions, including both cold and warm climates.

This Water Gate Valve features a robust design classified under the valve type category as a gate valve specifically intended for water applications. Its construction ensures smooth operation, durability, and long service life, which are paramount for infrastructure projects, municipal water systems, and industrial water management. The valve’s structure allows for an unobstructed flow path when fully open, minimizing turbulence and pressure loss.

One of the key attributes of this valve is its flanged connection, which facilitates straightforward installation and maintenance. The flanged ends conform to international standards, enabling compatibility with a variety of piping systems. Specifically, the valve supports ANSI and GB end connections, providing versatility and ease of integration into existing infrastructures. These internationally recognized standards ensure that the valve can be used in diverse geographic markets without compatibility issues.

The Water Gate Valve is designed to handle different pressure ratings, including PN10, PN16, and PN25. This range of pressure classes allows the valve to be used in systems with varying pressure requirements, ensuring flexibility and adaptability to different operational demands. Whether it is a low-pressure municipal water supply system or a higher-pressure industrial pipeline, this valve maintains reliable performance without compromising safety.

A standout feature of this valve is its epoxy coated body. The epoxy coating serves as an effective protective barrier against corrosion, chemical exposure, and environmental wear. This coating extends the valve’s lifespan and maintains its aesthetic appearance over time while reducing maintenance costs. The epoxy coating also helps in preventing rust formation and protects the valve’s metal surfaces, making it an excellent choice for water applications where corrosion resistance is crucial.

The valve is manufactured in compliance with the EN1074-2 standard, ensuring it meets stringent European norms for performance, safety, and reliability. This compliance guarantees that the valve has undergone rigorous testing and quality control procedures, making it a trustworthy component in any water system. EN1074-2 certification highlights the valve’s suitability for potable water systems and confirms its technical excellence.

Another significant design aspect is the outside screw and yoke (OS&Y) mechanism incorporated into this water gate valve. The outside screw yoke design allows the stem to be visible when the valve is in operation, providing a clear indication of whether the valve is open or closed. This feature enhances operational safety and ease of use, especially in large-scale water distribution networks where quick visual confirmation is necessary. The OS&Y design also facilitates easier maintenance and repair, as the stem is accessible without dismantling the valve.

In summary, the Water Gate Valve with epoxy coating, EN1074-2 certification, and outside screw yoke design represents a perfect blend of durability, compliance, and operational efficiency. Its ability to operate within temperatures ranging from -10°C to +80°C, combined with flanged ANSI and GB end connections and multiple pressure rating options (PN10, PN16, PN25), makes it a versatile and reliable choice for a broad range of water system applications. Whether for municipal water supply, industrial use, or infrastructure projects, this valve ensures optimal performance, longevity, and ease of maintenance.

Features:

• Product Name: Water Gate Valve
• Temperature Range: -10°C To +80°C
• Material: Cast Iron, Stainless Steel
• Application: Water
• Connection Type: Flanged
• Epoxy Coated for enhanced durability and corrosion resistance
• Outside Screw Yoke design for easy operation and maintenance
• Soft Sealing to ensure leak-tight performance
• High Flow Capacity for efficient water control
• Low Pressure Loss to maintain system efficiency

Technical Parameters:

Applications:

The AFC Water Gate Valve, available in models GBCX, GBBX, and GBHX, is a highly reliable and versatile valve designed for a wide range of water control applications. Manufactured in China, this valve is engineered to meet stringent industry standards and is WRAS Approved, ensuring it is safe and suitable for potable water systems. Its robust construction and high-quality materials make it an excellent choice for various water supply and distribution scenarios.

One of the primary application occasions for the AFC Water Gate Valve is in municipal water treatment plants and distribution networks. The valve’s flange connection allows for easy installation and secure fitting in pipelines with pressure ratings of PN10, PN16, and PN25. This flexibility in pressure handling makes it ideal for controlling water flow in both low and high-pressure environments, ensuring efficient operation and minimal leakage.

In industrial settings, the AFC Water Gate Valve is frequently utilized in cooling water systems, wastewater treatment facilities, and irrigation projects. Its corrosion resistance and durable design guarantee long-lasting performance even in harsh conditions where exposure to chemicals or abrasive materials is common. The EPDM seal enhances the valve’s sealing capability, providing a tight shut-off that minimizes maintenance requirements and prevents water loss.

Residential and commercial buildings also benefit from the AFC Water Gate Valve’s reliable performance. It is commonly installed in plumbing systems to regulate water flow, isolate sections of piping for maintenance, or serve as emergency shut-off valves. The low maintenance nature of this valve reduces downtime and operational costs, making it a cost-effective solution for property managers and engineers.

Furthermore, the WRAS Approved certification assures that the AFC Water Gate Valve complies with UK water regulations, making it an excellent choice for projects requiring adherence to strict health and safety standards. Its flange connection design simplifies integration into existing pipeline systems, providing a secure and leak-proof joint that enhances overall system integrity.

Overall, the AFC Water Gate Valve, with its combination of corrosion resistance, durability, low maintenance, and WRAS Approved certification, is suitable for a multitude of water-related applications. Whether it’s municipal, industrial, commercial, or residential, this gate valve is engineered to deliver reliable performance and long service life in any scenario requiring precise water flow control.

Customization:

Our AFC Water Gate Valve product line, including models GBCX, GBBX, and GBHX, offers comprehensive product customization services to meet your specific requirements. Manufactured in China, these valves feature flange connections with ANSI or GB end connections, ensuring compatibility with a wide range of piping systems.

Customers can choose between options with a top cap or handwheel for easy operation. The valves are sealed with EPDM, providing excellent durability and reliability. Designed to operate within a temperature range of -10°C to +80°C, and pressure ratings of PN10, PN16, and PN25, these valves ensure optimal performance under various conditions.

Our Water Gate Valves are WRAS approved, guaranteeing compliance with stringent water safety standards. With advantages such as high flow capacity and low pressure loss, AFC valves are ideal for efficient water control applications. Contact us to customize your valve to best suit your project needs.

Support and Services:

Our Water Gate Valve product is designed to provide reliable and efficient control of water flow in various piping systems. To ensure optimal performance and longevity, please follow the installation, operation, and maintenance guidelines provided in the user manual.

For installation, ensure the valve is installed in the correct orientation and that the pipeline is free from debris. It is recommended to use appropriate gaskets and tighten the flange bolts evenly to prevent leakage.

During operation, avoid rapid opening or closing of the valve to minimize water hammer effects. The valve should be operated within the specified pressure and temperature limits outlined in the product specifications.

Regular maintenance includes periodic inspection for leaks, corrosion, and wear. Lubricate the stem and moving parts as recommended to ensure smooth operation. Replace any damaged or worn components promptly to avoid system failures.

Our technical support team is available to assist with any product-related inquiries, troubleshooting, or service requests. We also offer maintenance services and replacement parts to help maintain the valve's performance over its service life.

Please refer to the product documentation for detailed technical specifications, installation instructions, and safety precautions. Proper handling and maintenance will ensure the Water Gate Valve provides reliable service in your water management system.

Packing and Shipping:

Product Packaging:

The Water Gate Valve is carefully packaged to ensure maximum protection during transportation and handling. Each valve is wrapped in a protective plastic film to prevent scratches and corrosion. It is then placed inside a sturdy cardboard box with custom foam inserts that securely hold the valve in place, minimizing movement and impact. The outer packaging is clearly labeled with product details, handling instructions, and safety warnings to ensure proper care.

Shipping:

We offer reliable shipping options to deliver the Water Gate Valve safely to your destination. The packaged valves are shipped in durable cartons, which are palletized for added stability during transit. Depending on your location and preference, shipping methods include ground freight, air freight, or sea freight. Tracking information is provided for all shipments to keep you informed about the delivery status. We also ensure compliance with all relevant shipping regulations and standards to guarantee timely and secure delivery.

FAQ:

Q1: What brand manufactures the Water Gate Valve?

A1: The Water Gate Valve is manufactured by the brand AFC.

Q2: What are the available model numbers for the AFC Water Gate Valve?

A2: The available model numbers are GBCX, GBBX, and GBHX.

Q3: Where is the AFC Water Gate Valve produced?

A3: The AFC Water Gate Valve is made in China.

Q4: What applications are suitable for the AFC Water Gate Valve?

A4: The AFC Water Gate Valve is suitable for controlling water flow in pipelines for industrial, municipal, and residential water supply systems.

Q5: What materials are used in the construction of the AFC Water Gate Valve?

A5: The valve body is typically made of durable materials such as cast iron or stainless steel, designed to withstand water pressure and corrosion.
