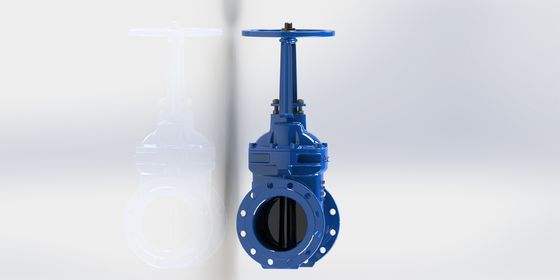

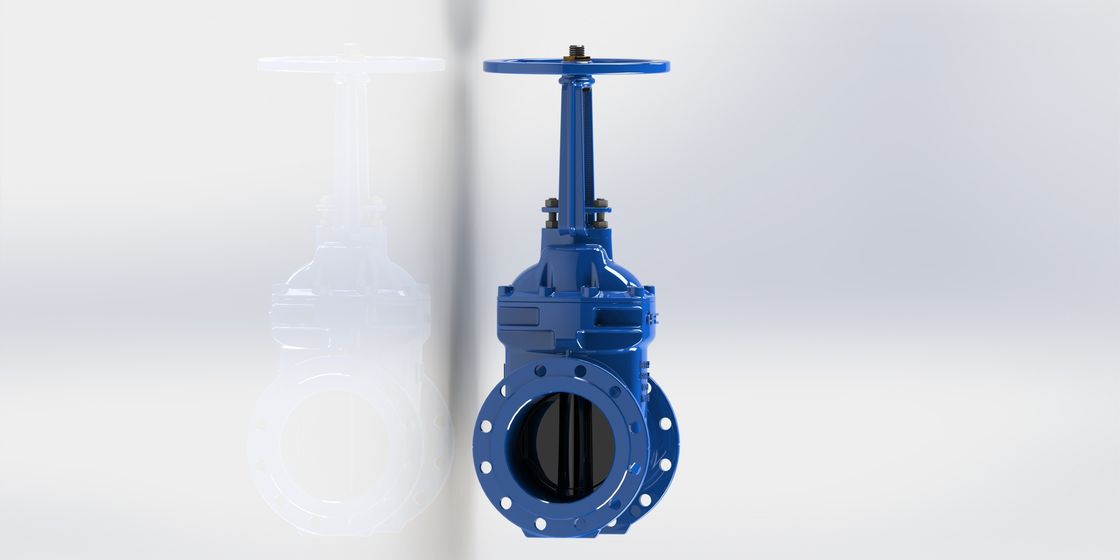

Water Gate Valve With Temperature -10°C To +80°C Low Pressure Loss And High Resistance To Wear

Product Description:

The Water Gate Valve is a robust and reliable solution designed specifically for water applications, offering superior performance and durability. Engineered with precision, this valve type is known for its high flow capacity and low pressure loss, making it an ideal choice for various water distribution and control systems. Whether used in municipal water supply networks, industrial water processing, or irrigation systems, the Water Gate Valve ensures efficient flow management and long-lasting service.

One of the standout features of this Water Gate Valve is its manual operation, allowing operators to easily control the flow of water with precision and confidence. The valve can be equipped either with a top cap or a handwheel, providing flexibility depending on the installation requirements and user preference. The presence of a top cap option facilitates maintenance and inspection, while the handwheel ensures smooth and ergonomic manual control.

Constructed with durability in mind, the valve body and internal components are epoxy coated, enhancing corrosion resistance and extending the valve's lifespan even in harsh water environments. The epoxy coated finish serves as a protective barrier against rust, chemical exposure, and wear, making the valve suitable for both clean and treated water applications. This coating also reduces maintenance frequency and costs, ensuring that the valve remains operational with minimal downtime.

The Water Gate Valve features a flanged connection, which provides a secure and leak-proof joint to the piping system. Flanged connections are widely preferred in water systems for their ease of installation and removal, as well as their ability to withstand high pressure and mechanical stress. This connection type allows for convenient integration into existing infrastructure and simplifies future maintenance or replacement tasks.

Thanks to its high flow capacity, the Water Gate Valve allows for maximum water throughput with minimal restriction. This is particularly important in large-scale water distribution systems where maintaining optimal flow rates is critical to system efficiency. The valve’s design minimizes turbulence and pressure drops, resulting in low pressure loss across the valve. This efficiency not only conserves energy but also ensures that downstream equipment and pipelines operate within their intended parameters without undue strain.

Overall, the Water Gate Valve combines practical design with material excellence to deliver a product that meets the rigorous demands of modern water management systems. Its manual operation, coupled with the option for a top cap or handwheel, provides versatility and ease of use. The epoxy coated surfaces guarantee long-term durability and resistance to corrosion, while the flanged connection ensures a stable and reliable installation.

In summary, this water gate valve is an excellent choice for anyone seeking a high-performance valve for water applications. Its high flow capacity and low pressure loss enhance system efficiency, while the epoxy coated finish and flanged connections contribute to reliability and ease of maintenance. Whether for municipal, industrial, or agricultural water systems, this valve stands out as a dependable component that ensures smooth and controlled water flow over many years of service.

Features:

• Product Name: Water Gate Valve
• Design Standard: ANSI, BS
• Valve Type: Water Gate Valve
• Size Range: 2-32 Inches
• End Connection: ANSI, GB
• Advantages: High Flow Capacity, Low Pressure Loss
• WRAS Approved for quality and safety compliance
• Non Rising Stem design for space-saving and durability

Technical Parameters:

Applications:

The AFC Water Gate Valve, available in models GBCX, GBBX, and GBHX, is an essential component for a wide range of water control applications. Manufactured in China, this valve is designed to meet rigorous standards such as ANSI and BS, ensuring reliable performance and durability. With its seal made of EPDM, the valve can withstand temperatures ranging from -10°C to +80°C, making it suitable for both cold and warm water systems.

The Gate Valve is specifically engineered to provide high flow capacity while maintaining low pressure loss, which is critical in systems where efficient water flow and minimal energy consumption are priorities. This makes the AFC Gate Valve an excellent choice for municipal water supply networks, irrigation systems, and industrial water processing plants where consistent and reliable water flow control is required.

One of the distinctive features of the AFC Water Gate Valve is the availability of operation options, either with a top cap or a handwheel, allowing for flexible installation and ease of use in various environments. The valve also complies with EN1074-2 standards, which govern performance and safety requirements for gate valves used in water supply systems.

Typical application occasions include water treatment plants where precise isolation of pipeline sections is necessary for maintenance or emergency shutdowns. It is also widely used in residential and commercial plumbing systems to control water distribution effectively. Additionally, its robust design makes it suitable for use in fire protection systems, ensuring reliable operation under critical conditions.

In scenarios where temperature variations are common, such as outdoor pipelines exposed to seasonal changes, the AFC Gate Valve’s EPDM seal ensures leak-proof operation and longevity. Its compatibility with various water types and resistance to corrosion further enhance its suitability for diverse water handling scenarios.

Overall, the AFC Water Gate Valve, available in models GBCX, GBBX, and GBHX, offers a dependable solution for controlling water flow. Its compliance with international standards, combined with design features like the top cap or handwheel operation and adherence to EN1074-2, make it a versatile and efficient choice for many water-related applications.

Customization:

Our AFC Water Gate Valve, available in model numbers GBCX, GBBX, and GBHX, offers exceptional customization services to meet your specific needs. Manufactured in China, these valves are designed for water applications with temperature ranges from -10°C to +80°C. Built to comply with ANSI and BS design standards, the valves feature pressure ratings of PN10, PN16, and PN25, ensuring reliable performance under various conditions.

Customization options include epoxy coated surfaces for enhanced corrosion resistance and durability, making the valves suitable for long-term use with low maintenance requirements. The soft sealing design guarantees a tight and secure closure, preventing leaks and ensuring efficient operation. Additionally, the flange connection type allows for easy installation and compatibility with existing piping systems.

Choose AFC Water Gate Valves for a robust, corrosion-resistant, and customizable solution tailored to your water system needs.

Support and Services:

Our Water Gate Valve product is designed for reliable and efficient control of water flow in various piping systems. For technical support, please refer to the product manual that includes detailed installation, operation, and maintenance instructions to ensure optimal performance.

If you encounter any issues with the Water Gate Valve, first verify that the valve is installed correctly and that the operating conditions match the specifications outlined in the manual. Regular maintenance, including periodic inspection and lubrication, will help extend the valve’s service life.

For repair and replacement parts, use only genuine components to maintain the integrity and safety of the valve. Our technical support team is available to assist with troubleshooting, product selection, and application advice to help you achieve the best results.

We recommend routine testing of the valve to ensure it operates smoothly and seals properly. Any signs of leakage, corrosion, or mechanical damage should be addressed promptly to prevent system failures.

For further technical documentation, FAQs, and troubleshooting guides, please visit our official website or consult your authorized distributor.

Packing and Shipping:

Each Water Gate Valve is carefully packaged to ensure maximum protection during transit. The valve is first wrapped in a protective plastic film to prevent moisture and dust damage. It is then securely placed inside a custom-fitted foam mold that cushions the product against shocks and vibrations.

The foam-molded valve is packed into a sturdy corrugated cardboard box, which is reinforced with additional padding materials such as bubble wrap or packing peanuts to fill any empty spaces and prevent movement.

For bulk orders, multiple boxed valves are arranged on a wooden pallet and shrink-wrapped tightly to maintain stability. The pallets are clearly labeled with handling instructions and product details to ensure correct transportation and storage.

All shipments are made using reliable carriers with tracking options to provide timely delivery and minimize the risk of damage. Special care is taken to comply with international shipping regulations for safe and efficient global distribution.

FAQ:

Q1: What are the available models for AFC Water Gate Valves?

A1: The AFC Water Gate Valves come in three models: GBCX, GBBX, and GBHX, each designed to suit different application needs.

Q2: Where are AFC Water Gate Valves manufactured?

A2: All AFC Water Gate Valves are manufactured in China, ensuring high-quality standards and reliable performance.

Q3: What applications are AFC Water Gate Valves suitable for?

A3: AFC Water Gate Valves are ideal for controlling the flow of water in pipelines, suitable for industrial, municipal, and residential water supply systems.

Q4: What materials are used in AFC Water Gate Valves?

A4: AFC Water Gate Valves are typically made from durable materials such as cast iron or ductile iron, ensuring long service life and resistance to corrosion.

Q5: How do I choose the right model between GBCX, GBBX, and GBHX?

A5: The choice depends on your specific requirements such as pressure rating, size, and application environment. You can consult AFC’s product specifications or contact their sales team for detailed guidance.
