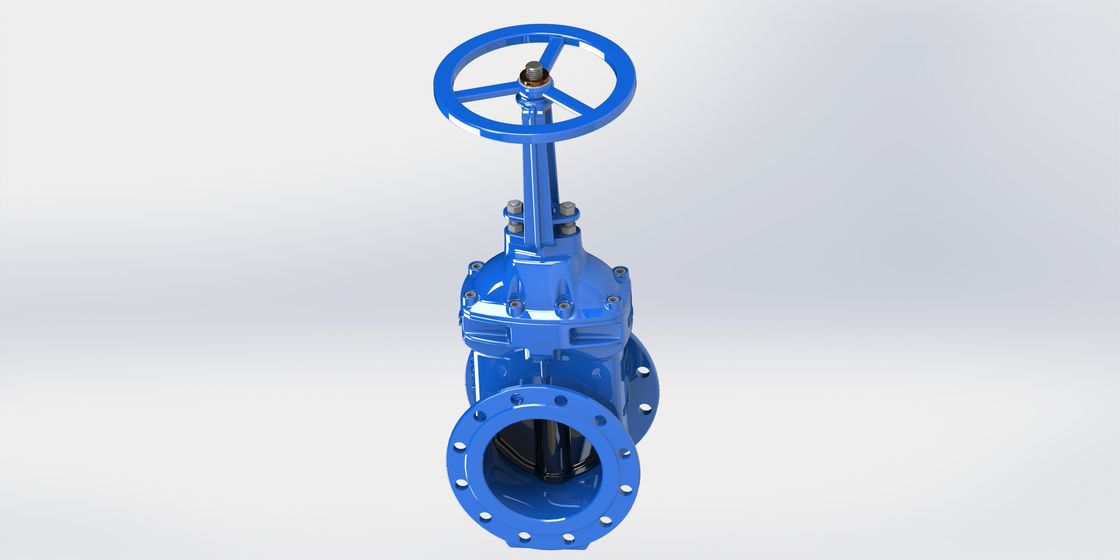

EPDM Seal Water Gate Valve with High Flow Capacity and Low Pressure Loss for Industrial Applications

Product Description:

The Water Gate Valve is a robust and reliable valve specifically designed for controlling the flow of water in various piping systems. Featuring a flanged connection, this valve ensures secure and leak-proof installation, making it an ideal choice for industrial, municipal, and commercial water supply applications. Available in a wide range of sizes from 2 to 32 inches, the Water Gate Valve can accommodate diverse system requirements, providing versatility and scalability for different projects.

One of the standout features of this Water Gate Valve is its high flow capacity. The gate valve design allows for a straight-through flow path, minimizing turbulence and resistance when fully open. This results in low pressure loss across the valve, ensuring efficient fluid movement and reducing energy consumption in pumping systems. The efficient flow characteristics make it suitable for applications where maintaining optimal flow rates and system performance is critical.

This valve is engineered with an Outside Screw and Yoke (OS&Y) mechanism, which offers several operational advantages. The outside screw design enhances the valve’s durability by preventing corrosion and wear on the stem threads, as these are exposed rather than submerged in the water flow. Additionally, the yoke provides a rigid support structure for the valve stem, improving operational stability and making manual or automated actuation smoother and more reliable over time. The OS&Y configuration also provides a clear visual indication of the valve’s position, which is essential for maintenance and safety checks.

The Water Gate Valve is WRAS Approved, ensuring it meets the highest standards for potable water systems. This certification guarantees that the materials and design of the valve are safe for use in drinking water applications, preventing contamination and ensuring compliance with regulatory requirements. This makes the valve particularly suitable for public water supply networks, water treatment plants, and other environments where water quality and safety are paramount.

Designed with flanged end connections conforming to ANSI and GB standards, the valve offers compatibility with a wide range of piping systems and international equipment. The standardized flange dimensions facilitate easy integration and replacement in existing setups, reducing downtime and installation costs. Whether the system requires ANSI flanges commonly used in North America or GB flanges prevalent in China and other regions, this valve provides a seamless fit, enhancing global applicability and user convenience.

The Water Gate Valve’s construction emphasizes durability and long service life. Manufactured from high-quality materials that resist corrosion, wear, and mechanical stress, the valve is built to withstand demanding operating conditions. This reliability reduces maintenance frequency and operational interruptions, resulting in cost savings and improved system uptime. Its sturdy construction also ensures consistent performance in high-pressure and high-temperature environments.

In summary, the Water Gate Valve with flanged connections is a superior choice for water flow control applications requiring high flow capacity and low pressure loss. Its OS&Y design, WRAS approval, and compliance with ANSI and GB flange standards make it a versatile, safe, and efficient solution. Available in sizes ranging from 2 to 32 inches, this gate valve is suitable for a broad spectrum of water system configurations, from small-scale installations to large industrial networks. Whether you need a reliable valve for municipal water distribution, industrial process water, or commercial plumbing systems, this Water Gate Valve delivers outstanding performance, durability, and peace of mind.

Features:

• Product Name: Water Gate Valve
• Advantages: High Flow Capacity, Low Pressure Loss
• Application: Water
• Temperature Range: -10°C To +80°C
• Operation: Manual
• Size Range: 2-32 Inches
• Complies with EN1074-2 Standard
• Design: Outside Screw Yoke
• Available with Top Cap or Handwheel

Technical Parameters:

Applications:

The AFC Water Gate Valve, available in models GBCX, GBBX, and GBHX, is a reliable and durable solution designed specifically for water applications. Manufactured in China, this valve is crafted from high-quality cast iron and stainless steel, ensuring excellent corrosion resistance and long-term performance in various environments. With sizes ranging from 2 to 32 inches, the AFC Water Gate Valve can accommodate a wide range of water system requirements, making it a versatile choice for numerous applications.

This valve features a flanged connection, which provides a secure and leak-proof installation, ideal for both new pipeline projects and maintenance upgrades. The design incorporates a non-rising stem, which means the stem does not extend outside the valve body when the valve is operated, making it suitable for installations where vertical space is limited. Additionally, the valve is equipped with an outside screw yoke, allowing easy visual inspection of the stem position and smooth operation. Customers can choose between models with a top cap or a handwheel, depending on the specific operational preferences and installation constraints.

The AFC Water Gate Valve is frequently used in municipal water supply systems, irrigation networks, wastewater treatment plants, and various industrial water processing scenarios. Its robust construction and reliable sealing performance make it an excellent choice for controlling water flow in pipelines, ensuring efficient and safe operation. The valve’s ability to handle different pressure levels and its resistance to wear and tear are particularly beneficial in water distribution systems that require consistent and precise flow control.

In addition to water utilities, the AFC Water Gate Valve is also commonly applied in power plants, chemical plants, and manufacturing facilities where water is a crucial process medium. The valve’s cast iron and stainless steel materials provide the necessary strength and chemical resistance to perform well in demanding industrial environments. Its flanged connection and versatile size range make it easy to integrate with existing systems or new installations.

Overall, the AFC Water Gate Valve with top cap or handwheel, non-rising stem, and outside screw yoke design stands out as a dependable and efficient valve choice for a wide array of water application occasions and scenarios. Whether for municipal infrastructure, agriculture, or industrial water management, this valve delivers consistent performance, ease of operation, and long-lasting durability.

Customization:

Our AFC Water Gate Valve product line, including models GBCX, GBBX, and GBHX, offers extensive product customization services to meet your specific needs. Manufactured in China, these valves are designed to operate manually within a temperature range of -10°C to +80°C and are available in sizes ranging from 2 to 32 inches. Customers can choose from high-quality materials such as cast iron or stainless steel to ensure durability and performance.

The valves can be customized with either a top cap or a handwheel for operation, depending on your application requirements. Designed according to ANSI and BS standards and compliant with EN1074-2 regulations, our water gate valves guarantee reliable performance and safety. Additionally, the soft sealing feature enhances leak prevention and extends the service life of the valve, making it suitable for various water system applications.

Trust AFC for tailored water gate valve solutions that combine superior design, material quality, and operational flexibility to fit your project demands perfectly.

Support and Services:

Product Technical Support and Services for Water Gate Valve:

Our Water Gate Valve is designed for reliable and efficient operation in water supply systems. To ensure optimal performance, please follow the installation, operation, and maintenance guidelines provided in the user manual.

If you require technical assistance, our support team is available to help with troubleshooting, product selection, and system integration. We offer expert advice to address any issues related to valve operation, pressure ratings, and compatibility with your water system.

Regular maintenance is essential to prolong the life of your Water Gate Valve. This includes periodic inspection for leaks, lubrication of moving parts, and cleaning of valve components to prevent buildup and corrosion.

Replacement parts and accessories are available to support your maintenance needs. Please ensure that only genuine parts are used to maintain valve integrity and warranty compliance.

For detailed technical documentation, installation guides, and troubleshooting tips, please refer to the product manual or visit our official website.

We are committed to providing excellent customer service and technical support to ensure your Water Gate Valve operates efficiently and reliably.

Packing and Shipping:

Each Water Gate Valve is carefully packaged to ensure maximum protection during transit. The valve is first wrapped in a protective plastic film to prevent any scratches or damage. It is then placed inside a sturdy cardboard box with foam inserts or bubble wrap cushioning to absorb shocks and vibrations.

The boxed valve is labeled clearly with product information, handling instructions, and orientation arrows to ensure proper handling. For bulk orders, multiple units are securely packed into larger cartons or wooden crates to provide additional protection.

All packages are sealed tightly and inspected before dispatch. Shipping options include standard and expedited services, with tracking available to monitor the delivery status. We ensure that the Water Gate Valve reaches you safely and on time, ready for installation.

FAQ:

Q1: What brand manufactures the Water Gate Valve?

A1: The Water Gate Valve is manufactured by the brand AFC.

Q2: What are the available model numbers for this Water Gate Valve?

A2: The available model numbers for the Water Gate Valve are GBCX, GBBX, and GBHX.

Q3: Where is the AFC Water Gate Valve produced?

A3: The AFC Water Gate Valve is made in China.

Q4: What applications is the AFC Water Gate Valve suitable for?

A4: The AFC Water Gate Valve is suitable for regulating water flow in pipelines, commonly used in water treatment, irrigation, and industrial water systems.

Q5: What materials are used in the construction of the AFC Water Gate Valve?

A5: The AFC Water Gate Valve is typically constructed from durable materials such as stainless steel or cast iron to ensure long-lasting performance and resistance to corrosion.
