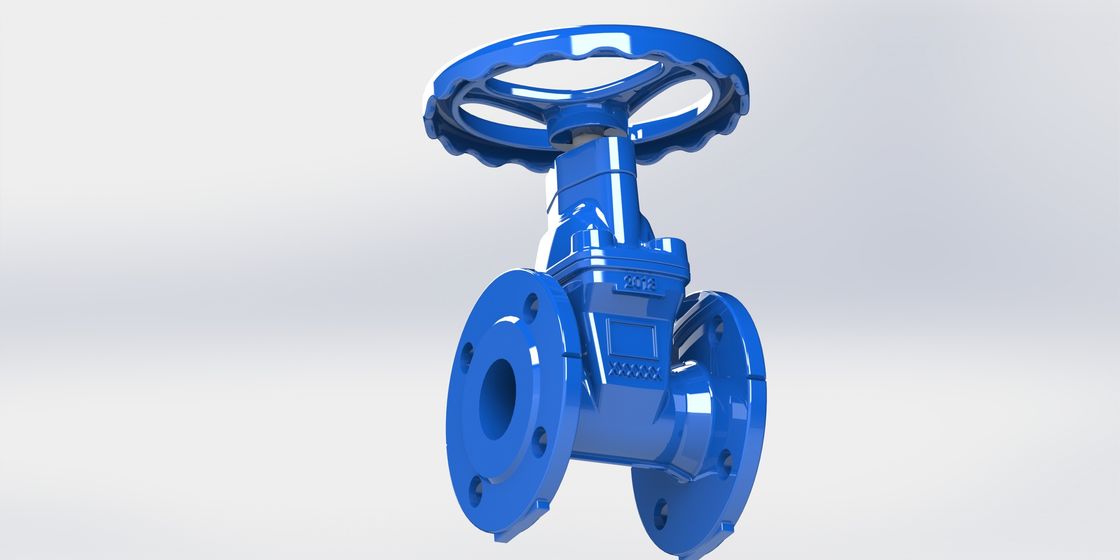

BS Design Standard Water Gate Valve with PN10 Pressure Rating, EPDM Seal, and WRAS Approval for Industrial and Commercial Use

Product Description:

The Water Gate Valve is an essential component designed specifically for water applications, offering reliable performance and long-lasting durability. Engineered to meet rigorous industry standards, this gate valve is manufactured in accordance with ANSI and BS design standards, ensuring compliance with international quality and safety benchmarks. This makes it an ideal choice for a wide range of water systems, including municipal water supply networks, industrial water processing, irrigation, and various other applications where reliable shut-off and control of water flow is critical.

One of the standout features of this Water Gate Valve is its robust construction, which allows it to handle a variety of pressures and operational conditions with ease. Available in sizes ranging from 2 inches up to 32 inches, it offers flexibility and suitability for both small-scale and large-scale water systems. The valve’s design ensures smooth operation, allowing for precise control over water flow, which helps to minimize water wastage and optimize system efficiency.

The valve type is a traditional gate valve, which operates by lifting a rectangular or round gate out of the path of the fluid. This mechanism provides a straight-through flow with minimal pressure drop when fully open, making it highly efficient for water transport. The gate valve’s sealing mechanism is enhanced with EPDM (Ethylene Propylene Diene Monomer) seals, which are known for their excellent resistance to water, heat, and aging. EPDM seals provide a tight, leak-proof seal that ensures dependable shut-off performance, reducing maintenance needs and extending the overall lifespan of the valve.

Another important aspect of this Water Gate Valve is its WRAS approval. WRAS (Water Regulations Advisory Scheme) certification indicates that the valve complies with the strict requirements for materials and products that come into contact with potable water in the UK. This approval guarantees that the valve is safe for use in drinking water systems, free from harmful substances, and will not contaminate the water supply. For customers seeking assurance of quality and safety, the WRAS approval serves as a vital endorsement.

Designed for ease of installation and maintenance, the valve features a user-friendly design that allows quick access to internal components without dismantling the entire valve body. This practical feature reduces downtime and maintenance costs, making the valve a cost-effective solution for water control. The durable materials used in the valve’s construction resist corrosion and wear, ensuring reliable operation in a variety of environmental conditions.

In summary, the Water Gate Valve is a high-quality, reliable valve solution tailored for water applications. Its adherence to ANSI and BS design standards, combined with the use of EPDM seals, provides excellent sealing performance and durability. Available in a wide range of sizes from 2 to 32 inches, it offers versatility across various water systems. The WRAS approved certification further underscores its suitability for potable water use, ensuring safety and compliance. Whether used in municipal, industrial, or residential water systems, this gate valve delivers dependable performance, efficient flow control, and long-term value.

Features:

• Product Name: Water Gate Valve
• Design Standard: ANSI, BS
• Size Range: 2-32 Inches
• Connection Type: Flange Connection
• Seal Material: EPDM for Soft Sealing
• Features:
  • Corrosion Resistance
  • Durable Construction
  • Low Maintenance
  • WRAS Approved
• Application: Suitable for Water Systems

Technical Parameters:

Applications:

The AFC Water Gate Valve, available in models GBCX, GBBX, and GBHX, is a versatile and reliable solution designed for various water-related applications. Manufactured in China, this valve is engineered to meet rigorous ANSI and BS design standards, ensuring quality and durability for both residential and industrial use. Its manual operation allows for precise flow control, making it an essential component in water supply systems, irrigation setups, and municipal water management projects.

One of the standout features of the AFC Water Gate Valve is its high flow capacity combined with low pressure loss, which ensures efficient water flow with minimal resistance. This makes it an ideal choice for systems requiring optimal performance under varying pressure ratings, including PN10, PN16, and PN25. Whether installed in pipelines for drinking water distribution or in industrial water processes, the valve maintains consistent performance and reliability.

The valve’s design includes options for operation with a top cap or handwheel, providing flexibility depending on the installation environment and user preference. This adaptability enhances ease of use and maintenance, especially in confined or hard-to-reach spaces. Additionally, the valve is WRAS approved, confirming its compliance with stringent water safety and quality standards, making it suitable for potable water applications.

Soft sealing technology incorporated in the AFC Water Gate Valve ensures tight shut-off and prevents leakage, thereby safeguarding system integrity and reducing maintenance costs. This feature is particularly beneficial in applications where water purity and leak prevention are critical, such as in water treatment plants, residential plumbing, and commercial water systems.

In summary, the AFC Water Gate Valve models GBCX, GBBX, and GBHX are expertly designed to handle a wide range of water applications with reliability and efficiency. Their compliance with international standards, manual operation options, pressure ratings, and safety approvals make them a preferred choice for engineers, contractors, and facility managers looking to optimize water flow control while ensuring system safety and longevity.

Customization:

Our AFC Water Gate Valve product line, including models GBCX, GBBX, and GBHX, offers exceptional customization services to meet your specific requirements. Manufactured in China and designed according to ANSI and BS standards, these valves are engineered for reliability and performance. Featuring a Non Rising Stem design, the gate valve ensures smooth operation and easy maintenance. The soft sealing technology provides excellent leak tightness and durability under temperatures ranging from -10°C to +80°C. Available with ANSI and GB end connections and sizes ranging from 2 to 32 inches, our Water Gate Valves can be tailored to suit various industrial applications, ensuring optimal fit and function for your system.

Support and Services:

Our Water Gate Valve product is designed to provide reliable and efficient control of water flow in various plumbing and industrial applications. For technical support, please refer to the product manual included with your purchase, which contains detailed installation, operation, and maintenance instructions.

If you encounter any issues with the valve, ensure that it is installed correctly and that all system pressures and temperatures are within the specified limits. Common troubleshooting steps include checking for debris or obstructions, verifying valve alignment, and inspecting seals for wear or damage.

For maintenance, regularly inspect the valve for signs of corrosion or leakage. Lubricate moving parts as recommended in the manual to ensure smooth operation. Replace any worn or damaged components promptly to avoid system downtime.

We also offer a range of services including product installation assistance, routine maintenance contracts, and on-site technical consultations to optimize the performance of your Water Gate Valve system. Our team of experts is committed to helping you maximize the lifespan and efficiency of your valve.

For detailed technical documentation, FAQs, and troubleshooting guides, please visit our official website or access the customer support portal. We continuously update our resources to provide the most accurate and helpful information for our customers.

Packing and Shipping:

Each Water Gate Valve is carefully packaged to ensure maximum protection during transit. The valve is first wrapped in a protective plastic film to prevent scratches and corrosion. It is then securely placed inside a sturdy cardboard box with foam inserts to absorb any shocks or impacts. For bulk orders, multiple units are packed in reinforced cartons with additional padding to maintain product integrity.

Shipping is carried out through reliable logistics partners, ensuring timely and safe delivery to the customer’s specified location. Each package is labeled with handling instructions and product details for easy identification. We also provide tracking information so customers can monitor their shipment status throughout the delivery process.

FAQ:

Q1: What brand manufactures the Water Gate Valve?

A1: The Water Gate Valve is manufactured by AFC.

Q2: What are the available model numbers for this Water Gate Valve?

A2: The available model numbers are GBCX, GBBX, and GBHX.

Q3: Where is the Water Gate Valve produced?

A3: The Water Gate Valve is made in China.

Q4: What applications are suitable for the AFC Water Gate Valve?

A4: The AFC Water Gate Valve is suitable for regulating water flow in pipelines, irrigation systems, and industrial water management.

Q5: What materials are used in the construction of the AFC Water Gate Valve?

A5: The valve is typically made from durable materials such as stainless steel or cast iron, ensuring reliable performance and long service life.
