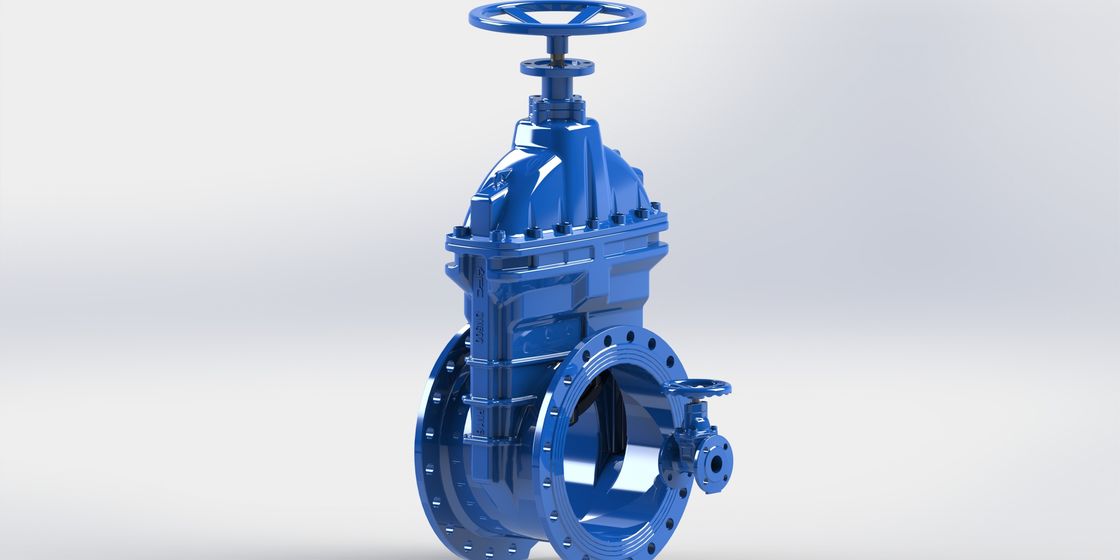

Flanged Gate Valve with EPDM Seal for High Flow Capacity and Low Pressure Loss in Water Systems

Product Description:

The Water Gate Valve is a highly efficient and reliable valve designed to control the flow of water in various piping systems. Engineered to provide optimal performance, this gate valve is an ideal choice for applications requiring high flow capacity and minimal pressure loss. With its robust construction and adherence to international design standards, the Water Gate Valve ensures durability and long-lasting service in both industrial and municipal water supply systems.

One of the standout features of this Water Gate Valve is its high flow capacity. Unlike other types of valves, the gate valve operates by lifting a gate out of the path of the fluid, allowing for an unobstructed and full flow. This design significantly reduces turbulence and pressure drop across the valve, making it exceptionally efficient for water distribution systems where maintaining pressure is critical. The low pressure loss characteristic not only improves system efficiency but also contributes to energy savings in pumping applications.

Connection integrity is paramount in any piping system, and this Water Gate Valve excels with its robust flange connection. The flange connection method ensures a secure and leak-proof joint between the valve and the pipeline, providing ease of installation and maintenance. Flanged connections also allow for quick removal and replacement of the valve without disturbing the rest of the piping system. This feature is particularly beneficial in systems that require regular inspection or servicing.

The sealing mechanism of the valve is equipped with EPDM (Ethylene Propylene Diene Monomer) seals, known for their excellent resistance to water, weathering, and various chemicals. EPDM seals provide a tight and durable seal, preventing leakage and ensuring reliable operation over the valve's lifespan. The use of EPDM also enhances the valve’s performance in a wide range of temperature conditions, making it versatile for different water system applications.

Operation of the Water Gate Valve is manual, which offers simple and precise control over the flow of water. The valve can be operated either with a top cap or a handwheel, giving users flexibility based on the installation environment and operational preferences. The handwheel option allows for smooth and controlled opening or closing of the valve, while the top cap design can be advantageous in certain space-constrained or automated setups. This manual operation system is straightforward, reducing the need for complex actuators or electronic controls, and is ideal for installations where manual intervention is preferred or required.

The Water Gate Valve is designed and manufactured in compliance with internationally recognized standards such as ANSI (American National Standards Institute) and BS (British Standards). These standards ensure that the valve meets rigorous quality, safety, and performance requirements, making it suitable for use in a variety of global markets. Compliance with ANSI and BS standards also guarantees compatibility with other equipment and piping components designed to the same specifications, facilitating seamless integration into existing systems.

In summary, the Water Gate Valve with a flange connection, equipped with EPDM seals, offers a combination of high flow capacity and low pressure loss that is essential for efficient water management systems. Its manual operation, available with either a top cap or handwheel, provides ease of use and operational flexibility. Built according to ANSI and BS design standards, this gate valve ensures reliability, durability, and consistent performance in demanding water applications. Whether for municipal water supply, industrial process water systems, or irrigation networks, this Water Gate Valve stands out as a dependable solution that meets the highest standards of quality and efficiency.

Features:

• Product Name: Water Gate Valve
• Type: Non Rising Stem Gate Valve
• Features:
  • Corrosion Resistance
  • Durable
  • Low Maintenance
  • Soft Sealing for reliable leak prevention
• Application: Water
• Operating Temperature Range: -10°C to +80°C
• Advantages:
  • High Flow Capacity
  • Low Pressure Loss
• Connection Type: Flanged

Technical Parameters:

Applications:

The AFC Water Gate Valve, available in models GBCX, GBBX, and GBHX, is expertly designed to meet the rigorous demands of various industrial and municipal water management systems. Originating from China, this valve boasts exceptional durability and performance, making it an ideal choice for both new installations and replacement projects. Its flange connection ensures secure and leak-proof integration within pipeline systems, adhering to international standards such as EN1074-2, which governs the requirements for water supply valves.

One of the standout features of the AFC Water Gate Valve is its high flow capacity combined with low pressure loss, which contributes to efficient water flow management. This makes it particularly suitable for large-scale water distribution networks, irrigation systems, and wastewater treatment plants where maintaining optimal pressure and flow rates is critical. The valve's capacity to operate effectively within a temperature range of -10°C to +80°C further expands its usability across diverse climatic conditions and applications.

The valve sizes range from 2 to 32 inches, providing versatility for various pipeline diameters. Its manual operation allows for precise control, making it a reliable option for situations where automated control is unnecessary or impractical. Additionally, the AFC Water Gate Valve is WRAS approved, ensuring it complies with the highest standards for potable water systems, making it safe for use in drinking water supply lines.

Pressure ratings of PN10, PN16, and PN25 accommodate different system requirements, allowing the valve to function effectively under varying pressure conditions. This adaptability makes it suitable for use in residential, commercial, and industrial applications including fire protection systems, cooling water systems, and chemical processing plants. The robust construction and compliance with EN1074-2 standards guarantee long-term reliability and safety.

In summary, the AFC Water Gate Valve with models GBCX, GBBX, and GBHX is an excellent solution for water flow control in numerous scenarios. Whether used in municipal water supply, irrigation, or industrial processes, its combination of flange connection, WRAS approval, manual operation, and a wide range of sizes and pressure ratings ensures it meets the diverse needs of modern water management systems efficiently and reliably.

Customization:

Our AFC Water Gate Valve, available in model numbers GBCX, GBBX, and GBHX, offers customizable solutions to meet your specific requirements. Manufactured in China, these valves are designed to operate efficiently within a temperature range of -10°C to +80°C. You can choose from a variety of sizes ranging from 2 to 32 inches, with pressure ratings of PN10, PN16, and PN25 to suit different applications.

The valve features a flange connection for secure and easy installation, ensuring compatibility with your existing piping systems. Customers have the option to select manual operation with either a top cap or a handwheel, providing flexibility in handling and maintenance. Additionally, the valve is epoxy coated to enhance durability and resistance to corrosion, making it ideal for long-term use in various water control scenarios.

Customize your AFC Water Gate Valve to perfectly fit your project needs with our reliable and high-quality components, designed for performance and longevity.

Support and Services:

Our Water Gate Valve product is backed by comprehensive technical support and services to ensure optimal performance and customer satisfaction. We provide detailed installation guides, maintenance manuals, and troubleshooting tips to help you get the most out of your valve.

Our technical support team is available to assist with any questions regarding product specifications, compatibility, and operational guidelines. We offer expert advice on selecting the right valve size and material for your specific water system requirements.

In addition to support, we provide repair and replacement services to minimize downtime. Our commitment to quality ensures that all Water Gate Valves meet rigorous industry standards and undergo thorough testing before delivery.

For ongoing maintenance, we recommend regular inspection and cleaning to prevent buildup and ensure smooth operation. Replacement parts and accessories are available to extend the lifespan of your valve.

Trust our dedicated support and service team to help you maintain a reliable and efficient water control system with our Water Gate Valve.

Packing and Shipping:

Product Packaging:

The Water Gate Valve is securely packaged using high-quality, durable materials to ensure protection during transit. Each valve is wrapped in protective foam or bubble wrap to prevent damage and placed inside a sturdy cardboard box. The packaging is clearly labeled with product details, handling instructions, and relevant safety warnings to ensure proper care. For bulk orders, valves are packed in reinforced crates or pallets to facilitate safe shipping and handling.

Shipping:

We offer reliable shipping options to deliver the Water Gate Valve promptly and safely to your location. Products are shipped via trusted carriers with tracking available for all shipments. Depending on the destination, shipping methods include standard ground freight, expedited air shipping, or sea freight for international orders. All shipments are insured to protect against loss or damage during transit. Customers will receive confirmation and tracking information once the order has been dispatched.

FAQ:

Q1: What brand manufactures the Water Gate Valve?

A1: The Water Gate Valve is manufactured by the brand AFC.

Q2: What are the available model numbers for the AFC Water Gate Valve?

A2: The available model numbers are GBCX, GBBX, and GBHX.

Q3: Where is the AFC Water Gate Valve produced?

A3: The Water Gate Valve is made in China.

Q4: What applications is the AFC Water Gate Valve suitable for?

A4: The AFC Water Gate Valve is suitable for controlling water flow in pipelines for residential, commercial, and industrial use.

Q5: What materials are used in the construction of the AFC Water Gate Valve?

A5: The valve is typically made from high-quality metals such as stainless steel or brass to ensure durability and resistance to corrosion.
