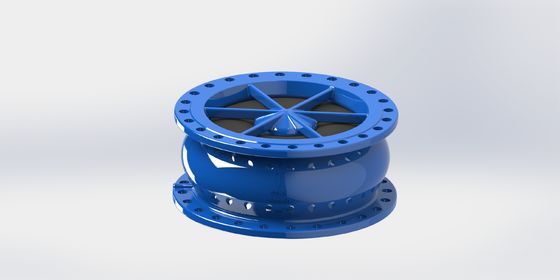

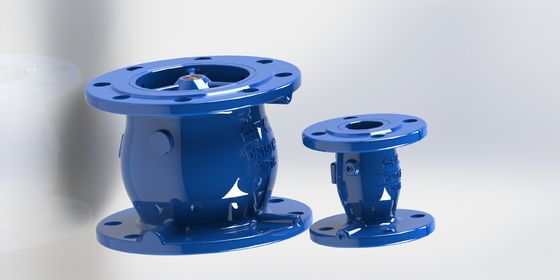

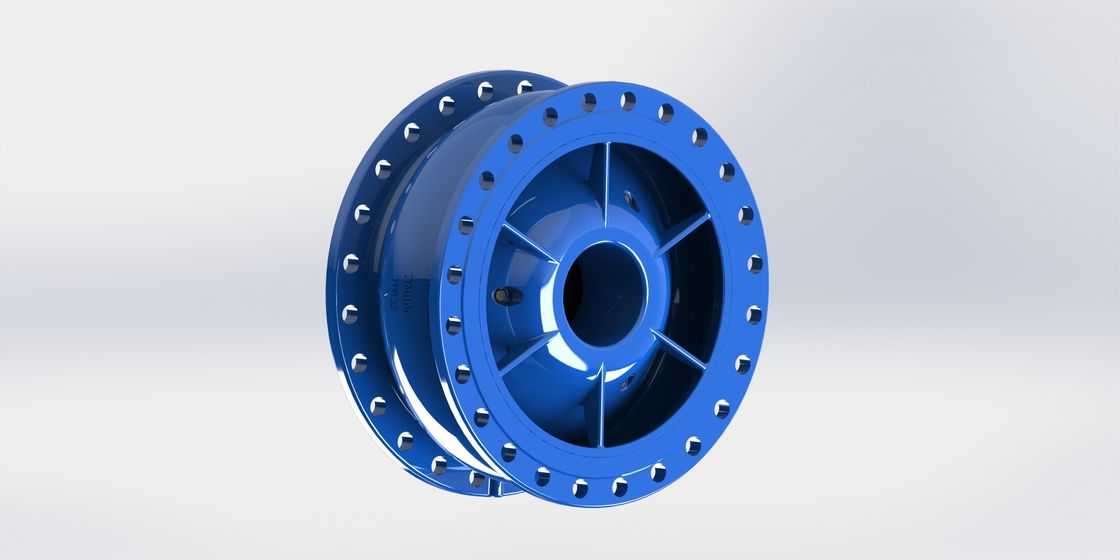

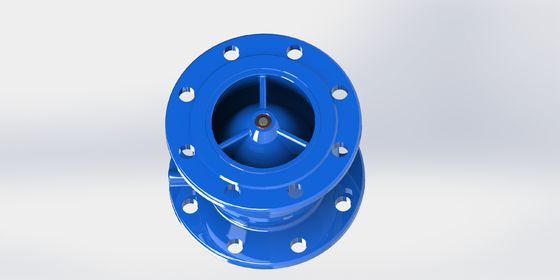

Flange End Connection Rubber Coated Disc Non Slam Check Valve Designed for PN10 Pressure Systems

Product Description:

The Non Slam Check Valve is an essential component designed to ensure the smooth and efficient operation of fluid systems by preventing backflow. This valve type is specially engineered as a check valve, offering reliable one-way flow control that protects pumps, compressors, and other equipment from potential damage caused by reverse flow. One of the standout features of this valve is its soft seal type, which guarantees a tight and secure closure, minimizing leakage and enhancing overall system performance.

Constructed from high-quality ductile iron, the Non Slam Check Valve combines strength and durability with excellent corrosion resistance. Ductile iron is known for its superior mechanical properties compared to traditional cast iron, making this valve suitable for demanding industrial applications. The robust material ensures that the valve maintains structural integrity even under high-pressure conditions, offering long service life and reduced maintenance requirements.

Operating at a maximum temperature of 80℃, this valve is well-suited for a wide range of applications involving water, air, and other compatible fluids. The temperature rating makes it ideal for use in HVAC systems, water treatment plants, and various industrial processes where moderate temperature ranges are common. Its ability to perform efficiently within this temperature limit ensures reliable operation without compromising the valve's material or seal quality.

The Non Slam Check Valve is available in sizes ranging from 2 to 40 inches, providing versatility to accommodate different piping systems and flow requirements. This broad size range allows for easy integration into various setups, from small-scale residential plumbing to large industrial pipelines. The valve’s design emphasizes quick close functionality, which is critical in preventing water hammer and pressure surges that can damage piping and associated equipment.

One of the key advantages of this valve is its no slam check valve feature. Traditional check valves often produce a loud banging noise when the valve closes abruptly due to reverse flow. The non slam check valve mitigates this issue by incorporating a mechanism that allows for a quick close while cushioning the valve's closure. This quick close action not only reduces noise but also minimizes stress on the piping system, extending the lifespan of both the valve and the connected components.

The quick close capability of the Non Slam Check Valve ensures that the valve seat seals instantly upon detecting reverse flow, preventing any fluid backflow and maintaining system integrity. This feature is particularly beneficial in systems where pressure fluctuations are frequent, as it effectively eliminates water hammer effects, thereby protecting pumps and other sensitive equipment. Moreover, the soft seal enhances this quick closure by providing a flexible and resilient sealing surface that adapts to minor imperfections, ensuring a tight shutoff every time.

Installation and maintenance of the Non Slam Check Valve are straightforward due to its robust material and thoughtful design. The ductile iron construction allows for easy handling and compatibility with various flange standards, while the soft seal reduces wear and tear during operation. This combination results in lower maintenance costs and less downtime, making it a cost-effective choice for long-term use.

In summary, the Non Slam Check Valve is a high-performance, durable, and reliable solution for preventing backflow in fluid systems. Its soft seal type, ductile iron material, and quick close mechanism work together to provide efficient, noise-free operation at temperatures up to 80℃. Available in sizes from 2 to 40 inches, this valve is versatile enough to meet the needs of diverse industrial and commercial applications. By choosing this no slam check valve, users benefit from enhanced system protection, reduced maintenance, and improved overall efficiency.

Technical Parameters:

Applications:

The AFC No Slam Check Valve, model number NSCV, is a highly reliable and efficient valve designed to prevent backflow in piping systems. Manufactured in China from high-grade ductile iron, this valve combines durability with excellent performance. Its robust construction ensures long-lasting service even in demanding industrial environments. The valve is FBE coated, providing superior resistance to corrosion and extending its operational life, making it ideal for applications where longevity and reliability are critical.

This No Slam Check Valve is suitable for a wide range of application occasions and scenarios. It is commonly used in water treatment plants, HVAC systems, chemical processing, and power generation facilities where preventing reverse flow is essential to protect equipment and maintain system efficiency. The valve’s flange end connection allows for secure and easy installation in pipelines ranging from size 2 to 40 inches, accommodating various system requirements.

In environments where temperature control is vital, this check valve performs reliably at temperatures up to 80℃, ensuring stable operation under moderate heat conditions. Its design minimizes water hammer effects, preventing the loud banging noises and potential damage associated with sudden flow changes. This feature makes the AFC NSCV an excellent choice for systems requiring smooth and silent operation, such as municipal water supply and industrial fluid handling.

Thanks to its high-grade ductile iron material, the valve offers exceptional strength and resistance to wear and impact, ensuring it can withstand harsh conditions and heavy-duty use. The FBE coating further enhances its corrosion resistance, making it suitable for outdoor applications or environments with aggressive media. Whether used in commercial, industrial, or municipal settings, the AFC No Slam Check Valve provides dependable backflow prevention and operational stability.

In summary, the AFC NSCV No Slam Check Valve is an ideal solution for various application scenarios, including water and wastewater systems, chemical plants, HVAC installations, and power plants. Its ductile iron construction, FBE coating, flange end connection, and capability to handle temperatures up to 80℃ make it a versatile and reliable choice for maintaining flow integrity and protecting critical infrastructure. This valve exemplifies quality and performance, ensuring safety and efficiency across multiple industries.

Customization:

The AFC Non Slam Check Valve (Model Number: NSCV) is a high-quality check valve designed to provide reliable, no slam check valve performance. Manufactured in China, this valve features a soft seal type that ensures a tight and leak-proof closure. Available in sizes ranging from 2 to 40, it is suitable for various piping systems and pressure ratings including PN10, PN16, and PN25.

Constructed from high grade DI materials, the AFC NSCV offers excellent durability and corrosion resistance. Its innovative design enables a quick close function, preventing water hammer and protecting your system from damage. This non slam check valve is ideal for applications requiring efficient flow control and long-lasting performance.

Choose the AFC Non Slam Check Valve for superior quality, dependable operation, and enhanced system safety in your industrial or commercial projects.
