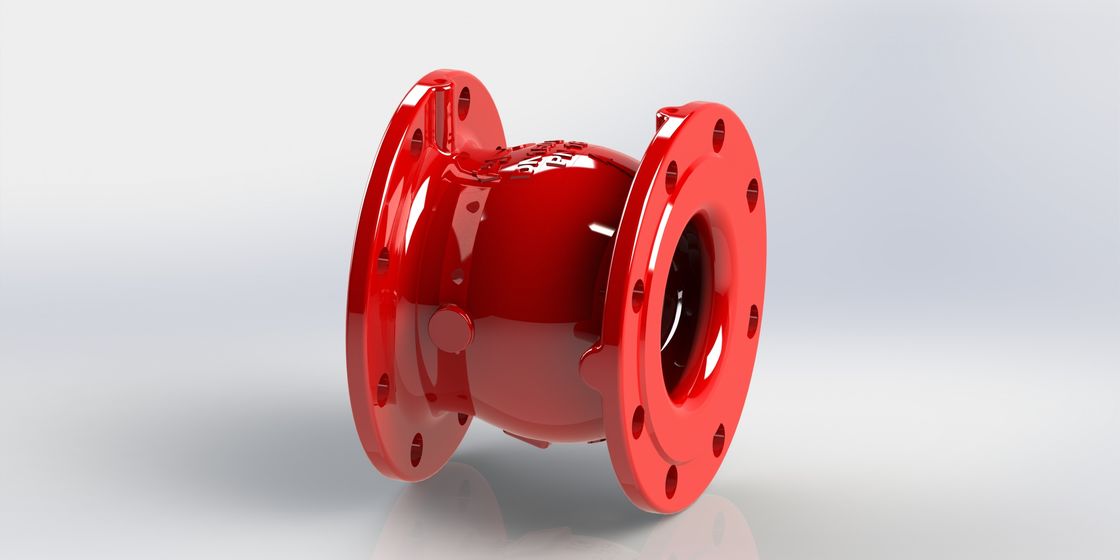

Soft Seal Non Slam Check Valve with Anti Water Hammer Mechanism and Ductile Iron Construction for Durable Pipeline Protection

Product Description:

The Non Slam Check Valve is a high-performance valve designed to prevent backflow in piping systems while ensuring smooth and efficient operation. Manufactured using high grade ductile iron (DI), this valve offers exceptional durability, strength, and resistance to wear and corrosion, making it an ideal choice for a wide range of industrial and commercial applications. With its robust construction and reliable functionality, the Non Slam Check Valve guarantees long-lasting service and minimal maintenance requirements.

One of the key features of this valve is its flange end connection, which provides a secure and leak-proof joint with piping systems. The flanged ends facilitate easy installation and removal, allowing for quick maintenance and inspection without the need for cutting or welding pipes. This connection type is widely preferred in many industries due to its reliability and ability to handle high pressure and temperature conditions.

Designed to operate efficiently at temperatures up to 80℃, the Non Slam Check Valve is suitable for a variety of fluid handling applications involving water, oil, and other compatible liquids. Its temperature rating ensures stable performance even in moderately high-temperature environments, contributing to the overall safety and efficiency of the fluid system.

Available in a broad size range from 2 to 40 inches, this valve can accommodate diverse pipeline diameters, offering flexibility for different system requirements. Whether it’s a small-scale installation or a large industrial setup, the Non Slam Check Valve can be seamlessly integrated to provide effective backflow prevention and maintain unidirectional flow.

Incorporating advanced design principles, the valve is often referred to as a nozzle check valve due to its internal mechanism which minimizes water hammer and prevents sudden slamming of the valve disc. This feature significantly reduces mechanical stress and noise, enhancing the lifespan of the valve and connected piping components. The non slam functionality ensures smooth closing action, which is critical in protecting pumps, compressors, and other sensitive equipment from potential damage caused by reverse flow or pressure surges.

Another important advantage of the Non Slam Check Valve is its low head loss characteristic. The internal flow path is engineered to provide minimal resistance to fluid flow, thereby reducing energy consumption and improving overall system efficiency. This low head loss design makes the valve an excellent choice for applications where maintaining optimal flow rates and minimizing pressure drops are essential.

Constructed from high grade ductile iron, the valve combines the strength of cast iron with enhanced ductility and toughness. This material selection ensures excellent mechanical properties and resistance to impact, making the valve highly reliable in demanding environments. Additionally, the ductile iron construction offers good corrosion resistance, especially when coated or lined appropriately, extending the valve’s service life in harsh operating conditions.

Overall, the Non Slam Check Valve is a dependable and efficient solution for preventing backflow and protecting piping systems from damage. Its flange end connection, ability to handle temperatures up to 80℃, wide size range, and use of high grade ductile iron make it a versatile and durable component suitable for various industrial sectors. The nozzle check valve design, combined with low head loss performance, ensures smooth operation, energy savings, and long-term reliability.

Whether used in water treatment plants, HVAC systems, power generation, or chemical processing, the Non Slam Check Valve stands out as a superior choice for engineers and system designers seeking a robust, low maintenance, and efficient check valve solution. By choosing this valve, users can ensure enhanced system protection, optimized flow management, and reduced operational costs over the valve’s lifetime.

Features:

• Product Name: Non Slam Check Valve
• Valve Type: Check Valve
• Pressure Ratings: PN10, PN16, PN25
• Maximum Temperature: 80℃
• End Connection: Flange
• Seal Type: Soft Seal
• Features quick close mechanism to prevent water hammer
• Designed as a Nozzel check valve for efficient flow control
• Reliable Nozzel check valve ensuring non-slam operation

Technical Parameters:

This no slam check valve features an FBE coated surface, providing excellent durability and corrosion resistance. Designed to prevent water hammer, it ensures smooth and reliable operation in various piping systems.

Applications:

The AFC NSCV Non Slam Check Valve is expertly engineered to provide reliable and efficient flow control in various industrial and commercial applications. Designed with a dynamic design, this valve ensures smooth operation by preventing backflow without causing water hammer or pressure surges, making it ideal for systems where maintaining steady flow is critical. Manufactured in China, the NSCV model boasts high-quality ductile iron construction, which offers excellent strength and durability under demanding conditions.

One of the standout features of the AFC NSCV is its rubber coated disc. This soft seal type not only enhances the valve's sealing performance but also minimizes wear and tear during operation, extending the valve’s service life. The rubber coated disc provides a tight seal even at lower pressures, ensuring zero leakage and improved system efficiency. The valve is available in pressure ratings of PN10, PN16, and PN25, making it versatile enough to suit a wide range of pressure requirements in different systems.

With a maximum operating temperature of 80℃, the AFC NSCV is well-suited for applications involving moderate temperature fluids. Its flange end connection allows easy installation and maintenance, making it a preferred choice for pipeline systems in water treatment plants, HVAC systems, pumping stations, and industrial process lines. The valve’s ability to prevent reverse flow effectively protects pumps and other equipment from damage caused by water hammer.

This non slam check valve is particularly beneficial in scenarios where flow interruptions can lead to costly downtime or equipment failure. For example, in municipal water supply systems, the valve ensures continuous, uninterrupted flow while preventing contamination from backflow. In heating and cooling systems, it maintains pressure balance and system integrity by quickly closing the valve disc when flow reversal is detected.

Overall, the AFC NSCV Non Slam Check Valve, with its dynamic design, rubber coated disc, and robust ductile iron material, is an excellent choice for engineers and maintenance teams looking for reliable, long-lasting solutions to control fluid flow and protect critical infrastructure.

Customization:

The AFC Non Slam Check Valve (Model Number: NSCV) is expertly designed and manufactured in China to meet diverse industrial needs. This check valve features a dynamic design that ensures smooth operation and reliable performance, effectively preventing backflow in piping systems. With pressure ratings of PN10, PN16, and PN25, it is suitable for various applications requiring robust and durable valve solutions.

Constructed to handle temperatures up to 80℃, the Non Slam Check Valve is available in sizes ranging from 2 to 40, accommodating a wide range of installation requirements. The valve is FBE coated, providing excellent corrosion resistance and extending the service life of the product. Additionally, its anti water hammer feature minimizes the risk of water hammer effects, protecting the piping system and enhancing operational safety.

As a premium check valve solution from AFC, the NSCV model combines quality materials, advanced engineering, and practical features, making it the ideal choice for industries seeking efficient and long-lasting valve performance.

Support and Services:

Our Non Slam Check Valve is designed to provide reliable and maintenance-free operation in various industrial applications. For technical support, please refer to the installation and maintenance manual included with the product or available on our website. Our support team is equipped to assist with troubleshooting, product selection, and performance optimization to ensure your system operates efficiently.

We offer comprehensive services including valve inspection, testing, and repair to extend the life of your Non Slam Check Valve. Customization and retrofit solutions are also available to meet specific application requirements. Regular maintenance checks are recommended to prevent unexpected failures and to maintain optimal valve performance.

For additional resources, including technical datasheets, CAD drawings, and installation guides, please visit our online support portal. We are committed to providing prompt and effective support to ensure your satisfaction and the reliable operation of your Non Slam Check Valve.

Packing and Shipping:

Our Non Slam Check Valve is carefully packaged to ensure it arrives in perfect condition. Each valve is securely wrapped in protective materials to prevent damage during transit. The product is then placed in a sturdy, labeled box that provides additional cushioning and protection.

For shipping, we use reliable carriers with a track record of safe and timely delivery. Depending on the destination, shipping options include standard ground, expedited, and freight services. We also provide tracking information so you can monitor your shipment every step of the way.

Special care is taken to handle the Non Slam Check Valve with attention to avoid any impact or pressure that could affect its performance. Our packaging and shipping process is designed to maintain product integrity from our facility to your installation site.

FAQ:

Q1: What brand manufactures the Non Slam Check Valve model NSCV?

A1: The Non Slam Check Valve model NSCV is manufactured by the brand AFC.

Q2: Where is the AFC NSCV Non Slam Check Valve produced?

A2: The AFC NSCV Non Slam Check Valve is made in China.

Q3: What is the primary function of the NSCV Non Slam Check Valve?

A3: The primary function of the NSCV Non Slam Check Valve is to prevent backflow in piping systems, ensuring a unidirectional flow of fluids without water hammer or slamming noise.

Q4: What type of applications is the AFC NSCV model suitable for?

A4: The AFC NSCV Non Slam Check Valve is suitable for various industrial and plumbing applications where preventing reverse flow and minimizing water hammer is critical.

Q5: What materials are used in the construction of the AFC NSCV Non Slam Check Valve?

A5: The AFC NSCV is typically constructed from durable materials such as stainless steel or cast iron, designed to withstand high pressure and corrosion, depending on the specific model variant.
