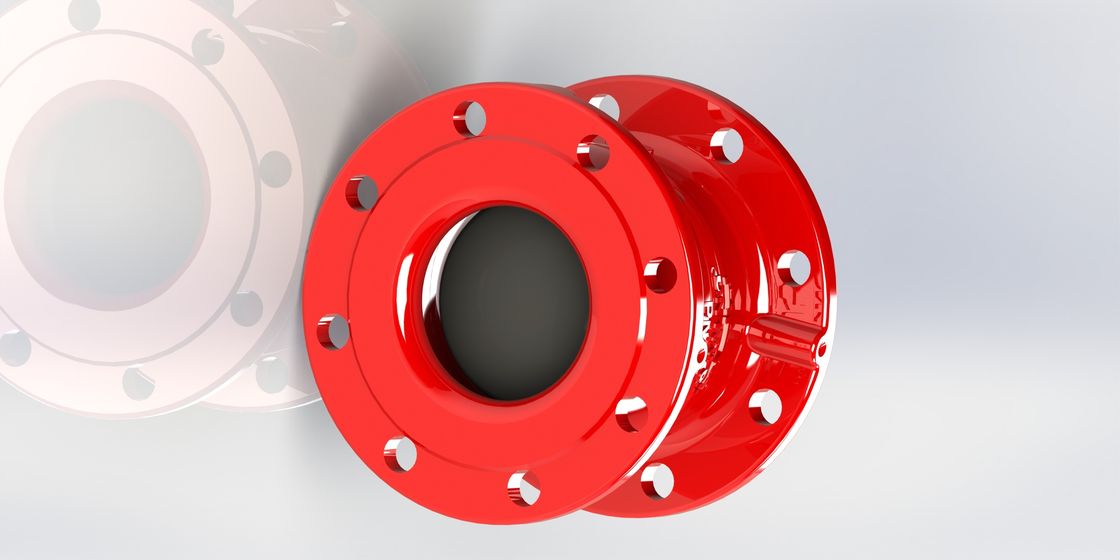

Non Slam Check Valve with Rubber Coated Disc for PN10 Pressure and 80℃ Temperature Resistance

Product Description:

The Non Slam Check Valve is a specialized valve designed to prevent backflow and ensure smooth, unidirectional flow in piping systems. This valve is engineered with a soft seal type, providing an excellent sealing performance that effectively eliminates leakage and enhances system reliability. Available in sizes ranging from 2 to 40, the Non Slam Check Valve is versatile and suitable for various industrial applications, accommodating different flow requirements with ease.

One of the standout features of the Non Slam Check Valve is its construction using high grade DI (Ductile Iron). The use of high grade DI ensures exceptional strength, durability, and resistance to wear and corrosion, making the valve highly reliable even in demanding environments. This robust material base contributes significantly to the valve's long service life and reduces the need for frequent maintenance or replacement, thereby offering cost-effective operation over time.

The valve is equipped with a rubber coated disc, which plays a crucial role in its performance. The rubber coating on the disc provides a soft seating surface that enhances the sealing capability, ensuring that the valve closes tightly and securely. This feature not only minimizes leakage but also reduces noise and vibration during operation, contributing to a quieter and more stable system. The rubber coated disc is particularly effective in cushioning the disc’s impact when the valve closes, which helps in preventing damage and prolonging the valve’s operational lifespan.

Another important advantage of the Non Slam Check Valve is its anti water hammer design. Water hammer is a common issue in fluid systems, characterized by sudden pressure surges caused by rapid valve closure. These surges can lead to pipe damage, leaks, and even system failure. The Non Slam Check Valve’s design mitigates this problem by ensuring a controlled and smooth closing action, which significantly reduces the impact of water hammer. This protective feature not only safeguards the piping system but also enhances overall operational safety and efficiency.

Operating at temperatures up to 80℃, the Non Slam Check Valve is suitable for a wide range of applications involving hot water and other fluids within this temperature range. This temperature tolerance makes it an ideal choice for HVAC systems, water treatment plants, industrial fluid control, and other settings where temperature stability and valve integrity are critical.

In summary, the Non Slam Check Valve combines robust material construction, advanced sealing technology, and thoughtful design to deliver superior performance. Its high grade DI body ensures strength and durability, while the rubber coated disc provides excellent sealing and noise reduction. The anti water hammer feature protects the system from pressure surges, making it a reliable and efficient choice for preventing backflow in various fluid handling systems. Available in multiple sizes from 2 to 40, this valve offers flexibility to meet diverse operational needs. Whether in industrial, commercial, or residential applications, the Non Slam Check Valve stands out as a high-quality solution that enhances system longevity, safety, and performance.

Features:

• Product Name: Non Slam Check Valve
• Seal Type: Soft Seal for reliable sealing
• Operating Temperature: Up to 80℃
• Size Range: 2 to 40 inches
• Pressure Ratings: PN10, PN16, PN25
• Valve Type: Check Valve
• Feature: Low head loss design for efficient flow
• Feature: Anti water hammer to prevent pipeline damage

Technical Parameters:

Applications:

The AFC Non Slam Check Valve (Model Number: NSCV) is a highly efficient and reliable valve designed to prevent backflow in various piping systems. Originating from China, this valve is engineered with an end connection flange, making it easy to install and compatible with a wide range of pipeline setups. Available in sizes ranging from 2 to 40 inches, the AFC NSCV caters to diverse industrial needs, ensuring optimal flow control and system safety.

One of the standout features of the AFC Non Slam Check Valve is its quick close mechanism. This design minimizes water hammer and pressure surges, protecting the integrity of the piping system and reducing maintenance costs. The valve’s quick close function is essential in applications where sudden flow reversals can cause significant damage or downtime.

Constructed to withstand various pressure ratings, the AFC NSCV is suitable for systems operating at PN10, PN16, and PN25 pressure classes. This versatility makes it ideal for use in water treatment plants, HVAC systems, chemical processing facilities, and other industrial environments where pressure conditions may vary.

The Non Slam Check Valve is also FBE coated, providing an additional layer of protection against corrosion and wear. The FBE coated finish ensures durability and long service life even in harsh environments, such as wastewater treatment, marine applications, and outdoor installations exposed to aggressive elements.

Typical application occasions for the AFC NSCV include pump discharge lines, pipeline systems in municipal water supply, irrigation, and fire protection systems. Its quick close capability is particularly beneficial in scenarios where sudden flow changes are frequent, preventing system shock and ensuring continuous operation.

In summary, the AFC Non Slam Check Valve (NSCV) is a robust, FBE coated check valve designed to offer reliable, quick close operation across a range of pressures and sizes. Its flange end connection and durable coating make it an excellent choice for numerous industrial and commercial applications where non-slam performance and corrosion resistance are paramount.

Customization:

The AFC Non Slam Check Valve (Model Number: NSCV) is a high-quality valve designed and manufactured in China. Featuring a soft seal type, this valve ensures a tight and reliable seal to prevent backflow effectively. It is engineered to handle pressures of PN10, PN16, and PN25, making it suitable for various industrial applications.

One of the key features of the NSCV Non Slam Check Valve is its rubber coated disc, which enhances durability and provides excellent sealing performance. The valve is specifically designed to be anti water hammer, reducing the risk of pressure surges and protecting your piping system from damage.

The valve also comes with a flange end connection for easy installation and maintenance. Additionally, the body is FBE coated, offering superior corrosion resistance and extending the service life of the valve. The operating temperature is up to 80℃, making it ideal for moderate temperature fluid control.

Overall, the AFC NSCV Non Slam Check Valve combines robust construction with advanced features like the rubber coated disc, anti water hammer design, and FBE coating, ensuring reliable and long-lasting operation in your fluid control systems.

Support and Services:

Our Non Slam Check Valve is designed to provide reliable, maintenance-free service in a variety of piping systems. To ensure optimal performance, it is important to follow proper installation, operation, and maintenance procedures.

Installation: Install the valve in the correct flow direction indicated by the arrow on the valve body. Ensure the pipeline is clean and free from debris before installation. Use appropriate gaskets and tighten flange bolts evenly to prevent leakage. Avoid using excessive force during installation to prevent damage to the valve components.

Operation: The Non Slam Check Valve operates automatically to prevent backflow and water hammer by quickly closing upon flow reversal. Avoid excessive flow velocities and pressure surges that may affect valve performance. Regularly monitor the system for any unusual noises or vibrations that could indicate operational issues.

Maintenance: The valve is designed for minimal maintenance; however, periodic inspection is recommended. Check for any signs of leakage, corrosion, or wear. Clean the valve internals if necessary and replace damaged components promptly. Lubrication is generally not required but refer to specific product guidelines if applicable.

Troubleshooting: If the valve fails to close properly or leaks, verify the installation orientation and check for obstructions. Inspect the valve disc and seat for damage or debris. Contact technical support for assistance with complex issues or replacement parts.

For detailed technical documentation, installation manuals, and troubleshooting guides, please refer to the product literature provided with your valve or visit our official website.

Packing and Shipping:

Our Non Slam Check Valve is securely packaged to ensure maximum protection during transit. Each valve is individually wrapped with protective materials and placed in a sturdy, custom-designed box to prevent damage from impacts and vibrations. The packaging is clearly labeled with handling instructions to ensure careful transportation.

For shipping, we use reliable carriers that offer tracking and timely delivery services. The valves are shipped with appropriate cushioning and secured within the shipping container to avoid movement and potential damage. We also provide options for expedited shipping and bulk order handling to meet customer requirements.

Upon receipt, customers are advised to inspect the packaging and product for any signs of damage and report any issues immediately to our customer service team for prompt resolution.

FAQ:

Q1: What is the brand and model number of the Non Slam Check Valve?

A1: The Non Slam Check Valve is manufactured by AFC and the model number is NSCV.

Q2: Where is the AFC Non Slam Check Valve made?

A2: The AFC NSCV Non Slam Check Valve is made in China.

Q3: What is the primary function of the AFC NSCV Non Slam Check Valve?

A3: The primary function of the AFC NSCV Non Slam Check Valve is to prevent backflow in piping systems, ensuring fluid flows in only one direction without slamming.

Q4: What industries commonly use the AFC NSCV Non Slam Check Valve?

A4: The AFC NSCV Non Slam Check Valve is commonly used in water treatment, HVAC, chemical processing, and other industrial applications where backflow prevention is critical.

Q5: What materials are used to manufacture the AFC NSCV Non Slam Check Valve?

A5: The AFC NSCV Non Slam Check Valve is typically made from high-quality metals such as stainless steel or cast iron, designed to provide durability and corrosion resistance.
