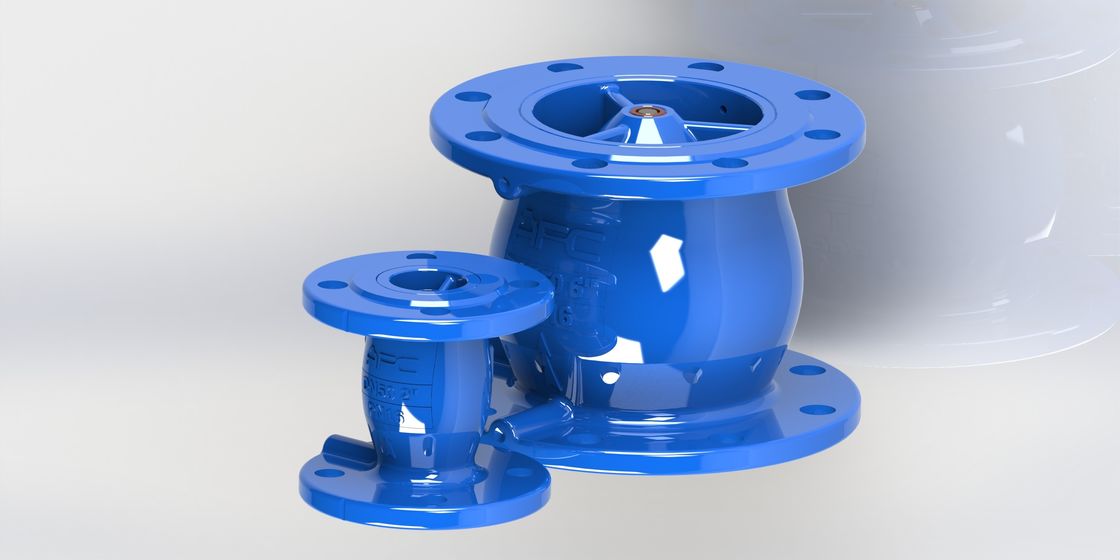

PN25 Pressure Non Slam Check Valve with Ductile Iron Construction and Flange End Connection for Industrial Applications

Product Description:

The Non Slam Check Valve is a highly efficient and reliable valve specially designed to prevent backflow in piping systems while minimizing water hammer and pressure surges. Engineered with precision, this valve ensures smooth flow control and protection for pumps, compressors, and other critical equipment in various industrial applications. Featuring a soft seal type, the Non Slam Check Valve delivers tight sealing performance, effectively eliminating leakage and enhancing overall system efficiency.

Available in sizes ranging from 2 to 40 inches, the Non Slam Check Valve caters to a wide spectrum of pipeline requirements, making it suitable for diverse industries such as water treatment, chemical processing, oil and gas, HVAC, and power generation. Its robust design supports multiple pressure ratings, including PN10, PN16, and PN25, allowing it to withstand different operating conditions and pressures with ease while maintaining optimal performance and durability.

One of the standout features of this valve is its flange end connection, which offers secure and convenient installation. Flanged connections provide excellent mechanical strength and ensure a leak-proof joint that can be easily assembled or disassembled during maintenance or replacement. This makes the Non Slam Check Valve a preferred choice for applications where reliable sealing and easy accessibility are crucial.

The Non Slam Check Valve incorporates advanced engineering principles, including a specialized nozzel check valve mechanism that significantly reduces flow resistance and minimizes head loss. This low head loss characteristic ensures that the valve does not impede the fluid flow, optimizing system efficiency and reducing energy consumption. The valve’s design also contributes to quieter operation by preventing sudden closure impacts, thereby protecting pipelines and associated equipment from potential damage caused by water hammer effects.

Durability and corrosion resistance are critical factors for valves used in harsh environments, and the Non Slam Check Valve excels in this regard. It is FBE coated (Fusion Bonded Epoxy), providing a robust protective layer that shields the valve body from corrosion, abrasion, and chemical attacks. This coating extends the valve’s service life, reduces maintenance frequency, and ensures consistent performance even in aggressive environments exposed to moisture, chemicals, or extreme temperatures.

The soft seal type used in the Non Slam Check Valve enhances sealing capabilities by adapting flexibly to irregularities on the mating surfaces, ensuring a tight shutoff under varying pressure conditions. This soft sealing element not only prevents leakage but also contributes to the valve’s noiseless operation, a significant advantage in applications requiring minimal operational noise and vibration.

In summary, the Non Slam Check Valve is a versatile and dependable component designed to provide efficient backflow prevention with minimal pressure drop and enhanced longevity. Its range of pressure ratings (PN10, PN16, PN25), size availability (2-40 inches), and flange end connections make it adaptable to numerous industrial piping systems. The integration of a nozzel check valve design and low head loss performance ensures energy-efficient operation, while the FBE coating guarantees superior resistance against corrosion and wear. The soft seal type further ensures leak-tight and quiet functioning, making the Non Slam Check Valve an excellent solution for modern industrial fluid control needs.

Features:

• Product Name: Non Slam Check Valve
• Pressure Ratings: PN10, PN16, PN25
• Valve Type: Check Valve
• End Connection: Flange
• Operating Temperature: Up to 80℃
• Features quick close mechanism for efficient operation
• Designed to be an Anti water hammer valve
• No slam check valve to prevent water hammer and extend system life

Technical Parameters:

Applications:

The AFC NSCV Non Slam Check Valve is a highly reliable and efficient valve designed to prevent backflow in piping systems. Manufactured in China, this valve features a dynamic design that ensures smooth and rapid closing, effectively eliminating water hammer or slam effects commonly experienced in traditional check valves. The NSCV model is a no slam check valve, meticulously engineered to protect pipelines and equipment from potential damage caused by sudden pressure surges.

Constructed from robust ductile iron, the AFC NSCV offers excellent durability and resistance to wear and corrosion, making it suitable for a wide range of industrial applications. Its flange end connection allows for secure and easy installation within various pipeline systems, ensuring compatibility and ease of maintenance. The soft seal type incorporated in this valve guarantees a tight seal, reducing leakage and enhancing overall system efficiency.

The AFC NSCV valve is available in multiple pressure ratings, including PN10, PN16, and PN25, catering to diverse operational requirements. This flexibility makes it an ideal choice for water treatment plants, HVAC systems, chemical processing, and power generation facilities where maintaining unidirectional flow and preventing reverse flow is critical.

One of the key features of this valve is its nozzel check valve mechanism, which optimizes fluid dynamics to minimize pressure loss and noise during operation. This dynamic design not only improves system performance but also extends the service life of the valve and associated piping components.

In practical scenarios, the AFC NSCV Non Slam Check Valve is used in municipal water supply networks, wastewater treatment systems, and industrial fluid handling applications. It is particularly beneficial in systems with variable flow rates or frequent start-stop cycles, where traditional check valves may suffer from slamming and premature wear. By incorporating the AFC NSCV, operators can ensure smoother operation, reduced maintenance costs, and enhanced system reliability.

Overall, the AFC NSCV Non Slam Check Valve stands out as a superior choice for engineers and facility managers seeking a dependable, efficient, and long-lasting check valve solution. Its dynamic design, combined with the nozzel check valve feature and soft seal construction, makes it an indispensable component in modern piping systems requiring effective backflow prevention without the drawbacks of slam effects.

Customization:

The AFC NSCV Non Slam Check Valve is designed with a rubber coated disc to ensure a tight seal and enhance durability. This valve features a soft seal type and flange end connection, making it suitable for various industrial applications. Originating from China, the NSCV model is built to withstand pressures of PN10, PN16, and PN25, and operates efficiently at temperatures up to 80℃.

As a reliable check valve, it incorporates advanced technology to prevent water backflow and minimize the risk of water hammer, ensuring system stability and longevity. The nozzel check valve design further optimizes flow control and reduces noise during operation. AFC's NSCV Non Slam Check Valve is an excellent choice for those seeking high-performance, anti water hammer solutions in piping systems.

Support and Services:

Our Non Slam Check Valve is designed to provide reliable and maintenance-free operation in various industrial applications. For technical support, please ensure that you have the valve model number, size, and operating conditions available when seeking assistance.

We offer comprehensive services including installation guidance, troubleshooting, and maintenance tips to ensure optimal performance of your Non Slam Check Valve. Our technical team is equipped to help you with valve selection, compatibility checks, and operational queries.

Regular inspection and cleaning are recommended to maintain the valve's functionality. Ensure that the valve is installed in the correct orientation and that the system pressure and flow conditions comply with the product specifications.

For detailed technical documentation, installation manuals, and maintenance instructions, please refer to the product literature provided with your valve or visit our official website.

We are committed to supporting you throughout the lifecycle of your Non Slam Check Valve to ensure safety, efficiency, and longevity of your system.

Packing and Shipping:

Our Non Slam Check Valve is carefully packaged to ensure maximum protection during transit. Each valve is securely wrapped in protective materials to prevent damage from impact, moisture, and dust. The product is then placed in a sturdy, corrugated cardboard box with cushioning materials to absorb shocks and vibrations.

For shipping, we use reliable carriers that specialize in handling industrial equipment. The packages are labeled clearly with handling instructions and tracking information. We offer multiple shipping options to meet your delivery requirements, including expedited and standard shipping. Our logistics team ensures that each shipment is dispatched promptly and arrives safely at your location.

FAQ:

Q1: What is the AFC NSCV Non Slam Check Valve used for?

A1: The AFC NSCV Non Slam Check Valve is designed to prevent backflow in piping systems, ensuring a smooth and non-slam operation to protect pumps and pipelines.

Q2: Where is the AFC NSCV Non Slam Check Valve manufactured?

A2: The AFC NSCV Non Slam Check Valve is manufactured in China.

Q3: What materials are used in the construction of the AFC NSCV Non Slam Check Valve?

A3: The AFC NSCV Non Slam Check Valve is typically made from high-quality metals such as stainless steel or cast iron, chosen for durability and corrosion resistance. Specific material details can be provided upon request.

Q4: What sizes are available for the AFC NSCV Non Slam Check Valve?

A4: The AFC NSCV Non Slam Check Valve is available in a variety of sizes to accommodate different piping requirements. Please contact the supplier for detailed size options.

Q5: How does the AFC NSCV Non Slam Check Valve prevent water hammer?

A5: The AFC NSCV Non Slam Check Valve features a design that allows the valve to close gently and quickly, preventing the sudden reversal of flow and effectively reducing or eliminating water hammer in the system.
