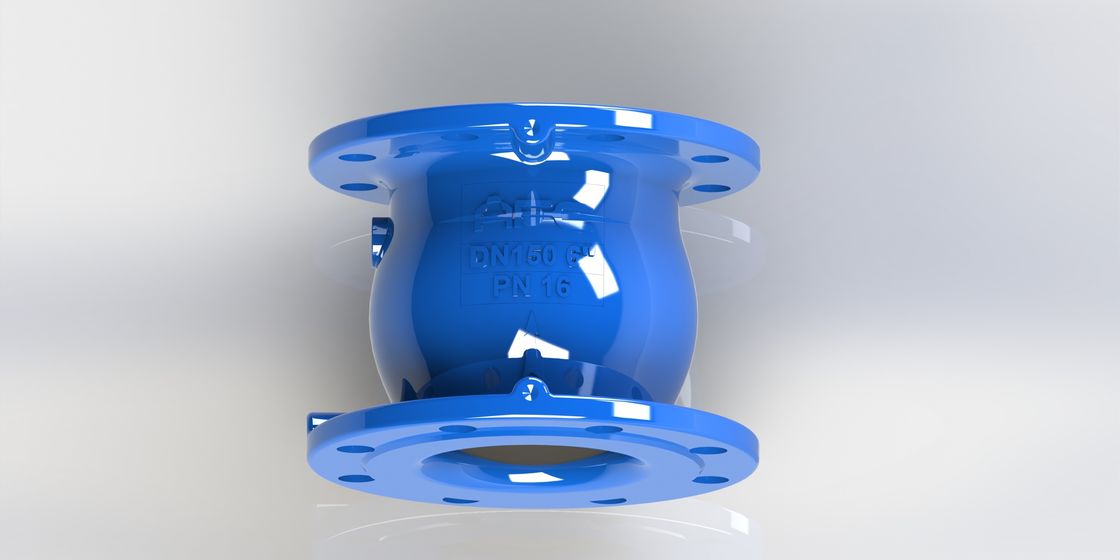

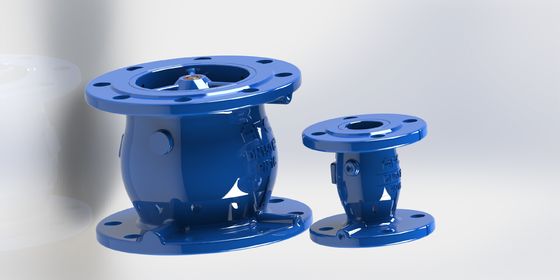

Soft Seal Non Slam Check Valve with PN25 Pressure and Ductile Iron Construction for Industrial Applications

Product Description:

The Non Slam Check Valve is a highly efficient valve designed to prevent backflow in piping systems, ensuring smooth and reliable operation. This valve is engineered to provide a quick close mechanism, which significantly reduces water hammer and pressure surges that can damage pipelines and associated equipment. Commonly referred to as a Nozzel check valve or No slam check valve, it is an essential component in various industrial and commercial applications where maintaining unidirectional flow is critical.

One of the standout features of the Non Slam Check Valve is its soft seal type, which guarantees a tight and leak-proof closure. The soft seal enhances the valve’s ability to prevent reverse flow while minimizing wear and tear on the sealing surfaces, extending the valve’s operational life. This type of seal is particularly effective in systems where noise reduction is important, as it helps to absorb the impact forces that occur when the valve closes quickly.

Designed to operate reliably at temperatures up to 80℃, the Non Slam Check Valve is suitable for a wide range of applications involving moderate temperature fluids. Its robust construction ensures consistent performance even under demanding conditions, making it ideal for water treatment plants, HVAC systems, fire protection systems, and various industrial processes.

The valve features a flange end connection, providing a secure and easy installation method. Flanged connections are preferred in many industrial settings due to their strength and ability to maintain a tight seal under high pressure. This also facilitates easier maintenance and replacement, as the valve can be removed without disturbing the surrounding pipeline extensively.

As a check valve, the Non Slam Check Valve is designed to allow fluid to flow in one direction only. When the flow reverses, the valve closes swiftly thanks to its quick close mechanism, hence the name No slam check valve. This rapid closure prevents the slamming effect commonly seen in traditional check valves, which can cause noise, vibration, and potential damage to the piping system. The Nozzel check valve design further enhances this effect by optimizing the flow path and reducing turbulence within the valve body.

In addition to its superior functional attributes, the Non Slam Check Valve is manufactured with high-quality materials that ensure durability and corrosion resistance. This makes it suitable for use in various environments, including water distribution, chemical processing, and other industrial applications where fluid purity and valve reliability are paramount.

Maintenance of the Non Slam Check Valve is straightforward due to its simple yet effective design. The flange connections allow for easy disassembly, inspection, and replacement of internal components if necessary. The soft seal can be replaced without requiring a complete valve replacement, reducing downtime and operational costs.

Overall, the Non Slam Check Valve combines innovative design features such as the quick close mechanism and soft sealing with practical considerations like flange end connections and temperature tolerance up to 80℃. It is an excellent choice for any system requiring a reliable, noiseless check valve solution. Whether referred to as a Nozzel check valve, quick close valve, or No slam check valve, this product stands out for its ability to enhance system safety, reduce maintenance needs, and improve operational efficiency.

Features:

• Product Name: Non Slam Check Valve
• Valve Type: Check Valve
• Temperature Rating: Up to 80℃
• Pressure Ratings: PN10, PN16, PN25
• End Connection: Flange
• Seal Type: Soft Seal
• No slam check valve design to prevent water hammer
• Low head loss for efficient flow
• Rubber coated disc for enhanced sealing and durability

Technical Parameters:

Applications:

The AFC Non Slam Check Valve, model number NSCV, is a high-quality valve designed to prevent backflow and protect piping systems from potential damage caused by water hammer. Manufactured in China, this valve is built with high grade ductile iron (DI) material, ensuring durability and long-lasting performance under various operating conditions. Available in sizes ranging from 2 to 40, the AFC Non Slam Check Valve is suitable for a wide range of applications in different industries.

This no slam check valve is specifically engineered to provide reliable anti water hammer protection, which is crucial in systems where sudden changes in fluid flow can cause pressure surges and noise. The valve's design allows it to close quickly and smoothly, preventing the slamming effect often associated with traditional check valves. This feature makes it ideal for use in water supply networks, wastewater treatment plants, HVAC systems, and industrial pipelines where maintaining system integrity and reducing maintenance costs are priorities.

The AFC NSCV model operates efficiently under pressure ratings of PN10, PN16, and PN25, making it versatile enough to handle various pressure requirements. Its maximum operating temperature of 80℃ suits it for use in typical water and light industrial fluid applications. This combination of pressure and temperature ratings ensures that the valve can be integrated into systems requiring stable and consistent flow control without the risk of backflow or damage due to pressure spikes.

In practical scenarios, the AFC Non Slam Check Valve is widely used in domestic water systems to prevent reverse flow, which can contaminate clean water supplies. It is also employed in pump discharge lines to avoid the damaging effects of water hammer when pumps shut down suddenly. Additionally, the valve is suitable for irrigation systems, fire protection pipelines, and chemical processing plants where reliable backflow prevention is essential for safety and operational efficiency.

Overall, the AFC Non Slam Check Valve NSCV model is a dependable solution for engineers and facility managers seeking a robust, anti water hammer valve that combines high-grade DI construction with efficient no slam operation. Its adaptability to various sizes and pressure classes makes it a preferred choice for ensuring smooth, safe, and efficient fluid handling in numerous application occasions and scenarios.

Customization:

Our AFC Non Slam Check Valve (Model Number: NSCV) is expertly crafted in China using high-quality ductile iron to ensure durability and reliable performance. Designed with a dynamic design, this check valve effectively minimizes water hammer, providing smooth and safe operation in your piping system. Available in sizes ranging from 2 to 40 with flange end connections, the valve offers low head loss to maximize flow efficiency. As a trusted valve type for preventing backflow, the AFC Non Slam Check Valve is the ideal solution for a wide range of industrial applications.

Support and Services:

Our Non Slam Check Valve product is designed to provide reliable and efficient flow control by preventing backflow in piping systems. To ensure optimal performance and longevity, we offer comprehensive technical support and services tailored to your needs.

Technical Support:

Our experienced technical team is available to assist with product selection, installation guidance, troubleshooting, and maintenance advice. We provide detailed product documentation, including specifications, installation manuals, and maintenance procedures to help you achieve the best results.

Installation Services:

Proper installation is critical for the Non Slam Check Valve to function correctly. We offer expert consultation to ensure the valve is installed in accordance with industry standards and manufacturer recommendations, minimizing the risk of operational issues.

Maintenance and Repair:

Regular maintenance is essential for the durability of your Non Slam Check Valve. We provide maintenance schedules, inspection checklists, and repair services to address any wear or damage promptly. Our support team can guide you through routine servicing or arrange for professional repair if necessary.

Spare Parts and Upgrades:

To extend the life of your valve, we supply genuine spare parts and offer upgrade options that enhance performance or adapt the valve to new application requirements. Our team can help identify the right parts and upgrade solutions for your system.

Training and Resources:

We offer training sessions and resources to empower your staff with the knowledge needed for proper operation and maintenance of the Non Slam Check Valve. This ensures safe handling and maximizes the efficiency of your system.

Our commitment is to provide you with the highest level of support and service to ensure your Non Slam Check Valve operates effectively throughout its service life.

Packing and Shipping:

Our Non Slam Check Valve is carefully packaged to ensure maximum protection during transit. Each valve is securely wrapped in protective material and placed inside a sturdy cardboard box to prevent any damage from impact or moisture. For added safety, foam inserts or cushioning materials are used to keep the valve stable within the packaging.

Shipping is handled by reliable courier services that guarantee timely delivery and safe handling of your order. We offer multiple shipping options to accommodate your needs, including standard and expedited shipping. All packages are clearly labeled with handling instructions and tracking information is provided to keep you updated throughout the delivery process.

Before dispatch, each Non Slam Check Valve undergoes a thorough inspection to ensure it meets our quality standards. We strive to provide a seamless packaging and shipping experience, ensuring your product arrives in perfect condition and ready for installation.

FAQ:

Q: What is the brand and model number of the Non Slam Check Valve?

A: The Non Slam Check Valve is manufactured by AFC and the model number is NSCV.

Q: Where is the AFC NSCV Non Slam Check Valve made?

A: The AFC NSCV Non Slam Check Valve is made in China.

Q: What is the primary function of the AFC NSCV Non Slam Check Valve?

A: The AFC NSCV Non Slam Check Valve is designed to prevent backflow in piping systems, ensuring fluid flows in only one direction without water hammer or slamming.

Q: What materials are used in the construction of the AFC NSCV Non Slam Check Valve?

A: The AFC NSCV Non Slam Check Valve is typically constructed from durable materials such as stainless steel or cast iron, designed to withstand high pressure and corrosion.

Q: In which applications is the AFC NSCV Non Slam Check Valve commonly used?

A: The AFC NSCV Non Slam Check Valve is commonly used in water supply systems, HVAC systems, industrial pipelines, and other fluid control applications requiring reliable backflow prevention.
