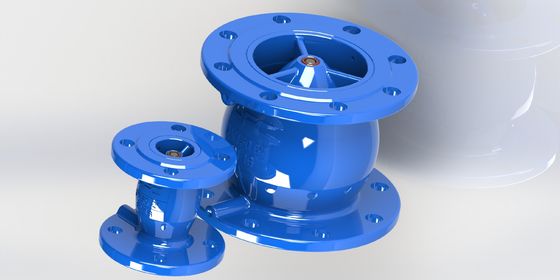

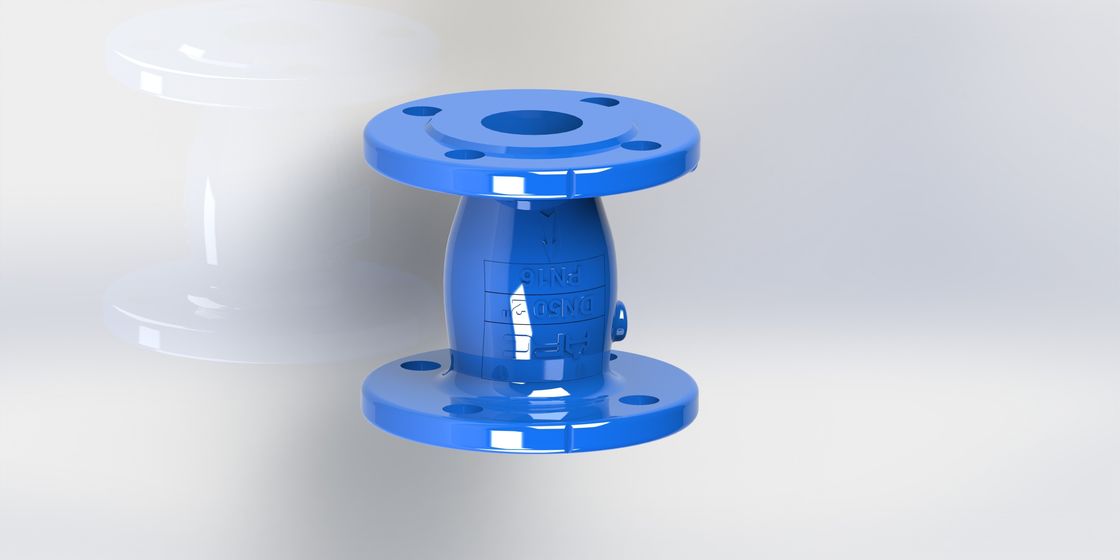

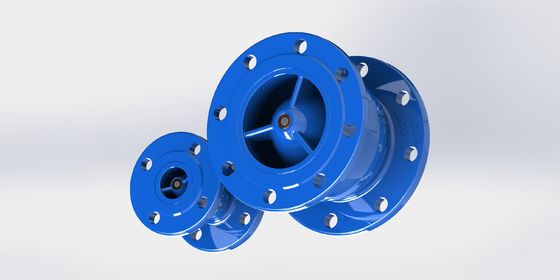

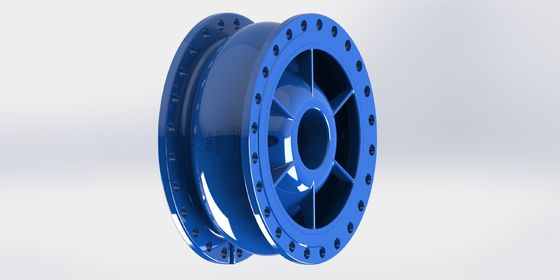

PN16 Pressure Non Slam Check Valve with Ductile Iron Construction and Soft Seal Type for Corrosion Resistance

Product Description:

The Non Slam Check Valve is a highly reliable and efficient valve designed to prevent backflow in piping systems, ensuring smooth and uninterrupted flow of fluids. Manufactured using high-grade ductile iron (DI), this valve is engineered to provide exceptional durability and resistance to wear and corrosion, making it ideal for a wide range of industrial applications. The valve is specifically designed as a check valve, which means it allows fluid to flow in one direction only, automatically preventing reverse flow that can cause damage or inefficiencies in the system.

One of the standout features of the Non Slam Check Valve is its ability to eliminate water hammer, a common issue in piping systems caused by sudden changes in fluid velocity. The valve incorporates an advanced anti water hammer mechanism that ensures smooth closure, significantly reducing the risk of pressure surges and potential damage to the pipeline and associated equipment. This makes the Non Slam Check Valve an essential component in systems where protecting the integrity of pipes and machinery is critical.

The valve is available in multiple pressure ratings including PN10, PN16, and PN25, allowing it to be used in a variety of pressure environments. Whether it is low, medium, or high-pressure systems, the Non Slam Check Valve can accommodate the specific needs of each application, providing flexible and reliable performance. This versatility makes it suitable for use in water treatment plants, HVAC systems, industrial pipelines, and many other fluid handling systems.

Constructed from ductile iron, the valve offers superior strength and toughness compared to traditional cast iron valves. High grade DI material ensures that the valve can withstand high stress and harsh environmental conditions, including exposure to corrosive elements. This enhances the longevity of the valve and reduces maintenance costs, making it a cost-effective solution for long-term operation.

The valve features a flange end connection, which simplifies installation and maintenance. Flanged connections provide a secure and leak-proof joint that can be easily assembled or disassembled for inspection or replacement. This design feature also allows the valve to be integrated seamlessly into existing piping systems, providing convenience and flexibility during installation.

The Non Slam Check Valve is often referred to as a Nozzel check valve due to its unique internal design that optimizes flow characteristics and minimizes pressure loss. This nozzel design ensures that the valve operates efficiently with minimal resistance to fluid flow, contributing to overall system efficiency and energy savings.

In summary, the Non Slam Check Valve is an advanced, high-performance check valve solution made from high grade ductile iron, designed to handle pressures up to PN25. Its anti water hammer properties protect pipelines from damaging pressure surges, while its flange end connection ensures easy installation and maintenance. The valve’s nozzel check valve design further enhances flow efficiency, making it a superior choice for a wide range of industrial and commercial applications. Whether you need to prevent backflow in water distribution, wastewater treatment, or industrial processes, the Non Slam Check Valve offers reliable performance, durability, and peace of mind.

Technical Parameters:

Applications:

The AFC NSCV Non Slam Check Valve is a high-quality valve designed to prevent backflow in piping systems, ensuring smooth and efficient fluid control. Manufactured in China, this valve is crafted with durability and performance in mind, making it an ideal choice for various industrial and commercial applications. With a temperature rating of up to 80℃, the AFC NSCV is capable of operating effectively in moderate temperature environments, providing reliable service without compromising safety or efficiency.

This check valve features a flange end connection, facilitating easy installation and maintenance in piping systems ranging in size from 2 to 40 inches. The valve is designed to handle different pressure ratings, including PN10, PN16, and PN25, offering flexibility for various system requirements. Its robust construction includes high grade DI (Ductile Iron), ensuring strength and resistance to mechanical stresses, while the FBE coated surface provides excellent corrosion protection, extending the valve’s lifespan even in harsh environments.

The AFC NSCV Non Slam Check Valve is widely used in water treatment plants, HVAC systems, fire protection systems, and industrial pipelines. Its non slam design minimizes water hammer, protecting pumps and pipes from potential damage caused by sudden pressure surges. This makes it particularly suitable for applications where maintaining system integrity and reducing maintenance costs are critical.

In municipal water supply networks, the AFC NSCV valve ensures unidirectional flow and prevents contamination caused by backflow. In industrial scenarios, it is employed to safeguard pumps and compressors from reverse flow, enhancing operational reliability. Additionally, the valve’s FBE coated finish makes it suitable for outdoor installations and environments where exposure to moisture and chemicals is common.

Overall, the AFC NSCV Non Slam Check Valve is a versatile and reliable component for any piping system requiring effective backflow prevention. Its combination of high grade DI material, flange end connections, and FBE coated protection delivers outstanding performance in a variety of application occasions and scenarios, making it a preferred choice for engineers and system designers worldwide.

Customization:

Our AFC Non Slam Check Valve (Model Number: NSCV) is designed with precision and reliability in mind. Manufactured in China, this valve is available in sizes ranging from 2 to 40 and is suitable for pressure ratings of PN10, PN16, and PN25. Made from high-quality ductile iron, the valve ensures durability and long service life.

The Non Slam Check Valve features a quick close mechanism to prevent water hammer and reverse flow, making it an ideal choice for various industrial applications. It comes with a flange end connection for easy installation and maintenance. Additionally, the valve is FBE coated to provide excellent corrosion resistance, enhancing its performance in harsh environments.

Choose the AFC NSCV Non Slam Check Valve for a reliable, efficient, and maintenance-friendly solution that guarantees no slam operation and optimal protection for your piping systems.
