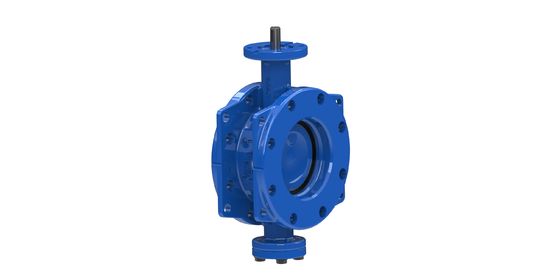

Double Eccentric Butterfly Valve with Stainless Steel Disc and EPDM Seal for Water Applications with FM Certificate

Product Description:

The Double Eccentric Butterfly Valve is a highly reliable and efficient valve designed specifically for water applications. Engineered with precision, this valve stands out due to its robust construction and superior performance, making it an ideal choice for various water systems ranging in size from 1 inch to 72 inches. Its innovative double eccentric design significantly reduces seat friction, ensuring smoother operation and longer service life compared to traditional butterfly valves.

One of the key features of this valve is its disc material, which is made from high-quality stainless steel. The use of stainless steel for the disc ensures excellent corrosion resistance, durability, and strength, enabling the valve to withstand harsh water environments and maintain optimal performance over extended periods. This makes the valve particularly suitable for potable water and other clean water applications, where maintaining water purity and valve integrity is crucial.

The valve is designed to comply with drinking water standards, ensuring that it meets all necessary regulations for safe use in potable water systems. This compliance guarantees that the materials and seals used within the valve do not contaminate the water, making it a trusted choice for municipal water distribution, water treatment plants, and other critical infrastructure projects.

Featuring an EPDM seal, the Double Eccentric Butterfly Valve offers excellent sealing performance and chemical resistance. EPDM (Ethylene Propylene Diene Monomer) seals are known for their superior elasticity and resistance to a wide range of chemicals and temperature variations, which helps maintain a leak-proof seal even under varying pressure conditions. This contributes to the valve’s reliability and reduces maintenance requirements, further enhancing its appeal for water applications.

The valve is available with different pressure ratings including PN10, PN16, and PN25, accommodating a broad spectrum of water pressure conditions. This flexibility allows users to select the appropriate valve specification based on their system requirements, ensuring optimal performance and safety. Whether the application involves low-pressure residential water systems or higher-pressure industrial water pipelines, this valve can be tailored to meet those demands.

Additionally, the Double Eccentric Butterfly Valve can be equipped with a valve worm gear mechanism. The valve worm gear available option provides easier and more precise valve operation, especially for larger valve sizes or installations where manual control requires additional torque. This feature enhances the operability of the valve, allowing for smooth and controlled opening and closing actions, which is crucial in maintaining system stability and preventing water hammer effects.

In summary, the Double Eccentric Butterfly Valve is a versatile, durable, and highly efficient valve solution for water applications. Its stainless steel disc, EPDM sealing, compliance with drinking water standards, and availability in multiple sizes and pressure ratings make it suitable for a wide range of water systems. The option to include a valve worm gear further adds to its ease of use and operational control. This valve represents a perfect combination of quality, reliability, and performance for any water-related project, ensuring safe and efficient flow control in both commercial and industrial settings.

Features:

• Product Name: Double Eccentric Butterfly Valve
• Temperature Range: -10 to 80℃
• Disc Material: Stainless Steel for enhanced durability and corrosion resistance
• Pressure Range: 0 to 2.5MPa suitable for various industrial applications
• Size Availability: 1 to 72 Inch to fit a wide range of piping systems
• Seat Material: EPDM Seal ensuring excellent sealing performance and compliance with drinking water standards
• Designed as a Butterfly Valve with double eccentric design for reduced wear and longer service life
• Comply With Drinking Water Standard, making it safe for potable water applications

Technical Parameters:

Applications:

The AFC Double Eccentric Butterfly Valve, available in models FBBD and FBGD, is a highly reliable and efficient valve designed for a wide range of industrial applications. Originating from China and certified by ISO, UL, and FM, this valve stands out for its robust construction and superior performance within a pressure range of 0-2.5MPa. Featuring a stainless steel disc and an EPDM seal, the valve ensures excellent corrosion resistance and tight sealing, making it suitable for various demanding environments.

One of the key application occasions for the AFC Double Eccentric Butterfly Valve is in water treatment plants, where precise flow control and durability are essential. The EPDM seat material provides outstanding resistance to water and many chemicals, ensuring long-lasting performance without leakage. Additionally, the valve’s flange connection facilitates easy installation and maintenance, making it ideal for large-scale pipeline systems.

In HVAC systems, the AFC Double Eccentric Butterfly Valve is widely used to regulate airflow and ensure efficient temperature control. The valve worm gear available option allows for smooth and precise operation, enabling operators to adjust flow rates accurately. This feature is particularly beneficial in scenarios requiring frequent valve adjustments or where manual operation is preferred.

The valve’s double eccentric design significantly reduces wear on the sealing components by minimizing contact between the disc and the seat during operation. This characteristic makes the valve highly suitable for applications in the oil and gas industry, chemical processing plants, and power generation facilities, where reliability and longevity are critical. The stainless steel disc enhances durability, ensuring the valve withstands harsh conditions and aggressive media.

Moreover, the AFC Double Eccentric Butterfly Valve is commonly employed in fire protection systems due to its compliance with UL and FM certifications. Its robust construction and EPDM seal guarantee reliable shutoff in emergency situations, providing safety and peace of mind. The valve’s versatility extends to food processing and pharmaceutical industries as well, where hygienic conditions and contamination prevention are paramount.

In summary, the AFC Double Eccentric Butterfly Valve with EPDM seal and valve worm gear available is an excellent choice for a variety of application occasions and scenarios, including water treatment, HVAC, oil and gas, chemical processing, power generation, fire protection, and more. Its combination of durable materials, advanced design, and trusted certifications ensures optimal performance across diverse industrial environments.

Customization:

The AFC Double Eccentric Butterfly Valve, available in model numbers FBBD and FBGD, offers customized solutions to meet diverse industrial needs. Manufactured in China, this valve is designed with a robust ductile iron body and a high-quality stainless steel disc, ensuring durability and reliable performance.

Our customization services include options for pressure ratings of PN10, PN16, and PN25, accommodating a pressure range of 0-2.5MPa. The valve sizes range from 1 to 72 inches, allowing precise adaptation to your system requirements.

Featuring a Double Eccentric design, the valve ensures superior sealing and reduced wear, enhancing operational efficiency. Additionally, the incorporation of a Steel Disc Ring provides enhanced sealing capability and corrosion resistance, making it ideal for various industrial applications.

Trust AFC to deliver tailored Double Eccentric Butterfly Valves with Steel Disc Rings that perfectly fit your specifications and deliver optimal performance.

Support and Services:

Our Double Eccentric Butterfly Valve is designed to provide superior performance and reliability in a wide range of industrial applications. For technical support, our team of experts is available to assist with installation guidance, troubleshooting, and maintenance advice to ensure optimal valve operation.

We offer comprehensive services including valve inspection, repair, and replacement parts to extend the life of your butterfly valve. Customized solutions and technical consultations are also available to meet specific project requirements.

Our commitment is to deliver prompt and effective support to minimize downtime and enhance the efficiency of your systems. Please refer to the product manual for detailed operating instructions and maintenance schedules.

Packing and Shipping:

Product Packaging and Shipping for Double Eccentric Butterfly Valve

The Double Eccentric Butterfly Valve is carefully packaged to ensure its safety and integrity during transportation. Each valve is wrapped with protective materials such as plastic film and foam to prevent scratches and damage. It is then placed in a sturdy wooden crate or reinforced cardboard box, depending on the valve size and shipping requirements.

For added protection, desiccant packets are included to prevent moisture buildup inside the packaging. All packaging materials comply with international shipping standards to guarantee the valve arrives in perfect condition.

Shipping options include sea freight, air freight, and land transportation, tailored to customer needs and delivery schedules. Each shipment is labeled clearly with handling instructions such as "Fragile," "Handle with Care," and "Keep Dry" to ensure proper treatment throughout the logistics process.

Before dispatch, all valves undergo thorough inspection and testing to confirm product quality. Shipping documents, including packing lists, certificates of quality, and compliance certificates, are provided to facilitate smooth customs clearance and delivery.

FAQ:

Q1: What are the model numbers available for the AFC Double Eccentric Butterfly Valve?

A1: The AFC Double Eccentric Butterfly Valve is available in two model numbers: FBBD and FBGD.

Q2: Where is the AFC Double Eccentric Butterfly Valve manufactured?

A2: The AFC Double Eccentric Butterfly Valve is manufactured in China.

Q3: What is the key feature of the double eccentric design in AFC butterfly valves?

A3: The double eccentric design provides a tight seal with reduced friction, improving valve longevity and performance.

Q4: What applications are suitable for AFC Double Eccentric Butterfly Valves?

A4: These valves are suitable for various industrial applications including water treatment, chemical processing, and HVAC systems.

Q5: What materials are used in the AFC Double Eccentric Butterfly Valve?

A5: The valve body and disc are typically made from high-quality metals suitable for durability and corrosion resistance, specific materials vary by model.
