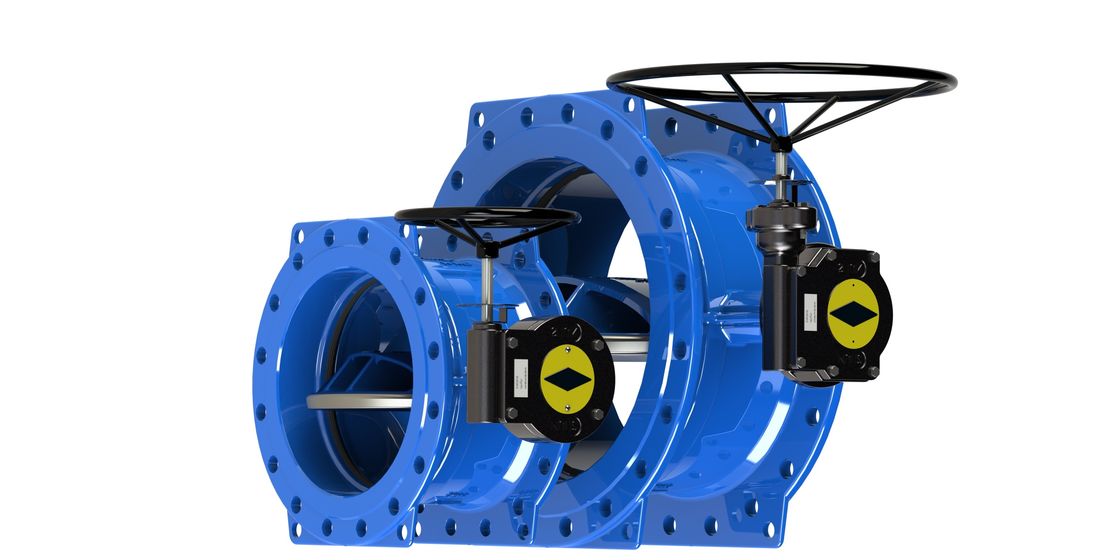

Double Eccentric Butterfly Valve with EPDM Seat Material and Electric Operation for Temperature Range -10 to 80°C

Product Description:

The Double Eccentric Butterfly Valve is a highly reliable and efficient valve designed for a wide range of industrial applications. Constructed with a robust ductile iron body, this valve offers excellent strength and durability, ensuring long-lasting performance even in demanding environments. The ductile iron material not only provides superior resistance to impact and corrosion but also maintains structural integrity under varying pressure conditions, making it an ideal choice for fluid control systems.

This butterfly valve features a double eccentric design, which significantly enhances its sealing performance and reduces wear on the sealing components. The double eccentric mechanism means that the valve disc is offset twice from the centerline of the pipe and the centerline of the valve shaft. This unique configuration minimizes contact between the disc and the seat during operation, resulting in lower friction, smoother operation, and extended service life. The double eccentric design also provides a tighter seal compared to traditional concentric valves, making it suitable for applications requiring reliable leak-tight closure.

Equipped with an EPDM seal, the valve ensures excellent sealing properties and chemical resistance. EPDM (Ethylene Propylene Diene Monomer) is known for its flexibility, durability, and resistance to water, steam, and a wide variety of chemicals. This seal material is especially effective in water treatment, HVAC systems, and other applications where resistance to weathering and aging is critical. The EPDM seal contributes to the valve's ability to maintain a secure and leak-free shutoff, enhancing overall system efficiency and safety.

The Double Eccentric Butterfly Valve is versatile in its operation, offering multiple actuator options to suit different application needs. Users can choose from manual operation for straightforward, hands-on control, gear operation for increased torque and ease of use in larger sizes, or electric operation for automated and remote control capabilities. This flexibility allows the valve to be seamlessly integrated into various control systems, enhancing operational convenience and precision.

Designed to meet international standards such as BS (British Standards) and ANSI (American National Standards Institute), this valve complies with stringent quality and performance criteria. These standards ensure that the valve is manufactured to high specifications, guaranteeing compatibility, safety, and reliability across different industrial sectors. Whether used in water supply, chemical processing, or HVAC systems, the valve meets the necessary regulatory requirements and industry benchmarks.

The valve’s connection type is flange, providing a secure and easy means of installation and maintenance. Flanged connections offer strong mechanical strength and allow for quick disassembly when servicing or replacing the valve. This feature is particularly beneficial in complex piping systems where frequent maintenance or inspection is required. The flange connection also ensures tight sealing with the pipeline, preventing leaks and maintaining system integrity.

Pressure ratings for this Double Eccentric Butterfly Valve range from PN10, PN16, to PN25, allowing it to operate efficiently under various pressure conditions. This range caters to low to medium pressure applications, making the valve suitable for a broad spectrum of industrial processes. Whether it is used in water distribution, chemical handling, or HVAC systems, the valve’s pressure ratings ensure reliable performance and safety under operational stresses.

Another notable feature of this product is the bare head design, which refers to the valve’s exposed stem or shaft without additional coverings or enclosures. This design simplifies inspection and maintenance, allowing operators to easily monitor the condition of the valve components. The bare head also facilitates straightforward manual operation and quick identification of any mechanical issues, contributing to reduced downtime and maintenance costs.

In summary, the Double Eccentric Butterfly Valve with a ductile iron body, EPDM seal, and bare head construction is a versatile, durable, and high-performance valve solution. Its compliance with BS and ANSI standards, multiple operation modes, flange connection, and wide pressure rating range make it an excellent choice for various industrial applications. Whether controlling water flow, managing chemical processes, or regulating HVAC systems, this valve delivers reliable sealing, easy operation, and long-term durability, ensuring optimal system performance and safety.

Features:

• Product Name: Double Eccentric Butterfly Valve
• Application: Water
• Temperature Range: -10 to 80℃
• Valve Type: Double Eccentric Butterfly Valve
• Disc Material: Stainless Steel
• Size Range: 1 to 72 Inch
• Equipped with EPDM Seal for excellent sealing performance
• Designed as a Butterfly Valve for efficient flow control
• Big Torque design ensures reliable operation and tight shut-off

Technical Parameters:

Applications:

The AFC Double Eccentric Butterfly Valve, available in models FBBD and FBGD, is a highly versatile valve designed to meet the demanding requirements of various water-related applications. Manufactured in China, this valve operates efficiently within a temperature range of -10 to 80℃, making it suitable for a wide spectrum of environments. With sizes ranging from 1 to 72 inches, the valve can be adapted to both small-scale and large-scale water systems, ensuring optimal flow control and reliability.

One of the key application occasions for the AFC Double Eccentric Butterfly Valve is in municipal water treatment plants. Here, the valve plays a critical role in regulating the flow of water through treatment processes, ensuring smooth operation and maintaining system integrity. Its compliance with BS or ANSI Standard guarantees that it meets international quality and safety benchmarks, providing peace of mind to engineers and operators. The double eccentric design minimizes wear on the sealing surfaces, enhancing durability and performance in continuous operation.

In industrial water supply systems, the AFC Butterfly Valve is equally indispensable. It can be manually operated or equipped with gear and electric actuators, allowing for flexible control options depending on the specific needs of the installation. This adaptability makes it ideal for scenarios such as cooling water circuits, firefighting systems, and irrigation networks where reliable flow control is paramount. The valve’s robust construction and precise sealing capabilities prevent leakage and ensure energy-efficient operation.

Furthermore, the AFC Double Eccentric Butterfly Valve is well-suited for use in HVAC systems, where it helps regulate water flow for heating and cooling applications. Its ability to withstand varying temperatures within the specified range ensures consistent performance throughout seasonal changes. Additionally, the valve’s compliance with BS or ANSI Standard makes it a preferred choice for international projects requiring certified components.

Overall, the AFC FBBD and FBGD Double Eccentric Butterfly Valve is an excellent solution for any water-related application requiring dependable flow control, durability, and compliance with international standards. Whether in municipal, industrial, or commercial settings, its versatile operation modes and wide size range make it an indispensable component in modern water management systems.

Customization:

Our AFC Double Eccentric Butterfly Valve, available in model numbers FBBD and FBGD, is fully customizable to meet your specific requirements. Manufactured in China, this valve features a robust ductile iron body and a stainless steel disc, ensuring durability and reliable performance. With sizes ranging from 1 to 72 inches and a pressure range up to 2.5MPa, it is suitable for a wide variety of applications.

The valve incorporates a Double Eccentric design combined with a Dovetail design seal groove, providing enhanced sealing performance and extended service life. The EPDM seal ensures excellent resistance to wear and chemical corrosion, making it ideal for various industrial environments.

Operation options include manual, gear, and electric actuators, allowing you to select the most efficient control method for your system. Customize your AFC Double Eccentric Butterfly Valve today to achieve optimal performance and reliability.

Support and Services:

Our Double Eccentric Butterfly Valve is designed for high performance and reliability in various industrial applications. To ensure optimal operation and longevity of the valve, we offer comprehensive technical support and services.

Technical Support includes guidance on valve selection, installation procedures, operational best practices, and troubleshooting assistance. Our expert team is available to provide detailed information about valve specifications, compatibility with different media, pressure ratings, and temperature limits.

We also provide maintenance services to help extend the life of your Double Eccentric Butterfly Valve. This includes routine inspection, cleaning, lubrication, and replacement of worn or damaged components. Our technicians are trained to perform repairs and refurbishments to restore valve functionality to original standards.

For customized solutions, we offer engineering consultation to adapt the valve design to specific application requirements. This may involve material selection, actuator integration, and control system interfacing to optimize performance.

Spare parts and accessories for the Double Eccentric Butterfly Valve are readily available to minimize downtime and maintain system efficiency. Our support team can assist in identifying and supplying the correct components quickly.

We are committed to providing excellent after-sales service to ensure customer satisfaction and the reliable operation of your valve systems. Please refer to the product manual for detailed instructions or contact our support team for further assistance.

Packing and Shipping:

The Double Eccentric Butterfly Valve is carefully packaged to ensure maximum protection during transportation. Each valve is securely wrapped in corrosion-resistant material and cushioned with foam inserts to prevent damage from shocks and vibrations. The valve is then placed inside a sturdy wooden crate or a reinforced cardboard box, depending on the size and customer requirements.

For shipping, the packages are clearly labeled with handling instructions and product details. We use reliable freight services to deliver the valves safely to their destination. Additionally, all shipments are accompanied by detailed documentation, including a packing list, certificate of quality, and installation guidelines, ensuring a smooth and efficient delivery process.

FAQ:

Q1: What brand manufactures the Double Eccentric Butterfly Valve?

A1: The Double Eccentric Butterfly Valve is manufactured by the brand AFC.

Q2: What are the model numbers available for this Double Eccentric Butterfly Valve?

A2: The available model numbers for this valve are FBBD and FBGD.

Q3: Where is the Double Eccentric Butterfly Valve produced?

A3: This valve is produced in China.

Q4: What is the main advantage of a double eccentric butterfly valve?

A4: The double eccentric design reduces wear on the valve seat and disc, providing better sealing and longer service life compared to single eccentric valves.

Q5: In which industries can the AFC Double Eccentric Butterfly Valve be used?

A5: The valve is suitable for various industries including water treatment, oil and gas, chemical processing, and HVAC systems.
