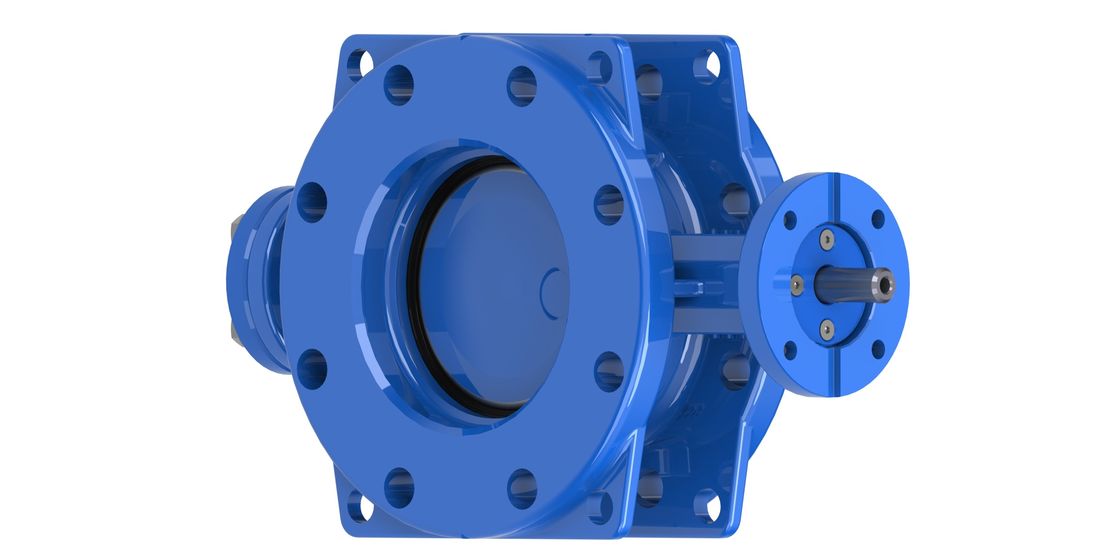

Gear Operated Double Eccentric Butterfly Valve with Flange Connection for -10 to 80℃ Temperature Range

Product Description:

The Double Eccentric Butterfly Valve is a highly reliable and efficient valve designed to regulate and isolate the flow of water in various industrial and municipal applications. Manufactured to meet strict international standards such as BS (British Standard) and ANSI (American National Standards Institute), this valve ensures superior performance, durability, and safety in operation. It is engineered to withstand a range of pressure ratings including PN10, PN16, and PN25, making it suitable for diverse water system requirements from low to medium pressure levels.

One of the standout features of this Double Eccentric Butterfly Valve is its innovative dovetail design. This design enhances the stability and alignment of the valve disc, reducing wear and tear over time and ensuring a longer service life. The dovetail configuration also contributes to a tighter seal, minimizing leakage and improving overall valve efficiency. This makes the valve an excellent choice for critical water control applications where reliability and tight shut-off are paramount.

The valve is available with a bare head or a valve worm gear, offering flexibility to suit different operational needs. The bare head option provides a straightforward valve mechanism that can be manually operated or easily automated with additional actuators. On the other hand, the valve worm gear available option allows for easier and more precise control, especially in larger valves or systems where manual operation would be cumbersome. The worm gear mechanism facilitates smooth and controlled valve movement, enhancing user convenience and operational accuracy.

Certified by internationally recognized bodies including ISO (International Organization for Standardization), UL (Underwriters Laboratories), and FM (Factory Mutual), this Double Eccentric Butterfly Valve meets rigorous quality and safety standards. These certifications attest to the valve’s excellent manufacturing quality, reliability, and compliance with safety regulations, making it a trusted choice for water applications worldwide.

Designed specifically for water applications, the valve is ideal for use in water treatment plants, distribution networks, irrigation systems, and other water management infrastructures. Its robust construction and precise engineering allow it to handle the unique demands of water flow control, including resistance to corrosion and erosion caused by waterborne particles. This ensures consistent performance and reduces maintenance requirements over the valve's operational lifespan.

The double eccentric design differentiates this butterfly valve from conventional single eccentric types by offsetting the valve disc from the centerline of the valve body and the pipe bore. This double offset reduces friction between the disc and the seat during operation, resulting in less wear and a more reliable sealing surface. Consequently, the valve offers improved durability and a longer operational life, making it a cost-effective solution for water system operators.

In summary, the Double Eccentric Butterfly Valve is a versatile, durable, and high-performance valve solution engineered for water applications. Meeting standards such as BS and ANSI, and pressure ratings from PN10 to PN25, it provides reliable flow control and isolation. The innovative dovetail design, coupled with options for a bare head or valve worm gear, ensures operational flexibility and superior sealing performance. Backed by ISO, UL, and FM certifications, this valve stands as a benchmark of quality and reliability in the water industry, making it an excellent investment for any water management system.

Features:

• Product Name: Double Eccentric Butterfly Valve
• Valve Type: Double Eccentric Butterfly Valve
• Disc Material: Stainless Steel for enhanced durability and corrosion resistance
• Temperature Range: Suitable for -10 to 80℃ applications
• Seat Material: EPDM with EPDM Seal ensuring tight sealing and chemical resistance
• Connection Type: Flange connection for secure and easy installation
• Double Eccentric design reduces seat wear and ensures reliable performance
• Big Torque feature provides efficient operation with minimal effort

Technical Parameters:

Applications:

The AFC Double Eccentric Butterfly Valve, available in models FBBD and FBGD, is a versatile and reliable valve solution designed to meet a wide range of application occasions and scenarios. Manufactured in China with high-quality ductile iron body material and featuring a durable EPDM seal, this valve ensures excellent performance and longevity in various industrial and municipal settings. The valve sizes range from 1 to 72 inches, accommodating different pipeline dimensions, while the pressure ratings of PN10, PN16, and PN25 allow it to operate efficiently under different pressure conditions.

This butterfly valve is especially suitable for water supply systems where hygiene and safety are paramount, as it complies with drinking water standards. The EPDM seal provides superior sealing capabilities while being resistant to aging, abrasion, and various chemicals, making it ideal for potable water applications. Additionally, the flange connection design allows for easy installation and maintenance in pipeline networks, ensuring secure and leak-proof connections.

In municipal water treatment plants, the AFC Double Eccentric Butterfly Valve can control the flow of raw and treated water with precision and reliability. Its bare head design allows for easy automation and integration with actuators, making it an excellent choice for systems requiring remote or automated operation. The valve's robust construction from ductile iron ensures high durability and resistance to mechanical stress, which is essential in heavy-duty applications such as wastewater treatment, irrigation systems, and industrial fluid control.

Moreover, the valve is widely used in HVAC systems, power plants, and chemical industries where controlling the flow of various fluids is critical. The double eccentric design reduces wear on the seal and disc, enhancing the valve’s lifespan and operational efficiency. Its ability to handle different pressure ratings makes it adaptable for use in low to medium pressure pipelines, providing flexibility across many sectors.

In summary, the AFC Double Eccentric Butterfly Valve (models FBBD and FBGD) is an ideal choice for applications requiring compliance with drinking water standards, reliable EPDM sealing, and robust ductile iron construction. Its wide size range, flange connection, and bare head configuration make it suitable for diverse occasions such as municipal water supply, industrial fluid control, HVAC systems, and more, ensuring efficient and safe flow management across various scenarios.

Customization:

The AFC Double Eccentric Butterfly Valve, available in model numbers FBBD and FBGD, is designed and manufactured in China to meet BS or ANSI Standard requirements. This valve features a robust ductile iron body material, ensuring durability and reliable performance within a temperature range of -10 to 80℃ and a pressure range of 0 to 2.5MPa. Equipped with an EPDM seal, the valve provides excellent sealing performance, making it ideal for water applications. The double eccentric design enhances the valve's operational efficiency and longevity. Customers can choose from various operation methods, including manual, gear, or electric, to best suit their specific needs and installation environments.

Support and Services:

Our Double Eccentric Butterfly Valve is designed for optimal performance and durability in a wide range of industrial applications. To ensure reliable operation and extend the service life of your valve, we offer comprehensive technical support and services.

Technical Support:

Our experienced support team is available to assist with valve selection, installation guidance, troubleshooting, and maintenance advice. We provide detailed technical documentation, including installation manuals, operation guides, and maintenance procedures tailored to the Double Eccentric Butterfly Valve.

Maintenance Services:

Regular maintenance is crucial for the longevity and efficiency of the butterfly valve. We offer scheduled inspection and maintenance services, including cleaning, lubrication, seal replacement, and performance testing to prevent unexpected failures and ensure optimal functionality.

Spare Parts and Upgrades:

We supply genuine spare parts and upgrade kits compatible with the Double Eccentric Butterfly Valve to improve performance or adapt to new operating conditions. Our parts are manufactured to the highest quality standards to guarantee proper fit and reliable operation.

Training and Consultation:

To empower your team, we provide training sessions covering the correct handling, operation, and maintenance of the valve. Additionally, consultation services are available to optimize valve integration within your systems and processes.

Warranty and Repairs:

The Double Eccentric Butterfly Valve comes with a standard warranty covering manufacturing defects. In case of any issues, our repair services are designed to restore valve performance efficiently, minimizing downtime.

Trust our dedicated technical support and services to maximize the performance, safety, and reliability of your Double Eccentric Butterfly Valve installations.

Packing and Shipping:

The Double Eccentric Butterfly Valve is carefully packaged to ensure safe transportation and delivery. Each valve is securely wrapped with protective materials to prevent damage during handling and shipping. The product is then placed in a sturdy wooden crate or reinforced cardboard box, depending on size and customer requirements, to provide maximum protection against impact, moisture, and corrosion.

For shipping, the Double Eccentric Butterfly Valve is labeled clearly with handling instructions and product details. Our logistics team arranges transportation using reliable carriers to ensure timely and secure delivery to the customer's specified location. Custom packaging options are available upon request to meet specific shipping or storage needs.

FAQ:

Q1: What brand manufactures the Double Eccentric Butterfly Valve?

A1: The Double Eccentric Butterfly Valve is manufactured by the brand AFC.

Q2: What are the model numbers available for this valve?

A2: The available model numbers for the Double Eccentric Butterfly Valve are FBBD and FBGD.

Q3: Where is the Double Eccentric Butterfly Valve produced?

A3: This valve is produced in China.

Q4: What is the main advantage of a double eccentric design in butterfly valves?

A4: The double eccentric design reduces seat wear and provides a tight seal by offsetting the disc from the seat and the centerline of the valve body, improving durability and performance.

Q5: In which applications can the AFC Double Eccentric Butterfly Valve be used?

A5: This valve is suitable for various industrial applications including water treatment, chemical processing, HVAC systems, and other fluid control systems where reliable sealing and flow control are required.
