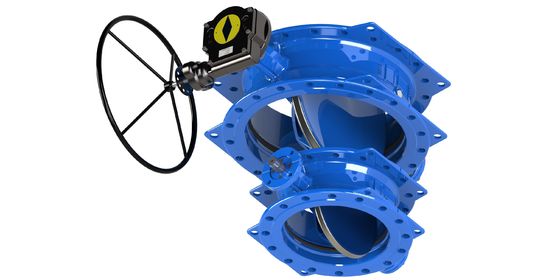

ISO Certified Double Eccentric Butterfly Valve with Stainless Steel Disc and EPDM Seat for Precise Flow Control

Product Description:

The Double Eccentric Butterfly Valve is a highly reliable and efficient valve specially designed for water applications. Engineered to provide superior performance and durability, this valve is an ideal choice for controlling the flow of water in various industrial and municipal systems. The valve features a double eccentric design, which significantly reduces friction and wear on the sealing surfaces, thereby enhancing its operational lifespan and ensuring a tight, leak-proof seal even under high pressure conditions.

One of the key components of this valve is its disc, which is made from premium stainless steel. The stainless steel disc offers excellent resistance to corrosion, making it suitable for use in water systems where exposure to moisture and other environmental factors is constant. Additionally, the disc is equipped with a high-quality Steel Disc Ring that ensures a robust sealing surface and contributes to the valve’s overall reliability. The Steel Disc Ring is precision-engineered to provide a secure fit with the valve seat, minimizing the risk of leakage and improving the valve’s sealing performance over time.

The valve operates on a double eccentric principle, meaning the disc is offset from the valve body and the shaft, which reduces the contact area between the disc and the seat during opening and closing. This design not only decreases wear and tear but also enables smoother and more efficient operation. The valve is available in multiple operation modes to suit different installation requirements and user preferences. It can be operated manually through a bare head mechanism, allowing for straightforward and direct control. For applications requiring less manual effort or remote operation, the valve can also be equipped with a gear or electric actuator. The gear operation facilitates easier manual turning by providing mechanical advantage, while the electric operation allows for automated control, integration with control systems, and enhanced convenience.

Certified to meet stringent international standards, the Double Eccentric Butterfly Valve holds ISO, UL, and FM certifications. These certifications guarantee that the valve complies with globally recognized quality, safety, and performance criteria, making it a dependable choice for critical water applications. Whether used in water treatment plants, distribution networks, or industrial water systems, this valve ensures safe and efficient flow control.

The valve’s durable construction, combined with the corrosion-resistant stainless steel disc and the robust Steel Disc Ring, ensures longevity even in demanding environments. The bare head design option offers simplicity and ease of maintenance, while the availability of gear and electric operation modes provides flexibility and adaptability for various operational needs.

In summary, the Double Eccentric Butterfly Valve is a premium water valve solution that combines advanced engineering, high-quality materials, and versatile operation modes. Its stainless steel disc, enhanced by the Steel Disc Ring, delivers exceptional durability and sealing efficiency. The valve’s double eccentric design minimizes wear and maximizes performance, while certifications such as ISO, UL, and FM affirm its quality and reliability. Whether you require manual control through a bare head, or automated operation via gear or electric actuators, this valve offers a comprehensive solution for effective water flow management.

Features:

• Product Name: Double Eccentric Butterfly Valve
• Body Material: Ductile Iron
• Pressure Rating: PN10, PN16, PN25
• Application: Water
• Seat Material: EPDM
• Temperature Range: -10 to 80℃
• Features a Dovetail Design for enhanced sealing and durability
• Equipped with an EPDM Seal to ensure leak-proof performance
• Reliable and efficient Butterfly Valve suitable for various water applications

Technical Parameters:

Applications:

The AFC Double Eccentric Butterfly Valve, available in models FBBD and FBGD, is a highly reliable and versatile valve designed to meet a broad range of industrial and commercial application needs. Originating from China, this valve is engineered to perform efficiently within a temperature range of -10 to 80℃, making it suitable for various fluid control scenarios where temperature stability is critical. Adhering to international standards such as BS and ANSI, the AFC Double Eccentric Butterfly Valve guarantees quality and compatibility across diverse piping systems.

One of the key features of this valve is its double eccentric design, which ensures a tight seal and reduces wear on the sealing surfaces, thereby extending the valve's service life. The inclusion of an EPDM seal enhances its performance, providing excellent resistance to water, steam, and a wide range of chemicals, making it ideal for both industrial water treatment and chemical processing applications. The valve also incorporates a dovetail design, which allows for a secure and precise fit of the sealing components, enhancing overall reliability and minimizing leakage risks.

With sizes ranging from 1 to 72 inches and pressure ratings of PN10, PN16, and PN25, the AFC Double Eccentric Butterfly Valve is adaptable to various system requirements. Its flange connection type ensures easy installation and maintenance in piping networks. Additionally, the valve worm gear is available as an optional feature, enabling smooth and precise operation, especially in larger valve sizes or applications requiring frequent adjustments.

Typical application scenarios for the AFC Double Eccentric Butterfly Valve include water supply and distribution systems, HVAC systems, chemical and petrochemical industries, power generation plants, and food and beverage processing. Its robust construction and reliable sealing make it suitable for controlling the flow of liquids, gases, and slurries where tight shut-off and durability are paramount. Whether used in municipal water treatment plants or industrial manufacturing processes, this valve delivers consistent performance and long-lasting service.

Overall, the AFC Double Eccentric Butterfly Valve with models FBBD and FBGD is an excellent choice for professionals seeking a dependable valve solution that combines advanced design features such as valve worm gear availability, EPDM seals, and dovetail design. These attributes ensure superior operational efficiency, ease of maintenance, and adaptability to various demanding application occasions and scenarios.

Customization:

Our Double Eccentric Butterfly Valve, branded AFC and available in model numbers FBBD and FBGD, offers exceptional customization services to meet your specific needs. Manufactured in China, these valves are designed to operate efficiently within a pressure range of 0-2.5MPa and sizes ranging from 1 to 72 inches. Ideal for water applications, they come with pressure ratings of PN10, PN16, and PN25, ensuring reliable performance under various conditions.

The valves feature a sophisticated Double Eccentric design, which minimizes wear and enhances sealing performance. Additionally, the Dovetail Design ensures secure and precise assembly, while the Bare Head construction facilitates easy maintenance and operation. Customers can choose from multiple operation modes, including Manual, Gear, and Electric, to suit different installation requirements and automation preferences.

With AFC’s product customization services, you can tailor the Double Eccentric Butterfly Valve to your project's exact specifications, ensuring optimal functionality and durability in your water application systems.

Support and Services:

Our Double Eccentric Butterfly Valve is designed for reliable performance and durability in various industrial applications. For technical support, our team of experts is available to assist with installation guidance, troubleshooting, maintenance tips, and operational advice to ensure optimal valve performance.

We offer comprehensive services including valve inspection, repair, and refurbishment to extend the service life of your Double Eccentric Butterfly Valve. Additionally, customized solutions and upgrades are available to meet specific application requirements.

Technical documentation, including detailed product manuals, installation instructions, and maintenance procedures, are provided to support your operational needs. For complex issues, our support team can provide remote diagnostics and on-site assistance to resolve problems efficiently.

Regular training sessions and workshops are also offered to equip your personnel with the necessary knowledge and skills for proper valve handling and maintenance, ensuring safety and reliability in your operations.

Packing and Shipping:

Product Packaging:

The Double Eccentric Butterfly Valve is carefully packaged to ensure maximum protection during transportation and handling. Each valve is first wrapped in protective plastic film to prevent moisture and dust ingress. It is then securely placed in a custom-fitted wooden crate or reinforced cardboard box, depending on the valve size and customer requirements. Internal padding materials such as foam inserts or bubble wrap are used to minimize movement and absorb shocks. All packaging materials comply with international shipping standards to guarantee the valve arrives in perfect condition.

Shipping:

Our Double Eccentric Butterfly Valves are shipped worldwide using reliable freight carriers. We offer multiple shipping options including sea freight, air freight, and land transport to suit customer timelines and budgets. Before dispatch, each valve undergoes thorough inspection and testing to meet quality standards. Shipping documentation such as packing lists, certificates of origin, and quality certificates are prepared and provided. We also offer tracking services and support to ensure timely and safe delivery to the customer’s specified location.

FAQ:

Q1: What are the model numbers available for the AFC Double Eccentric Butterfly Valve?

A1: The AFC Double Eccentric Butterfly Valve is available in model numbers FBBD and FBGD.

Q2: Where is the AFC Double Eccentric Butterfly Valve manufactured?

A2: The AFC Double Eccentric Butterfly Valve is manufactured in China.

Q3: What makes the double eccentric design of this butterfly valve different from a single eccentric valve?

A3: The double eccentric design means the valve disc has two offsets which reduce friction between the seat and the disc during operation, resulting in longer service life and better sealing performance compared to single eccentric valves.

Q4: What applications are suitable for the AFC Double Eccentric Butterfly Valve?

A4: This valve is suitable for a variety of applications including water treatment, HVAC systems, chemical industries, and other industrial fluid control systems.

Q5: What materials are used in the construction of the AFC Double Eccentric Butterfly Valve?

A5: The valve body and disc are typically made from durable metals such as cast iron or stainless steel, while the sealing components are made from resilient materials to ensure tight sealing and corrosion resistance.
