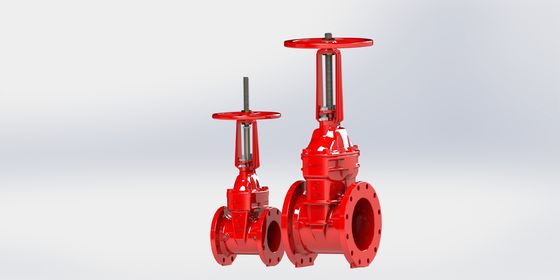

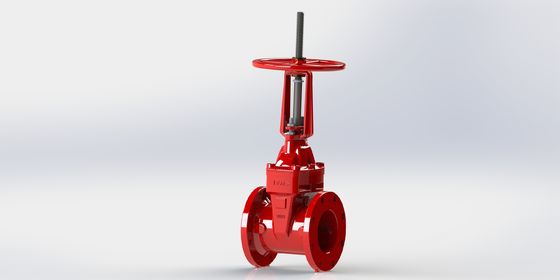

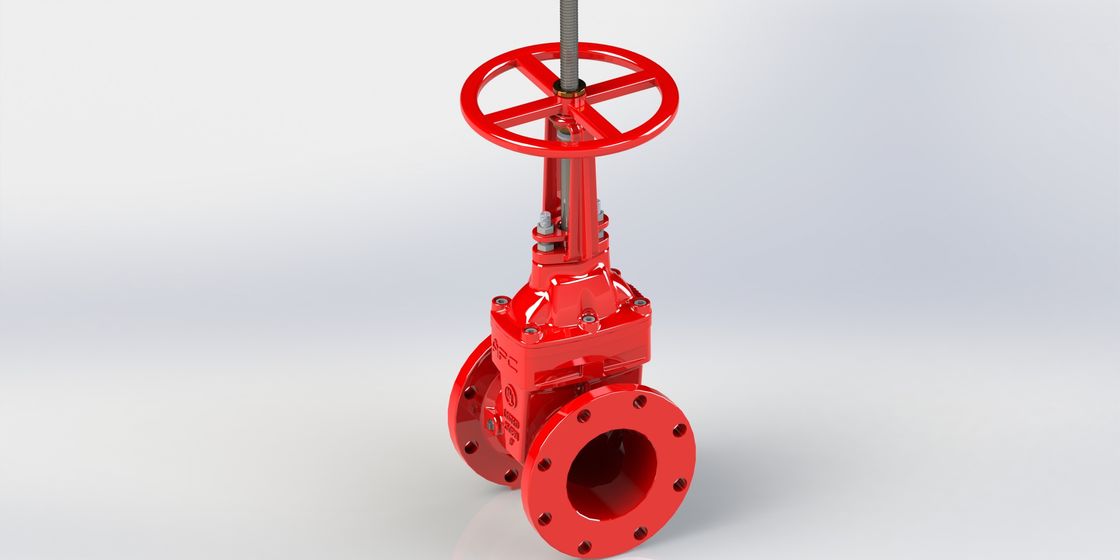

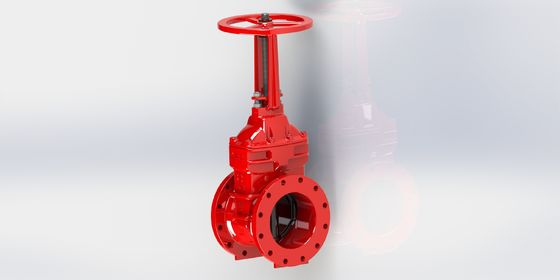

UL FM Approved Fire Fighting Gate Valve with Ductile Iron Construction and EPDM Seal for Enhanced Safety

Product Description:

The UL FM Gate Valve is a high-quality valve specifically designed for fire protection and water control systems. Engineered to meet rigorous industry standards, this valve is UL FM Approved, ensuring it complies with the stringent requirements necessary for fire fighting systems. Its robust construction and reliable performance make it an essential component in any fire safety infrastructure, providing both safety and durability.

Constructed from durable ductile iron, the UL FM Gate Valve offers excellent strength and resistance to wear and corrosion. Ductile iron is known for its superior mechanical properties compared to traditional cast iron, providing enhanced toughness and flexibility. This makes the valve well-suited to withstand the demanding conditions typically encountered in fire fighting applications. The use of ductile iron ensures a long service life and reduced maintenance costs, making it a cost-effective solution for fire protection systems.

The valve is designed to handle pressure classes of 125 and 150, making it adaptable to various system requirements. This pressure rating ensures that the valve can operate safely under the typical pressures found in fire water supply networks, providing reliable shutoff and flow control when it is most needed. The UL FM Approved Water Gate Valve is built to manage these pressure levels without compromising performance or safety.

Operating within a temperature range of -10℃ to 80℃, this gate valve is suitable for a wide range of environmental conditions. This temperature tolerance ensures that the valve can function effectively in both cold and moderately warm climates, maintaining its sealing integrity and mechanical performance. This wide temperature range adds to the valve’s versatility, allowing it to be installed in different geographic locations and various fire fighting system designs.

Connection options for the UL FM Gate Valve include flanged and grooved ends, providing flexibility for installation and compatibility with different piping systems. Flanged connections are ideal for permanent installations where a secure and leak-proof joint is required, while grooved connections allow for quicker assembly and easier maintenance. This versatility in connection types ensures that the valve can be seamlessly integrated into existing fire fighting water networks or new installations.

The sealing component of the valve utilizes EPDM (ethylene propylene diene monomer) rubber, known for its excellent resistance to heat, ozone, and aging. EPDM seals provide a tight and reliable closure, preventing leaks and ensuring consistent valve performance over time. The use of EPDM also enhances the valve’s ability to maintain its sealing properties within the specified temperature range, which is crucial for maintaining system integrity during fire emergencies.

As a UL FM Approved Water Gate Valve, this product has undergone rigorous testing and certification processes to verify its performance, reliability, and safety. Being UL FM Approved means it meets the standards set by Underwriters Laboratories (UL) and Factory Mutual (FM), two highly respected organizations in the fire protection industry. This certification is a testament to the valve’s quality and suitability for critical fire fighting systems, providing peace of mind to engineers, contractors, and end-users alike.

In summary, the UL FM Gate Valve is a reliable, durable, and versatile valve solution designed specifically for fire fighting systems. With a pressure rating of Class 125/150, a temperature range from -10℃ to 80℃, and construction from ductile iron, it ensures robust performance under demanding conditions. The availability of flanged and grooved connections facilitates easy installation, while the EPDM seal guarantees leak-proof operation. Most importantly, its UL FM Approved certification affirms its quality and compliance with fire safety standards, making it an ideal choice for protecting lives and property through effective fire water management.

Features:

• Product Name: UL FM Gate Valve
• Standard: ANSI/UL/FM
• Size Range: 2” – 12”
• Certificate: UL/FM Approved
• Seal Material: EPDM
• Operating Temperature: -10℃ to 80℃
• Type: Flange or Groove Type Non Rising Stem Resilient Seated Valve
• UL FM Approved Water Gate Valve
• Durable and reliable for water supply systems

Technical Parameters:

Applications:

The AFC UL FM Gate Valve series, including models FRHF, FNCF, FRHG, and FNCG, is specifically engineered to meet the rigorous demands of fire protection and industrial applications. Manufactured in China, these valves are designed to operate efficiently within a temperature range of -10℃ to 80℃, making them suitable for a variety of environmental conditions. With a pressure rating of Class 125/150 and sizes ranging from 2” to 12”, these valves offer versatility for different piping systems.

One of the primary application occasions for the AFC UL FM Gate Valve is in fire fighting systems. Their UL FM Approved certification ensures compliance with strict safety and performance standards, which is critical for firefighting infrastructure. The valves are commonly installed in sprinkler systems, standpipe systems, and other fire suppression assemblies, where reliable shutoff and flow control are essential. The Red Epoxy Coated exterior not only provides excellent corrosion resistance but also visually indicates their purpose in fire protection, facilitating easy identification during emergency situations.

In addition to fire fighting systems, these gate valves are also suitable for commercial and industrial water supply lines where dependable isolation and flow regulation are required. Their EPDM seals provide excellent sealing performance, ensuring leak-tight operation and durability over time. This makes the valves ideal for use in HVAC systems, irrigation setups, and general plumbing applications where temperature and pressure conditions fall within the specified range.

The AFC UL FM Gate Valve models are also favored in maintenance and repair scenarios due to their robust construction and compliance with ANSI/UL/FM standards. Their Red Epoxy Coated finish enhances longevity by protecting against rust and environmental wear, making them a cost-effective choice for long-term installation in critical systems. Whether it’s a new installation or an upgrade of existing fire fighting or water control systems, these valves deliver trusted performance and safety assurance.

Overall, the AFC UL FM Approved gate valves with their dependable EPDM seals, broad temperature tolerance, and Red Epoxy Coated finish are indispensable components in fire fighting systems and various industrial applications. They ensure reliable operation, safety compliance, and durability, making them the preferred choice for engineers and contractors focused on quality and performance.
