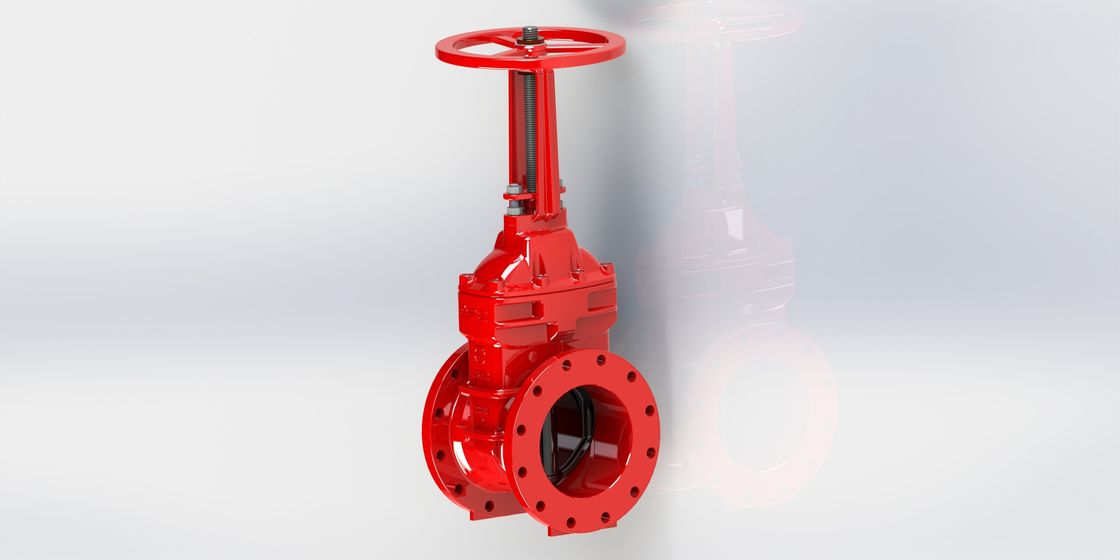

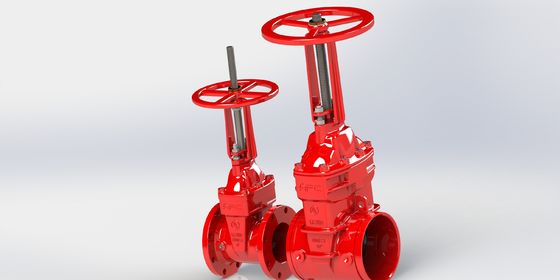

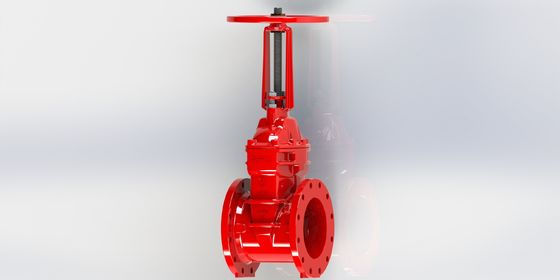

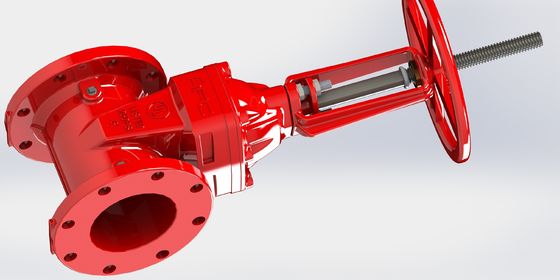

UL FM Gate Valve with EPDM Seal and Fusion Bonded Epoxy Coating for Fire Fighting Systems in 2" to 12" Sizes

Product Description:

The UL FM Approved Water Gate Valve is a high-quality valve designed specifically for fire fighting systems, ensuring reliable performance and safety in critical applications. Engineered with precision and manufactured from durable ductile iron, this valve meets stringent industry standards and is certified by both UL and FM, making it an ideal choice for fire protection infrastructure.

One of the standout features of this UL FM Approved Water Gate Valve is its robust construction using ductile iron, a material known for its excellent strength, toughness, and resistance to impact and corrosion. This ensures that the valve can withstand harsh environmental conditions and maintain optimal performance over an extended period, providing peace of mind to users and maintenance personnel alike.

The valve operates efficiently within a temperature range of -10℃ to 80℃, making it suitable for various climatic conditions and applications. Whether installed in cold or moderately warm environments, the UL FM Approved Water Gate Valve maintains its integrity and functionality, ensuring uninterrupted water flow control during emergencies.

Operation of the valve is user-friendly and versatile, featuring both a handwheel and a cap option. The handwheel allows for precise manual control, enabling operators to open or close the valve smoothly and securely. The cap option provides an additional layer of protection and convenience, safeguarding the valve mechanism from dust, debris, and other contaminants, thereby extending its service life and reducing maintenance requirements.

In terms of coating, the valve is finished with a fusion bonded epoxy coating. This advanced painting technique not only enhances the valve’s aesthetic appeal but also provides superior resistance to corrosion, abrasion, and chemical exposure. The fusion bonded epoxy coating ensures that the valve maintains its structural integrity and appearance even after prolonged exposure to water and environmental elements, which is critical for components used in fire fighting systems.

The UL FM Approved Water Gate Valve is specifically designed to meet the rigorous demands of fire fighting systems. Its certification by UL (Underwriters Laboratories) and FM (Factory Mutual) is a testament to its reliability, safety, and compliance with industry standards. These certifications assure installers, inspectors, and end-users that the valve has been tested and approved for use in fire protection applications, contributing to effective fire suppression and protection of property and lives.

Installation of this valve is straightforward, and its design ensures minimal pressure drop, facilitating efficient water flow when needed most. The valve’s gate mechanism provides a positive shutoff, preventing leakage and ensuring that water is delivered precisely where it is required during firefighting operations. This level of control is vital for maintaining system integrity and operational effectiveness.

In summary, the UL FM Approved Water Gate Valve is an essential component for any fire fighting system, offering durability, reliability, and certified safety. Its ductile iron construction, wide temperature operating range, fusion bonded epoxy coating, and dual operation modes make it a superior choice for fire protection professionals seeking dependable valve solutions. By choosing this UL FM Approved Water Gate Valve, users ensure that their fire fighting systems are equipped with a valve that meets the highest standards of quality and performance.

Features:

• Product Name: UL FM Gate Valve
• Size Range: 2” to 12”
• Painting: Fusion Bonded Epoxy Coating for enhanced durability
• Pressure Rating: Class 125/150
• Certificate: UL/FM Approved for fire fighting system applications
• Operating Temperature: -10℃ to 80℃
• Specifically designed for fire fighting system use

Technical Parameters:

Applications:

The AFC UL FM Gate Valve, available in models FRHF, FNCF, FRHG, and FNCG, is a high-quality Flange Or Groove Type Non Rising Stem Resilient Seated Valve designed to meet the rigorous demands of modern fire protection systems. Manufactured in China with ductile iron and finished with a durable fusion bonded epoxy coating, this valve ensures long-lasting performance and resistance to corrosion in various environments. Its design adheres strictly to ANSI/UL/FM standards, making it UL FM Approved and highly reliable for critical applications.

This valve is specifically engineered for use in fire fighting systems, where dependable shut-off and flow control are essential. Its resilient seated design guarantees tight sealing even under fluctuating pressures, classified under Class125/150, thus preventing leaks that could compromise system integrity. The non rising stem feature offers compact installation benefits and ease of operation in confined spaces, a critical factor in fire safety installations.

The AFC UL FM Gate Valve is ideally suited for installation in fire sprinkler systems, standpipe systems, and other fire suppression setups in commercial, industrial, and residential buildings. Its flange or groove type connection options provide flexible compatibility with various piping configurations, facilitating easier integration into existing fire protection networks. The valve’s robust construction and UL/FM approval certify its suitability for use in life safety applications, where performance reliability is non-negotiable.

Additionally, this valve finds application in waterworks, HVAC systems, and municipal water supply lines where fire safety considerations are paramount. The fusion bonded epoxy coating enhances the valve’s durability, making it resistant to wear, chemicals, and environmental factors, thereby extending service life and reducing maintenance needs. AFC’s commitment to quality and adherence to international standards ensures that the UL FM Gate Valve models FRHF, FNCF, FRHG, and FNCG deliver superior performance in all fire fighting system scenarios.

In summary, the AFC UL FM Gate Valve is a trusted choice for professionals seeking a reliable, efficient, and code-compliant valve solution for fire fighting systems. Its resilient seating, ductile iron construction, and UL/FM certification make it indispensable for safeguarding lives and property in emergency situations.
