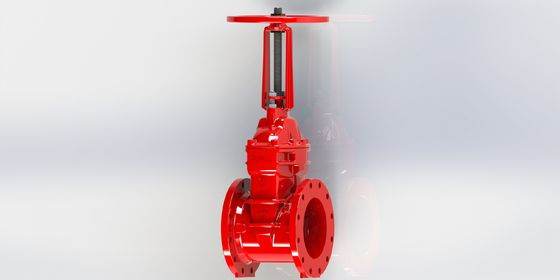

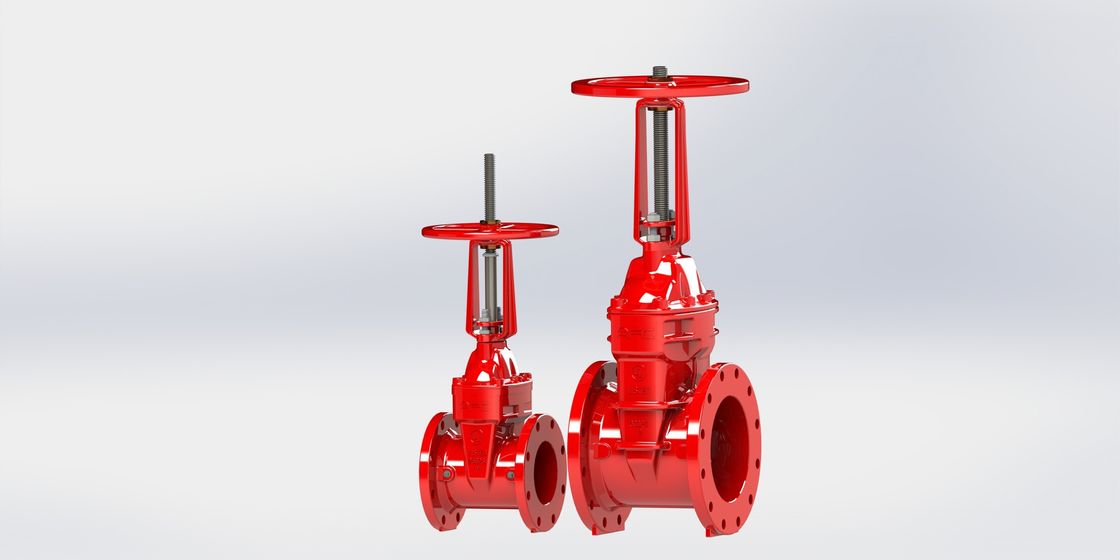

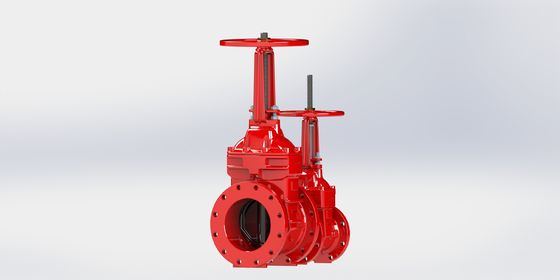

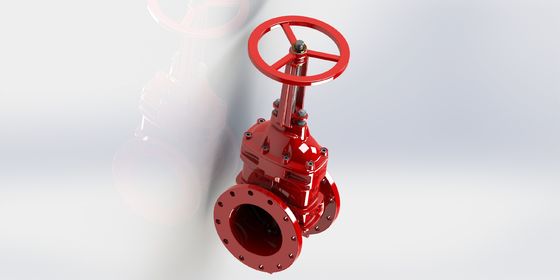

UL FM Certified Ductile Iron Gate Valve with Light Operation Torque for Fire Protection Systems

Product Description:

The UL FM Gate Valve is a high-quality valve designed to meet the rigorous standards required for fire protection systems and other critical applications. Engineered with precision, this valve offers reliable performance and durability, making it an ideal choice for various industrial and commercial installations. Featuring both flanged and grooved connection options, the UL FM Gate Valve ensures versatile compatibility with different piping systems, facilitating easy installation and maintenance.

One of the standout features of this valve is its compliance with UL and FM standards, which guarantees that it has been tested and approved for safety, reliability, and performance. These certifications make the UL FM Gate Valve a trusted component in fire protection networks where failure is not an option. The valve conforms to ANSI/UL/FM standards, providing users with confidence in its operational integrity and adherence to industry benchmarks.

Designed to operate efficiently within a temperature range of -10℃ to 80℃, the UL FM Gate Valve is suitable for a wide variety of environments. This temperature tolerance ensures that the valve can function optimally under different climatic conditions, from cold winter temperatures to warmer operational settings. This broad range of usability makes it a versatile valve suitable for both indoor and outdoor installations.

Another important attribute of the UL FM Gate Valve is its fusion bonded epoxy coating, which offers superior corrosion resistance and durability. This coating protects the valve body from rust, chemical exposure, and environmental wear, significantly extending its service life. The robust painting method also maintains the valve’s aesthetic appeal and structural integrity, ensuring long-term reliability even in harsh conditions.

Moreover, the valve is engineered for light operation torque, which means it requires minimal effort to open or close. This feature is especially beneficial in emergency situations where quick and easy valve operation is critical. The light operation torque reduces the strain on operators and minimizes the risk of mechanical failure due to excessive force. It also enhances the overall user experience by providing smooth and responsive control over fluid flow.

The UL FM Approved Water Gate Valve is designed to provide a tight seal, preventing leakage and ensuring efficient flow regulation. Its gate mechanism allows for unobstructed flow when fully open, minimizing pressure drop and maintaining system efficiency. This makes the valve an excellent choice for water supply, sprinkler systems, and other fire protection applications where reliable shutoff is necessary.

In summary, the UL FM Gate Valve combines robust construction, certified safety standards, and user-friendly operation into a single, dependable product. The availability of both flanged and grooved connections adds installation flexibility, while the fusion bonded epoxy coating ensures longevity and resistance to corrosion. Operating efficiently within a wide temperature range from -10℃ to 80℃, this valve meets the demands of diverse environments. Its light operation torque feature enhances ease of use and operational safety, making it a preferred choice for fire protection systems worldwide. With its ANSI/UL/FM standard compliance, the UL FM Approved Water Gate Valve offers unmatched reliability and performance, ensuring peace of mind for system designers, installers, and operators alike.

Features:

• Product Name: UL FM Gate Valve
• Standard: ANSI/UL/FM certified
• Connection Types: Flanged or Grooved
• Operation: Handwheel and Cap options available
• Design: UL/FM compliant design
• Pressure Rating: Class 125/150
• Flange or Groove Type Non Rising Stem design
• Resilient Seated Valve for reliable sealing
• Red Epoxy Coated for corrosion resistance
• UL FM Approved for safety and quality assurance

Technical Parameters:

This UL FM Approved Water Gate Valve is specially designed for fire fighting systems, ensuring reliable performance and compliance with strict UL FM standards.

Applications:

The AFC UL FM Gate Valve, available in models FRHF, FNCF, FRHG, and FNCG, is a highly reliable valve designed for a variety of industrial and commercial applications. Manufactured in China from durable ductile iron, this valve operates efficiently within a temperature range of -10℃ to 80℃ and is rated for pressure Class125/150, making it suitable for medium-pressure fluid control systems. Its size range from 2” to 12” ensures versatility for different pipeline requirements.

This gate valve is particularly favored in scenarios where a Light Operation Torque is essential. The design incorporates a Light Operation Torque mechanism, allowing for smooth and effortless valve manipulation, which reduces wear on the operator and extends the service life of the valve. This feature is especially beneficial in environments where frequent valve adjustments are necessary or where operators require ease of use for safety and efficiency.

The AFC valve is available in both flange and groove connection types, providing flexibility in installation. The Flange Or Groove Type Non Rising Stem Resilient Seated Valve design ensures a compact structure and reliable sealing performance. The non-rising stem reduces the space needed for operation, making the valve ideal for tight or confined spaces often encountered in fire protection systems, HVAC, water treatment plants, and industrial piping networks.

In fire protection systems, the AFC UL FM Gate Valve models are commonly used due to their FM approval and UL listing, which meet the stringent safety standards required in fire sprinkler systems and emergency water supply lines. Their resilient seated construction guarantees tight shutoff to prevent leaks, which is critical for maintaining system integrity during emergencies.

Additionally, these valves are widely employed in municipal water supply, irrigation systems, and industrial fluid control where durability, ease of operation, and reliable sealing are paramount. The robust ductile iron body combined with the resilient seating material ensures long-lasting performance even under fluctuating temperatures and pressures.

Overall, the AFC UL FM Gate Valve with its Light Operation Torque, Flange Or Groove Type Non Rising Stem Resilient Seated Valve design, and versatile specifications is an ideal choice for applications demanding reliable flow control, easy operation, and durable construction across various industrial and commercial settings.
