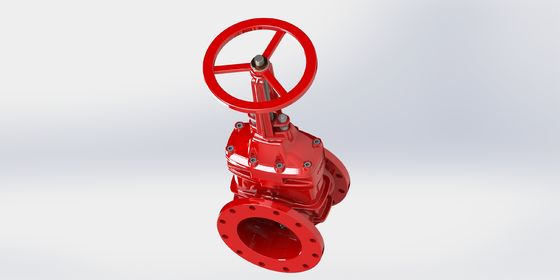

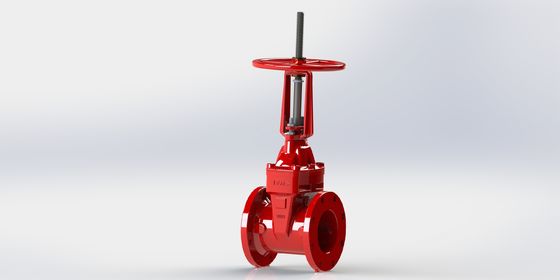

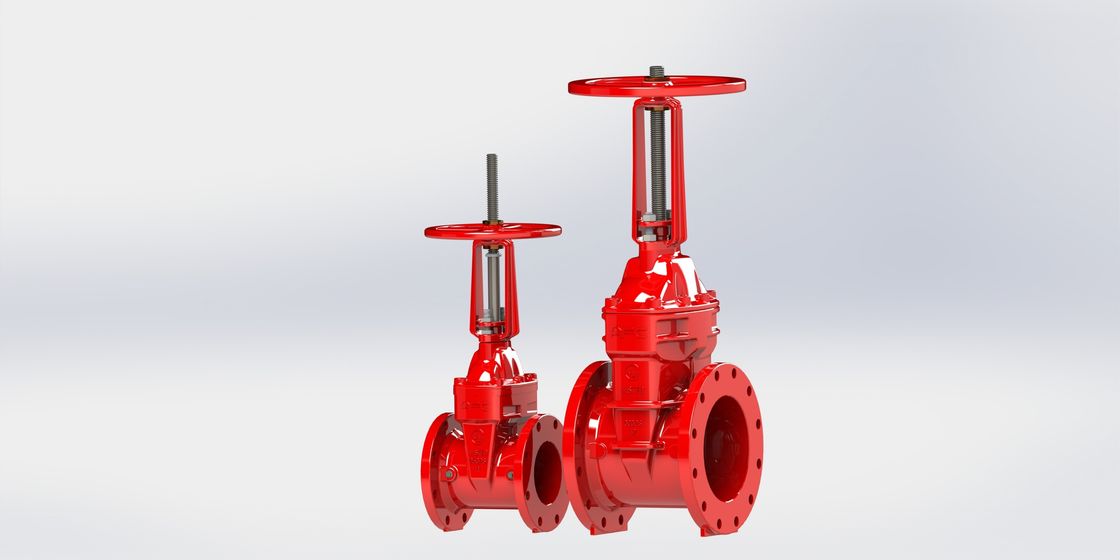

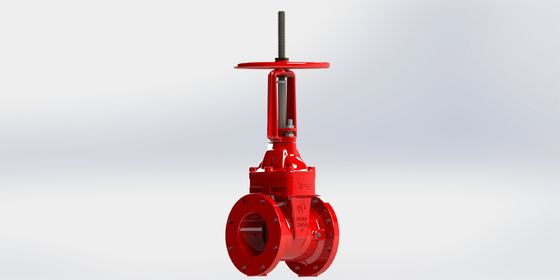

UL FM Gate Valve with Flanged/Grooved Connection and Fusion Bonded Epoxy Coating for EPDM Sealed Pipeline Systems

Product Description:

The UL FM Approved Water Gate Valve is a high-quality valve designed to meet rigorous standards and provide reliable performance in a variety of water control applications. Manufactured in accordance with the ANSI/UL/FM standards, this valve ensures safety, durability, and efficient operation in systems requiring stringent compliance. Its robust construction and superior materials make it an ideal choice for fire protection systems, municipal water supplies, and industrial water management.

Constructed from premium ductile iron, the valve boasts exceptional strength and resilience, making it capable of withstanding high pressure and demanding operational conditions. Ductile iron is well-known for its durability and resistance to impact, corrosion, and wear, which significantly extends the service life of the valve. This material choice ensures that the valve maintains its integrity and performance over time, even in harsh environments.

One of the standout features of this valve is its fusion bonded epoxy coating. The red epoxy coated finish not only provides an attractive and distinctive appearance but also offers excellent protection against corrosion and environmental damage. This coating adheres firmly to the valve surface, creating a tough barrier that prevents rust, chemical attack, and other forms of deterioration. The red epoxy coating is especially beneficial in fire protection systems where visibility and quick identification of components are crucial.

The valve is available in sizes ranging from 2 inches to 12 inches, catering to a wide range of installation requirements. This size range makes the valve versatile and adaptable to different pipeline configurations and flow capacities. Whether it is used in small-scale installations or larger industrial systems, the valve delivers consistent performance and reliable shutoff capabilities.

Designed for operation within a temperature range of -10℃ to 80℃, the valve is suitable for most water system applications that encounter varying thermal conditions. This temperature tolerance ensures that the valve components maintain their structural integrity and sealing capability without degradation or failure, providing consistent functionality across different environments.

The valve features a flange or groove type connection, offering flexibility in installation and compatibility with various piping systems. These connection options allow for easy integration into existing water networks and facilitate maintenance or replacement activities without extensive system downtime. The non-rising stem design further enhances the valve’s compactness and safety by preventing stem exposure during operation, which reduces the risk of damage and environmental contamination.

Equipped with a resilient seated mechanism, this gate valve ensures a tight and reliable seal when closed, minimizing leakage and maintaining system efficiency. The resilient seat adapts to minor imperfections in the sealing surfaces, providing enhanced sealing performance compared to traditional metal-seated valves. This feature is particularly important in water applications where leak prevention and pressure retention are critical.

In summary, the UL FM Approved Water Gate Valve is a dependable and expertly engineered solution for water flow control. Its compliance with ANSI/UL/FM standards guarantees quality and safety, while the ductile iron construction and fusion bonded red epoxy coating provide durability and corrosion resistance. With sizes ranging from 2” to 12”, flange or groove connections, a non-rising stem design, and a resilient seat, this valve offers versatility, ease of installation, and superior sealing performance. It is an excellent choice for fire protection and other water system applications requiring a reliable, long-lasting gate valve.

Features:

• Product Name: UL FM Gate Valve
• Seal: EPDM for reliable sealing performance
• Painting: Red Epoxy Coated with Fusion Bonded Epoxy Coating for enhanced corrosion resistance
• Connection: Available in Flanged and Grooved options
• Design: UL/FM certified ensuring compliance with industry standards
• Certificate: UL/FM Approved Water Gate Valve for guaranteed quality and safety

Technical Parameters:

For fire fighting system, Flange Or Groove Type Non Rising Stem Resilient Seated Valve, Red Epoxy Coated.

Applications:

The AFC UL FM Approved Water Gate Valve, available in models FRHF, FNCF, FRHG, and FNCG, is expertly designed and manufactured in China to meet the highest standards of performance and reliability. Engineered in accordance with ANSI/UL/FM standards, this gate valve guarantees exceptional quality and safety for various water control applications. Suitable for a wide temperature range of -10℃ to 80℃, the valve is ideal for use in diverse environmental conditions, ensuring consistent operation throughout the year.

This UL FM Approved Water Gate Valve is widely utilized in fire protection systems, municipal water supply networks, industrial water piping systems, and irrigation projects. Its robust design and EPDM seal provide excellent sealing performance, preventing leaks and ensuring long-term durability. The valve's design includes a handwheel and cap operation mechanism, which allows for precise and easy control of water flow, making it suitable for both professional and general maintenance use.

One of the standout features of this AFC gate valve is its light operation torque, which significantly reduces the effort required to open or close the valve. This attribute is particularly beneficial in scenarios where quick and reliable valve operation is critical, such as in emergency fire suppression systems or remote water distribution points. The light operation torque enhances user safety and efficiency, making the valve a preferred choice for engineers and technicians.

The AFC UL FM Approved Water Gate Valve is also commonly found in commercial and residential buildings where reliable water shutoff is necessary for maintenance or emergency situations. Its compliance with UL/FM standards ensures that it meets rigorous testing criteria, making it suitable for use in insurance-approved fire protection systems. Additionally, the valve’s EPDM seal offers excellent resistance to aging, weathering, and various chemicals, ensuring sustained performance in harsh environments.

In summary, the AFC UL FM Approved Water Gate Valve series (FRHF, FNCF, FRHG, FNCG) offers a dependable, easy-to-operate solution for water flow control across a variety of applications. Whether installed in fire protection, municipal, industrial, or residential water systems, its durable design, compliance with UL/FM standards, and light operation torque make it an indispensable component for reliable water management.
