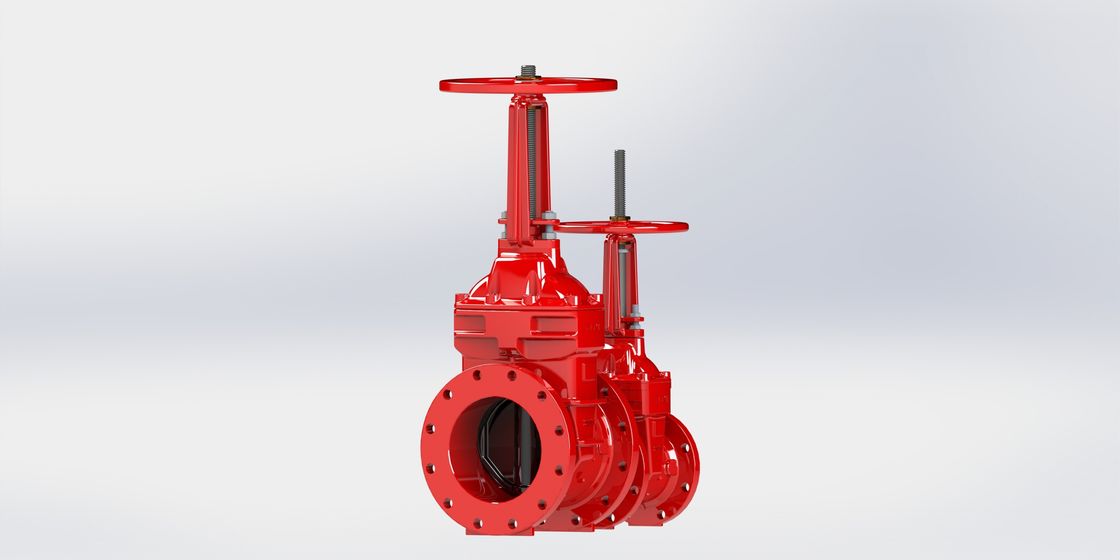

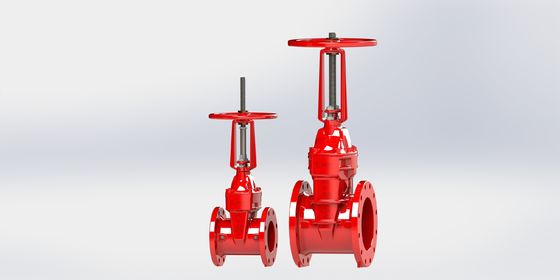

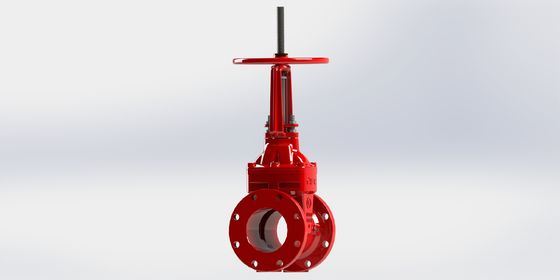

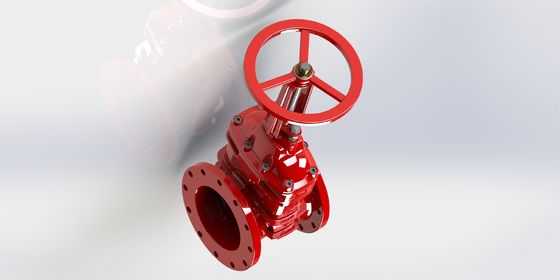

UL FM Gate Valve with EPDM Seal and Fusion Bonded Epoxy Coating for Fire Fighting Systems

Product Description:

The UL FM Gate Valve is a high-quality valve specifically designed for fire fighting systems, ensuring reliable and efficient operation under demanding conditions. This valve is engineered to meet the rigorous standards of ANSI, UL, and FM, making it an ideal choice for safety-critical applications where performance and durability are paramount. Available in sizes ranging from 2 inches to 12 inches, the valve caters to a wide variety of piping requirements in fire protection networks, providing versatility and ease of integration into existing systems.

One of the standout features of this UL FM Gate Valve is its robust construction and superior coating. It is finished with a Red Epoxy Coated surface utilizing Fusion Bonded Epoxy Coating technology. This advanced coating method guarantees excellent corrosion resistance, extending the service life of the valve even in harsh environments. The red color not only complies with fire safety color coding but also enhances visibility, which is crucial during emergency situations when quick identification is necessary.

The valve is designed with a Class 125/150 pressure rating, ensuring it can handle the operating pressures commonly found in fire fighting systems without compromising on safety or functionality. This pressure class certification confirms the valve’s capability to withstand high-pressure conditions, maintaining a tight seal and smooth operation throughout its service life.

Connection options for the UL FM Gate Valve include Flanged and Grooved ends, providing flexibility for installation and compatibility with various piping configurations. The flange or groove type connection ensures secure attachment, ease of maintenance, and quick assembly or disassembly when required. This versatility in connection types makes it suitable for a broad range of fire protection systems, from commercial buildings to industrial facilities.

Another key attribute of this valve is its Non Rising Stem design combined with a Resilient Seated mechanism. The non rising stem configuration allows the valve stem to remain in a fixed position while the gate moves up and down, which reduces the overall space needed for valve operation and protects the stem from external damage and corrosion. The resilient seat provides a tight seal by flexing to accommodate minor imperfections and pressure variations, ensuring leak-free performance and enhancing the reliability of the fire fighting system.

Overall, the UL FM Gate Valve is a dependable and durable valve solution tailored for fire fighting systems. Its compliance with ANSI, UL, and FM standards confirms that it meets the highest quality and safety requirements. The combination of Red Epoxy Coated finish, flexible connection options (Flanged or Grooved), Class 125/150 pressure rating, and the specialized Non Rising Stem Resilient Seated design makes it a superior choice for protecting lives and property through efficient fire suppression.

Whether you are upgrading an existing fire fighting network or designing a new system, this valve provides the reliability, strength, and ease of maintenance that professionals demand. Its robust design and premium coating ensure long-term durability, while its thoughtful engineering details contribute to smooth, trouble-free operation. Choose the UL FM Gate Valve for a trusted valve solution that aligns with industry standards and delivers peace of mind in critical fire protection applications.

Features:

• Product Name: UL FM Gate Valve
• Type: Flange Or Groove Type Non Rising Stem Resilient Seated Valve
• Application: For fire fighting system
• Painting: Fusion Bonded Epoxy Coating
• Pressure Rating: Class125/150
• Certificate: UL/FM Approved
• Seal Material: EPDM
• Operation: Handwheel, Cap

Technical Parameters:

Applications:

The AFC UL FM Gate Valve, available in models FRHF, FNCF, FRHG, and FNCG, is a high-quality valve designed to meet the rigorous demands of fire protection and industrial applications. Manufactured in China from durable ductile iron, these valves are engineered to provide reliable performance in critical situations. Featuring a red epoxy coated finish, the valve not only offers excellent corrosion resistance but also ensures easy identification in fire fighting system installations.

These gate valves are suitable for a wide range of application occasions and scenarios. Primarily designed for fire fighting systems, they play a vital role in controlling water flow within sprinkler and standpipe systems, ensuring safety and compliance with ANSI/UL/FM standards. The valves’ robust construction and red epoxy coated surface make them ideal for use in both indoor and outdoor fire protection environments, where durability and visibility are essential.

In addition to fire fighting systems, AFC UL FM Gate Valves are widely employed in various industrial settings where reliable shut-off solutions are required. Their operation via handwheel or cap allows for easy manual control, making them suitable for maintenance and emergency shut-off situations. The valves accommodate a size range from 2” to 12”, providing versatility for different pipe diameters and system requirements.

The temperature tolerance from -10℃ to 80℃ ensures that the AFC gate valves perform efficiently in diverse climatic conditions, including cold storage facilities and moderate industrial environments. Their ductile iron construction guarantees strength and longevity, reducing the need for frequent replacements and maintenance.

Overall, the AFC UL FM Gate Valve, with its red epoxy coated finish, is an essential component for fire fighting systems and other industrial applications requiring dependable flow control. The combination of quality materials, standardized certification, and user-friendly operation makes it a preferred choice for engineers and safety professionals seeking reliable valve solutions.
