No Slam Operation Surge Control Valve For Protecting Pumps / Pumping Equipment

No Slam Operation Surge Control Valve For Protecting Pumps / Pumping Equipment

  • No Slam Operation Surge Control Valve For Protecting Pumps / Pumping Equipment
  • No Slam Operation Surge Control Valve For Protecting Pumps / Pumping Equipment
  • No Slam Operation Surge Control Valve For Protecting Pumps / Pumping Equipment
  • No Slam Operation Surge Control Valve For Protecting Pumps / Pumping Equipment
No Slam Operation Surge Control Valve For Protecting Pumps / Pumping Equipment
Product Details:
Place of Origin: China
Brand Name: AFC
Certification: ISO 9001
Model Number: A2A5
Payment & Shipping Terms:
Minimum Order Quantity: 1
Price: USD RMB
Packaging Details: Plywood cases
Delivery Time: 15-60 days
Payment Terms: L/C, T/T
Supply Ability: Based on order
Contact Now
Detailed Product Description
Material: Ductile Iron GJS500-7 Pilot Material: SS304
Standard: EN1074-5 Color: Blue
Diaphragm: Nylon Reinforcement With EPDM Rubber: EPDM
High Light:

surge anticipator valve

,

surge anticipating control valve

,

Blue Surge Control Valve

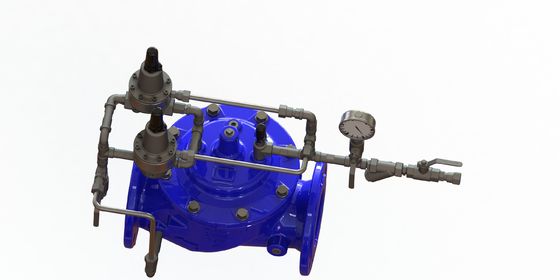

Surge anticipating Valve Anti Water Hammer Stainless Steel Pilots Nylon Reinforcement Diaphragm Ductile Iron ​







    A2A5 is a surge anticipation valve and is for protecting pumps, pumping equipment and all applicable pipelines from dangerous pressure surges caused by rapid changes of flow velocity within a pipeline.
    When pumping systems are started and stopped gradually, harmful surges do not occur. Should a power failure take place, however the abrupt stopping of the pump can cause dangerous surges in the system
which could result in severe equipment damage.
    Power failure to a pump will usually result in a down surge in pressure, followed by an up surge in pressure. The surge control valve opens on the initial low pressure wave, diverting the returning high pressure wave from the system. In effect, the valve has anticipated the returning high pressure wave and is open to dissipate the damage causing surge. The valve will then close slowly without generating any further pressure surges.



Features:



• No slam operation
• Simple and reliable design
• Easy installation and maintenance
• Low Resistance and high flow capacity
• Protection for sewage as well as clean water pumping systems



Service Fields:


For water system, irrigation system.



Technical Data:



Size DN50-DN800
Working Temperature - 10C- 80C
Flange AISI B16.1 Or PN16
Flow Media Clean Water



Consult Factory for other applications
IP68 for water resistance
Comply with BS EN 1074-5, ISO 5208, BS EN 12266-1, BS EN 558-1



Materials And Dimension



DN50-DN350

No Slam Operation Surge Control Valve For Protecting Pumps / Pumping Equipment 0

No Description Material Standard
1 Body Ductile Iron GJS500-7
2 Seat Stainless Steel ANSI 304/316
3 O-ring Rubber NBR
4 O-ring Rubber NBR
5 Bolt Stainless Steel A2/A4
6 Washer Stainless Steel A2/A4
7 Bonnet Ductile Iron GJS500-7
8 Bush Bronze C61900
9 Spring Stainless Steel ANSI 304/316
10 Caulking Nut Stainless Steel A4
11 Diaphagm Nylon Reinforced Rubber EPDM+Nylon Fabric
12 Fixing holder Ductile Iron GJS500-7
13 Disc Holder Ductile Iron GJS500-7
14 Seal Rubber EPDM
15 Seat Retainer Stainless Steel ANSI 304/316
16 Stem Stainless Steel ANSI 304/316
17 Plug Stainless Steel ANSI 304/316
18 Screw Stainless Steel A2/A4
19 Plug Stainless Steel A2/A4
20 Wsher Stainless Steel A2/A4



Dimension Unit:MM
DN Model Code L φD Φk H N-φd ΦB
PN10 PN16 PN25 PN10 PN16 PN25 PN10 PN16 PN25 PN10 PN16 PN25
50 A900-0050 230 165 165 165 125 125 125 177 4-φ19 4-φ19 4-φ19 φ99 φ99 φ99
65 A900-0065 290 185 185 185 145 145 145 202 4-φ19 4-φ19 8-φ19 φ118 φ118 φ118
80 A900-0080 310 200 200 200 160 160 160 219 8-φ19 8-φ19 8-φ19 φ132 φ132 φ132
100 A900-0100 350 220 220 235 180 180 190 243 8-φ19 8-φ19 8-φ23 φ156 φ156 φ156
*125 A900-0125 400 250 250 270 210 210 220 243 8-φ19 8-φ19 8-φ28 φ156 φ156 φ156
150 A900-0150 480 285 285 300 240 240 250 333 8-φ23 8-φ23 8-φ28 φ211 φ211 φ211
200 A900-0200 600 340 340 360 295 295 310 428 8-φ23 12-φ23 12-φ28 φ266 φ266 φ274
250 A900-0250 730 405 405 425 350 355 370 478 12-φ23 12-φ28 12-φ31 φ319 φ319 φ330
300 A900-0300 850 460 460 485 400 410 430 538 12-φ23 12-φ28 16-φ31 φ370 φ370 φ389
*350 A900-0350 980 520 520 555 460 470 490 550 16-φ23 16-φ28 16-φ34 φ429 φ429 φ448
Note 1.DN125 DN350 use same internel as DN100 DN300
2.A1SI 304 factory standard material. Consult factory for AISI 316material



DN400-DN800



No Slam Operation Surge Control Valve For Protecting Pumps / Pumping Equipment 1

No. Description Material Standard
1 Body Ductile Iron GJS500-7
2 Seat Stainless Steel ANSI 304/316
3 Screw Stainless Steel A2/A4
4 Screw Stainless Steel A2/A4
5 Screw Stainless Steel A2/A4
6 Spring Stainless Steel ANSI 304/316
7 Bonnet Ductile Iron GJS500-7
8 Bush Bronze C61900
9 O-ring Rubber NBR
10 Fix Washer Bronze C61900
11 Diaphagm Nylon Reinforced Rubber EPDM+Nylon Fabric
12 Eye Bolts Carbon Steel 1040
13 Fix Holder Ductile Iron GJS500-7
14 Disc Holder Ductile Iron GJS500-7
15 Seal Rubber EPDM
16 Seal Retainer Ductile Iron GJS500-7
17 Stem Stainless Steel ANSI 304/316
18 Plug Stainless Steel ANSI 304/316
19 O-ring Rubber NBR
20 Cap Ductile Iron GJS500-7
21 Plug Stainless Steel ANSI 304/316
22 Screw Stainless Steel A2/A4
23 O-ring Rubber NBR
24 Screw Stainless Steel A2/A4
Dimension Unit:MM
DN Model Code L H φD Φk N-φd ΦB
PN10 PN16 PN25 PN10 PN16 PN25 PN10 PN16 PN25 PN10 PN16 PN25
400 A900-0400 1100 710 580 580 620 515 525 550 16-φ28 16-φ31 16-φ37 480 480 503
*450 A900-0450 1200 720 640 640 670 565 585 600 20-φ28 20-φ31 20-φ37 530 548 548
500 A900-0500 1250 822 715 715 730 620 650 660 20-φ28 20-φ34 20-φ37 582 609 609
600 A900-0600 1450 885 840 840 845 725 770 770 20-φ31 20-φ37 20-φ40 682 720 720
*700 A900-0700 1650 910 910 910 960 840 840 875 24-φ31 24-φ37 24-φ43 680 720 720
800 A900-0800 1850 1260 1025 1025 1085 950 950 990 24-φ34 24-φ40 24-φ49 901 901 928
Note 1.DN450 DN700 use same internel as DN400 DN600
2.A1SI 304 factory standard material. Consult factory for AISI 316material

Contact Details
Suzhou Alpine Flow Control Co., Ltd

Contact Person: Mr. Matt Liang

Tel: +86 15195674203

Fax: 86-512-6673-2928

Send your inquiry directly to us (0 / 3000)
