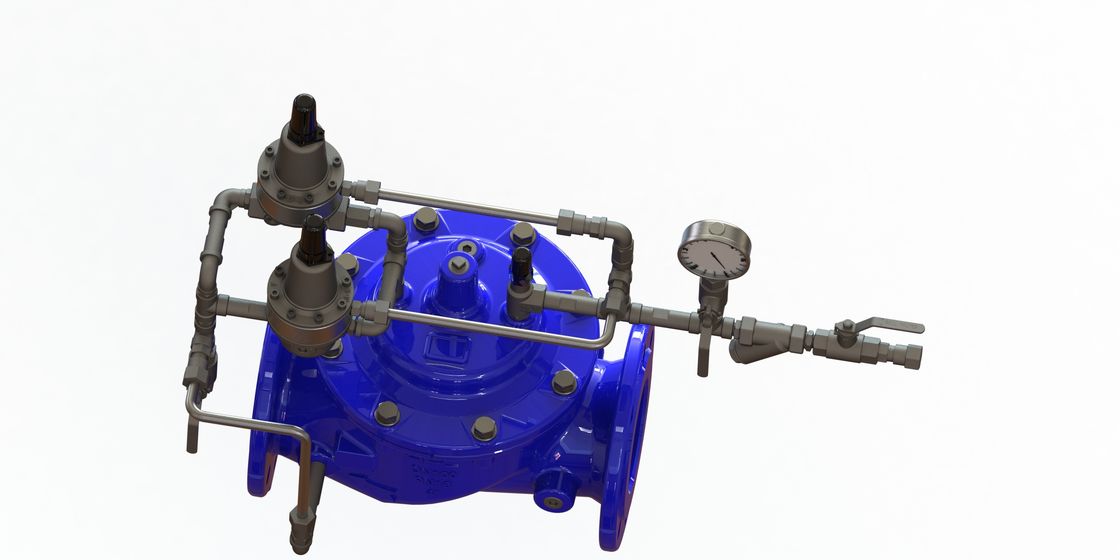

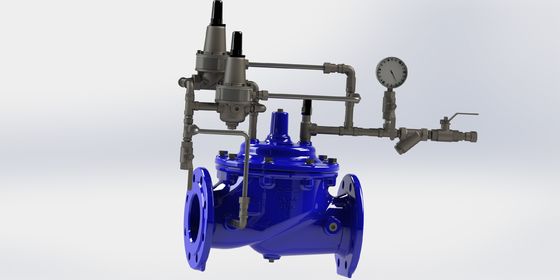

PN25 Surge Anticipating Valve with Flange End Connection and Nylon Reinforcement With EPDM Diaphragm

Product Description:

The Surge Anticipating Valve, model code A2A5, is a highly reliable and efficient component designed specifically for water systems to effectively manage and mitigate pressure surges. Crafted with precision and engineered for durability, this valve incorporates a ductile iron body that ensures exceptional strength and long-lasting performance under demanding conditions. Its robust construction makes it an ideal choice for a wide range of water system applications where pressure control and surge anticipation are critical for system integrity and safety.

One of the standout features of the A2A5 Surge Anticipating Valve is its globe type design. The globe type configuration is well-known for providing excellent throttling capabilities, precise flow control, and ease of maintenance. This design allows the valve to efficiently regulate water flow and pressure surges, preventing potential damage to pipelines and associated infrastructure. The globe type valve also offers a compact footprint, making it suitable for integration into various system layouts without requiring excessive space.

The valve’s diaphragm is constructed with nylon reinforcement combined with EPDM (Ethylene Propylene Diene Monomer) material. This combination offers a perfect balance of flexibility, strength, and chemical resistance. Nylon reinforcement enhances the mechanical durability of the diaphragm, ensuring it withstands repeated pressure fluctuations and mechanical stresses. EPDM, on the other hand, provides excellent resistance to water, steam, and various chemicals commonly found in water systems, contributing to the valve’s longevity and reliable operation.

Actuation of the Surge Anticipating Valve is manual, giving operators direct and precise control over the valve’s operation. The manual actuation type allows for straightforward adjustments and quick response to system conditions, which is especially valuable in scenarios requiring immediate intervention to manage pressure surges. This hands-on control mechanism enhances operational flexibility and ensures that the valve can be fine-tuned to meet specific system requirements.

Color-coded in RAL5005, a distinctive blue shade, the valve not only meets aesthetic and standardization requirements but also provides easy visual identification in complex piping networks. This color coding simplifies maintenance and inspection processes by allowing operators and technicians to quickly locate and identify the valve within the system.

Another critical feature of the A2A5 Surge Anticipating Valve is its pressure adjustable capability. This attribute enables users to set and modify the valve’s pressure threshold according to the unique demands of their water systems. Pressure adjustability is crucial for anticipating and responding to sudden pressure changes, thereby preventing potential water hammer effects and minimizing the risk of pipeline bursts or equipment damage. This adaptability makes the valve suitable for a variety of installations, from municipal water supply systems to industrial water management setups.

In summary, the Surge Anticipating Valve A2A5 combines the strength and durability of ductile iron construction with the precision and reliability of a globe type valve design. Its nylon-reinforced EPDM diaphragm ensures long-lasting performance and resistance to harsh water system conditions. With manual actuation, pressure adjustability, and a distinctive RAL5005 color, this valve is engineered to provide superior surge protection and pressure control in water systems. Whether deployed in large-scale municipal applications or specialized industrial environments, the A2A5 Surge Anticipating Valve stands out as a dependable and efficient solution for maintaining system stability and safeguarding infrastructure against pressure-related issues.

Features:

• Product Name: Surge Anticipating Valve
• Model Code: A2A5
• Temperature Range: 0-80℃
• Standard: EN1074-5
• Color: Ral5005
• Diaphragm: Nylon Reinforcement With EPDM
• EPOXY Coated for enhanced durability and corrosion resistance
• Designed to respond dynamically to pressure changes
• Ensures dynamically controlled surge anticipation to protect pipeline systems

Applications:

The AFC Surge Anticipating Valve, available in model numbers A2A5 and R2R5, is a highly reliable solution designed to protect pipeline systems from pressure surges. Manufactured in China, this valve is crafted from durable ductile iron and features a globe type design, ensuring optimal flow control and pressure management. Its epoxy-coated surface provides excellent resistance against corrosion, making it suitable for a variety of demanding environments.

With a maximum pressure rating of PN10, PN16, and PN25, the AFC Surge Anticipating Valve complies with the EN1074-5 standard, guaranteeing safety and performance in critical applications. The valve’s manual actuation type allows for precise operation, giving operators full control over the system’s response to pressure changes. This model, specifically the A2A5, is equipped with a unique surge anticipation function that helps detect and mitigate sudden pressure spikes before they cause damage to the pipeline network.

This valve is particularly suitable for water supply systems, wastewater treatment plants, and irrigation networks where pressure surges can lead to pipe bursts or operational failures. It is also ideal for use in industrial plants with complex fluid transport systems requiring consistent pressure regulation. The globe type configuration ensures smooth and reliable flow modulation, while the epoxy-coated ductile iron body ensures long-term durability even in harsh conditions.

In municipal water distribution networks, the AFC Surge Anticipating Valve is used to prevent hydraulic shock, protecting pumps, pipes, and other infrastructure components. Its surge anticipation function allows maintenance teams to proactively manage pressure fluctuations, reducing downtime and maintenance costs. Additionally, it finds application in fire protection systems where stable pressure is crucial for effective operation.

Overall, the AFC Surge Anticipating Valve A2A5 and R2R5 models are versatile and robust solutions suited for various pressure control scenarios. Their globe type design, combined with epoxy-coated ductile iron construction and compliance with EN1074-5 standards, ensures that they deliver reliable surge protection across multiple industrial, municipal, and agricultural applications.

Support and Services:

Our Surge Anticipating Valve is designed to protect pipeline systems from pressure surges by anticipating and mitigating water hammer effects. For technical support, please refer to the product manual for installation, operation, and maintenance guidelines to ensure optimal performance.

We offer comprehensive services including system analysis, custom valve configuration, and on-site support to help integrate the Surge Anticipating Valve into your existing infrastructure. Our team is equipped to provide troubleshooting assistance, performance evaluations, and preventive maintenance schedules tailored to your system's requirements.

Replacement parts and upgrade kits are available to enhance the functionality and extend the lifespan of your Surge Anticipating Valve. Regular software and firmware updates are provided to maintain compatibility with control systems and improve operational efficiency.

For detailed technical documentation, installation videos, and frequently asked questions, please visit our online support portal. Ensuring your system's safety and reliability is our priority, and we are committed to providing expert guidance and service throughout the product lifecycle.
