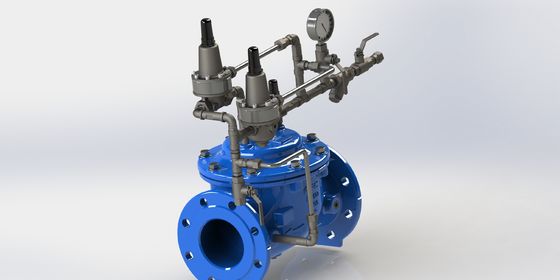

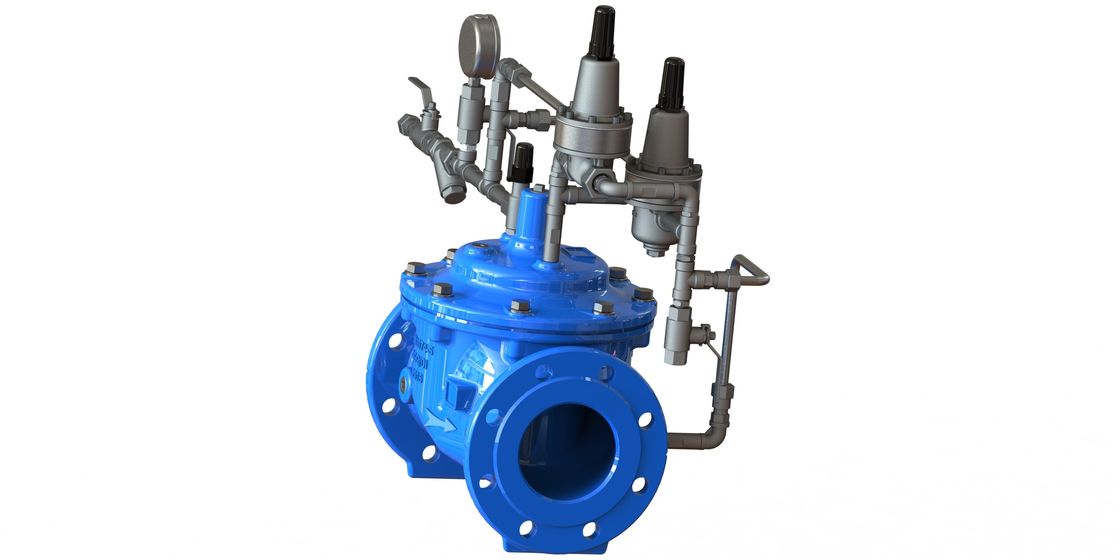

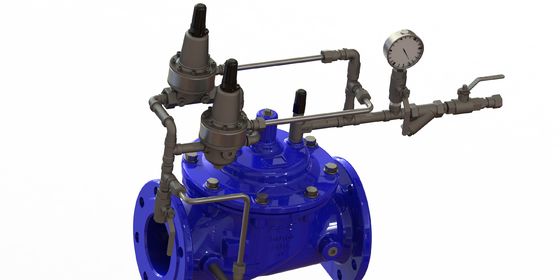

Manual Actuation PN10 Surge Anticipating Valve with EPDM Rubber for Enhanced Pressure Handling

Product Description:

The Surge Anticipating Valve, model code A2A5, is a highly reliable and efficient solution designed to protect pipeline systems from the damaging effects of pressure surges. Engineered to meet the stringent EN1074-5 standard, this valve ensures optimal performance in various industrial and municipal water applications. The valve's construction and design are focused on durability, safety, and ease of operation, making it an essential component for maintaining the integrity of fluid distribution networks.

One of the standout features of the Surge Anticipating Valve is its maximum pressure ratings, which include PN10, PN16, and PN25. This range of pressure classes allows the valve to be adaptable to different system requirements, catering to low, medium, and high-pressure environments. Whether the application involves standard pressure pipelines or more demanding high-pressure scenarios, the A2A5 model provides dependable surge anticipation to prevent pipeline damage caused by sudden pressure fluctuations.

The valve utilizes a manual actuation type, giving operators precise control over its operation. This manual actuation is designed to be user-friendly, enabling quick and accurate adjustments when necessary. The simplicity of manual operation combined with the valve’s robust design ensures that it can be efficiently maintained and serviced, minimizing downtime and maximizing system reliability.

Color-coded in RAL5005, the valve not only meets functional needs but also adheres to aesthetic standards, making it easily identifiable within a complex piping system. The RAL5005 blue finish is not just for appearance; it plays a significant role in protecting the valve body from external environmental factors, ensuring long-lasting performance.

Durability and resistance to corrosion are critical in valve design, and the Surge Anticipating Valve excels in these areas with its EPOXY Coated exterior. This epoxy coating provides a tough, protective layer that guards against rust, chemical exposure, and wear caused by environmental conditions. The coating extends the operational lifespan of the valve, making it a cost-effective investment for water and fluid control systems.

Hydraulically operated internally, the valve employs dynamic mechanisms that respond swiftly and accurately to pressure changes within the pipeline. This dynamic hydraulic operation enables the valve to anticipate surges and react promptly to mitigate any adverse effects. The hydraulically operated feature ensures smooth functioning and precise control, reducing the risk of water hammer and pressure spikes that could otherwise compromise the system's integrity.

Designed with precision engineering, the Surge Anticipating Valve dynamically adjusts to fluctuating pressures, maintaining system stability and protecting infrastructure. Its ability to anticipate pressure surges before they occur is a vital feature that enhances the safety and efficiency of water distribution networks and industrial fluid systems. This dynamic responsiveness is crucial in preventing pipeline bursts, equipment damage, and costly downtime.

In summary, the Surge Anticipating Valve A2A5 is a robust, manually actuated valve built to the EN1074-5 standard, capable of handling maximum pressures of PN10, PN16, and PN25. Its EPOXY Coated body ensures long-term corrosion resistance, while the hydraulically operated mechanism provides dynamic response to pressure surges. Finished in RAL5005 for durability and identification, this valve is an indispensable component for any system requiring reliable surge protection and precise manual control.

Features:

• Product Name: Surge Anticipating Valve
• Diaphragm: Nylon Reinforcement With EPDM
• Temperature Range: 0-80℃
• Feature: Surge Anticipation Function
• Color: Ral5005
• Model Code: A2A5
• With Accurate Pressure Control
• Hydraulically Operated

Applications:

The AFC Surge Anticipating Valve, model numbers A2A5 and R2R5, is a highly specialized component designed to enhance the protection and efficiency of water systems. Manufactured in China, this valve is built to handle maximum pressures of PN10, PN16, and PN25, making it suitable for a wide range of industrial and municipal water applications. Its robust construction features a Stainless Steel Pilot Controlled mechanism, which ensures precise and reliable operation under varying pressure conditions.

This Globe Type valve is hydraulically operated, providing smooth and efficient control over surge pressures within pipelines. The manual actuation type allows operators to easily engage and adjust the valve as needed, offering flexibility and control during maintenance or emergency scenarios. One of the standout features of the AFC Surge Anticipating Valve is its Surge Anticipation Function, which proactively mitigates pressure surges before they can cause damage. This function is critical in preventing water hammer effects that could lead to pipeline failure or costly downtime.

In practical applications, this valve is ideal for use in water distribution networks, pumping stations, and treatment plants where pressure stability is paramount. Its Ral5005 color coating not only provides an attractive finish but also adds an extra layer of corrosion resistance, extending the valve’s service life. The AFC Surge Anticipating Valve is particularly beneficial in systems with frequent start-stop pump operations, where sudden changes in flow can induce damaging pressure spikes.

Additionally, the valve’s stainless steel pilot control ensures durability and resistance to wear, even in harsh operating environments. This makes it suitable for both urban water supply systems and industrial water management where reliability is essential. Whether installed in new infrastructure or retrofitted into existing networks, the AFC Surge Anticipating Valve delivers superior surge protection and operational stability.

In summary, the AFC A2A5 and R2R5 models offer a comprehensive solution for managing hydraulic surges in water systems. Their combination of Stainless Steel Pilot Controlled technology, Globe Type design, and hydraulically operated actuation provides unmatched performance. These valves are indispensable in scenarios demanding precise pressure control and surge anticipation to safeguard pipelines and maintain uninterrupted water flow.

Support and Services:

For technical support and services related to the Surge Anticipating Valve, please refer to the product manual for detailed installation, operation, and maintenance instructions. Our technical support team is available to assist with troubleshooting, system integration, and performance optimization to ensure reliable surge protection in your piping systems. We recommend regular inspection and maintenance to guarantee optimal functionality and longevity of the valve. Replacement parts and service kits are available to maintain the valve's performance. For specialized service requirements or custom solutions, please consult our technical support specialists.
