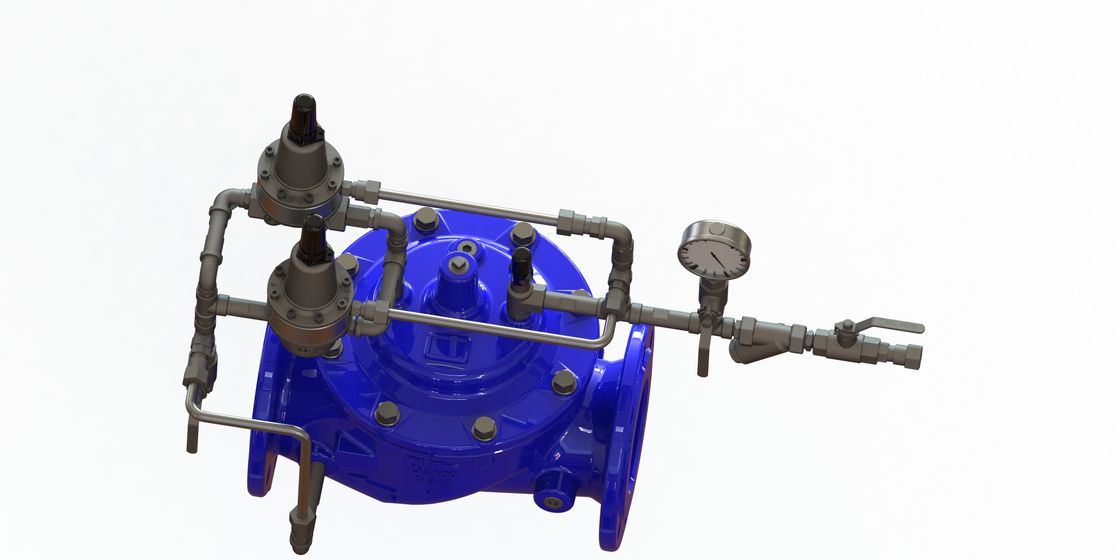

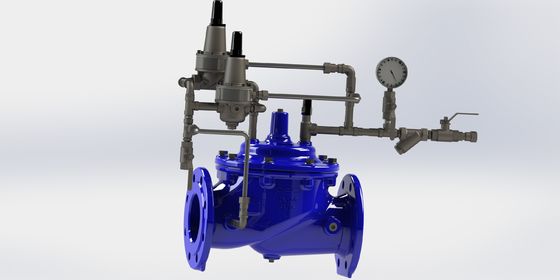

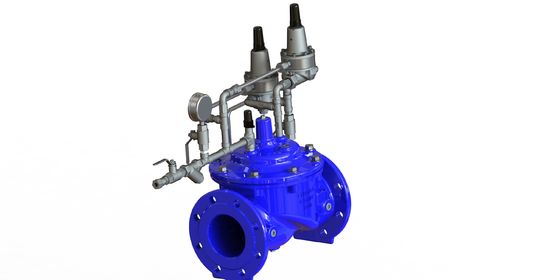

EPDM Rubber Coated Ductile Iron Surge Anticipating Valve with Surge Anticipation Function for Water Systems

Product Description:

The Surge Anticipating Valve is an advanced hydraulic control device specifically designed for water systems to effectively manage and mitigate pressure surges. Engineered with precision and reliability in mind, this valve is an essential component for maintaining the integrity and safety of water pipelines by anticipating and controlling sudden changes in pressure that can cause damage to the system.

Constructed from high-quality ductile iron, the Surge Anticipating Valve offers exceptional strength and durability, ensuring long-lasting performance even under demanding operational conditions. The ductile iron body is further enhanced with an EPOXY coating, providing superior corrosion resistance and protection against harsh environmental factors. This robust construction guarantees that the valve maintains its structural integrity and operational efficiency over extended periods, reducing maintenance costs and downtime.

One of the standout features of this valve is its surge anticipation function. Unlike traditional surge control valves that react to pressure changes after they occur, this valve is hydraulically operated to anticipate pressure surges before they reach critical levels. By detecting early signs of pressure fluctuations, the valve can modulate flow and pressure proactively, thereby preventing water hammer effects and minimizing the risk of pipeline bursts or damage. This proactive control mechanism is crucial for safeguarding water distribution networks, especially in large-scale municipal or industrial water systems.

Designed to operate within a wide temperature range of 0 to 80 degrees Celsius, the Surge Anticipating Valve is suitable for various water system applications, including potable water, irrigation, and industrial water supply. Its versatility in handling different temperature conditions makes it a reliable choice for diverse environments, ensuring consistent performance regardless of seasonal or operational temperature variations.

The valve is available with flange end connections, facilitating easy installation and integration into existing pipeline systems. Flanged connections provide a secure, leak-proof joint and allow for straightforward maintenance or replacement when necessary. This feature enhances the valve’s adaptability to different pipeline configurations and standards, making it a flexible solution for water system engineers and operators.

Moreover, the Surge Anticipating Valve supports multiple maximum pressure ratings including PN10, PN16, and PN25. This range of pressure classes ensures compatibility with various pipeline designs and pressure requirements, allowing for customized solutions tailored to specific water system needs. Whether the application demands moderate or high-pressure handling capabilities, this valve delivers reliable surge protection without compromising flow efficiency.

In summary, the Surge Anticipating Valve is a hydraulically operated, ductile iron valve with an EPOXY coated finish that excels in water system surge management. Its surge anticipation function provides proactive pressure control, protecting pipelines from the damaging effects of water hammer and sudden pressure spikes. With a wide operating temperature range of 0-80℃, flange end connections, and multiple pressure ratings (PN10, PN16, PN25), this valve offers a durable, versatile, and effective solution for maintaining the safety and reliability of water distribution networks.

Features:

• Product Name: Surge Anticipating Valve
• Standard: EN1074-5
• Model Code: A2A5
• Rubber Material: EPDM
• Temperature Range: 0-80℃
• Diaphragm: Nylon Reinforcement Diaphragm with EPDM
• Durable Nylon Reinforcement Diaphragm for enhanced performance
• EPOXY Coated for superior corrosion resistance

Applications:

The AFC Surge Anticipating Valve, model numbers A2A5 and R2R5, represents an advanced solution engineered for precise surge control in various fluid systems. Manufactured in China and conforming to the EN1074-5 standard, this valve ensures reliability and safety in critical applications. Featuring a manual actuation type, the valve is designed with a nylon-reinforced diaphragm incorporating EPDM, which guarantees durability and excellent resistance to wear and chemical exposure within a temperature range of 0-80℃.

This valve is particularly suitable for use in water supply networks, wastewater treatment plants, and industrial piping systems where surge anticipation is crucial to prevent pressure spikes that can damage infrastructure. Its stainless steel pilot controlled mechanism offers exceptional strength and corrosion resistance, making it ideal for harsh environments. The EPOXY coated exterior enhances the valve’s durability by protecting it from external corrosion and abrasion, thus extending its operational life even under demanding conditions.

In dynamically changing scenarios such as sudden valve closures or pump failures, the AFC Surge Anticipating Valve efficiently mitigates water hammer effects by anticipating and responding rapidly to pressure surges. This capability makes it indispensable in municipal water distribution systems, irrigation networks, and fire protection systems where maintaining system integrity is vital. Additionally, the valve’s manual actuation allows for precise control during maintenance or emergency interventions, providing operators with flexibility and confidence.

Moreover, the A2A5 model’s design caters to a wide temperature range from 0 to 80℃, making it versatile for both cold and moderately heated fluid applications. Its robust diaphragm construction using nylon reinforcement with EPDM ensures reliable sealing and long-term performance under dynamic pressure changes. Whether in industrial plants, commercial buildings, or utility infrastructures, the AFC Surge Anticipating Valve delivers dependable surge protection that enhances system safety and operational efficiency.

Support and Services:

Our Surge Anticipating Valve is designed to provide reliable protection against pressure surges in pipeline systems. For technical support, we offer comprehensive services including installation guidance, troubleshooting assistance, and maintenance recommendations to ensure optimal valve performance.

Our team of experts is available to assist with system design integration, helping you select the appropriate valve size and configuration for your specific application. We provide detailed product documentation, including operation manuals and technical datasheets, to support your engineering and maintenance teams.

We also offer training sessions and workshops to enhance your understanding of surge anticipation technology and valve operation. Regular maintenance services and inspection programs are available to extend the life of your valve and prevent system downtime.

For any technical inquiries, our specialists are ready to provide prompt and accurate solutions, ensuring your surge protection system operates efficiently and effectively.
