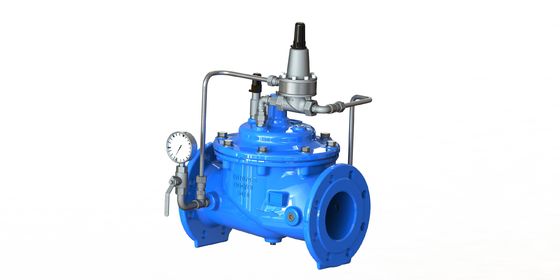

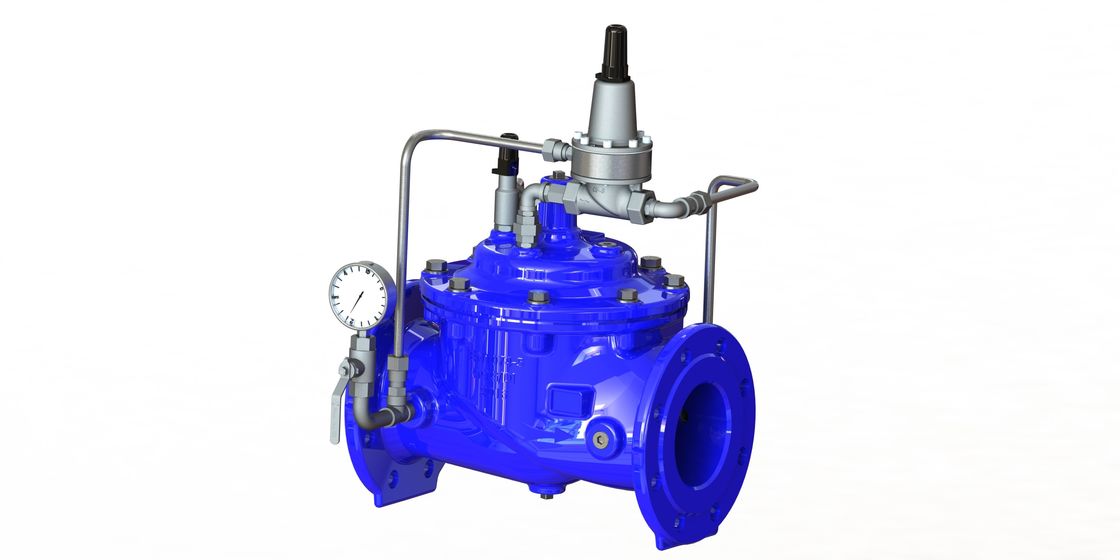

Product Description:
The Pressure Sustaining Valve is a crucial component designed to maintain a predetermined upstream pressure in various industrial and municipal fluid systems. Engineered for reliability and durability, this valve ensures consistent pressure control, protecting downstream equipment and piping from pressure fluctuations that could lead to damage or inefficiency. With its robust construction and advanced features, the Pressure Sustaining Valve is ideal for applications requiring precise pressure management under varying flow conditions.
One of the standout features of this valve is its flanged end connection, which provides a secure and leak-proof interface with the piping system. The flanged connection type is widely favored in industries due to its ease of installation, maintenance, and ability to withstand high-pressure environments. This valve supports a wide size range from 2 inches to 40 inches, making it versatile enough to fit small-scale to large-scale systems.
The valve is designed to operate within a pressure range of PN10 to PN25, which means it can sustain minimum pressures at PN10 and handle maximum pressures up to PN25. This broad pressure rating makes the valve suitable for a diverse set of applications, including water supply networks, irrigation systems, and industrial process control where pressure stability is critical.
Constructed with high-grade ductile iron (DI), the body of the Pressure Sustaining Valve offers exceptional strength and corrosion resistance. High grade DI is known for its excellent mechanical properties, including high tensile strength and impact resistance, which ensure the valve can withstand harsh operating conditions over extended periods. This material choice significantly enhances the valve’s lifespan and reliability.
Another key component of the Pressure Sustaining Valve is its stainless steel pilot. The stainless steel pilot plays a vital role in accurately sensing and regulating pressure. Stainless steel is chosen for its superior corrosion resistance, durability, and ability to perform reliably in both high and low-temperature environments. The integration of a stainless steel pilot ensures precise pressure control and contributes to the overall efficiency of the valve system.
The valve’s design incorporates a stainless steel pilot mechanism that ensures smooth operation and responsiveness to pressure changes. This feature minimizes the risk of pressure surges and helps maintain a stable pressure environment upstream. The dual presence of stainless steel pilots in the valve system exemplifies the commitment to quality and performance, ensuring long-term operational stability.
Installation of the Pressure Sustaining Valve is straightforward due to the flange connection type, which aligns easily with existing pipeline flanges. This feature reduces downtime during installation or maintenance, allowing for quick integration into new or existing systems. The valve's design also facilitates routine inspection and servicing, ensuring that system performance can be maintained without extensive disruption.
In summary, the Pressure Sustaining Valve with its flanged end connection, size availability from 2 to 40 inches, and pressure ratings from PN10 to PN25, coupled with the use of high-grade ductile iron and stainless steel pilots, represents a high-quality solution for maintaining stable pressure in fluid systems. Its robust construction and precise control capabilities make it an indispensable component in ensuring the safety, efficiency, and longevity of pipelines and related infrastructure.
Features:
- Product Name: Pressure Sustaining Valve
- Maximum Pressure: PN25
- Minimum Pressure: PN10
- Connection Type: Flange
- Valve Type: Pressure Sustaining Valve
- Operating Temperature: 0-80°C
- Features an intelligent design for optimized pressure control
- Equipped with a stainless steel pilot for enhanced durability
- Utilizes a stainless steel pilot to ensure long-lasting performance
Applications:
The AFC A500 Pressure Sustaining Valve is a high-performance valve designed to maintain a preset upstream pressure regardless of fluctuating downstream conditions. Manufactured in China, this valve boasts a robust construction with high-grade ductile iron (DI) and features a stainless steel pilot, ensuring durability and reliable operation under various demanding environments. Its flanged end connection simplifies installation and maintenance within piping systems ranging from 2 to 40 inches in size.
One of the primary application occasions for the AFC A500 Pressure Sustaining Valve is in water supply systems where maintaining consistent pressure is critical. For example, in municipal water distribution networks, the valve helps to prevent pressure drops that could affect water delivery to consumers, ensuring that the system operates smoothly within the maximum pressure limit of PN25. Its capability to operate within a temperature range of 0-80°C makes it suitable for both cold and moderately heated water systems.
Industrial processes requiring precise pressure control also benefit greatly from the AFC A500. In chemical plants or manufacturing facilities where pressure fluctuations can disrupt operations or damage equipment, this pressure sustaining valve stabilizes the pressure, protecting downstream components. The stainless steel pilot enhances the valve’s responsiveness and longevity, making it an ideal choice for continuous use in challenging industrial conditions.
The versatility of the AFC A500 extends to irrigation systems, where maintaining a steady pressure is essential for efficient water distribution to crops. The valve’s high-grade DI body ensures resistance to corrosion and mechanical stress, while the pressure sustaining function prevents backflow and maintains system integrity. This makes it suitable for agricultural applications ranging from small farms to large-scale irrigation networks.
Furthermore, the AFC A500 is often employed in fire protection systems to sustain pressure in supply lines, guaranteeing reliable water availability during emergencies. Its robust design and dependable pressure sustaining characteristics ensure that the fire suppression system remains ready to perform under critical conditions.
In summary, the AFC A500 Pressure Sustaining Valve is an essential component in a variety of scenarios including municipal water supply, industrial processes, irrigation, and fire protection systems. Its construction from high-grade DI, incorporation of a stainless steel pilot, flanged end connections, and ability to sustain pressure up to PN25 at operating temperatures from 0 to 80°C make it a reliable and versatile solution for maintaining system pressure and enhancing operational efficiency.
Support and Services:
Our Pressure Sustaining Valve product is backed by comprehensive technical support and services to ensure optimal performance and customer satisfaction. We provide detailed installation guides, maintenance manuals, and troubleshooting resources to assist users in the effective operation of the valve.
Our team of experienced engineers is available to offer expert advice on system integration, valve selection, and configuration to meet specific pressure requirements. We also offer training sessions and on-site support to help customers maximize the efficiency and lifespan of their pressure sustaining valves.
Additionally, we provide warranty services and prompt replacement parts to minimize downtime. Regular software updates and performance monitoring tools are available to keep the valve operating at peak conditions.
For any technical inquiries or service requests, customers can rely on our dedicated support team committed to delivering timely and professional assistance throughout the product lifecycle.
