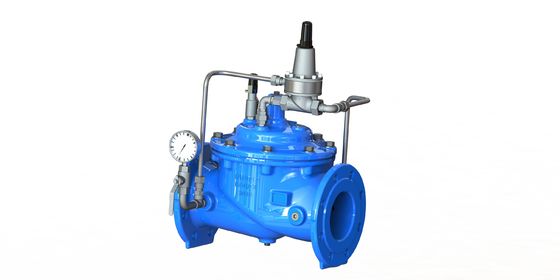

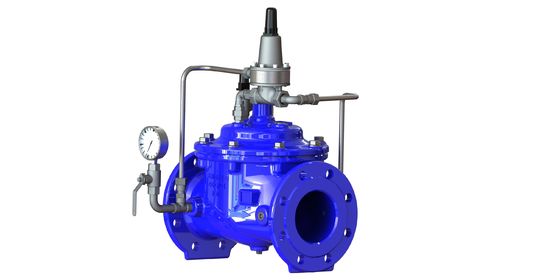

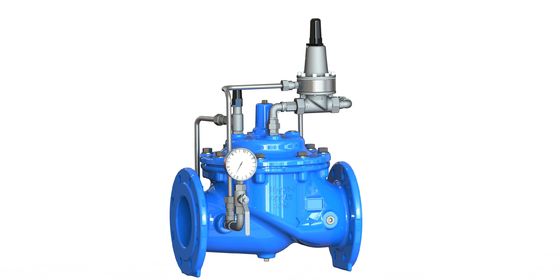

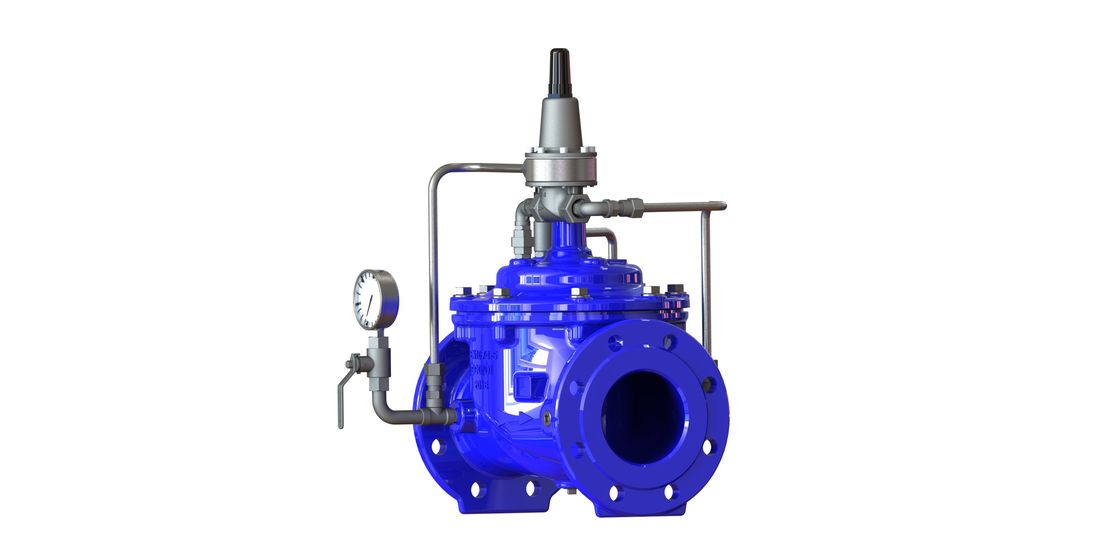

Product Description:
The Pressure Sustaining Valve is a highly reliable and efficient component designed to maintain a preset upstream pressure regardless of downstream demand fluctuations. Engineered to operate seamlessly within a wide range of industrial and municipal applications, this valve ensures system stability and protection by sustaining a consistent pressure level, thereby preventing potential damage to equipment and pipelines. With its robust construction and advanced features, the Pressure Sustaining Valve stands out as an essential element for achieving optimal hydraulic performance and long service time.
One of the key features of this valve is its impressive maximum pressure rating of PN25, which makes it suitable for demanding environments where higher pressure resistance is required. Additionally, it is capable of operating effectively at a minimum pressure of PN10, providing versatility across various pressure ranges. This broad pressure spectrum allows the valve to be integrated into different systems with ease, ensuring that pressure levels are maintained precisely as needed.
The valve is available in a wide range of sizes, spanning from 2 inches to 40 inches, catering to diverse pipeline diameters and flow requirements. This extensive size range makes it adaptable to both small-scale and large-scale applications, enhancing its usability across industries such as water treatment, irrigation, fire protection, and industrial process control. The availability of multiple sizes ensures that users can select the most appropriate valve dimension to match their specific system needs, thereby optimizing performance and efficiency.
Connection type is a critical consideration in valve selection, and this Pressure Sustaining Valve features a flange connection. Flanged connections are known for their robustness and ease of installation, providing a secure and leak-proof joint between the valve and pipeline. This connection type simplifies maintenance and replacement procedures, reducing downtime and operational costs. The flange design also supports high-pressure applications by offering enhanced mechanical strength and stability.
The operating temperature range for this valve is from 0 to 80°C, making it suitable for applications involving moderate temperatures. This temperature tolerance ensures the valve’s materials and components perform reliably without degradation or loss of function under typical operating conditions. It enables the valve to be used in environments such as water distribution systems, heating systems, and various industrial processes where temperature control is essential.
Durability and material quality are paramount for long-lasting valve performance, and this Pressure Sustaining Valve excels in these aspects. It incorporates a reinforced nylon diaphragm/diaphone, which significantly enhances its mechanical strength and flexibility. The reinforced nylon construction provides excellent resistance to wear, fatigue, and chemical exposure, contributing to the valve’s long service time. This diaphragm design ensures precise pressure control by responding accurately to pressure changes, thereby maintaining system stability.
Furthermore, the valve body is crafted from high-grade ductile iron (DI), known for its superior strength, toughness, and corrosion resistance. High-grade DI materials ensure the valve can withstand harsh operating conditions, including exposure to corrosive fluids and mechanical stresses. The combination of reinforced nylon diaphragms and high-grade ductile iron components guarantees a robust and reliable valve structure that delivers consistent performance over an extended period.
In summary, the Pressure Sustaining Valve is a vital component engineered to provide reliable pressure maintenance with excellent durability and adaptability. Its maximum pressure rating of PN25 and minimum pressure capability of PN10, along with an operating temperature range of 0-80°C, make it suitable for a variety of demanding applications. The availability of sizes from 2 to 40 inches with flange connections offers flexibility for diverse system configurations. Constructed with reinforced nylon diaphragm/diaphone and high-grade ductile iron, this valve ensures long service time and dependable operation, making it an ideal choice for maintaining pressure stability in complex hydraulic systems.
Features:
- Product Name: Pressure Sustaining Valve
- Maximum Pressure: PN25
- Minimum Pressure: PN10
- Material: High grade DI (Ductile Iron)
- Size Range: 2-40 Inch
- Operating Temperature: 0-80°C
- Equipped with Stainless steel pilot for enhanced durability
- Reinforced nylon diaphragm for reliable pressure control
Applications:
The AFC A500 Pressure Sustaining Valve, manufactured in China, is an essential component in various fluid control systems where maintaining a predetermined pressure is crucial. Designed with a robust ductile iron (DI) body, this valve offers high durability and reliability, making it suitable for demanding industrial and municipal applications. The valve features a reinforced nylon diaphragmdiaphone that ensures precise pressure regulation and long-term performance under fluctuating conditions.
This pressure sustaining valve is ideal for water distribution networks, where it helps maintain a minimum pressure of PN10 and can withstand a maximum pressure of PN25. Its operating temperature range of 0-80°C makes it versatile for use in both cold and moderately warm environments, ensuring stable operation across different seasons and settings. The flanged end connection facilitates easy installation and maintenance, which is vital for large-scale pipeline systems.
In irrigation systems, the AFC A500 valve plays a critical role by sustaining optimal pressure to prevent damage to sensitive equipment and ensure uniform water delivery. The high grade DI construction enhances corrosion resistance, which is particularly beneficial in outdoor and agricultural settings where exposure to moisture and chemicals is common. The reinforced nylon diaphragmdiaphone within the valve provides flexible yet strong pressure control, minimizing wear and extending service life.
Additionally, this valve is well-suited for industrial processes that require precise pressure management to protect machinery and maintain process stability. Its durable material composition and reliable design make it a preferred choice in factories and processing plants. The AFC A500’s ability to sustain pressure within the specified range ensures consistent operation of pumps and other downstream equipment, reducing downtime and maintenance costs.
Overall, the AFC A500 Pressure Sustaining Valve is a versatile and dependable solution for applications requiring accurate pressure control. Its combination of high grade DI material, reinforced nylon diaphragmdiaphone, and robust flanged connections ensures performance in a variety of scenarios including municipal water supply, irrigation, and industrial fluid systems. This valve is an excellent investment for maintaining system integrity and operational efficiency.
Support and Services:
Our Pressure Sustaining Valve product is backed by comprehensive technical support and services to ensure optimal performance and customer satisfaction. We provide detailed installation guides, maintenance manuals, and troubleshooting resources to assist you at every stage of the product lifecycle.
Our expert technical support team is available to address any inquiries related to product specifications, system integration, and operational issues. We also offer training sessions and workshops to help your staff gain in-depth knowledge and practical skills for handling the valve efficiently.
In addition, we provide customized engineering support for unique applications and can assist with system design to maximize efficiency and reliability. Our commitment extends to prompt after-sales service, including spare parts availability and repair services to minimize downtime.
By choosing our Pressure Sustaining Valve, you gain access to a dedicated support network focused on delivering solutions that meet your specific needs while ensuring safety and compliance with industry standards.
