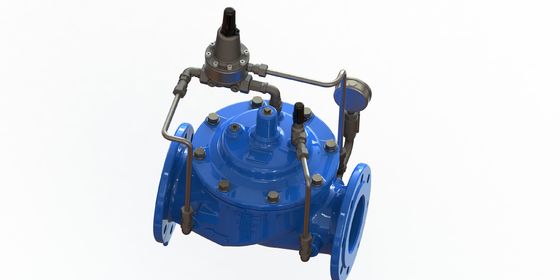

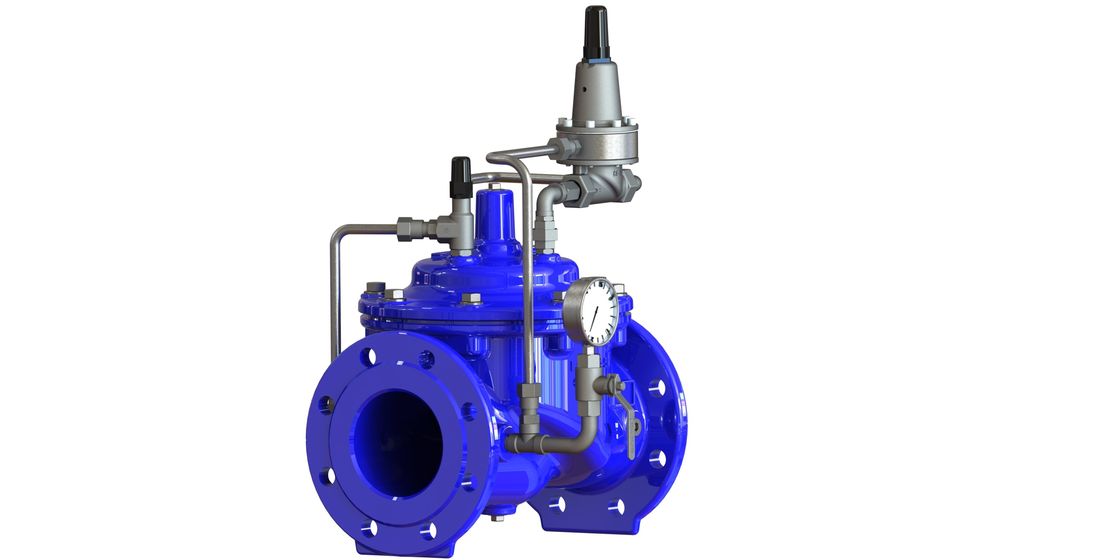

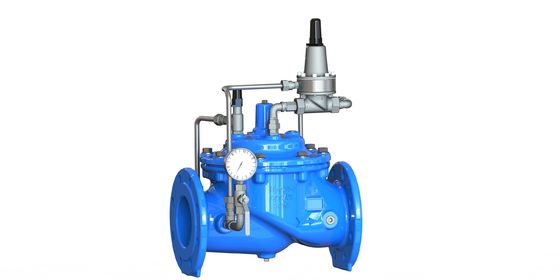

PN10 Minimum Pressure Sustaining Valve with Ductile Iron Construction and Flange Connection for Reliable Pressure Control

Product Description:

The Pressure Sustaining Valve is a highly reliable and durable valve designed to maintain consistent pressure within a piping system. Engineered with precision and crafted from premium ductile iron, this valve is built to withstand demanding industrial environments while ensuring optimal performance. Its robust construction and advanced features make it an essential component for systems requiring precise pressure control and protection against pressure drops.

One of the standout features of this Pressure Sustaining Valve is its connection type. It is equipped with a flange connection, which provides a secure and leak-proof joint that is easy to install and maintain. The flange connection also ensures compatibility with a wide range of piping systems, facilitating seamless integration into existing infrastructure. This makes the valve highly versatile and suitable for various industrial applications, including water supply, irrigation, HVAC systems, and more.

The valve is available in a comprehensive size range from 2 inches to 40 inches, accommodating different flow capacities and system requirements. This wide size range allows engineers and system designers to select the appropriate valve size that best fits their specific operational needs, ensuring optimal flow control and pressure sustaining capabilities. Whether it is a small-scale system or a large industrial setup, this valve can meet the demands efficiently.

Constructed from ductile iron, the valve offers excellent strength and durability. Ductile iron is known for its superior mechanical properties, including high tensile strength and excellent impact resistance. These characteristics enable the valve to perform reliably under high-pressure conditions and withstand the rigors of continuous operation. Additionally, the ductile iron material provides resistance against corrosion and wear, extending the service life of the valve and reducing maintenance costs.

The Pressure Sustaining Valve is rated for a maximum pressure of PN25, making it suitable for medium to high-pressure applications. This pressure rating ensures that the valve can sustain and regulate pressure effectively, preventing pressure drops that could compromise system performance or cause damage. The valve’s pressure sustaining function is critical in maintaining system stability, protecting downstream equipment, and ensuring safety across the pipeline network.

Another key aspect of this valve is its operating temperature range, which spans from 0 to 80°C. This temperature range covers a broad spectrum of applications, including hot water systems, industrial processes, and other environments where temperature control is vital. The valve’s design ensures consistent performance within this temperature range, providing reliable pressure regulation even under varying thermal conditions.

Integral to the valve’s performance is the incorporation of a stainless steel pilot. The stainless steel pilot plays a crucial role in the valve’s pressure sustaining mechanism by accurately sensing and responding to pressure changes within the system. Stainless steel, known for its corrosion resistance and strength, ensures that the pilot remains functional and durable over long periods, even in harsh operating environments. The use of a stainless steel pilot enhances the valve’s reliability and precision, contributing to its overall efficiency and longevity.

In summary, the Pressure Sustaining Valve with flange connection is a robust and versatile solution for maintaining stable pressure in various piping systems. Its ductile iron construction, wide size range from 2 to 40 inches, and maximum pressure rating of PN25 make it suitable for a diverse array of industrial applications. The valve’s ability to operate effectively within a temperature range of 0-80°C and its integration of a high-quality stainless steel pilot further elevate its performance and dependability. This pressure sustaining valve is an excellent choice for engineers and operators seeking a durable, efficient, and precise pressure control device.

Features:

• Product Name: Pressure Sustaining Valve
• Valve Type: Pressure Sustaining Valve
• Operating Temperature Range: 0-80°C
• Minimum Pressure: PN10
• Material: Durable Ductile Iron for long service time
• End Connection: Flanged for secure installation
• Equipped with Reinforced nylon diaphragm for enhanced durability
• Designed for efficient pressure sustaining performance

Applications:

The AFC A500 Pressure Sustaining Valve is a highly reliable and intelligent solution designed to maintain preset pressure levels in various fluid systems. Manufactured in China from high-grade ductile iron (DI), this valve ensures durability and long-lasting performance even in demanding environments. Its robust construction with a flanged end connection makes it ideal for integration into complex piping networks requiring secure and leak-free joints.

One of the core features of the AFC A500 is its reinforced nylon diaphragmdiaphone, which provides exceptional sensitivity and responsiveness to pressure changes. This advanced diaphragmdiaphone design enhances the valve’s ability to sustain pressure accurately, preventing system damage due to pressure fluctuations. The intelligent design of this pressure sustaining valve allows it to automatically adjust and maintain the minimum pressure at PN10, ensuring optimal system performance and safety.

The pressure sustaining valve is commonly applied in water supply systems, irrigation networks, and industrial fluid control scenarios where maintaining a constant pressure is critical. For example, in municipal water distribution, the AFC A500 prevents pressure drops that could disrupt supply or damage pipelines and equipment. In irrigation systems, it helps maintain consistent water pressure, promoting efficient water usage and protecting irrigation components from pressure-related wear.

Furthermore, the valve’s ductile iron body provides excellent resistance to corrosion and mechanical stress, making it suitable for both indoor and outdoor installations. Its flanged connection type facilitates easy installation and maintenance, which is especially valuable in large-scale industrial plants and water treatment facilities. The intelligent pressure sustaining valve from AFC is also ideal for use in HVAC systems, fire protection networks, and any application where pressure stability is essential to system integrity and operational efficiency.

Overall, the AFC A500 Pressure Sustaining Valve combines high-grade DI material, a reinforced nylon diaphragmdiaphone, and an intelligent control mechanism to deliver consistent and reliable pressure management. It is a versatile valve that meets the rigorous demands of modern fluid control systems, ensuring safety, efficiency, and longevity across a wide range of applications and scenarios.

Support and Services:

Our Pressure Sustaining Valve product is backed by comprehensive technical support and professional services to ensure optimal performance and reliability. We provide detailed installation guidance, troubleshooting assistance, and maintenance advice to help you maximize the lifespan and efficiency of your valve system.

Our team of experienced engineers is available to offer expert consultation for system design and customization to meet your specific pressure regulation needs. We also provide training resources and documentation to assist your technical staff in understanding the operational principles and best practices for using the Pressure Sustaining Valve.

In addition, we offer timely repair and replacement services, as well as software updates if applicable, to keep your valve operating at peak performance. Our commitment is to deliver exceptional customer service and technical expertise throughout the lifecycle of your Pressure Sustaining Valve product.
