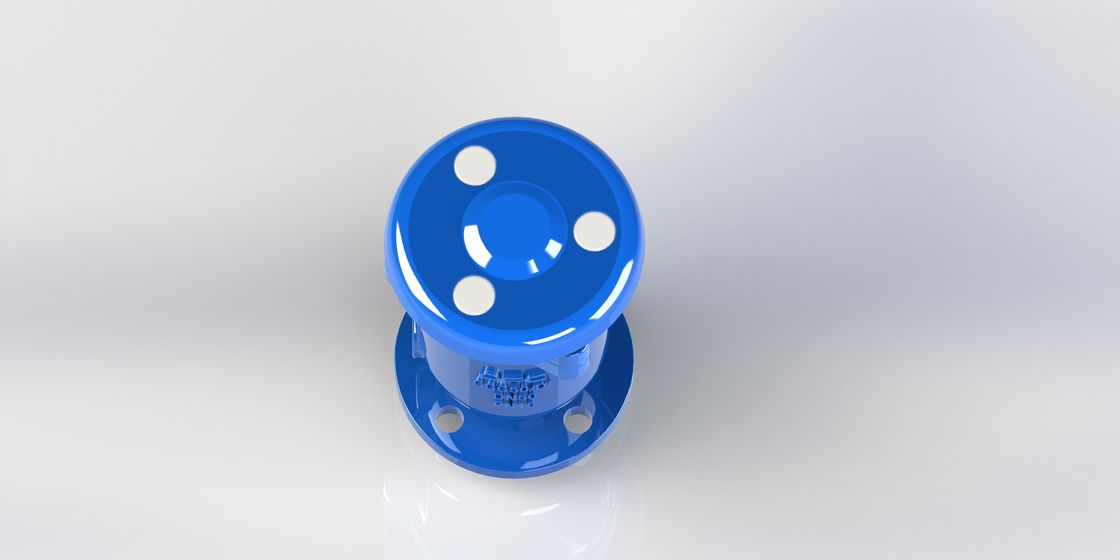

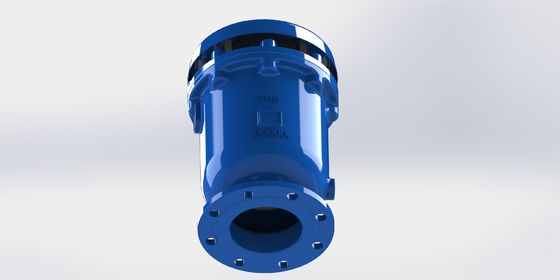

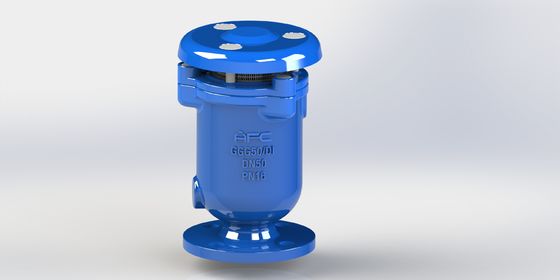

Ductile Iron Combination Air Release Valve with Stainless Steel Float and Resilient Seated Seal for Fluid Systems

Product Description:

The Combination Air Release Valve is a highly efficient and reliable solution designed to enhance the performance and safety of fluid handling systems. Engineered to meet stringent industry standards, this valve is ideal for applications requiring both air release and vacuum breaking functionalities. Built with a resilient seated seal, the valve ensures superior sealing performance, preventing leakage and maintaining system integrity under various operating conditions.

One of the standout features of this Combination Air Release Valve is its robust pressure rating, available in PN10, PN16, and PN25 options. This wide range of pressure ratings allows the valve to be used confidently in systems operating under different pressure requirements, from moderate to relatively high pressures. Whether it is for municipal water supply networks, irrigation systems, or industrial fluid systems, the valve delivers consistent and dependable performance.

The valve is designed with versatility in mind, offering multiple connection types to accommodate different installation needs. It comes with both threaded and flange connection options, making it compatible with a variety of piping systems. The threaded connection provides ease of installation and maintenance for smaller pipeline sizes, while the flange connection ensures a secure and stable fit for larger diameter pipes, ranging from 50mm up to 300mm in size. This broad size availability makes the Combination Air Release Valve suitable for many different applications and pipeline configurations.

Incorporating the latest Aero Kinetic technology, this valve effectively manages the release of trapped air within pipelines, which is crucial for maintaining system efficiency and preventing issues such as water hammer and flow obstruction. The valve’s combination function means it can automatically release accumulated air during normal operation and simultaneously act as a vacuum breaker when negative pressure conditions occur. This dual function protects pipelines from potential damage caused by vacuum conditions, such as pipe collapse or joint failure.

Manufactured in compliance with EN1074-4 standards, the Combination Air Release Valve guarantees high-quality construction and performance reliability. EN1074-4 compliance ensures that the valve meets European norms for performance, safety, and durability, providing confidence to engineers and operators in its application. The resilient seated seal type used in the valve enhances its sealing capability, allowing it to withstand repeated cycles of operation without degradation or leakage. This seal type is particularly beneficial in maintaining airtight closure during vacuum conditions, further solidifying the valve’s role as an effective vacuum breaker.

Maintenance and operational efficiency are key considerations in the design of this valve. The resilient seated combination air release valve requires minimal maintenance due to its durable construction and reliable sealing mechanism. Its design minimizes the risk of clogging and operational failure, ensuring long service life and reduced downtime. Additionally, the valve’s capability to handle both air release and vacuum breaking in a single unit reduces the need for multiple devices, simplifying system design and lowering installation costs.

In summary, the Combination Air Release Valve with pressure ratings of PN10, PN16, and PN25, available in sizes from 50mm to 300mm, and featuring both threaded and flange connections, is a versatile and essential component for modern pipeline systems. Its resilient seated seal, compliance with EN1074-4 standards, and incorporation of Aero Kinetic technology make it an outstanding choice for preventing air accumulation and protecting pipelines from vacuum damage. This valve not only enhances the operational efficiency of fluid systems but also ensures their longevity and safety, making it an indispensable asset in water distribution and industrial fluid management applications.

Technical Parameters:

Applications:

The Combination Air Release Valve, model KARX, branded by AFC / OEM and manufactured in China, is an essential component in various fluid handling systems. Certified to the stringent EN1074-4 standard, this valve ensures high reliability and safety in operation. With its triple functions, the Combination Air Release Valve effectively releases trapped air, prevents vacuum conditions, and allows the automatic air intake, making it indispensable in pipelines and water supply networks.

This product is designed with a resilient seated seal type, enhancing its durability and performance under varying pressure conditions. The valve’s connection types include both threaded and flange ends, providing versatile installation options to suit different piping systems. Whether you are working on municipal water distribution, irrigation systems, or industrial fluid transport, the KARX Combination Air Release Valve offers a robust solution to maintain system efficiency and prevent issues caused by air accumulation.

The valve’s triple functions make it suitable for numerous application occasions and scenarios. In municipal water supply networks, it helps in releasing air pockets that can cause flow interruptions or pressure surges. In irrigation systems, it prevents vacuum formation which can damage pipelines or pumps. Industrial plants benefit from its ability to automatically release air during system startup and intake air to avoid negative pressure during shutdowns.

Thanks to its EN1074-4 certification, the Combination Air Release Valve meets European quality and safety standards, assuring users of its performance and compliance. The valve is ideal for use in water treatment plants, HVAC systems, fire protection systems, and other fluid conveyance networks where air management is critical. Its rugged construction from high-quality materials ensures longevity even in harsh environments.

With a minimum order quantity of just one unit, the KARX Combination Air Release Valve is accessible for both large-scale projects and smaller maintenance needs. Its combination of triple functions, reliable seal design, and flexible connection options make it a preferred choice for engineers and maintenance professionals aiming to optimize system performance and reduce downtime.

Support and Services:

Product Technical Support and Services for the Combination Air Release Valve are designed to ensure optimal performance and longevity of the product. Our expert technical team provides comprehensive assistance including installation guidance, troubleshooting, maintenance advice, and performance optimization tips.

We offer detailed product documentation and user manuals to help you understand the valve’s features and operation. For installation, it is recommended to follow the specified procedures to prevent air accumulation and ensure efficient air release, which helps maintain system efficiency and reduce water hammer effects.

In case of operational issues, our support services include diagnostics to identify common problems such as valve clogging, leakage, or improper air discharge. We provide step-by-step solutions to resolve these issues promptly and effectively.

Regular maintenance is advised to keep the Combination Air Release Valve functioning correctly. This includes periodic inspection, cleaning of internal components, and replacement of worn parts. Our technical support can assist in scheduling maintenance and recommending suitable service intervals based on your system’s requirements.

Additionally, we offer training sessions and technical workshops to help your team gain in-depth knowledge about the product and its applications. Our goal is to empower users with the skills needed to maximize the reliability and efficiency of the Combination Air Release Valve in various fluid systems.
